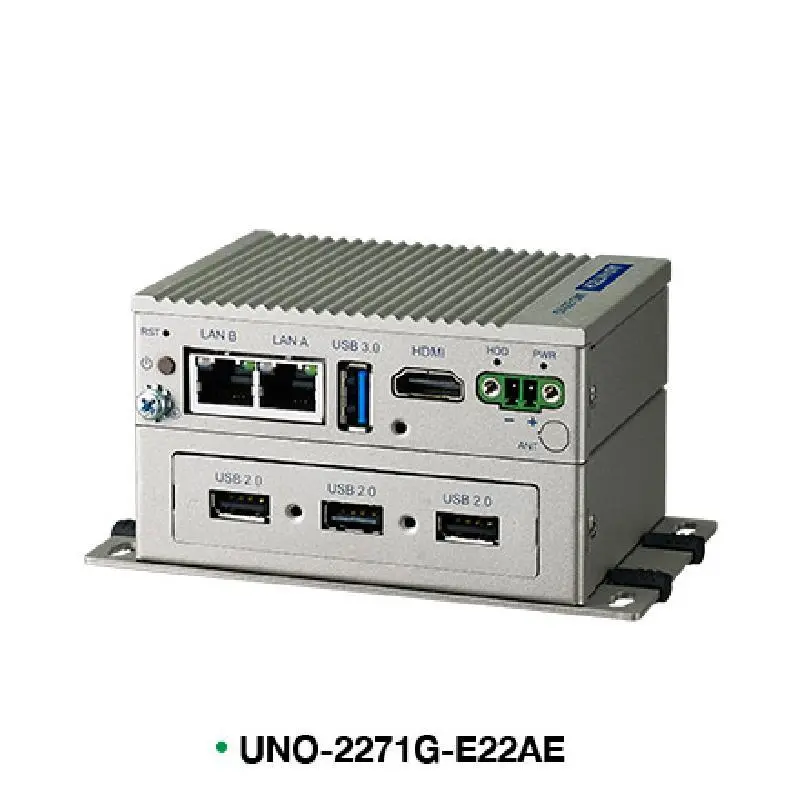

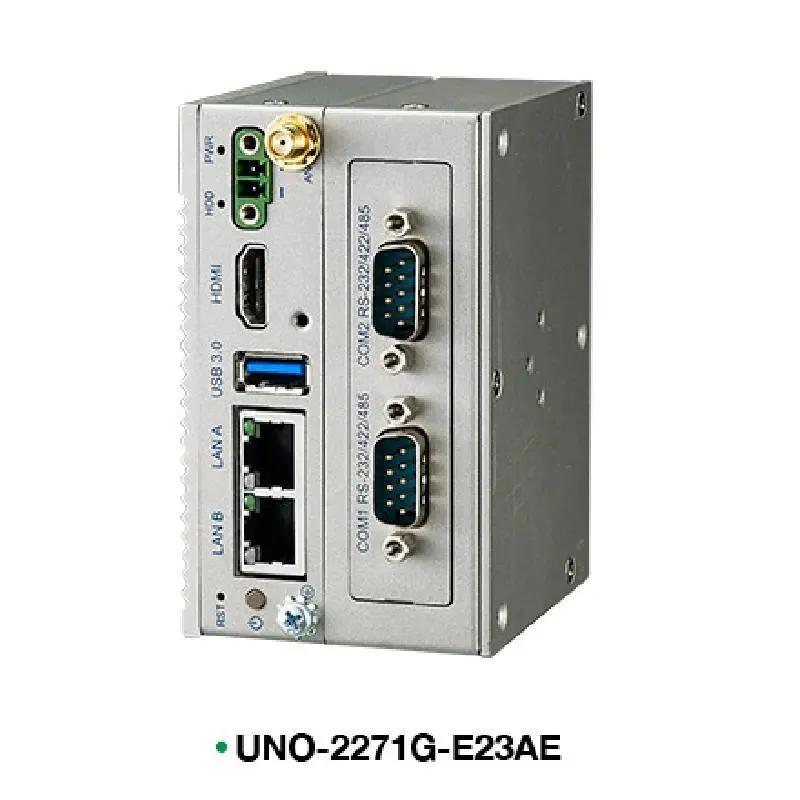

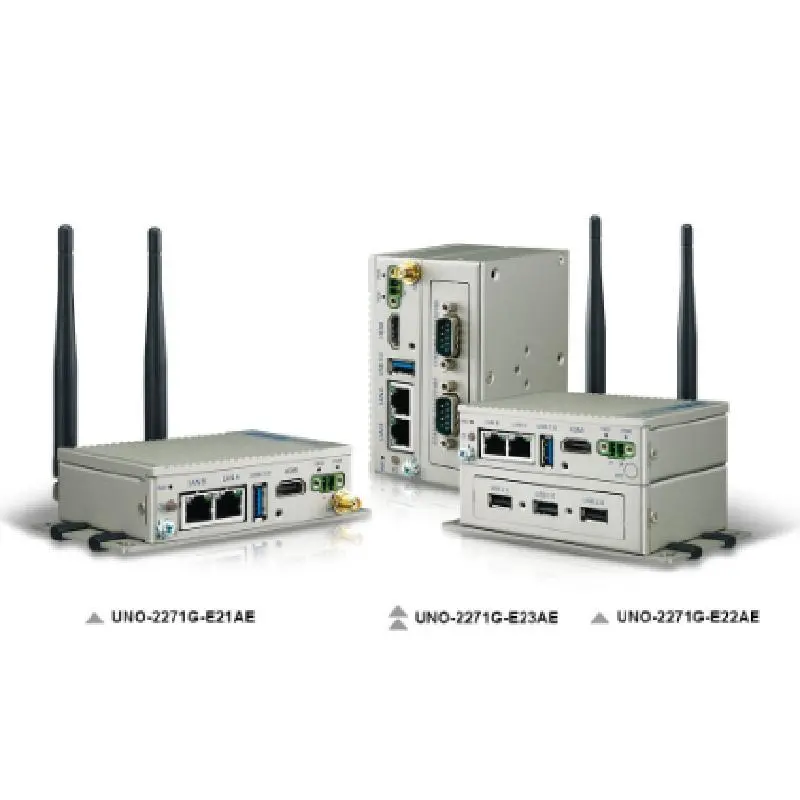

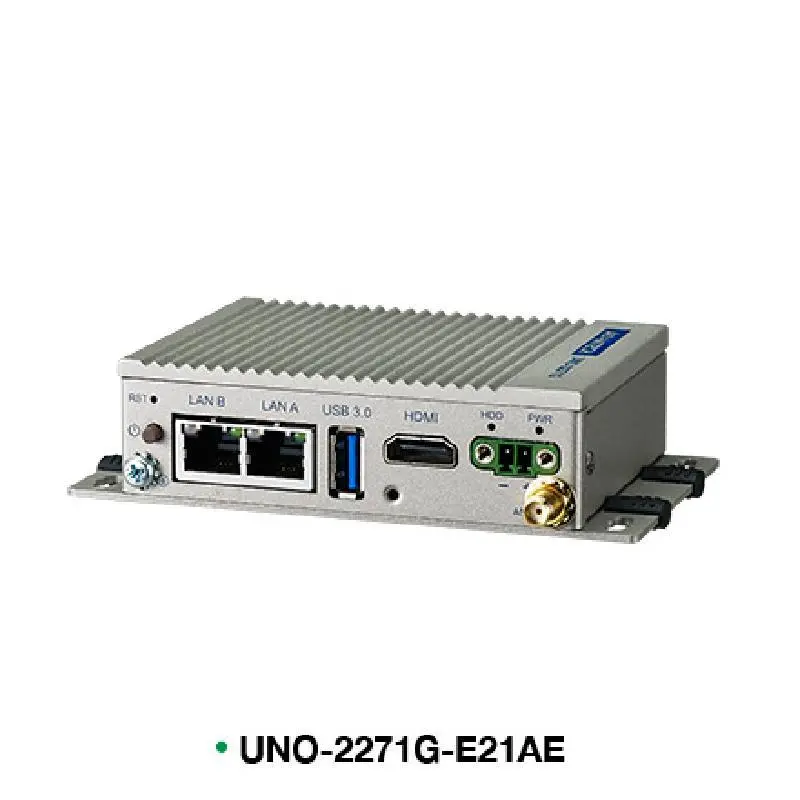

Advantech UNO-2271G Pocket-Size Edge IoT Gateway with Intel® Atom™ E3815/E3825

    Intel® Atom™ E3815/E3825 processor with 4GB DDR3L onboard memory

    2 x GbE, 1 x USB 3.0, 1 x HDMI, Option 2 x RS-232/422/485 or 3 x USB2.0

    Compact Fanless Design and Rubber Stopper Design with internal reserved screws for 2nd layer assembly

    Diverse system I/O and Isolated Digital I/O by iDoor Technology

    Supports Fieldbus Protocol by iDoor Technology

    3G/GPS/GPRS/Wi-Fi communication by iDoor technology

    Supports 30+ iDoor combination with four main categories of smart factory applications

    32GB eMMC storage onboard

    RED Compliance for LTE solution

UNO-2271G-E21AE UNO-2271G-E21BE UNO-2271G-E22BE UNO-2271G-E23BE UNO-2271G-E021AE UNO-2271G-E022AE UNO-2271G-E023AE
Environment Ingress Protection IP30 IP30 IP30 IP30 IP30 IP30 IP30
Environment Operating Temperature 0~50 °C (32~122 °F) 0~50 °C (32~122 °F) 0~50 °C (32~122 °F) 0~50 °C (32~122 °F) 0~50 °C (32~122 °F) 0~50 °C (32~122 °F) 0~50 °C (32~122 °F)
Environment Relative Humidity 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing)
Environment Shock Protection 50 G, half sine 50 G, half sine 50 G, half sine 50 G, half sine 50 G, half sine 50 G, half sine 50 G, half sine
Environment Storage Temperature -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F)
Environment Vibration Protection 2 Grms, random 2 Grms, random 2 Grms, random 2 Grms, random 2 Grms, random 2 Grms, random 2 Grms, random
Hardware Certification CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI
Hardware CPU Intel® ATOM E3815 1.46GHz Single-Core Intel® ATOM E3815 1.46GHz Single-Core Intel® ATOM E3815 1.46GHz Single-Core Intel® ATOM E3815 1.46GHz Single-Core Intel® Celeron E3825 1.33 Ghz Dual-Core Intel® Celeron E3825 1.33 Ghz Dual-Core Intel® Celeron E3825 1.33 Ghz Dual-Core
Hardware Graphics Engine Intel® HD Graphics Intel® HD Graphics Intel® HD Graphics Intel® HD Graphics Intel® HD Graphics Intel® HD Graphics Intel® HD Graphics
Hardware Memory 1 x Onboard Memory with 4 GB DDR3L 1066 MHz 1 x Onboard Memory with 4 GB DDR3L 1066 MHz 1 x Onboard Memory with 4 GB DDR3L 1066 MHz 1 x Onboard Memory with 4 GB DDR3L 1066 MHz 1 x Onboard Memory with 4 GB DDR3L 1066 MHz 1 x Onboard Memory with 4 GB DDR3L 1066 MHz 1 x Onboard Memory with 4 GB DDR3L 1066 MHz
Hardware OS Support Microsoft® Windows 10 2019 LTSC, WES7, Linux Microsoft® Windows 10 2019 LTSC, WES7, Linux Microsoft® Windows 10 2019 LTSC, WES7, Linux Microsoft® Windows 10 2019 LTSC, WES7, Linux Microsoft® Windows 10 2019 LTSC, WES7, Linux Microsoft® Windows 10 2019 LTSC, WES7, Linux Microsoft® Windows 10 2019 LTSC, WES7, Linux
Hardware Power Input 10~30 VDC 10~30 VDC 10~30 VDC 10~30 VDC 10~30 VDC 10~30 VDC 10~30 VDC
Hardware Storage 32 GB eMMC, 1 x mSATA (shared with mPCIe) 32 GB eMMC, 1 x mSATA (shared with mPCIe) 32 GB eMMC, 1 x mSATA (shared with mPCIe) 32 GB eMMC, 1 x mSATA (shared with mPCIe) 32 GB eMMC, 1 x mSATA (shared with mPCIe) 32 GB eMMC, 1 x mSATA (shared with mPCIe) 32 GB eMMC, 1 x mSATA (shared with mPCIe)
I/O Interface Displays 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI 1 x HDMI
I/O Interface Expansion 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot
I/O Interface LAN Ports 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps
I/O Interface Power Connector 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block 1 x 2-Pin Terminal Block
I/O Interface USB Ports 1 x USB 3.0 1 x USB 3.0 3 x USB 2.0, 1 x USB 3.0 2 x RS 232/422/485 1 x USB 3.0 3 x USB 2.0, 1 x USB 3.0 2 x RS 232/422/485
Mechanical Dimension (W x H x D) 100 x 70 x 30 mm 100 x 70 x 30 mm 100 x 70 x 60 mm 1 x USB 3.0 100 x 70 x 30 mm 100 x 70 x 60 mm 1 x USB 3.0
Mechanical Enclosure Aluminum housing Aluminum housing Aluminum housing 100 x 70 x 60 mm Aluminum housing Aluminum housing 100 x 70 x 60 mm
Mechanical Weight (Net) 0.5 kg (1.1 lb) 0.5 kg (1.1 lb) 0.6 kg (1.2 lb) Aluminum housing 0.5 kg (1.1 lb) 0.6 kg (1.2 lb) Aluminum housing
Mechanical Weight (Net) 0.6 kg (1.2 lb) 0.6 kg (1.2 lb)
