| UNO-2272G-J2AE | ||
| Environment | Ingress Protection | IP40 |
| Environment | Operating Temperature | -10~55 °C (14~131 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CE, FCC, UL, CCC, BSMI |
| Hardware | CPU | Intel® Celeron J1900 2.0 Ghz Quad-Core |
| Hardware | Graphics Engine | Intel® HD Graphics |
| Hardware | Memory | 1 x x SO-DIMM with 2 GB DDR3L 1333 MHz |
| Hardware | OS Support | Microsoft® Windows 10 2019 LTSC, WES7, Linux |
| Hardware | Power Input | 24 VDC ±20% |
| Hardware | Storage | 1 x half-size mSATA |
| I/O Interface | Audio | Line-Out |
| I/O Interface | Displays | 1 x HDMI |
| I/O Interface | Expansion | 2 x Full-size mPCIe Slot |
| I/O Interface | LAN Ports | 1 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | Serial Ports | 1 x RS-232/422/485 |
| I/O Interface | USB Ports | 2 x USB 2.0, 1 x USB 3.0 |
| Mechanical | Dimension (W x H x D) | 157 x 88 x 50 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 0.8 kg (1.7 lb) |

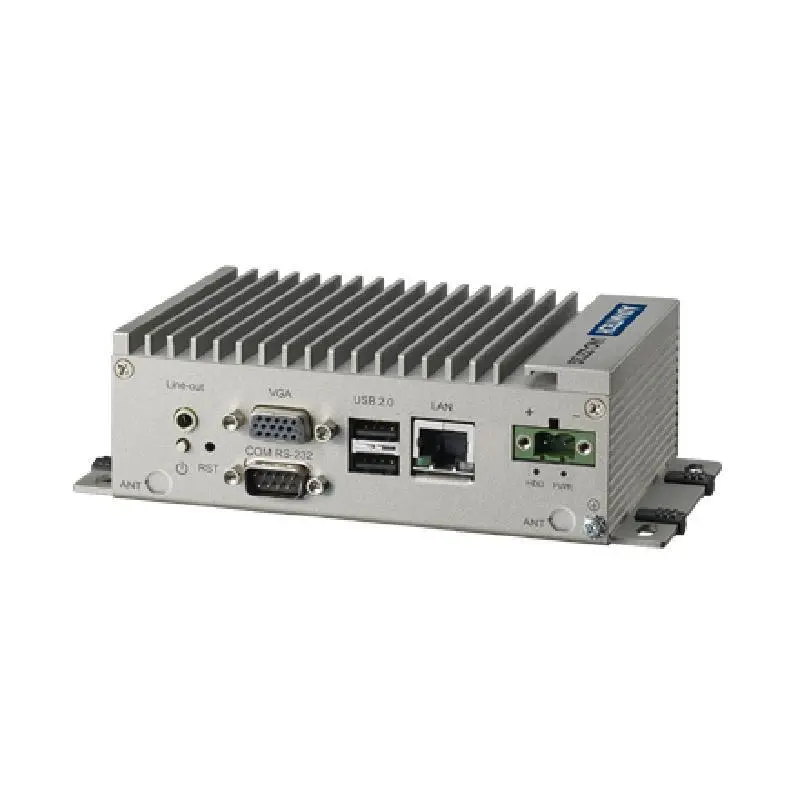

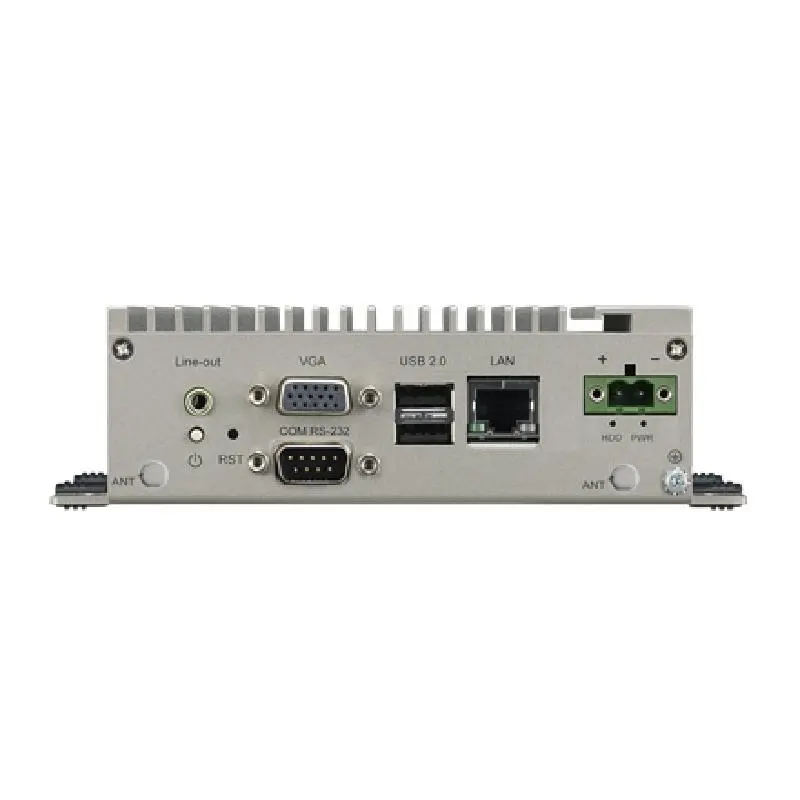

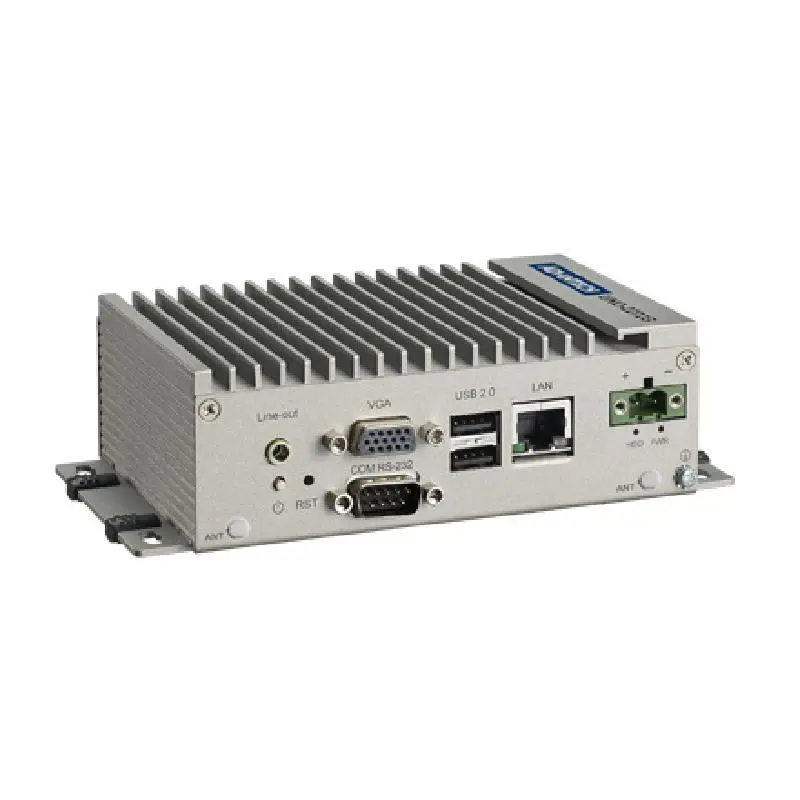

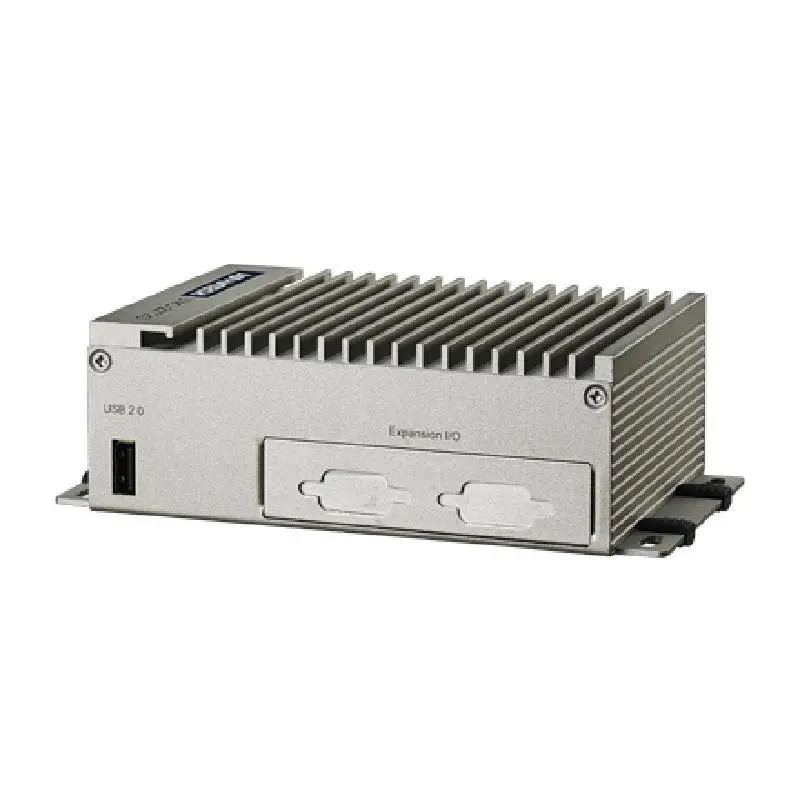

Advantech UNO-2272G Palm-Size Industrial Automation PC with Intel® Celeron® J1900
