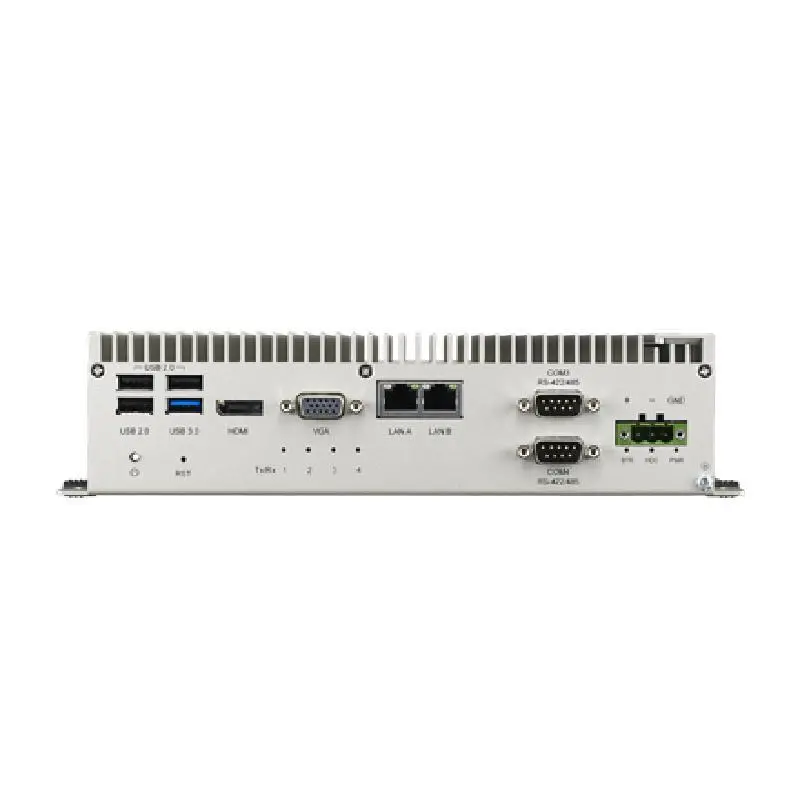

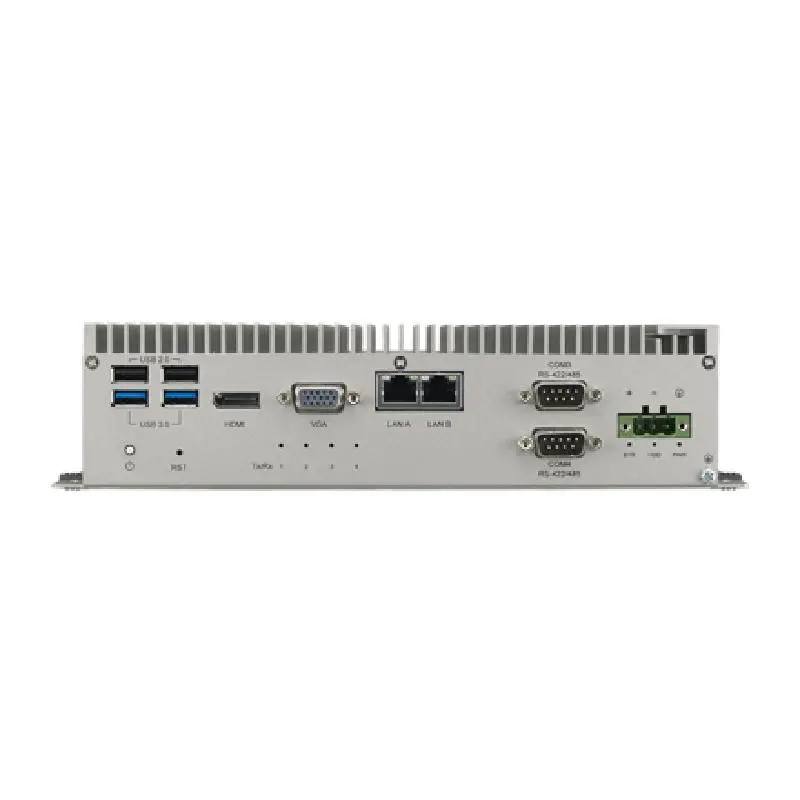

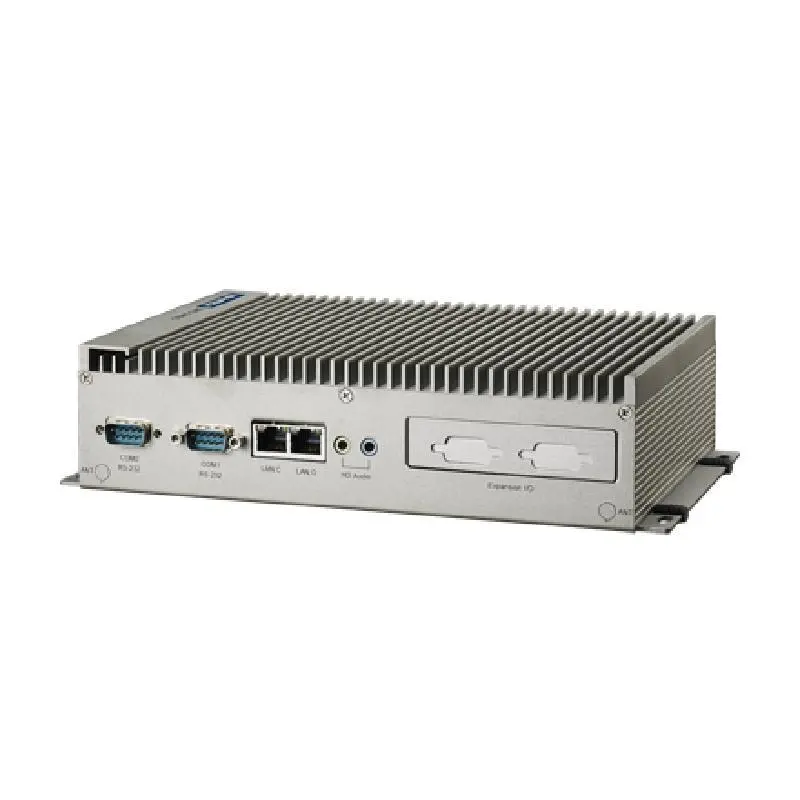

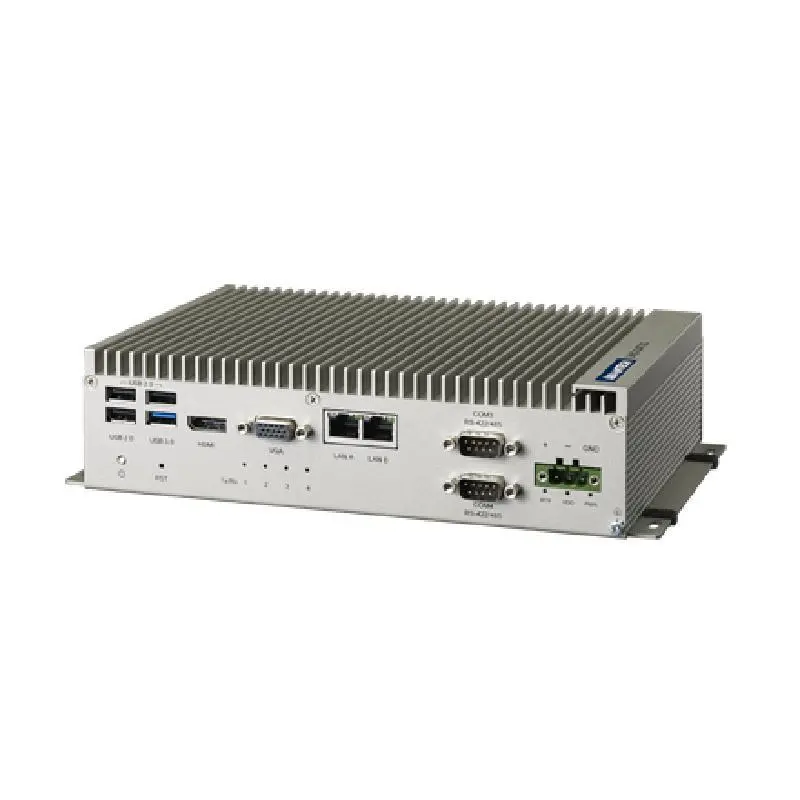

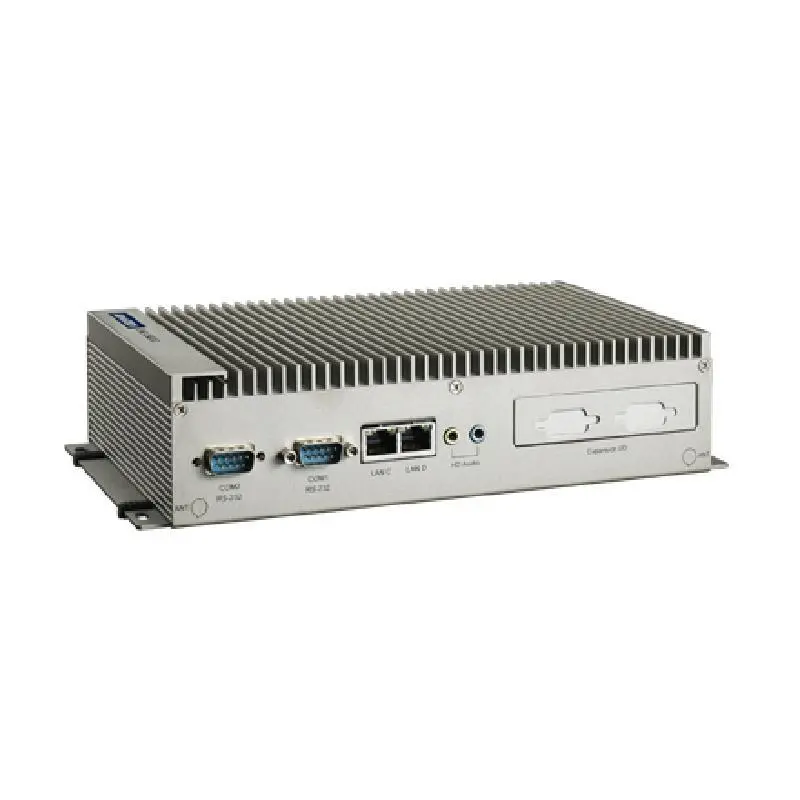

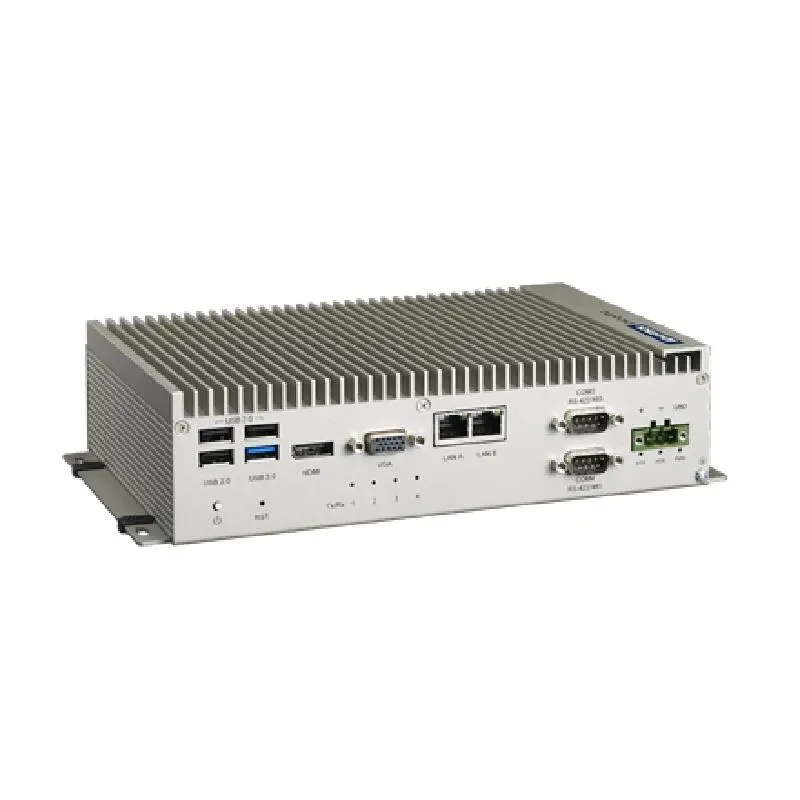

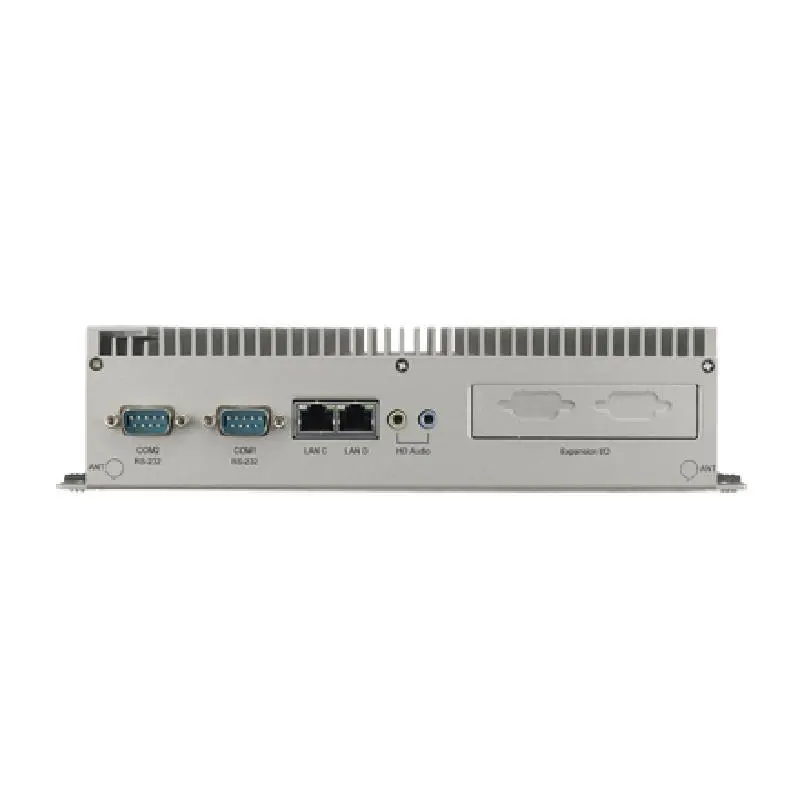

Advantech UNO-2473G Industrial Automation PC with Intel® Atom™ E3845/Celeron® J1900

    4th Generation Intel® Atom/Celeron J1900 Processor up to 1.91/2.0 GHz with 4GB DDR3L Memory

    4/2 x GbE, 3 x USB 2.0 and 1 x USB 3.0/4 x USB 2.0 and 1 x USB 3.0, 2 x RS-232, 2 x RS-422/485 (E3AE), 2 x RS-232/422/485 (J3AE), 1 x VGA, 1 x HDMI, Audio

    Compact with Fanless Design

    Rubber Stopper Design with Captive Screw

    Diverse system IO and Isolated Digital IO by iDoor Technology

    Supports MRAM by iDoor Technology

    Chassis Grounding Protection

    LAN Redundancy (Teaming)

    Fault-Protected RS-485 Transceivers With Extended Common-Mode Range

UNO-2473G-E3AE UNO-2473G-J3AE
Environment Ingress Protection IP40 IP40
Environment Operating Temperature -20~60 °C (-4~140 °F) -10~60 °C (14~140 °F)
Environment Relative Humidity 10~95% RH (non-condensing) 10~95% RH (non-condensing)
Environment Shock Protection 50 G, half sine 50 G, half sine
Environment Storage Temperature -40~85 °C (-40~185 °F) -40~85 °C (-40~185 °F)
Environment Vibration Protection 2 Grms, random 2 Grms, random
Hardware Certification CE, FCC, UL, CCC, BSMI CE, FCC, UL, CCC, BSMI
Hardware CPU Intel® Celeron E3845 1.91 GHz Quad-Core Intel® Celeron J1900 2.0 Ghz Quad-Core
Hardware Graphics Engine Intel® HD Graphics Gen7 with 4EU Intel® HD Graphics Gen7 with 4EU
Hardware Memory 1 x SO-DIMM Memory with 4 GB DDR3L 1600 MHz 1 x SO-DIMM Memory with 4 GB DDR3L 1600 MHz
Hardware OS Support Microsoft® Windows 10 2019 LTSB, Microsoft® Windows 10 LTSC, WES7, WEC7, Linux Microsoft® Windows 10 2019 LTSB, Microsoft® Windows 10 LTSC, WES7, WEC7, Linux
Hardware Power Input 24 VDC ±20% 12/24 VDC ±20%
Hardware Storage 1 x mSATA, 1 x 2.5" SSD/HDD bay 1 x mSATA, 1 x 2.5" SSD/HDD bay
I/O Interface Audio Line-In, Line-Out Line-In, Line-Out
I/O Interface Displays 1 x HDMI, 1 x VGA 1 x HDMI, 1 x VGA
I/O Interface Expansion 3 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot
I/O Interface LAN Ports 4 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps
I/O Interface Power Connector 1 x 3-Pin Terminal Block 1 x 3-Pin Terminal Block
I/O Interface Serial Ports 2 x RS-232, 2 x RS-422/485 2 x RS-232, 2 x RS-232/422/485
I/O Interface USB Ports 3 x USB 2.0, 1 x USB 3.0 4 x USB 2.0, 1 x USB 3.0
Mechanical Dimension (W x H x D) 252 x 149 x 62 mm 252 x 149 x 62 mm
Mechanical Enclosure Aluminum housing Aluminum housing
Mechanical Weight (Net) 1.6 Kg (3.5 lb) 1.6 Kg (3.5 lb)
