| UNO-348-ANN1A | UNO-348-ANN3A | ||
| Environment | Ingress Protection | IP20 | IP20 |
| Environment | Operating Temperature | -20~50 °C (-4~122 °F) | -20~50 °C (-4~122 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) | 95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 4 Grms, random | 4 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | CPU | - | - |
| Hardware | Graphics Engine | Intel® HD Graphics | Intel® HD Graphics |
| Hardware | Hardware Security | TPM 2.0 | TPM 2.0 |
| Hardware | Memory | - | - |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux |
| Hardware | Power Input | 10~36 VDC | 10~36 VDC |
| Hardware | Storage | 2 x 2.5" SSD/HDD Bay | 2 x 2.5" SSD/HDD Bay |
| I/O Interface | Audio | Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header) | Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header) |
| I/O Interface | Displays | 1 x DP, 1 x HDMI | 1 x DP, 1 x HDMI |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x PCIe x16 | 1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x PCIe x16, 2 x PCI |
| I/O Interface | LAN Ports | 3 x 10/100/1000 Mbps | 3 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 4-Pin Terminal Block | 1 x 4-Pin Terminal Block |
| I/O Interface | Serial Ports | 1 x RS-232, 2 x RS-232/422/485 | 1 x RS-232, 2 x RS-232/422/485 |
| I/O Interface | USB Ports | 4 x USB 3.2, 2 x USB 2.0 | 4 x USB 3.2, 2 x USB 2.0 |
| Mechanical | Dimension (W x H x D) | 200 x 140 x 120 mm | 200 x 140 x 160 mm |
| Mechanical | Enclosure | Aluminum housing | Aluminum housing |
| Mechanical | Weight (Net) | 3.5 kg (7.72 Ib) | 4 kg |

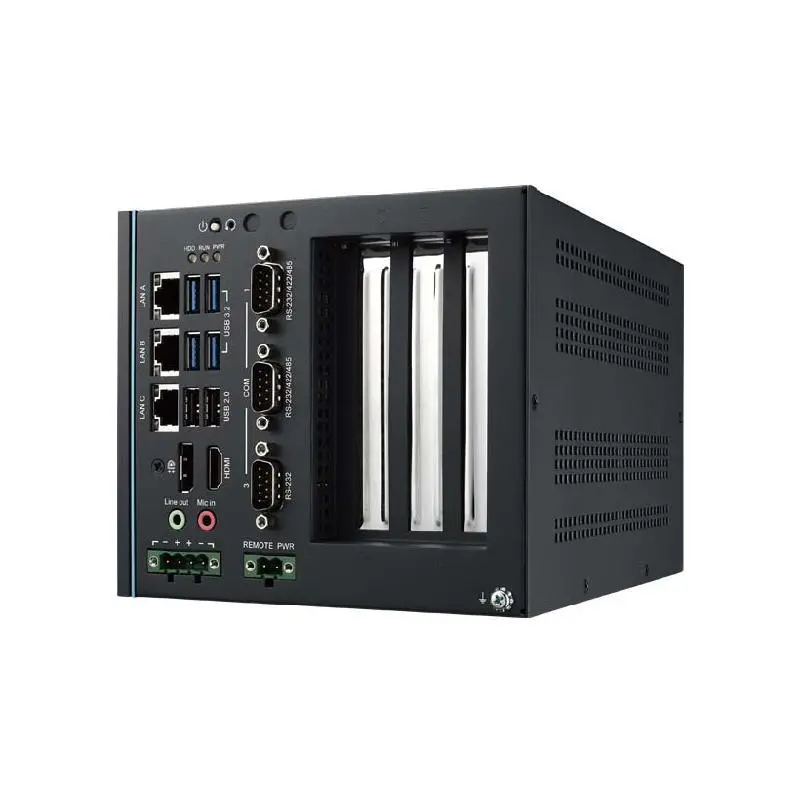

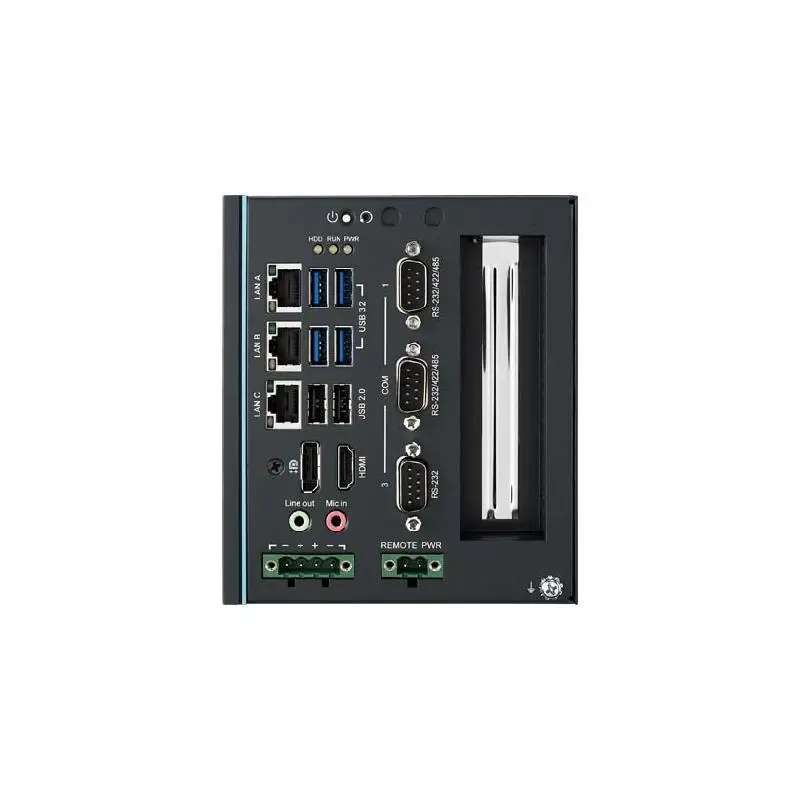

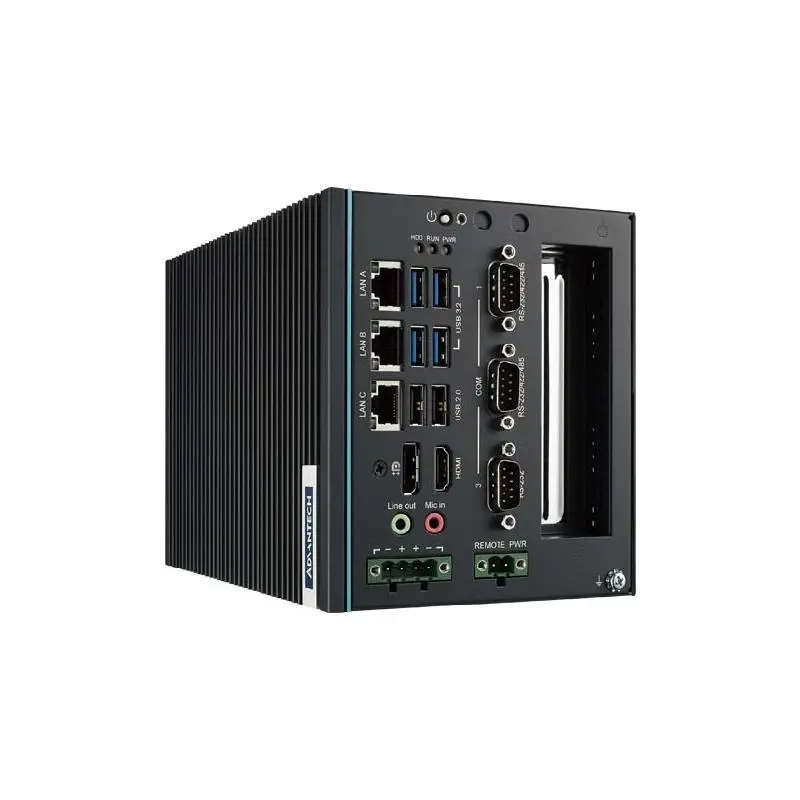

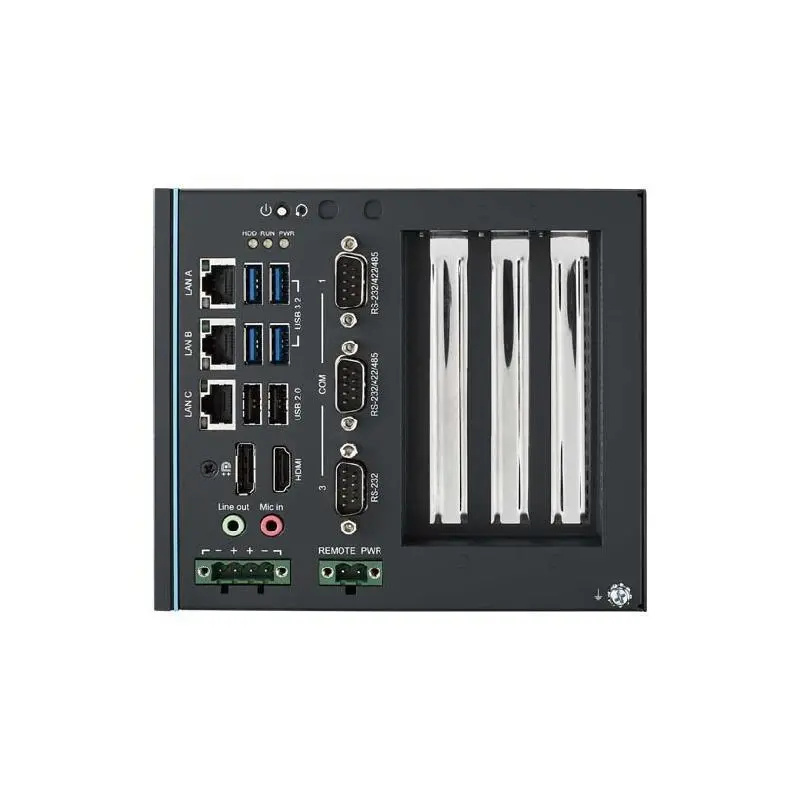

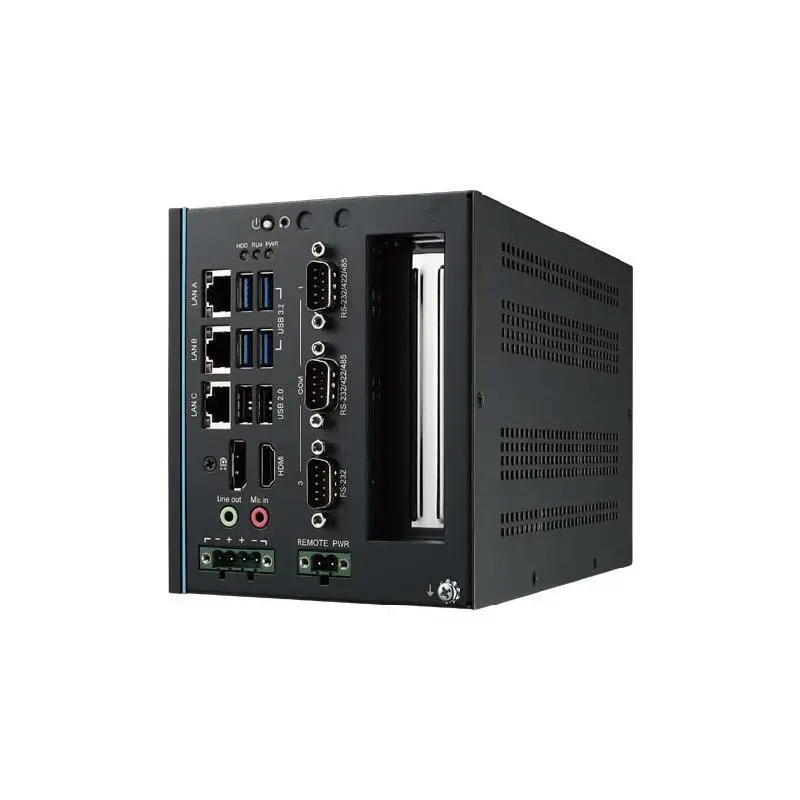

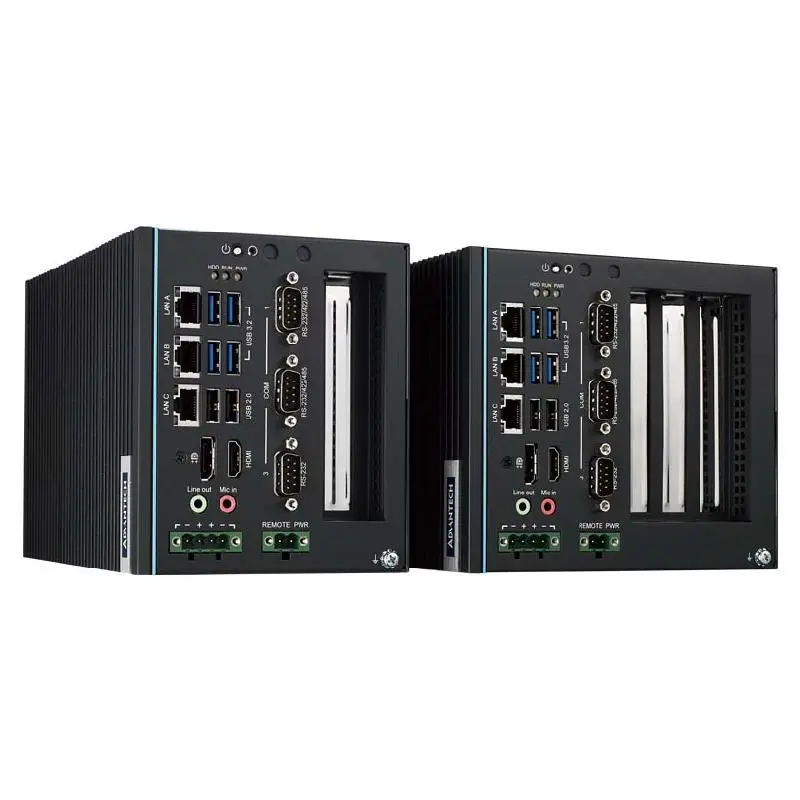

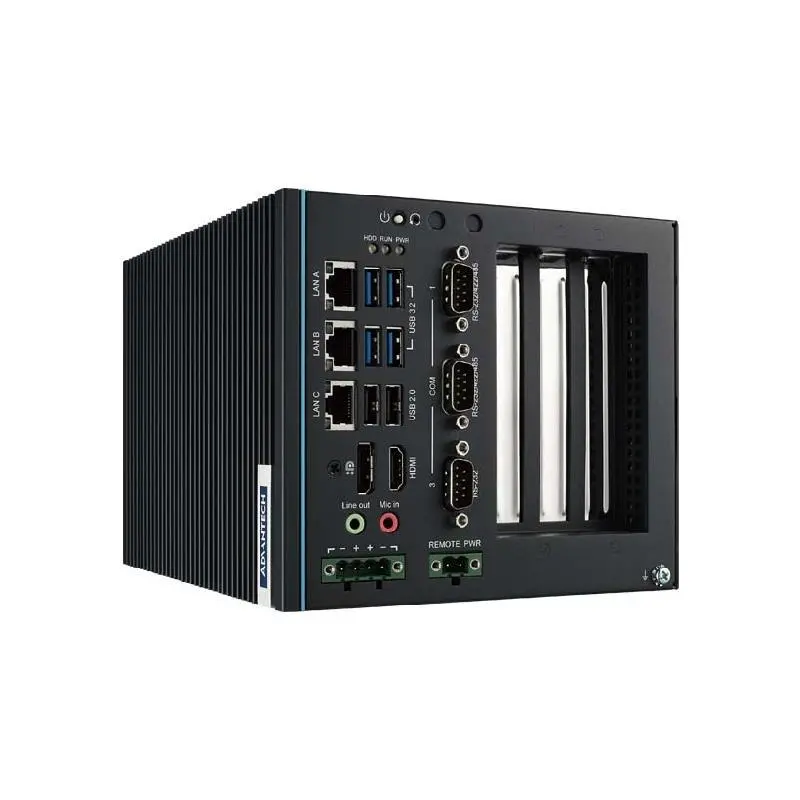

Advantech UNO-348 Expandable Embedded Box IPC with 10th Gen Intel® CPU
