| UNO-247-N3N1A | ||
| Environment | Ingress Protection | IP20 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -20~85 °C (-4~185 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Hardware | Certification | CB, UL, CE, FCC, CCC, BSMI |
| Hardware | CPU | Intel® N97 2.0GHz Quad-Core |
| Hardware | Graphics Engine | Intel® UHD Graphics |
| Hardware | Hardware Security | TPM 2.0 |
| Hardware | Memory | 1 x DDR5 SO-DIMM Slot |
| Hardware | OS Support | Microsoft Window 11 LTSC, Linux |
| Hardware | Power Input | 12~24 VDC |
| Hardware | Storage | 1 x full-size mSATA |
| Hardware | Watchdog Timer | 1~255 s |
| Hardware | I/O | 2 x RS232/422/485, 4 x RS485, 2 x GPIO, 1 x Line Out, 1 x iDoor Slot |
| I/O Interface | Displays | 1 x HDMI, 1 x VGA |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x SIM Card Slot |
| I/O Interface | LAN Ports | 4 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | USB Ports | 2 x USB 3.0, 2 x USB 2.0 |
| Mechanical | Dimension (W x H x D) | 200 x 140 x 60 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 1.2 kg (2.6 lb) |
| Mechanical | Mounting | Stand, Din-rail |

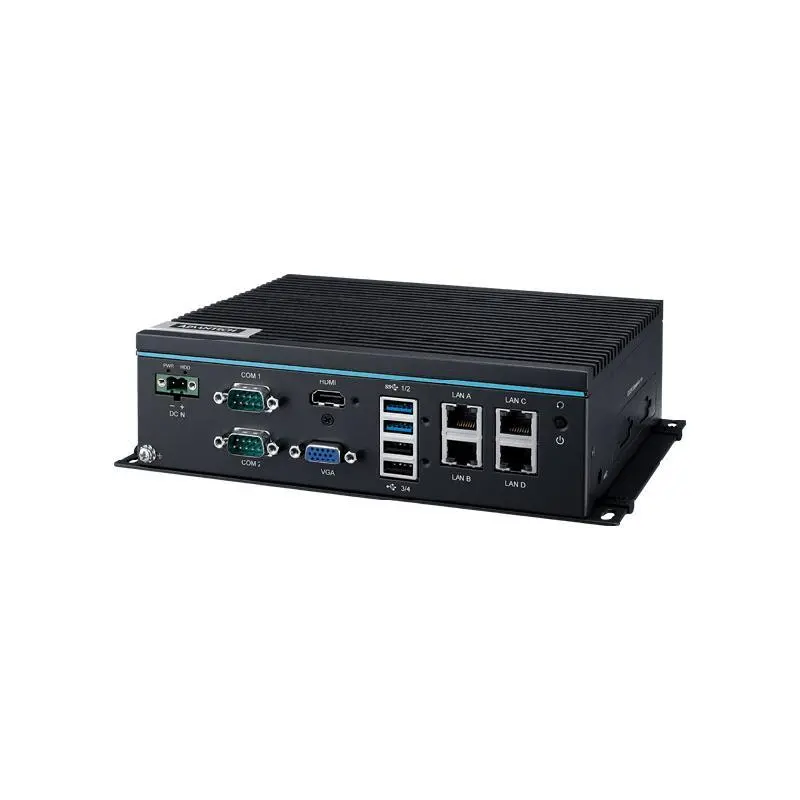

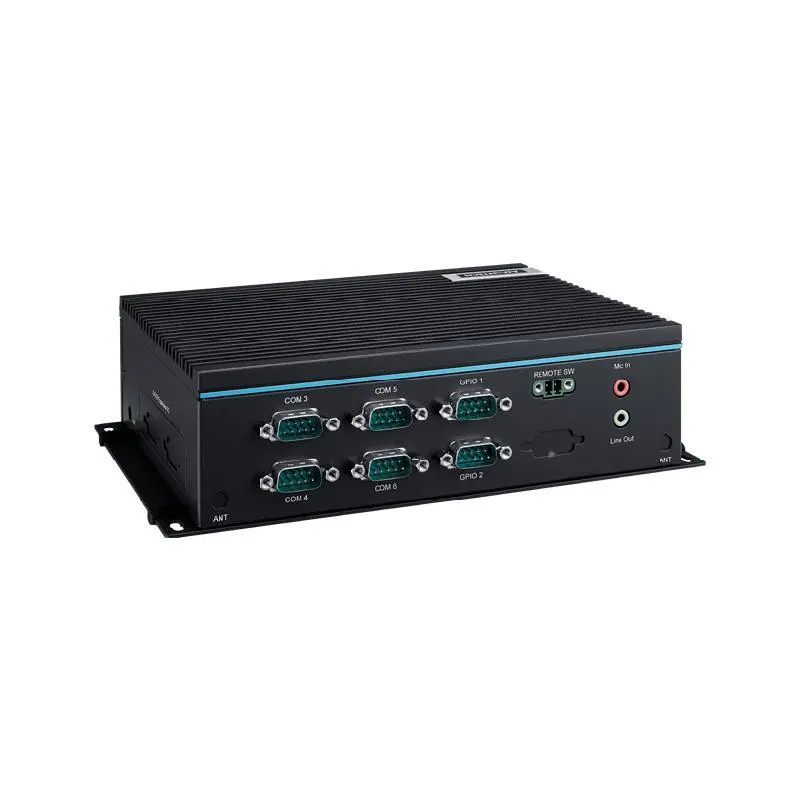

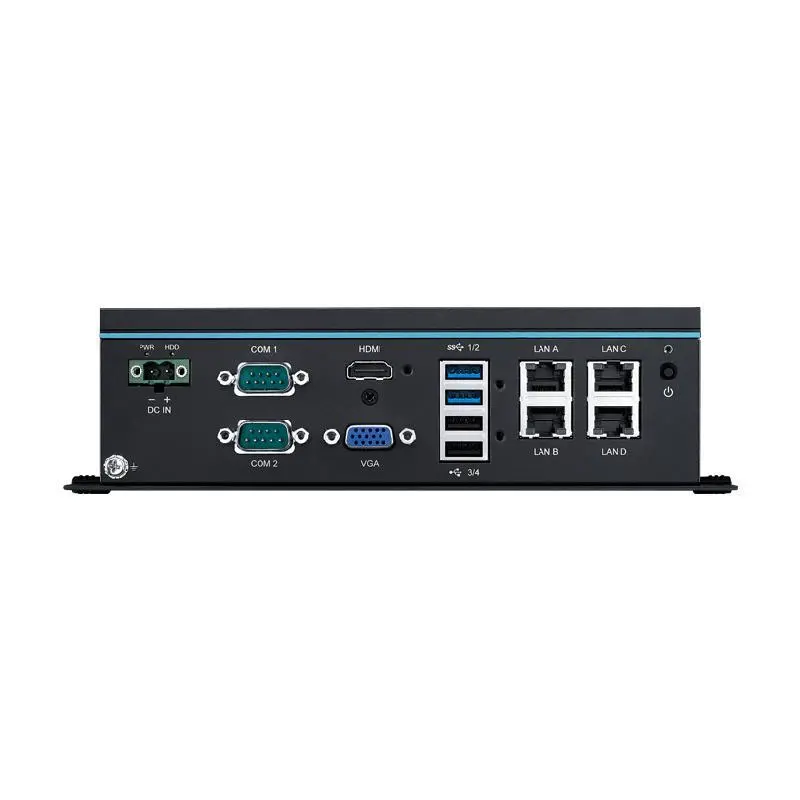

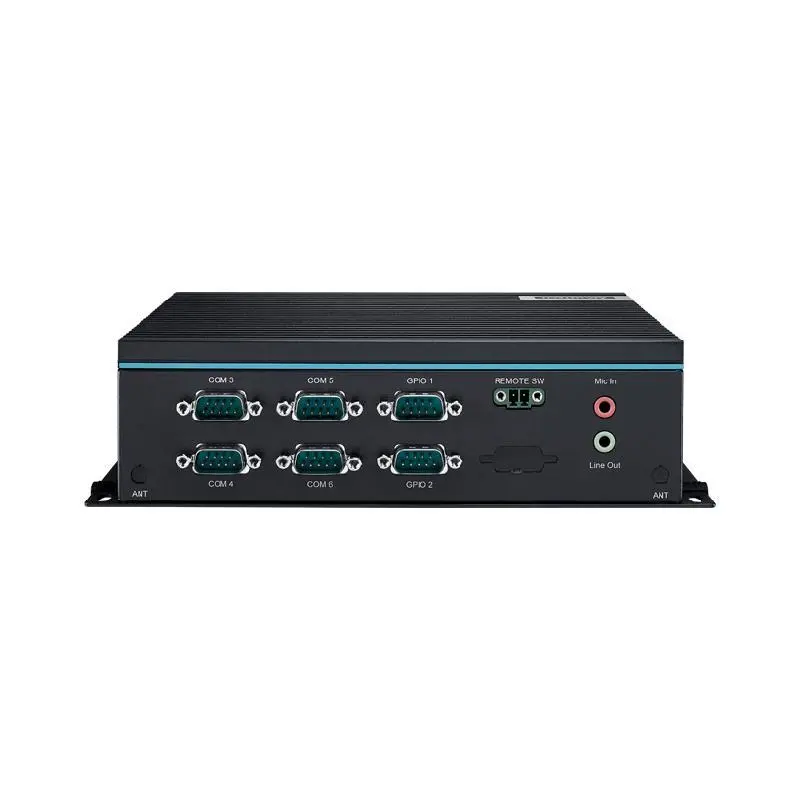

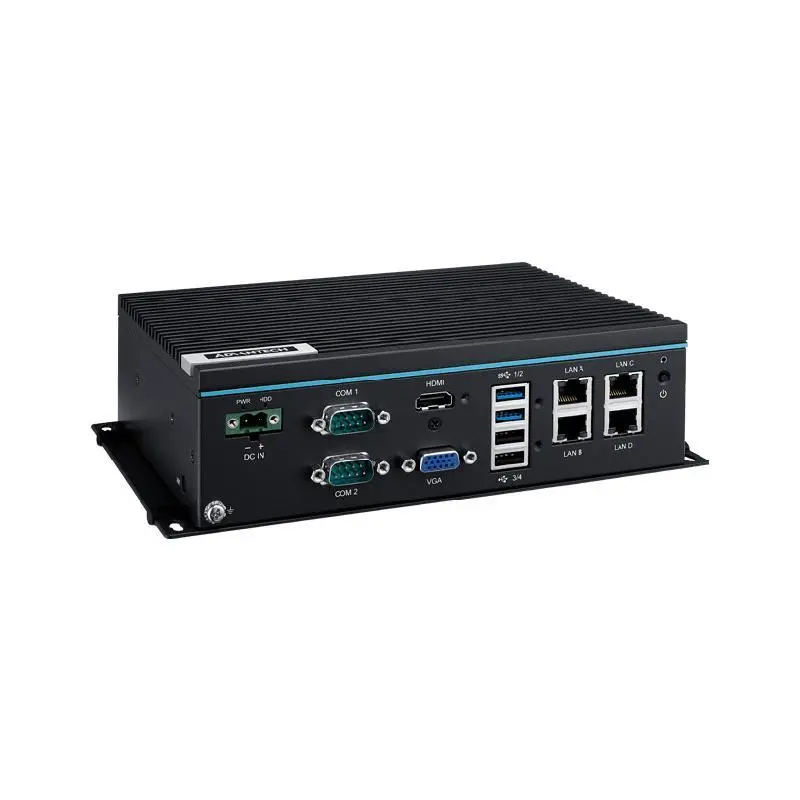

Advantech UNO-247 V2 Intel® Processor N97 IoT Edge Computer with 4x LAN, 6x COM, 4x USB, 1x HDMI, and 1x VGA.
