| UNO-238-87N1AE | UNO-238-85N1AE | UNO-238-83N1AE | ||
| Environment | Ingress Protection | IP20 | IP20 | IP20 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) | -20~60 °C (-4~140 °F) | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine | 50 G, half sine | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) | -40~85 °C (-40~185 °F) | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 3 Grms, random | 3 Grms, random | 3 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC, CCC, BSMI | CB, UL, CE, FCC, CCC, BSMI | CB, UL, CE, FCC, CCC, BSMI |
| Hardware | CPU | 8th Gen. Intel® Core™ i7-8665UE 1.70GHz Quad-Core | 8th Gen. Intel® Core™ i5-8365UE 1.60GHz Quad-Core | 8th Gen. Intel® Core™ i3-8145UE 2.20GHz Dual-Core |
| Hardware | Graphics Engine | Intel® UHD Graphic 620 | Intel® UHD Graphic 620 | Intel® UHD Graphic 620 |
| Hardware | Hardware Security | TPM 2.0 | TPM 2.0 | TPM 2.0 |
| Hardware | Memory | 1 x DDR4 SO-DIMM Slot | 1 x DDR4 SO-DIMM Slot | 1 x DDR4 SO-DIMM Slot |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux |
| Hardware | Power Input | 12 VDC | 12 VDC | 12 VDC |
| Hardware | Storage | 32 G eMMC | 32 G eMMC | 32 G eMMC |

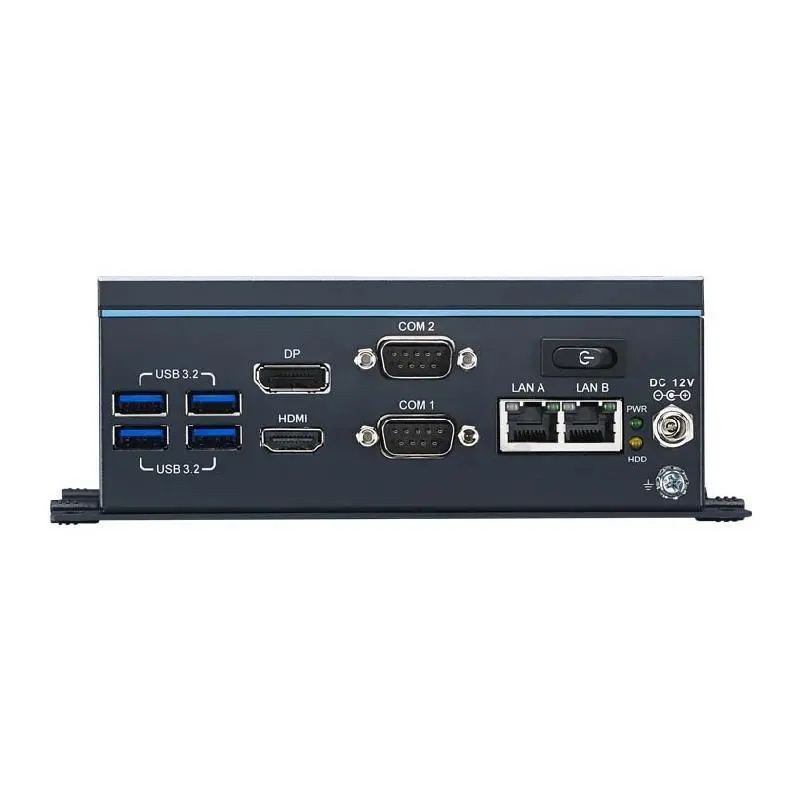

| I/O Interface | Audio | Line-Out | Line-Out | Line-Out |
| I/O Interface | Displays | 1 x HDMI, 1 x DP | 1 x HDMI, 1 x DP | 1 x HDMI, 1 x DP |
| I/O Interface | Expansion | 1 x M.2 B key, 1 x M.2 E key | 1 x M.2 B key, 1 x M.2 E key | 1 x M.2 B key, 1 x M.2 E key |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x DC Jack | 1 x DC Jack | 1 x DC Jack |
| I/O Interface | Serial Ports | 2 x RS-232/422/485 | 2 x RS-232/422/485 | 2 x RS-232/422/485 |
| I/O Interface | USB Ports | 4 x USB 3.2 | 4 x USB 3.2 | 4 x USB 3.2 |
| Mechanical | Dimension (W x H x D) | 150 x 107 x 60 mm | 150 x 107 x 60 mm | 150 x 107 x 60 mm |
| Mechanical | Enclosure | Aluminum housing | Aluminum housing | Aluminum housing |
| Mechanical | Weight (Net) | 1.8 kg (3.96 lb) | 1.8 kg (3.96 lb) | 1.8 kg (3.96 lb) |
| Hardware | LED Indicators | PWR | PWR | PWR |
| Hardware | Watchdog Timer | 1~255 s | 1~255 s | 1~255 s |
| Mechanical | Mounting | Stand, Din-rail | Stand, Din-rail | Stand, Din-rail |

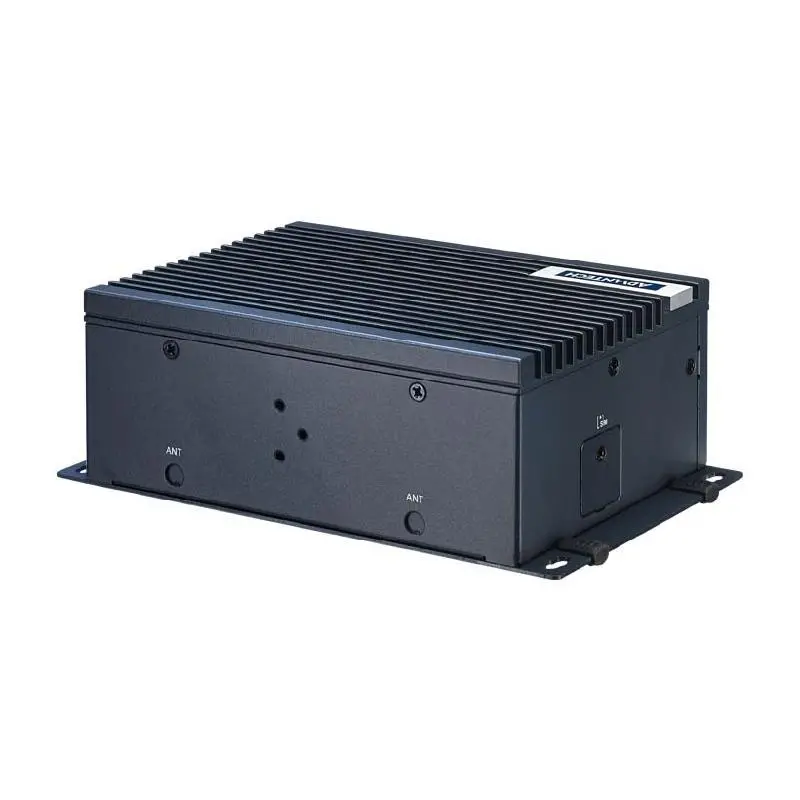

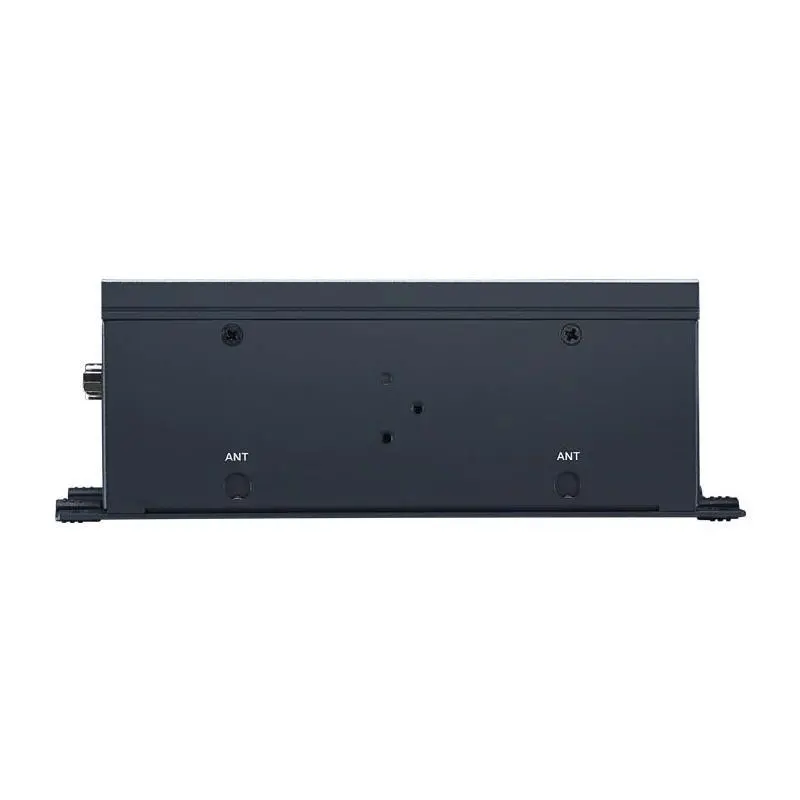

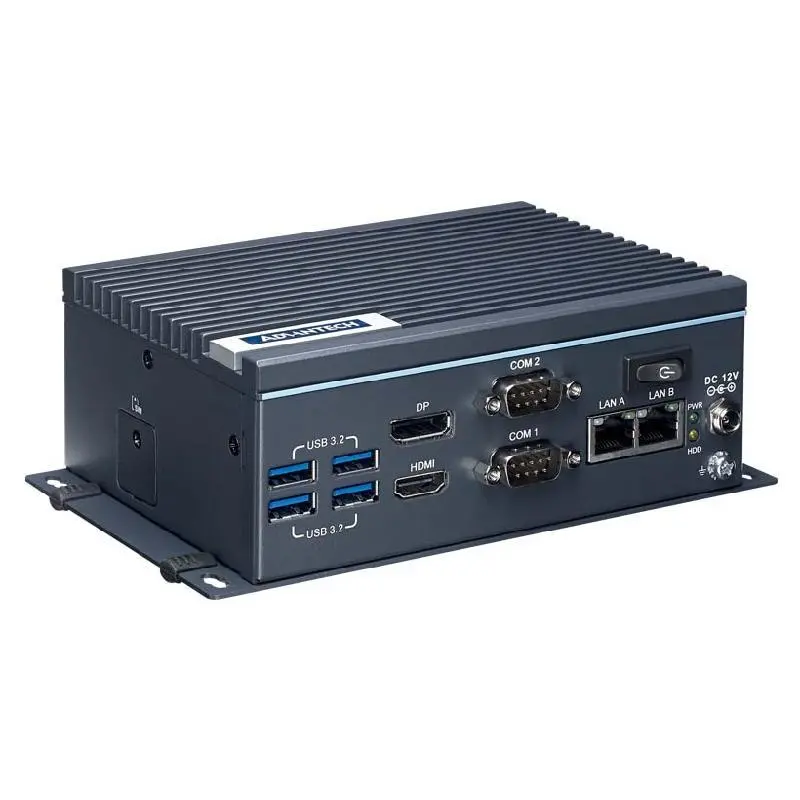

Advantech UNO-238 Compact IoT Edge Computer with Intel® Core™ i CPU
