| UNO-220-P4N1AE | UNO-220-P4N2AE | ||
| Environment | Ingress Protection | IP40 | IP40 |
| Environment | Operating Temperature | 0~50 °C (32~122 °F) | 0~50 °C (32~122 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC | CE, FCC |
| Hardware | OS Support | Raspbian | Raspbian |
| Hardware | Storage | 1 x 8 GB Micro SD card | 1 x 8 GB Micro SD card |
| I/O Interface | Serial Ports | 1 x RS-232/485 | 1 x RS-232/485 (Terminal Block) |
| Mechanical | Dimension (W x H x D) | 100 x 70 x 32 mm | 100 x 70 x 32 mm |
| Mechanical | Enclosure | Aluminum housing | Aluminum housing |
| Mechanical | Weight (Net) | 0.5 kg (1.1 lb) | 0.5 kg (1.1 lb) |
| Hardware | I/O | 4 x GPIO | 8 x GPIO |
| Hardware | Power Consumption | 15 W @ 5 VDC | 1.5 W @ 5 VDC |
| Hardware | Watchdog Timer | 1~255 s | 1~255 s |
| Mechanical | Mounting | Stand, Din-rail | Stand, Din-rail |

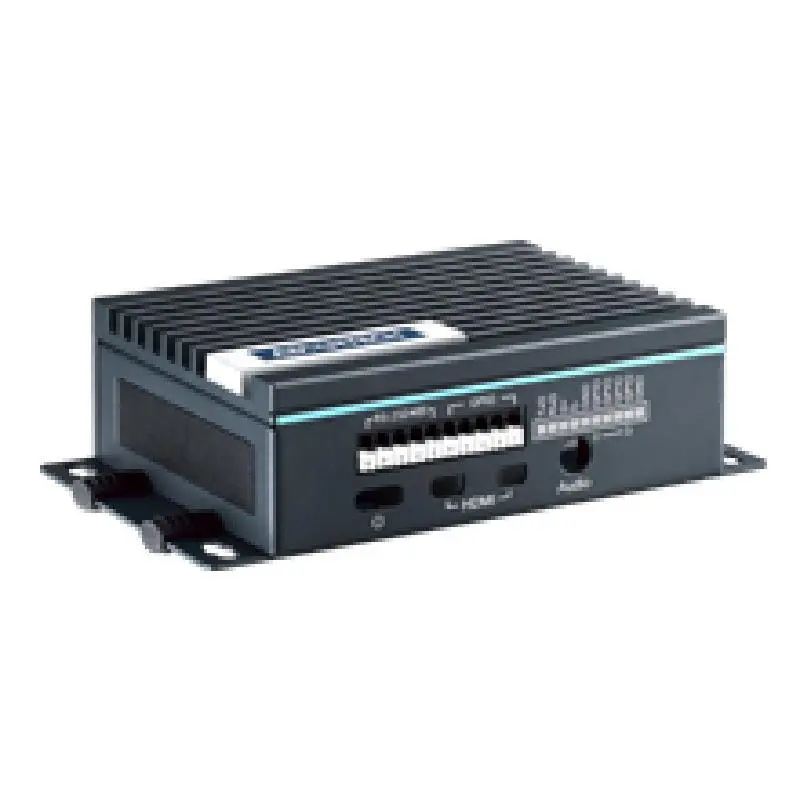

Advantech UNO-220 Industrial Raspberry Pi 4 HAT Gateway Kit
