| UNO-430-E1A | ||
| Environment | Ingress Protection | All-around IP69K/68 |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC Class A |
| Hardware | CPU | Intel® ATOM E3950 1.6GHz Quad-Core |
| Hardware | Graphics Engine | Intel® HD Graphics |
| Hardware | Hardware Security | TPM 2.0 |
| Hardware | Memory | 1 x SO-DIMM with 8 GB DDR3L 1600 MHz |
| Hardware | OS Support | Microsoft® Windows 10 2019 LTSC, Linux |
| Hardware | Power Input | 10~36 VDC |
| Hardware | Storage | 1 x M.2 B key |
| I/O Interface | Displays | 1 x DP |
| I/O Interface | Expansion | 1 x M.2 B key, 1 x M.2 E key |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 3-Pin Terminal Block |
| I/O Interface | Serial Ports | 2 x RS-232/422/485, 1 x RS-232 (Console) |
| I/O Interface | USB Ports | 2 x Internal USB |
| Mechanical | Dimension (W x H x D) | 200 x 68 x 200 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 3 kg |

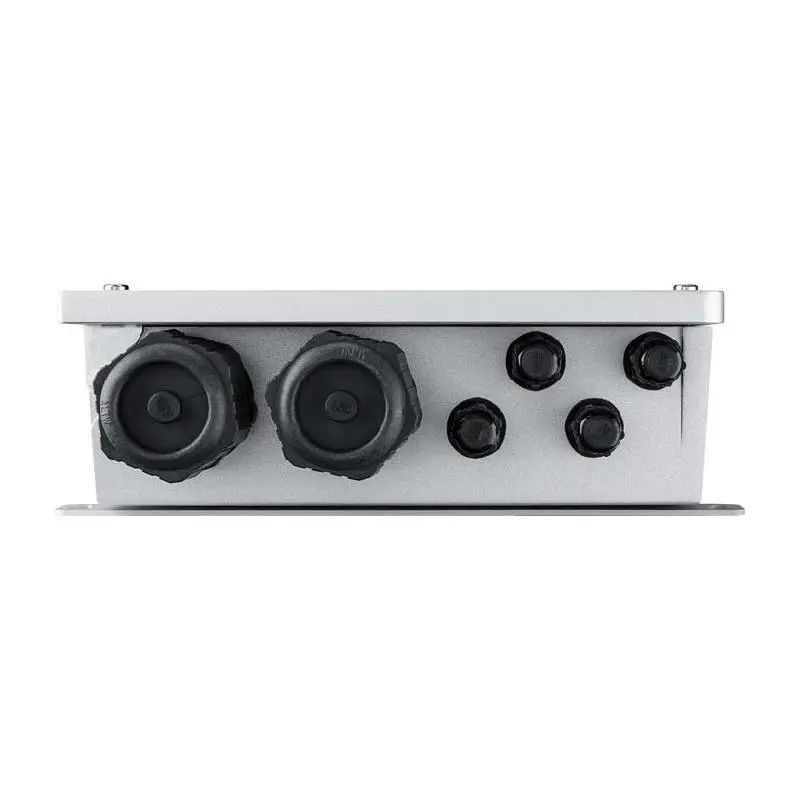

| I/O Interface | Cable Gland | 2 x M32 cable gland for Ethernet cable (cable size range OD 5 ~ 6.6 mm/0.19 ~ 0.25 in) 4 x M12 cable gland for serial port and power cable (cable size range OD 4.5 ~ 6.5 mm/0.17 ~ 0.25 in) |

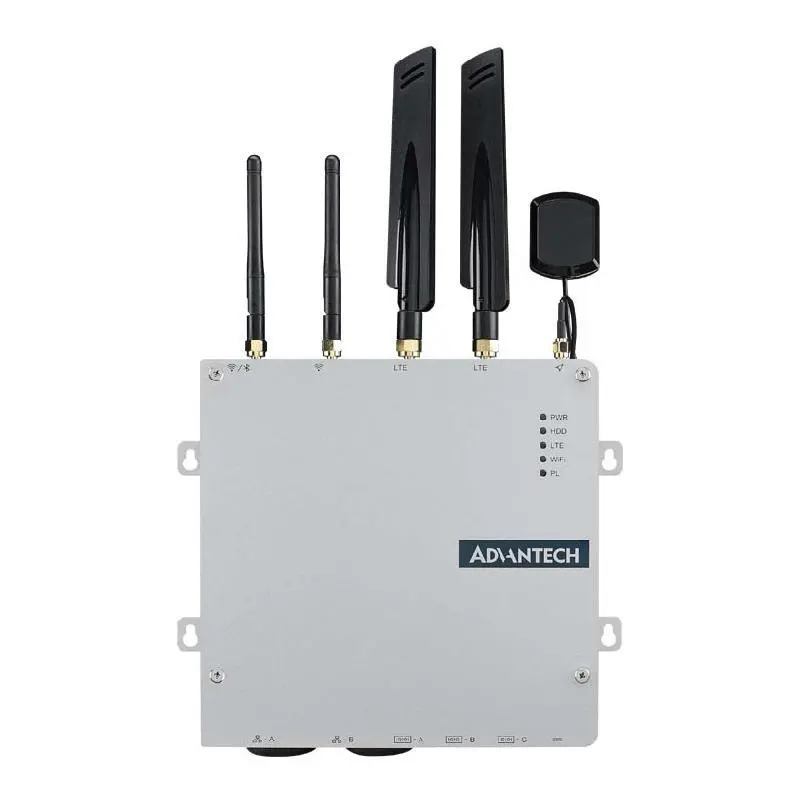

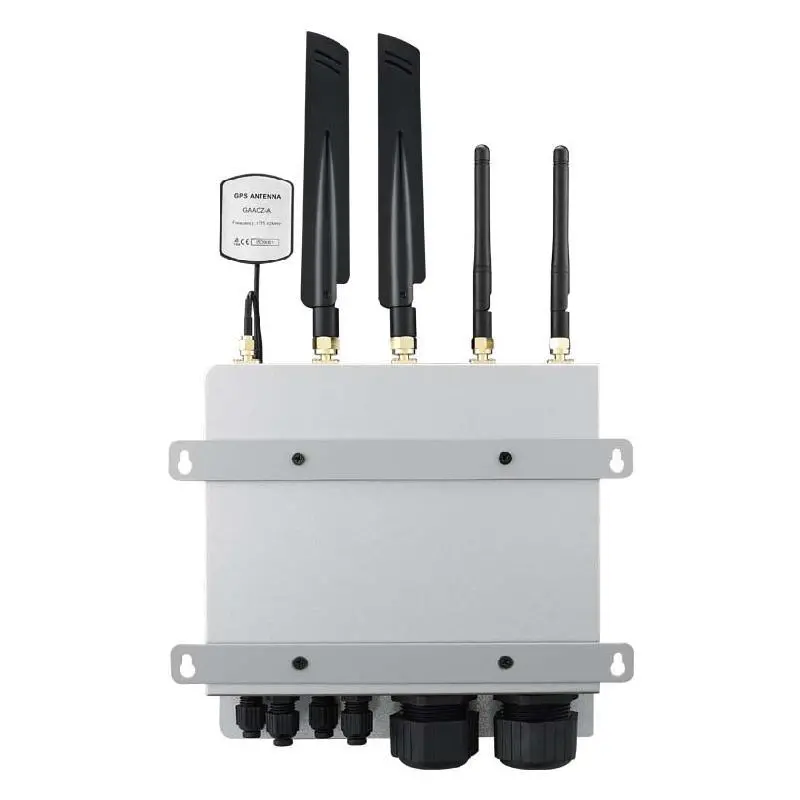

Advantech UNO-430 IP69K/IP68 Waterproof Edge Intelligence Gateway with Intel® Atom™ E3950 CPU
