| UNO-420-E0A | ||
| Environment | Ingress Protection | IP40 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~80 °C (-40~176 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | CPU | Intel® ATOM E3815 1.46GHz Single-Core |
| Hardware | Graphics Engine | Intel® HD Graphics |
| Hardware | Hardware Security | TPM 2.0 |
| Hardware | Memory | 1 x SO-DIMM with 2 GB DDR3L 1066 MHz |
| Hardware | OS Support | Microsoft® Windows 10 2019 LTSC, Linux |
| Hardware | Power Input | 10~30 VDC |
| Hardware | Storage | 1 x M.2 B key, 32 G eMMC |
| I/O Interface | Displays | 1 x HDMI |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot, 1 x Half-size mPCIe Slot |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps, 1 x 10/100/1000 Mbps/PoE-In |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | Serial Ports | 2 x RS-232/422/485, 1 x RS-485 |
| I/O Interface | USB Ports | 1 x USB 3.0 |
| Mechanical | Dimension (W x H x D) | 125 x 50 x 125 mm |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 1.5 kg |
| Hardware | I/O | 8 x GPIO |

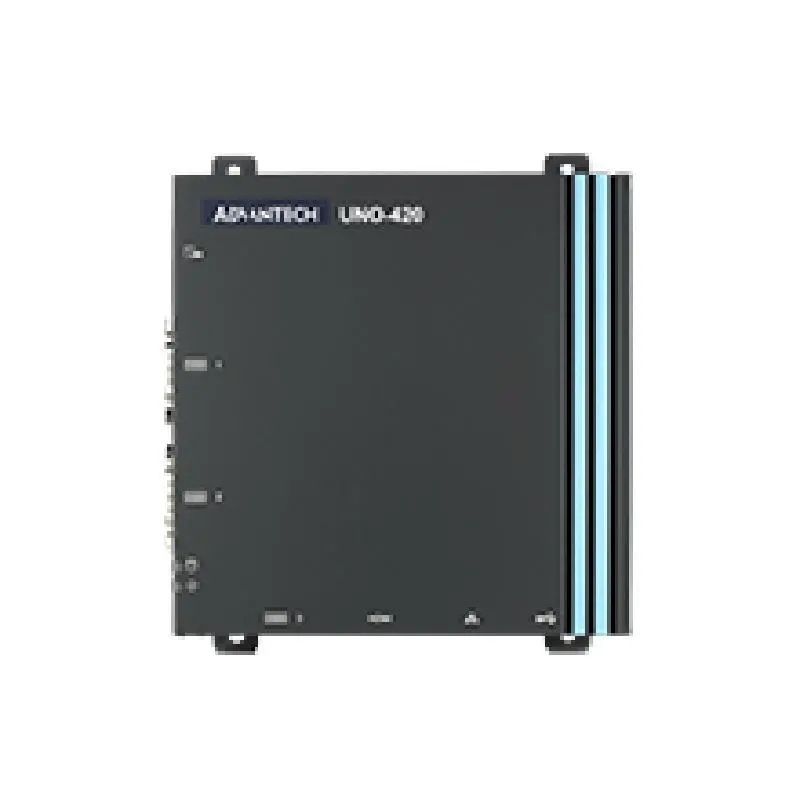

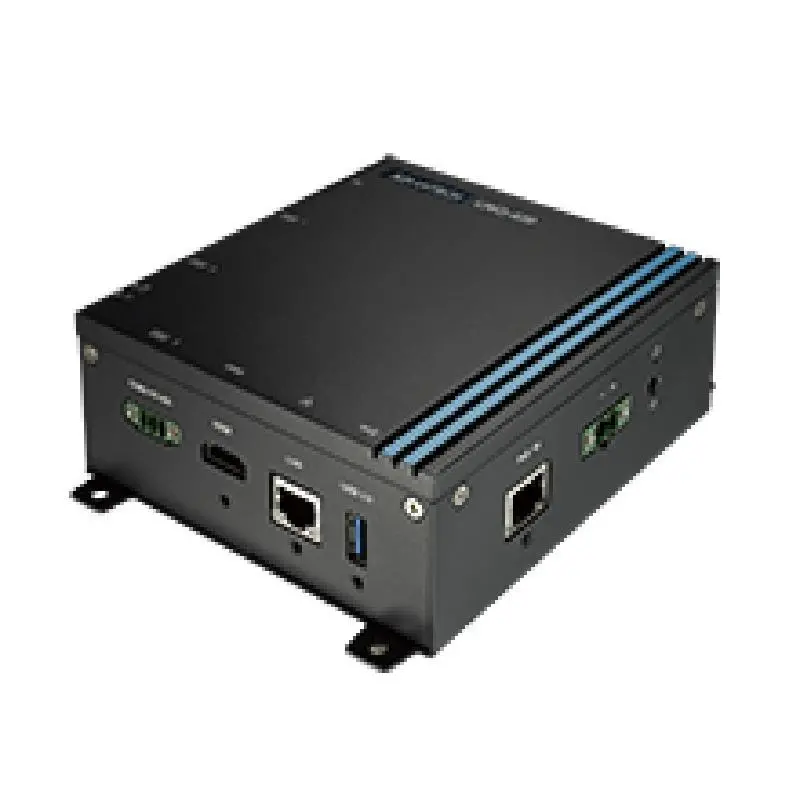

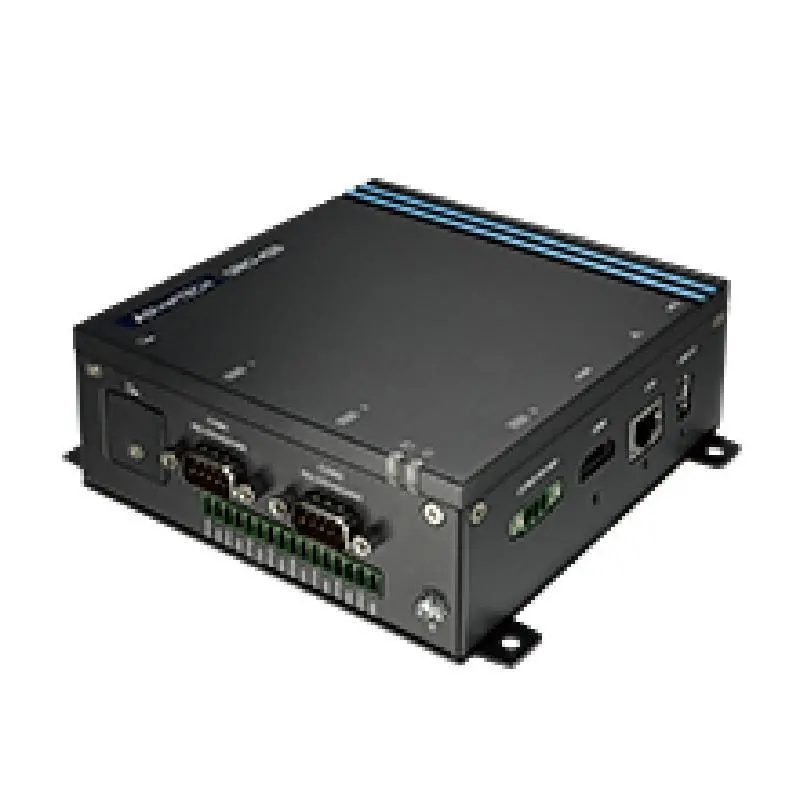

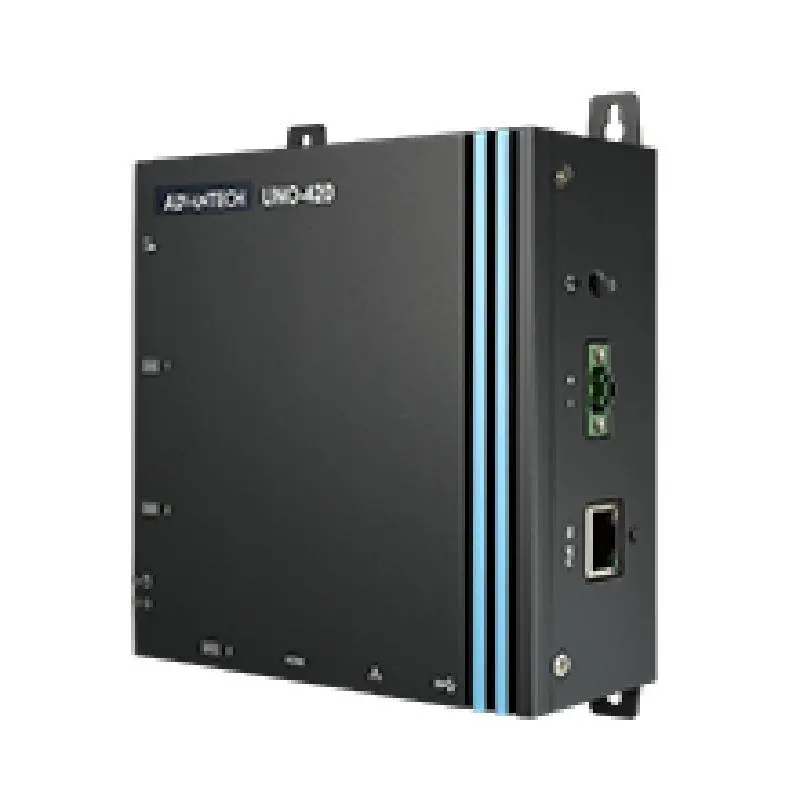

Advantech UNO-420 PoE Powered Device Sensing Gateway with Intel® Atom™ E3815
