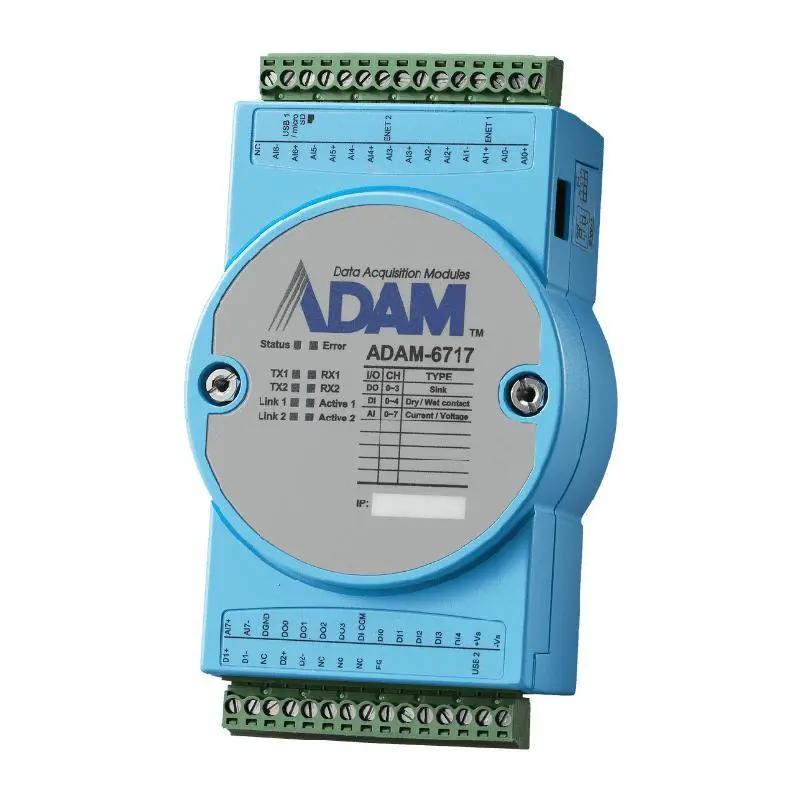

Advantech ADAM-6717 8AI/5DI/4DO Intelligent I/O Gateway

Linux Open Platform

8ch analog input (current or voltage)/5ch digital input/4ch digital output

Program by linux C API, Node-RED (graphic programming environment)

Cloud/Database access, edge data analysis and logic control, data visualization by dashboard

Interfaces: x2 RS-485, x2 Ethernet port, x1 USB Type-A 2.0, x1 USB Micro-B 2.0

		ADAM-6717-A
Analog Input	Channels	8
Analog Input	Input Range	±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V
Analog Input	lnput Type	V, mV, mA
Analog Input	Resolution(Bits)	16-bit
Analog Input	Sampling Rates(S/s)	100 S/s (sum)
Environment	Isolation Voltage	2,500 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
Ethernet	No. of Ports	2
Ethernet	Speed	10/100 Mbps
General	Connectors	1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal
General	Programming Language	Node-RED, Liunx C
Hardware	I/O	2 x RS-485, 1 x Micro USB, 1 x USB 2.0
Hardware	OS Support	Linux
Hardware	Storage	1 x micro SD Slot
Isolated Digital Input	Channels	5
Isolated Digital Input	Input Voltage	Dry Contact Logic level 1: close to GND Logic level 0: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Isolated Digital Output	Channels	4
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Output Voltage	0~30 VDC
Isolated Digital Output	Sink Current	100 mA max./channel
Power Requirements	Input Voltage	10~30 VDC
