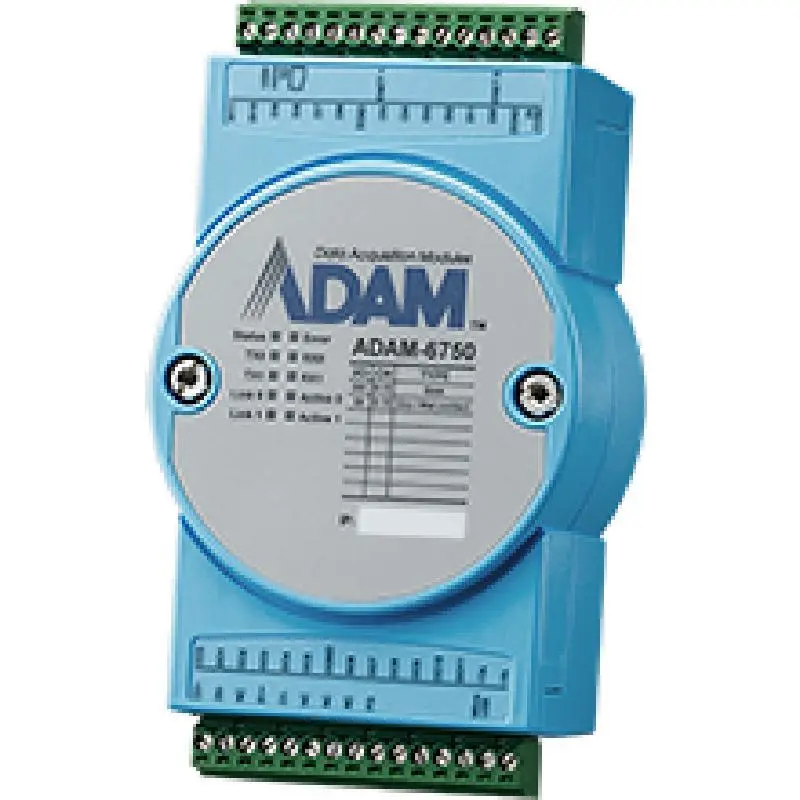

Advantech ADAM-6750 12DI/12DO Intelligent I/O Gateway

Linux Open Platform

12ch digital input(counter)/12ch digital output(pulse output)

Programming: linux C API, Node-RED (graphic programming environment)

Cloud/Database access ,edge data analysis and logic control, data visualization by dashboard

Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0

		ADAM-6750-A
Counter/Encoder Input	Channels	12
Counter/Encoder Input	Max. Input Frequency	3 kHz
Environment	Isolation Voltage	2,500 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
Ethernet	No. of Ports	2
Ethernet	Speed	10/100 Mbps
General	Connectors	1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal
General	Programming Language	Node-RED, Liunx C
Hardware	I/O	2 x RS-485, 1 x Micro USB, 1 x USB 2.0
Hardware	OS Support	Linux
Hardware	Storage	1 x micro SD Slot
Isolated Digital Input	Channels	12
Isolated Digital Input	Input Voltage	Dry Contact Logic level 1: close to GND Logic level 0: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Isolated Digital Output	Channels	12
Isolated Digital Output	Output Type	Sink
Isolated Digital Output	Output Voltage	0~30 VDC
Isolated Digital Output	Sink Current	100 mA max./channel
Power Requirements	Input Voltage	10~30 VDC
