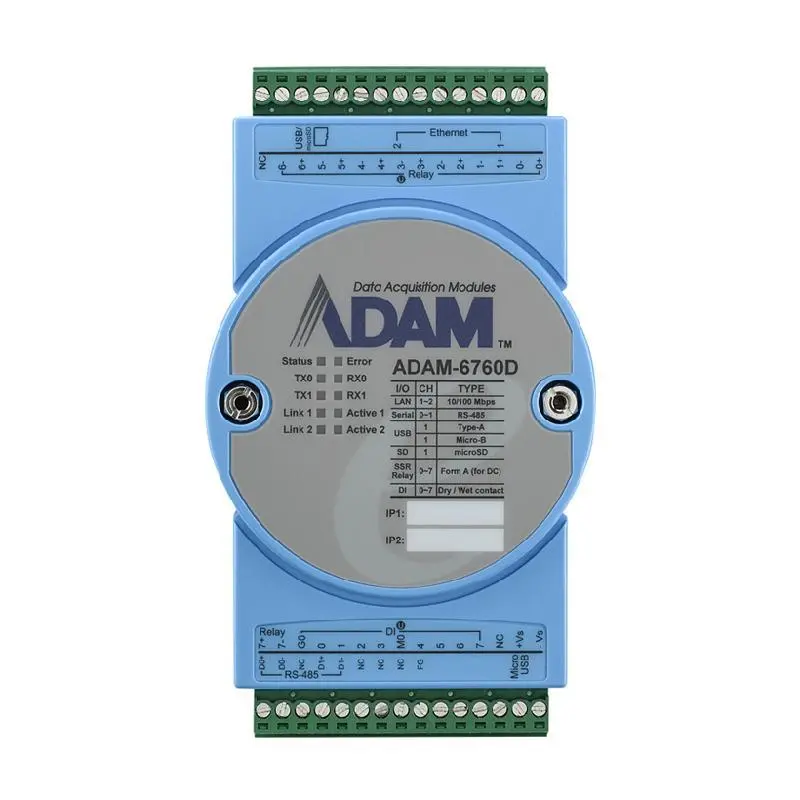

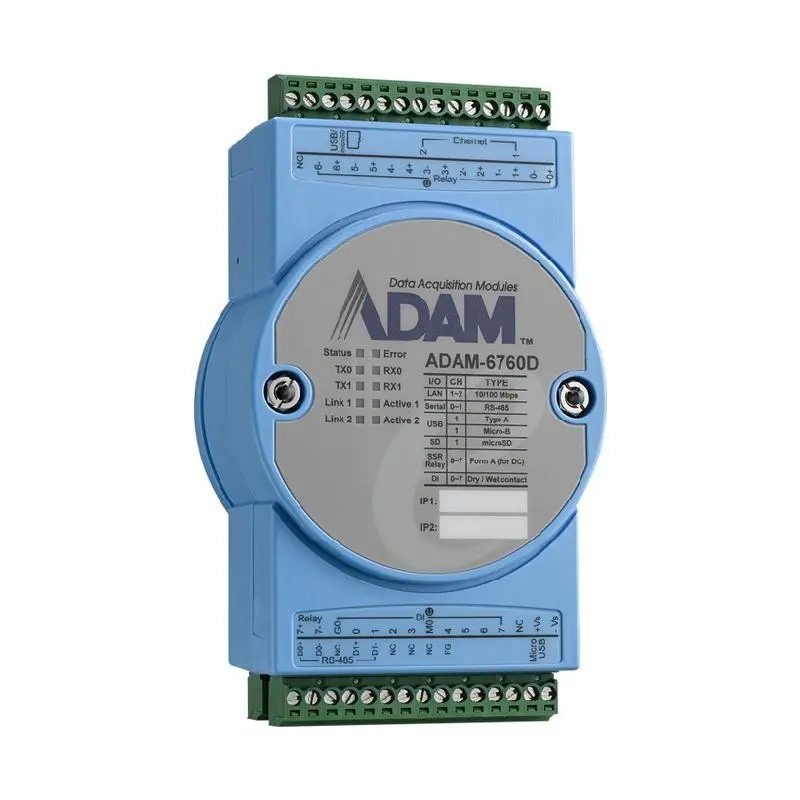

Advantech ADAM-6760D 8SSR Relay/8 DI Intelligent I/O Gateway

Linux open platform

8-channel SSR relay/ 8-channel digital input

Programming: Linux C API, Node-RED (graphic programming environment)

Cloud / database access, edge data analysis and logic control, and data visualization by dashboard

Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0

		ADAM-6760D-A
Counter/Encoder Input	Channels	8
Counter/Encoder Input	Max. Input Frequency	3 kHz
Environment	Isolation Voltage	2,500 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
Ethernet	No. of Ports	2
Ethernet	Speed	10/100 Mbps
General	Connectors	1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal
General	Programming Language	Node-RED, Liunx C
Hardware	I/O	2 x RS-485, 1 x Micro USB, 1 x USB 2.0
Hardware	OS Support	Linux
Hardware	Storage	1 x micro SD Slot
Isolated Digital Input	Channels	8
Isolated Digital Input	Input Voltage	Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
Power Requirements	Input Voltage	10~30 VDC
Relay Output	Channels	8 PhotoMOS SPST Form A
Relay Output	Contact Rating (Resistive)	1 A @ 25 °C @ 30 VDC, 0.7 A @ 70 °C @ 30 VDC
Relay Output	Relay Type	1 x Form A
