| ECU-1152TL-R11ABE | ||
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Ethernet | Speed | 10/100 Mbps |
| Expansion Function | Interface | 1 x Full-size mini PCIe 2.0 |
| Expansion Function | SIM card slot | Nano SIM card |
| General | Grounding Protection | Chassis grounding |
| General | Programming Language | Linux C |
| General | Protocol | OPC-UA Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server |
| Hardware | Certification | CE, FCC class A |
| Hardware | CPU | TI Cortex A8, 800MHz |
| Hardware | Expansion | 1 x Full-size mPCIe slot |
| Hardware | LED Indicators | PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program |
| Hardware | Memory | DDR3L 512MB |
| Hardware | OS Support | Linux |
| Hardware | Power Input | 10~30 VDC |
| Hardware | Storage | 2 x SD (Micro-SD) |
| Hardware | Watchdog Timer | 15~255 s |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot |

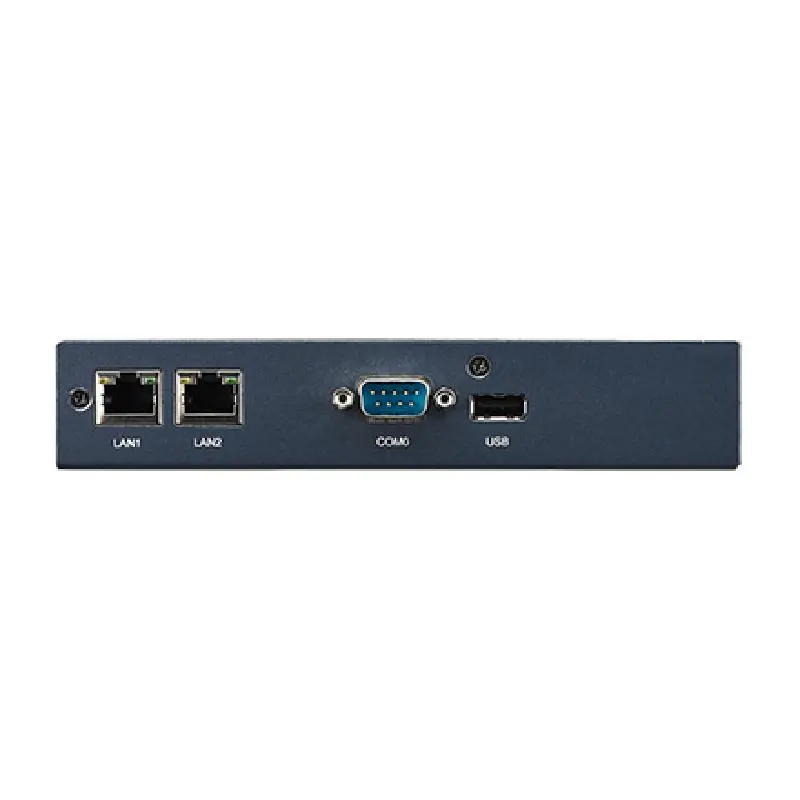

| I/O Interface | LAN Ports | 2 x 10/100 Mbps |

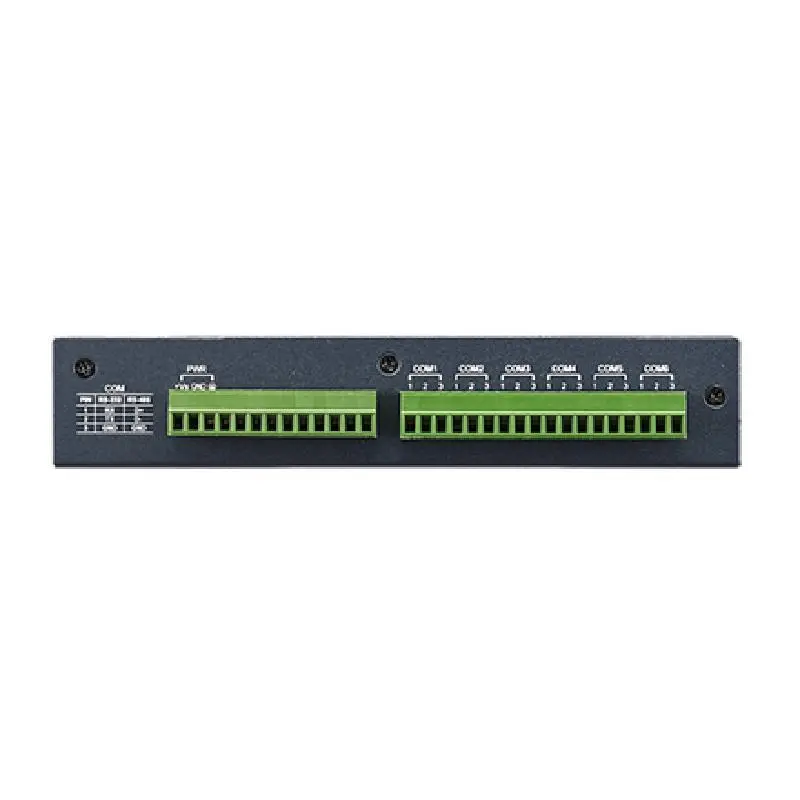

| I/O Interface | Power Connector | 1 x 13-Pin Terminal Block |
| I/O Interface | Serial Ports | 6 x RS-232/485 (Terminal Block) |
| I/O Interface | USB Ports | 1 x USB 2.0 |
| Mechanical | Dimension (W x H x D) | 170 x 32 x 110 mm |
| Mechanical | Enclosure | SECC |
| Mechanical | Form Factor | Passive Cooling and Front Accessible |
| Mechanical | Mounting | Wall, DIN-rail |
| Power Requirements | Input Voltage | 10~30 VDC |
| Serial Communication | Baud Rate (bps) | 50 bps~115.2 kbps |
| Serial Communication | Data Signals | RS-232: TxD, RxD, GNDRS-485: Data+, Data- |

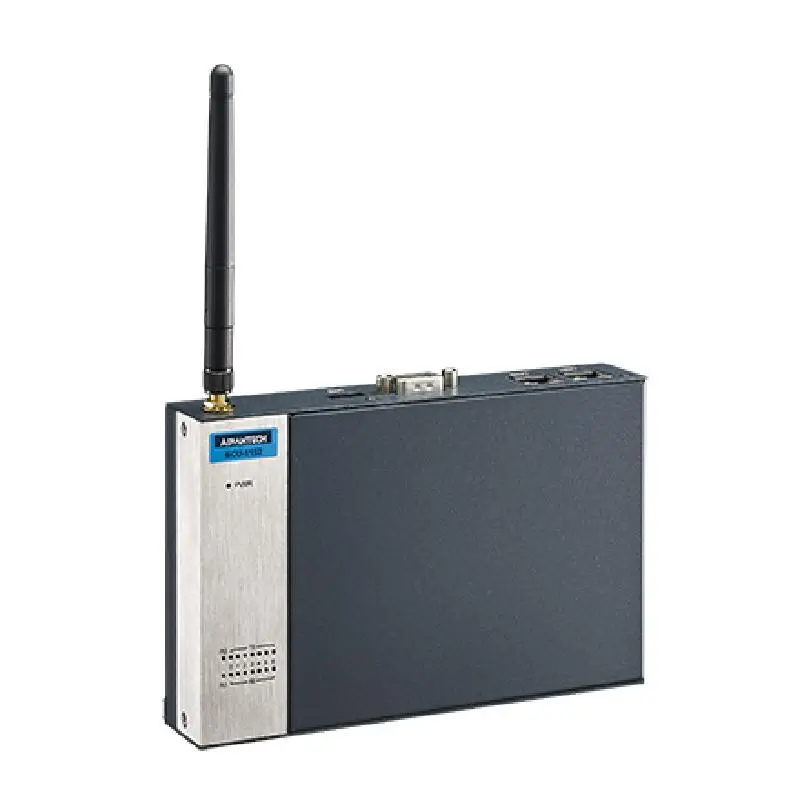

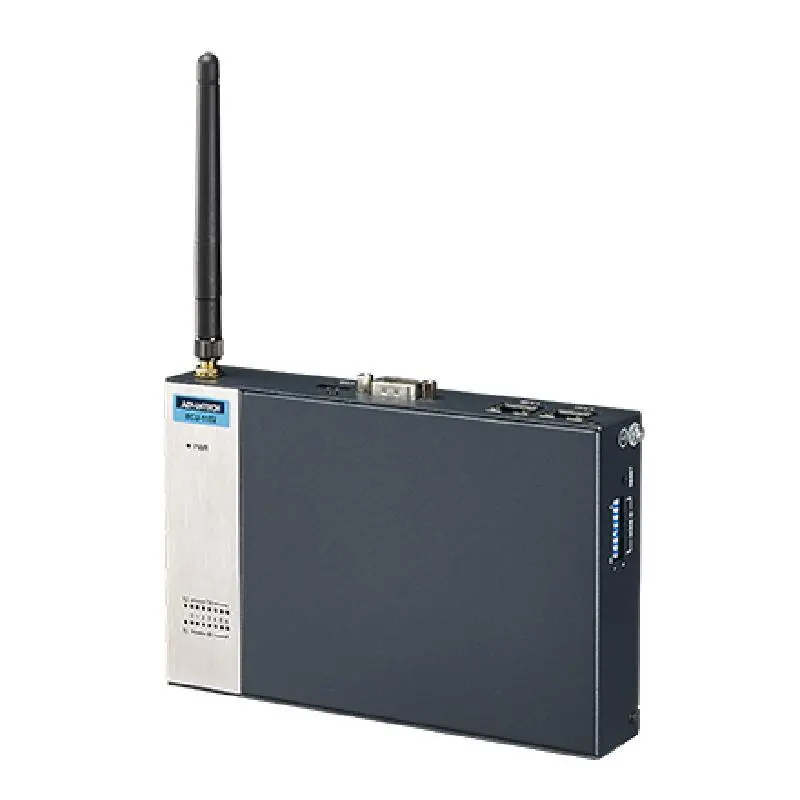

| Wireless Communication | Standard (Technology) | WIFI, LTE |

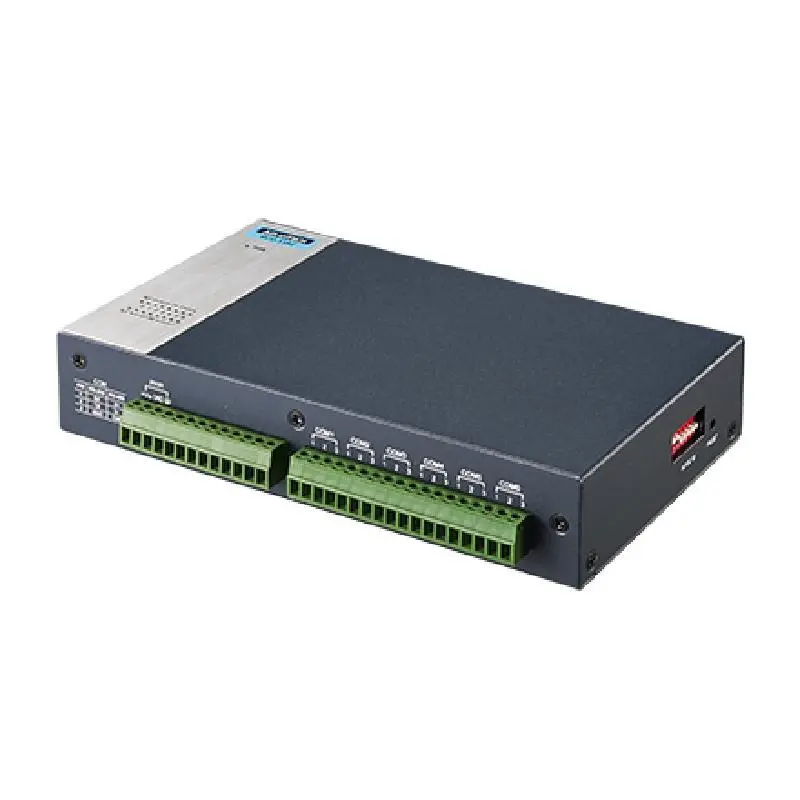

Advantech ECU-1152 Industrial Communication Gateway with TI Cortex A8, 2 LAN & 6 COM
