| ECU-150-12A | ECU-150-12A1 | ECU-150-12A1U | ||
| General | Humidity (Storage) | 5~95% RH (non-condensing) | 5~95% RH (non-condensing) | 5~95% RH (non-condensing) |
| General | Programming Language | Linux C | Linux C | Linux C |
| Hardware | LAN | 2 x 10/100/1000 Base-T Ethernet | 2 x 10/100/1000 Base-T Ethernet | 2 x 10/100/1000 Base-T Ethernet |
| Hardware | Watchdog Timer | Programmable | Programmable | Programmable |
| Hardware | Expansion | 1 x Full-size mPCIe slot | 1 x Full-size mPCIe slot | 1 x Full-size mPCIe slot |
| Hardware | Certification | CE, FCC, UL | CE, FCC, UL | CE, FCC, UL |
| Hardware | OS Support | Linux | Linux | Linux |
| Hardware | Power Input | 10~30 VDC | 10~30 VDC | 10~30 VDC |
| I/O Interface | Serial Ports | 2 x RS-232/485 (Terminal Block) | 2 x RS-232/485 (Terminal Block) | 2 x RS-232/485 (Terminal Block) |
| I/O Interface | USB Ports | 1 x USB 3.0 | 1 x USB 3.0 | 1 x USB 3.0 |
| I/O Interface | Power Connector | 1 x 3-Pin Terminal Block | 1 x 3-Pin Terminal Block | 1 x 3-Pin Terminal Block |
| Environment | Vibration Protection | 1 Grms, random | 1 Grms, random | 1 Grms, random |
| Environment | Ingress Protection | IP30 | IP30 | IP30 |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) | -40~70 °C (-40~158 °F) | -40~70 °C (-40~158 °F) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) | -40~85 °C (-40~185 °F) | -40~85 °C (-40~185 °F) |
| Environment | Isolation Voltage | 2,500 VDC | 2,500 VDC | 2,500 VDC |
| Expansion Function | SIM card slot | Nano SIM card | Nano SIM card | Nano SIM card |
| Mechanical | Mounting | Wall, DIN-rail | Wall, DIN-rail | Wall, DIN-rail |
| Mechanical | Form Factor | Passive Cooling and Front Accessible | Passive Cooling and Front Accessible | Passive Cooling and Front Accessible |
| General | Protocol | OPC-UA Client & Server, DNP3.0 Client & Server,IEC-60870-5-104 Master & Slave, IEC-60870-5-101Slave, Modbus RTU/TCP Master & Slave, BACNet/IPServer | OPC-UA Client & Server, DNP3.0 Client & Server,IEC-60870-5-104 Master & Slave, IEC-60870-5-101Slave, Modbus RTU/TCP Master & Slave, BACNet/IPServer | OPC-UA Client & Server, DNP3.0 Client & Server,IEC-60870-5-104 Master & Slave, IEC-60870-5-101Slave, Modbus RTU/TCP Master & Slave, BACNet/IPServer |
| General | Grounding Protection | Chassis grounding | Chassis grounding | Chassis grounding |
| Hardware | CPU | NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core | NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core | NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core |
| Hardware | Memory | 1 x LPDDR4 with 2 GB | 1 x LPDDR4 with 4 GB | 1 x LPDDR4 with 4 GB |
| Mechanical | Enclosure | Aluminum housing, Steel | Aluminum housing, Steel | Aluminum housing, Steel |
| Mechanical | Dimension (W x H x D) | 100 x 93 x 30 mm | 100 x 93 x 30 mm | 100 x 93 x 30 mm |
| Hardware | Storage | 16 GB eMMC | 32 GB eMMC | 32 GB eMMC |
| Hardware | LED Indicators | Power, LAN (Active, Link), Serial (Tx/Rx), Programmable | Power, LAN (Active, Link), Serial (Tx/Rx), Programmable | Power, LAN (Active, Link), Serial (Tx/Rx), Programmable |

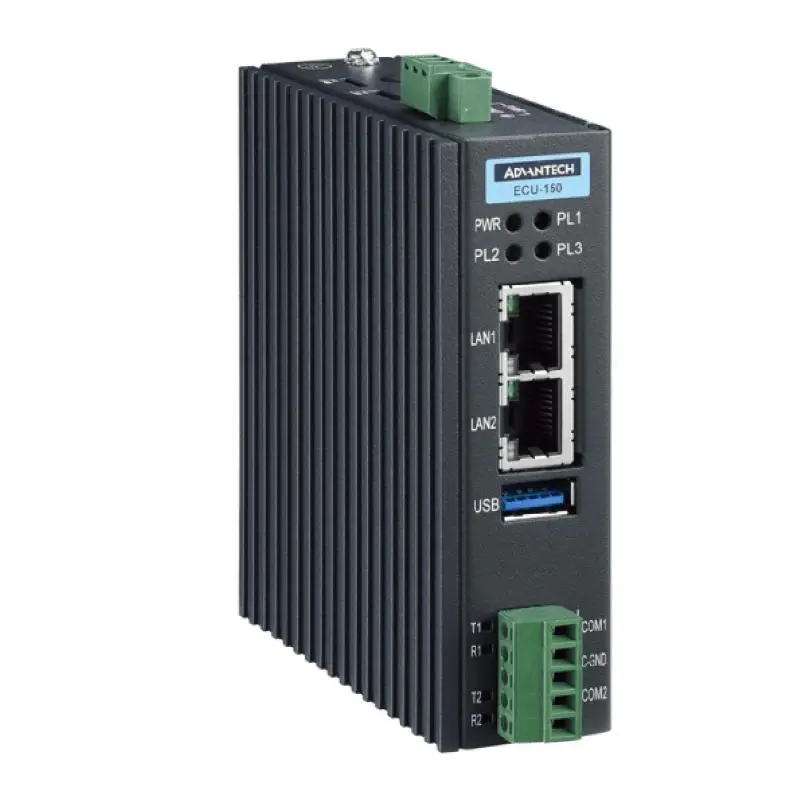

Advantech ECU-150 Compact High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53, 2 LAN, 2 COM & 1 USB
