| ECU-1252TL-R22AA | ||
| Power Supply | Input Voltage | 12~30 VDC |
| General | Humidity (Storage) | 5~95% RH (non-condensing) |
| Hardware | CPU | ARM® Cortex™ A9 |
| Hardware | Storage | 16 GB eMMC |
| Hardware | LAN | 2 x 10/100/1000 Base-T Ethernet |
| Hardware | Watchdog Timer | Programmable |
| Hardware | Hardware Security | TPM 2.0 |
| Hardware | LED Indicators | Power, LAN (Active, Link), Serial (Tx/Rx), Programmable |
| Hardware | Certification | CE, FCC |
| Hardware | Power Consumption | 2.5 W @ 24 VDC |
| Hardware | OS Support | Linux 4.9 |
| I/O Interface | Serial Ports | 2 x RS-232/485 (Terminal Block) |
| Environment | Vibration Protection | 1 Grms, random |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Expansion Function | SIM card slot | Nano SIM card |
| Expansion Function | Interface | 1 x Full-size mini PCIe |
| Mechanical | Mounting | Wall, DIN-rail |
| Mechanical | Dimension (W x H x D) | 140 x 30 x 96.5 mm |
| Mechanical | Form Factor | Passive Cooling and Front Accessible |
| Hardware | I/O | 2 x CAN Bus |

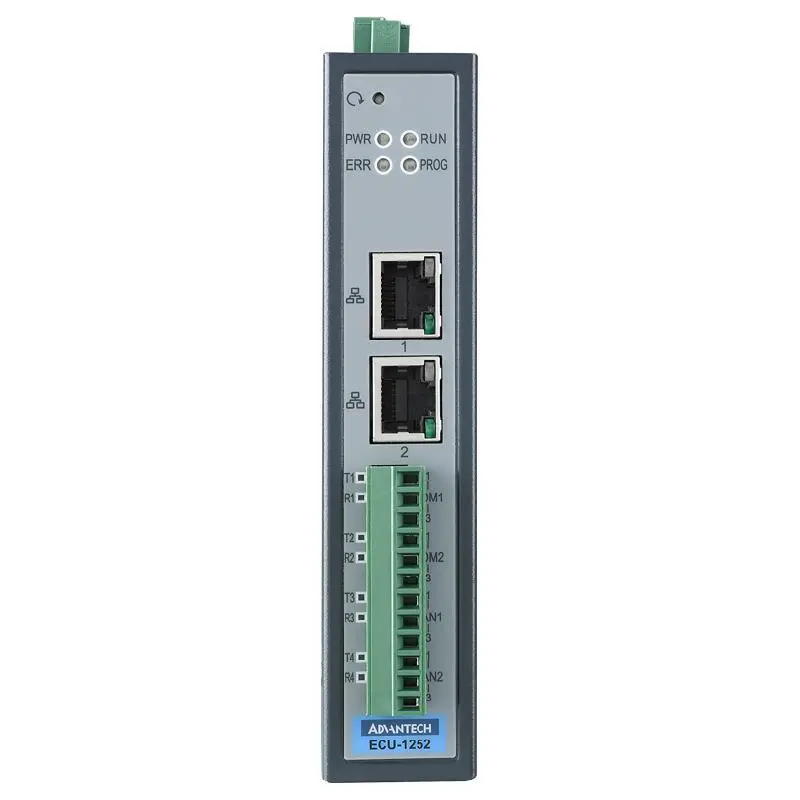

Advantech ECU-1252 Industrial Communication Gateway with TI Cortex A9, 2 LAN, 2 COM & 2 CAN
