| ECU-1370-531A | ||
| Power Supply | Input Voltage | 10~30 VDC |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Ingress Protection | IP30 |
| Mechanical | Mounting | DIN-rail |
| Mechanical | Form Factor | Passive Cooling and Front Accessible |
| Hardware | CPU | NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core |
| Hardware | Memory | 1 x LPDDR4 with 4 GB |
| Hardware | Storage | 32 GB eMMC |
| Hardware | LAN | 3 x 10/100/1000 Mbps |
| Hardware | LED Indicators | Power, LAN (Active, Link), Serial (Tx/Rx), Programmable |
| Hardware | Certification | CE, FCC, UL |
| Relay Output | Channels | 6 |
| Relay Output | Contact Rating (Resistive) | 3 A @ 30 VDC |
| Digital Input | Isolation Protection | 2,000 VDC |
| Digital Input | Channels | 24 (Isolated) |
| Digital Input | Digital Filter | Selectable |
| I/O Interface | Serial Ports | 1 x RS-485 |
| I/O Interface | USB Ports | 2 x USB 2.0 |

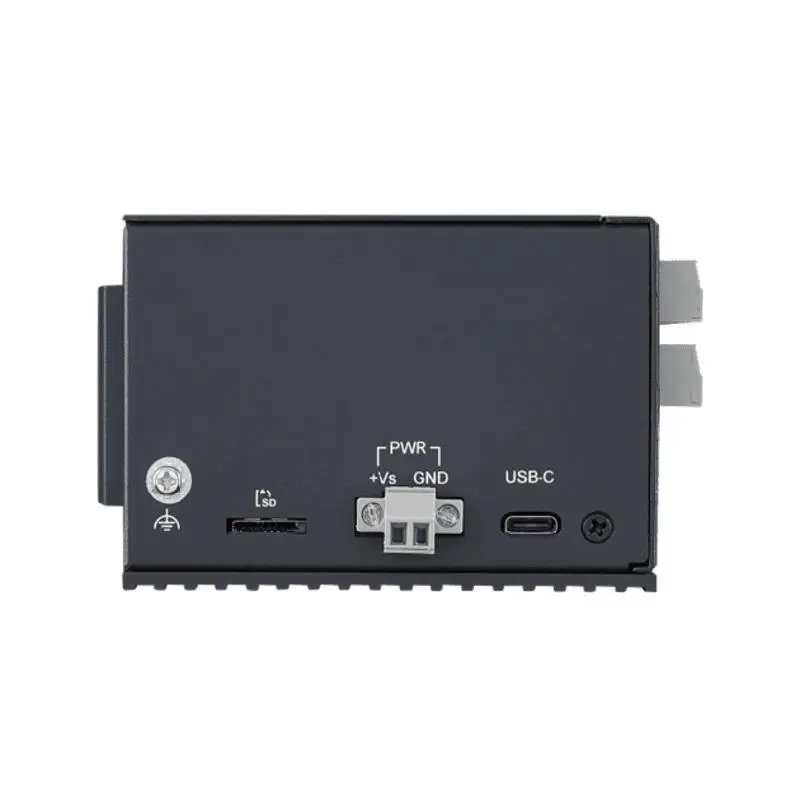

| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| Hardware | I/O | 1 x CAN Bus |
| Hardware | OS Support | Linux |

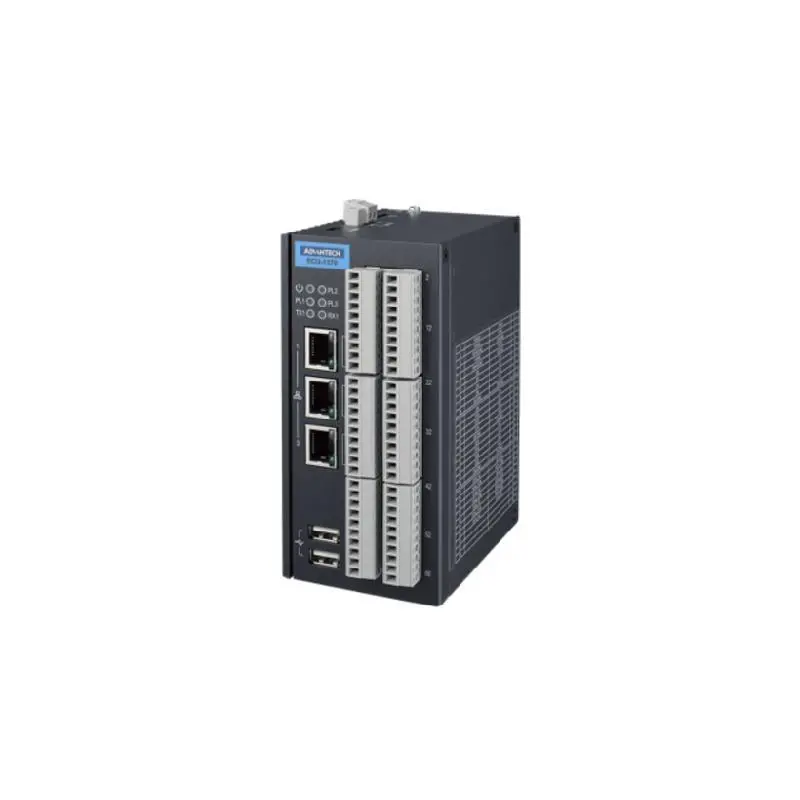

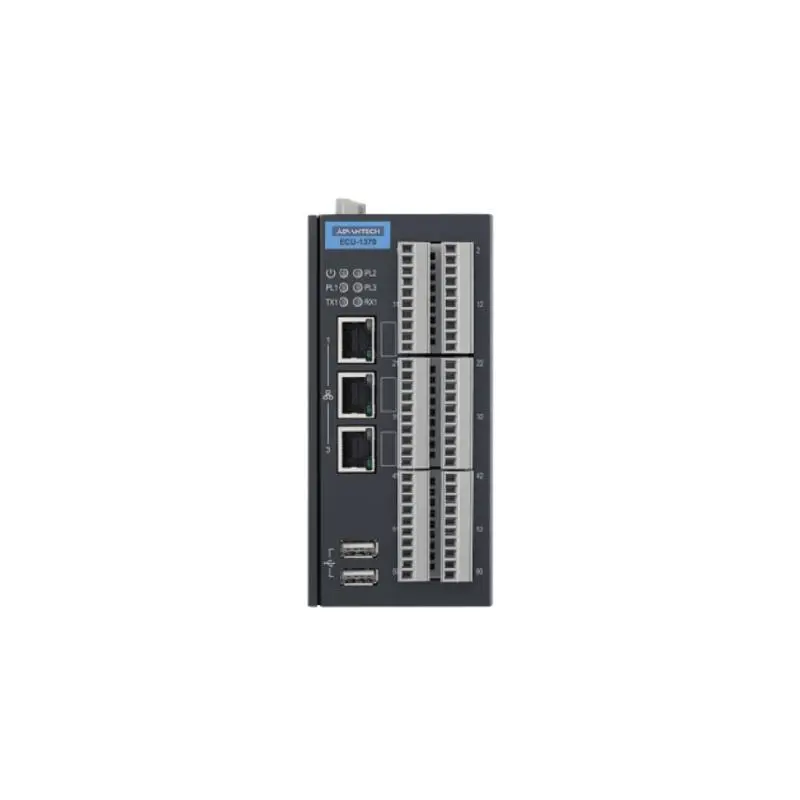

Advantech ECU-1370 High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53
