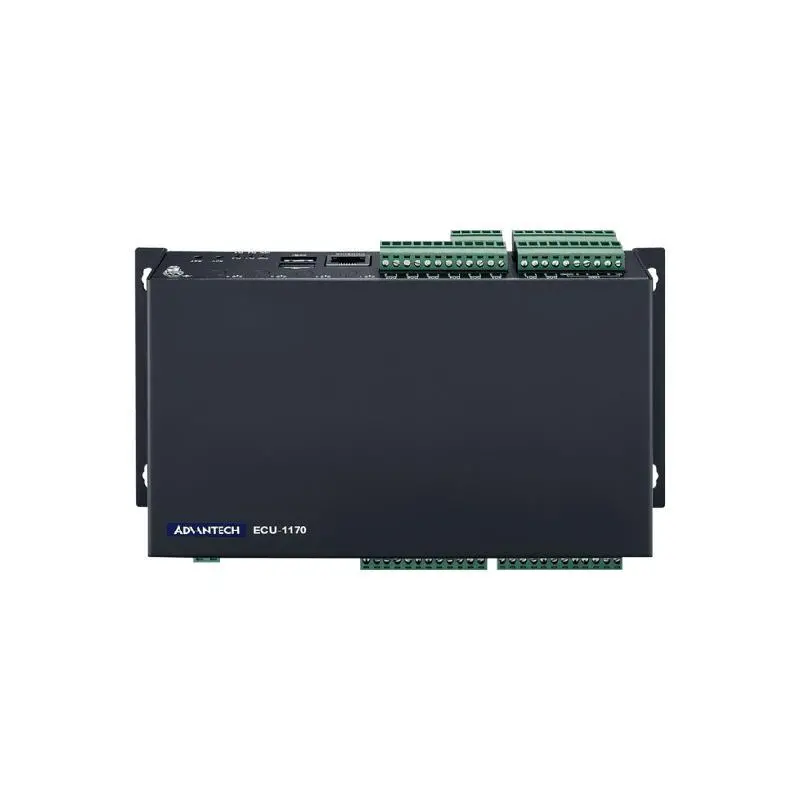

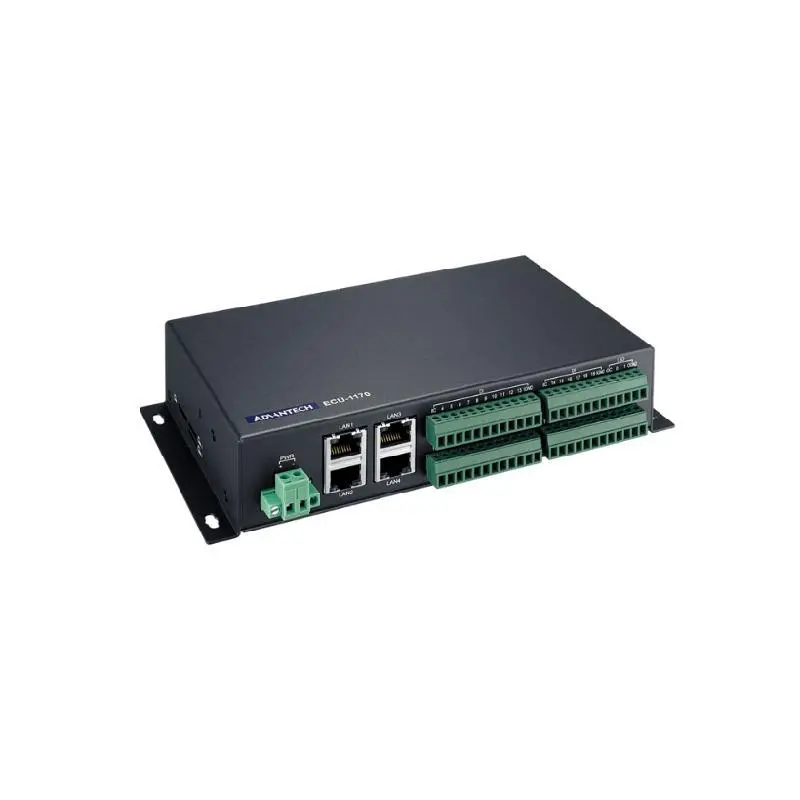

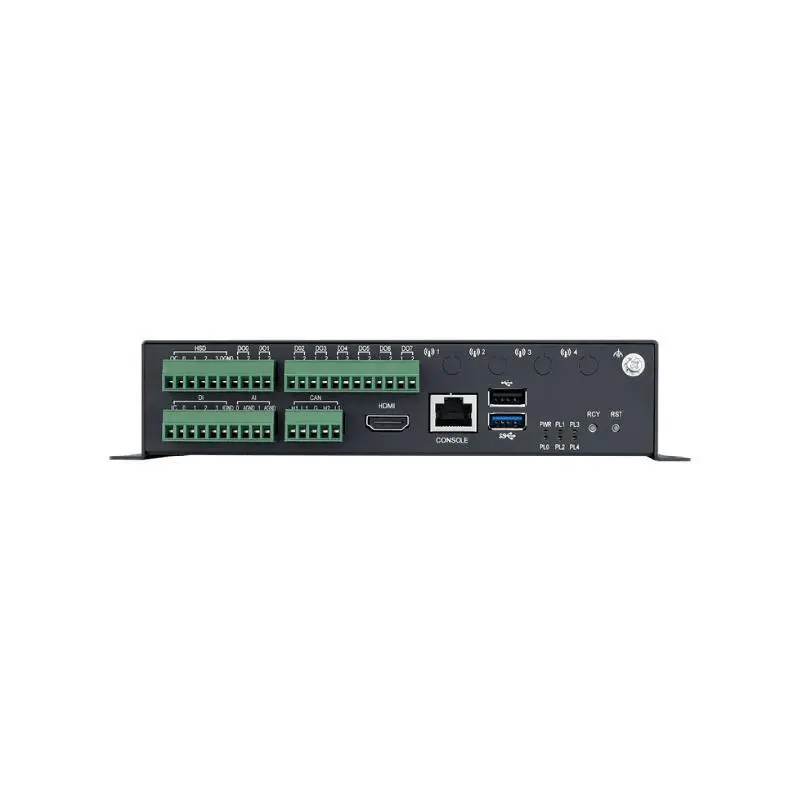

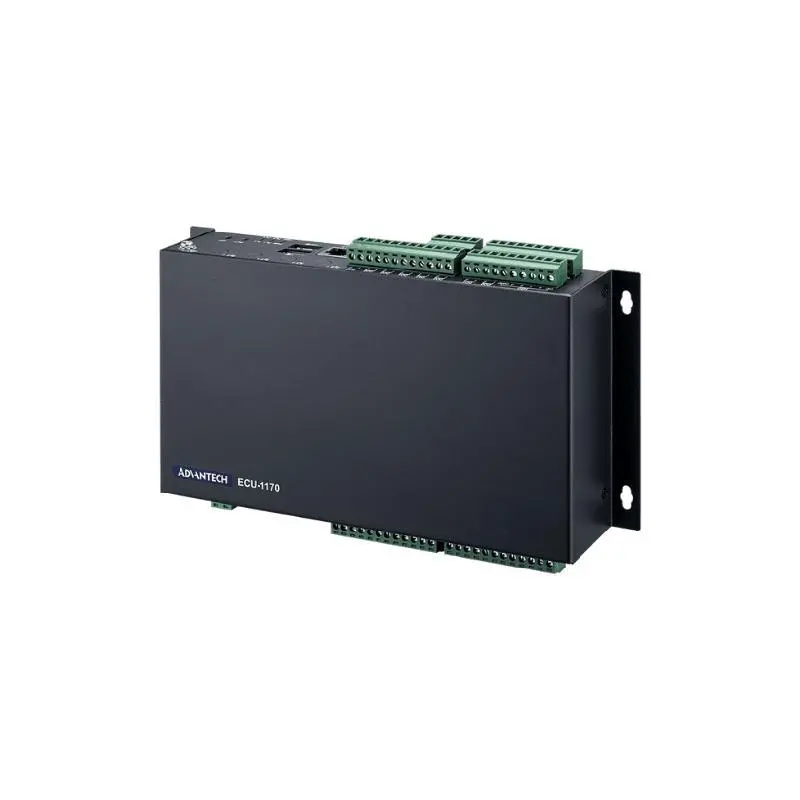

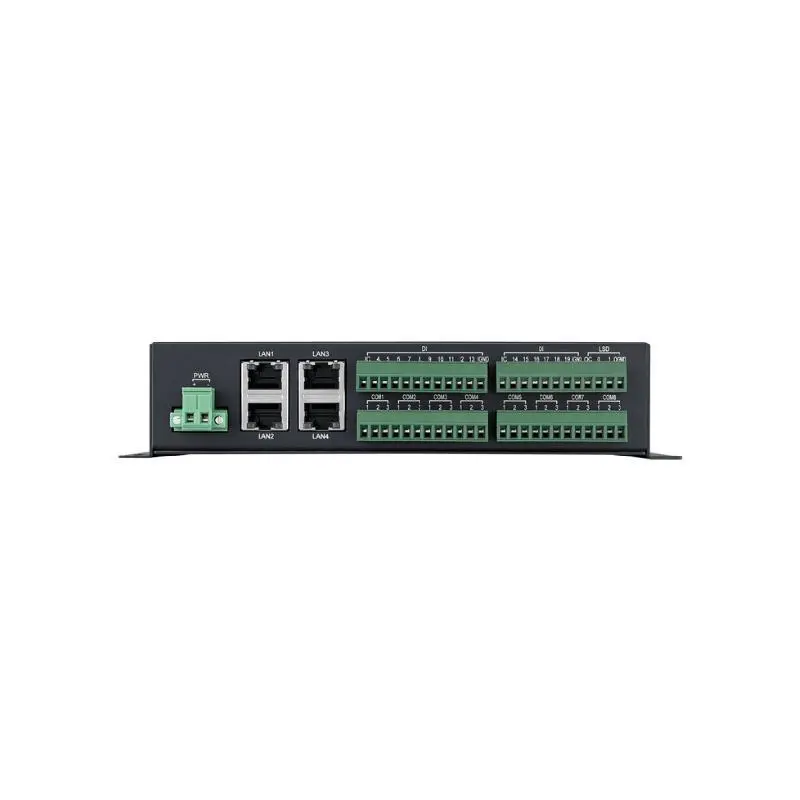

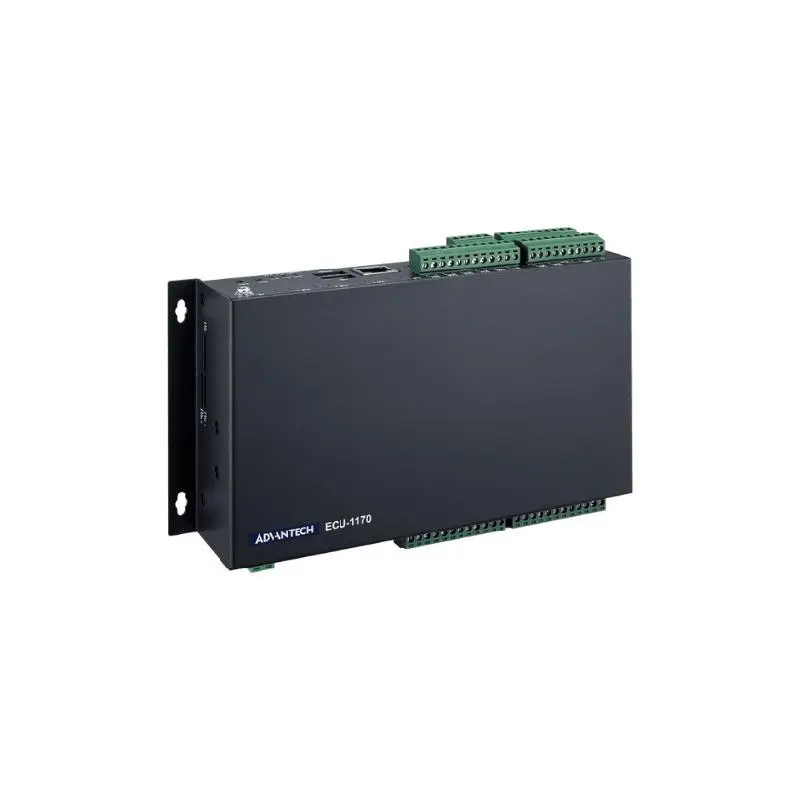

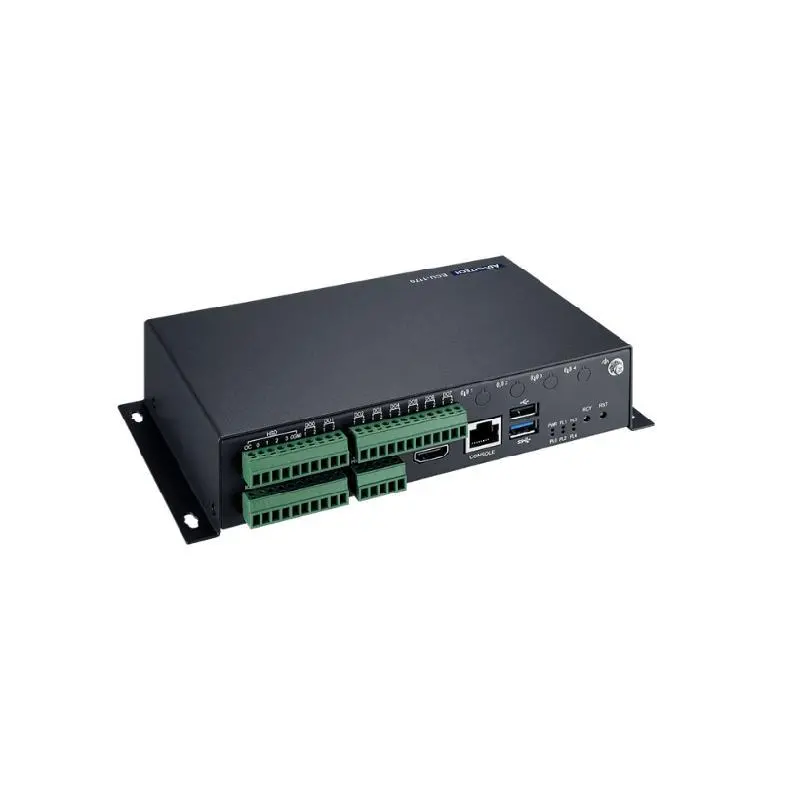

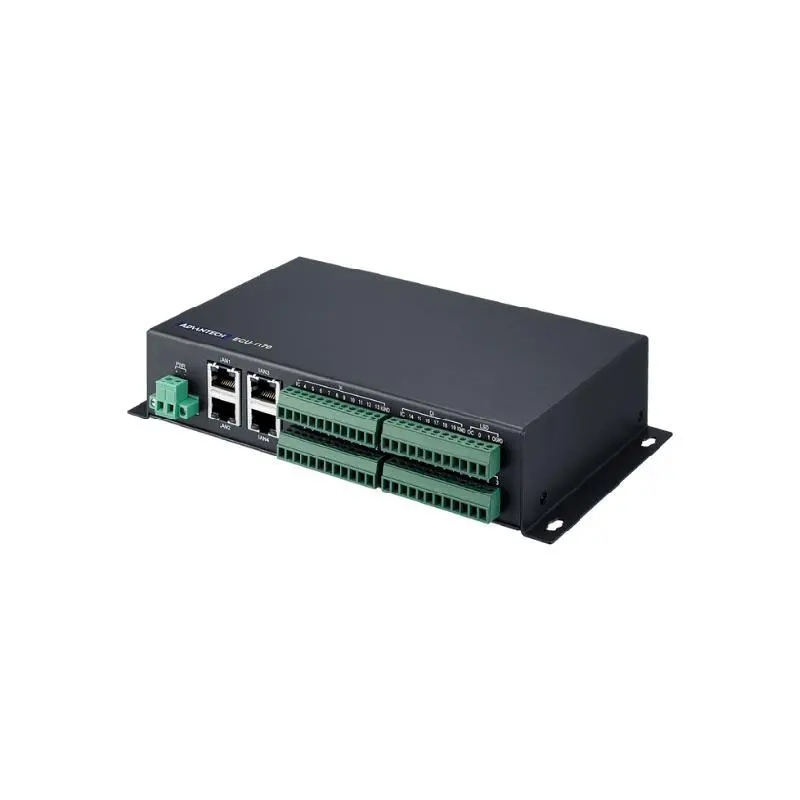

Advantech ECU-1170 High-Performance All-in-One Gateway for Battery Energy Storage Systems - industrial computer

Advantech ECU-1170 High-Performance All-in-One Gateway for Battery Energy Storage Systems

Quad-core Cortex-A55 processor, 1.8GHz

Connectivity: 4 GbE, 8 RS-232/485, 2 CAN, 1 mPCle and 1 M.2

I/O: 20 DI, 6 DO, 8 Relay, 2 AI

Battery-powered RTC, Watchdog, and optional TPM support

Wide operating temperature range: -40~70°C

Optional 5 sec power backup with Supercapacitor

Supports IEC 61850, IEC 104, DNP3, Modbus, MQTT, and OPC UA

Preloaded with Yocto Linux and EdgeLink or Ubuntu Linux
