| ADAM-3600-C2GL1A1E | ||
| Analog Input | Channels | 8 |
| Analog Input | Input Range | ±10 V, ±2.5 V, 0~20 mA, 4~20 mA |
| Analog Input | Isolation Protection | 2,000 VDC |
| Analog Input | lnput Type | V, mA |
| Analog Input | Resolution(Bits) | 16-bit |
| Digital Input | Channels | 8 |
| Digital Input | Digital Filter | 3 ms |
| Digital Input | Input Voltage | Wet ContactLogic Level 0: 0~+5 VLogic Level 1: +11~30V |
| Digital Input | Isolation Protection | 2,000 VDC |
| Digital Output | Channels | 4 |
| Digital Output | Isolation Protection | 2,000 VDC |
| Digital Output | Voltage Rating | 8~30 VDC |
| Environment | Isolation Voltage | 2,000 VDC |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Ethernet | Speed | 10/100 Mbps |
| Expansion Function | Interface | 1 x Full-size mini PCIe 2.0 |
| Expansion Function | SIM card slot | Nano SIM card |
| General | Protocol | IEC61131-3&C |
| Hardware | Certification | CE, FCC class A |
| Hardware | CPU | Cortex-A8 AM3352 |
| Hardware | Expansion | 1 x Full-size mPCIe Slot,1 x Half-size mPCIe Slot |
| Hardware | I/O | 1 x RS232/485, 2 x RS485, 1 x USB 2.0, 2 x LAN,1 x VGA |
| Hardware | LAN | 2 x 10/100 Mbps |
| Hardware | LED Indicators | PWR, RUN / ERROR,TX1, RX1, TX2, RX2, I/O |
| Hardware | Memory | 256MB, Battery Backup RAM 32K |
| Hardware | OS Support | Linux |
| Hardware | Power Consumption | 5 W @ 24 VDC |
| Hardware | Power Input | 10~30 VDC |
| Hardware | Storage | 1GB MicroSD card, SD card slot (optional) |
| Hardware | Video Port | VGA |
| I/O Interface | Displays | 1 x VGA |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot, 1 x Half-size mPCIe Slot |
| I/O Interface | Power Connector | 1 x 12-Pin Terminal Block |
| I/O Interface | Serial Ports | 1 x RS-232/485 (DB9), 2 x RS-485 (Terminal Block) |
| I/O Interface | USB Ports | 1 x USB 2.0 |
| Isolated Digital Input | Channels | 8 |
| Serial Communication | Data Signals | RS-232: TxD, RxD, GNDRS-485: Data+, Data- |
| Wireless Communication | Standard (Technology) | WIFI, LTE |

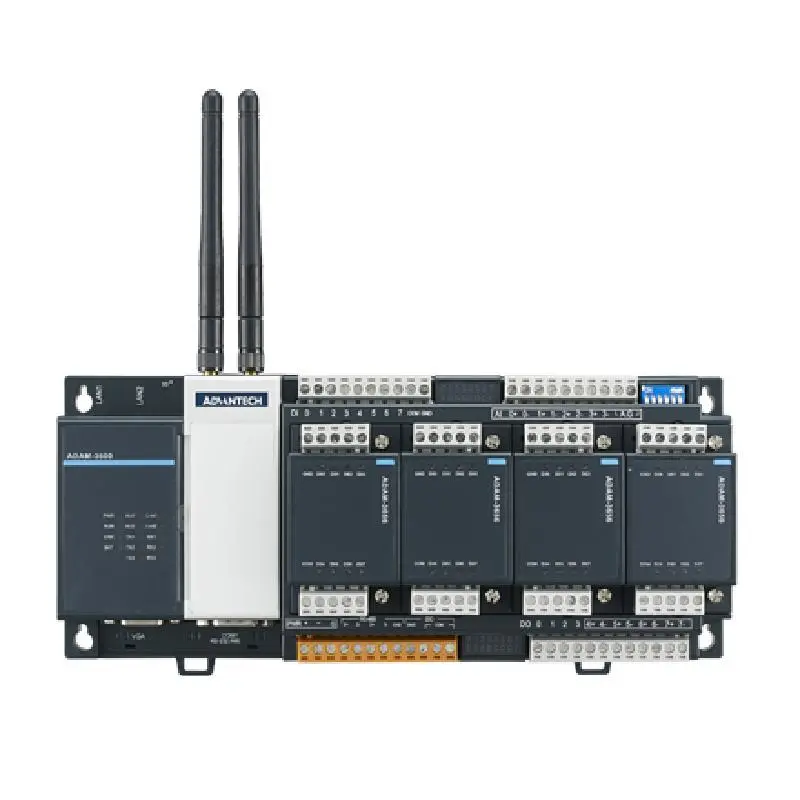

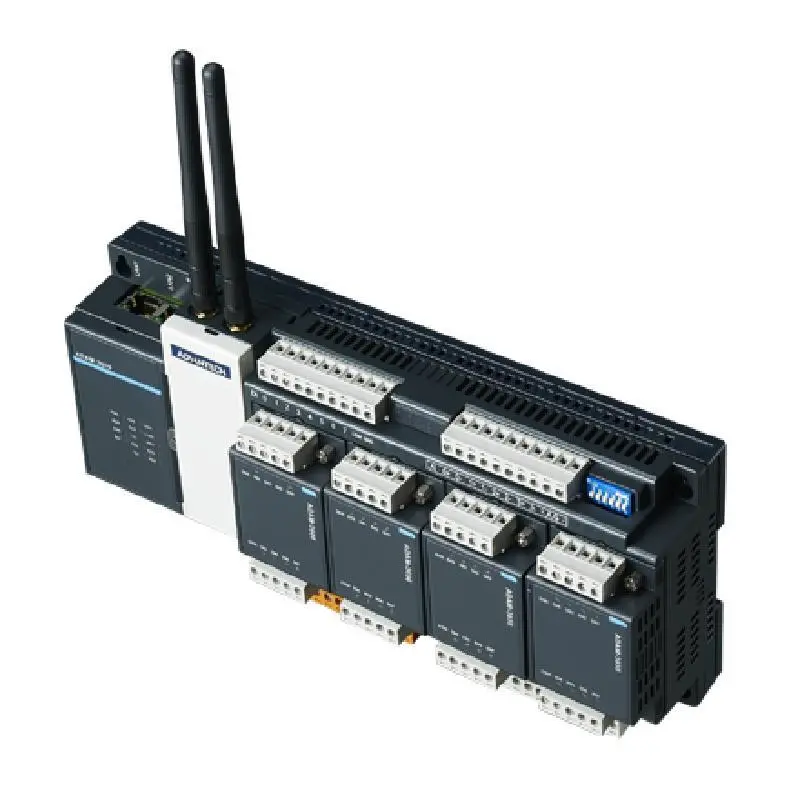

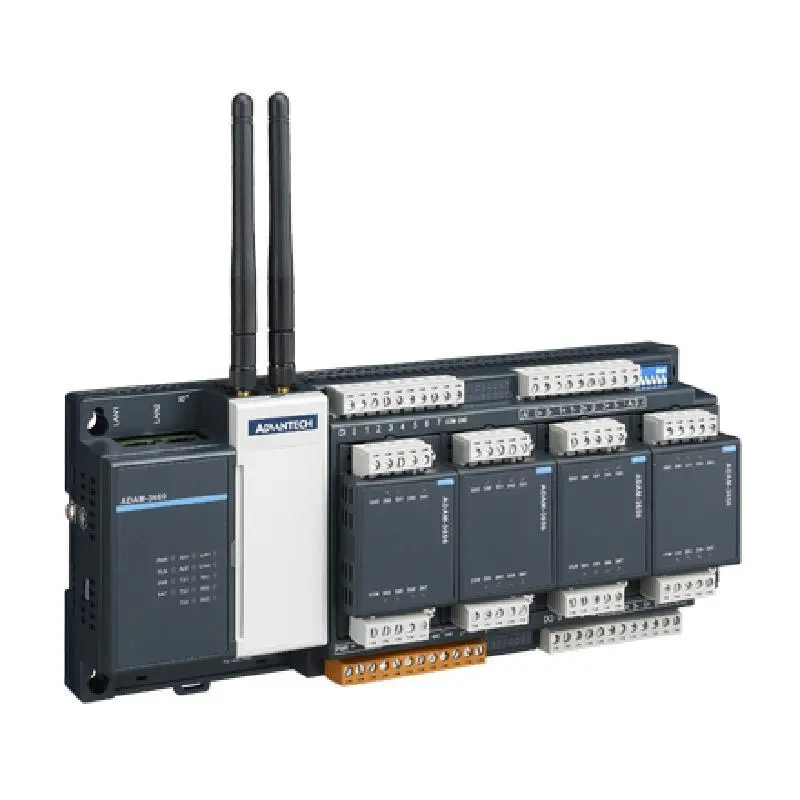

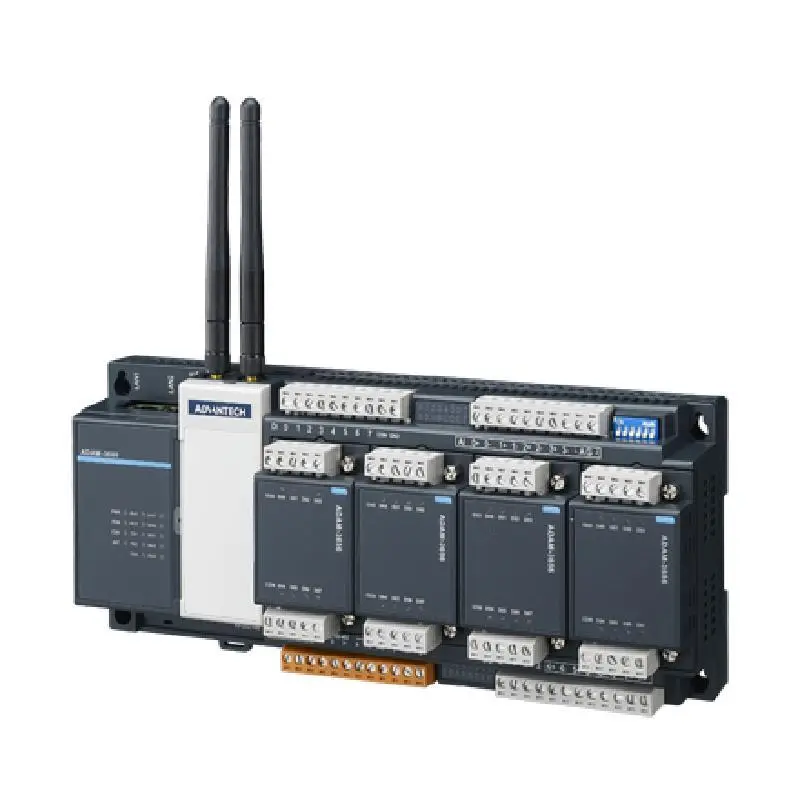

Advantech ADAM-3600 8AI/ 8DI/ 4DO/ 4-Slot IO Modbus /BACnet /101/104 /DNP3/PLC/Azure/AWS IoT RTU
