| ADAM-3618-AE | ||
| Analog Input | Burn-out Detection | Yes |
| Analog Input | Channels | 4 |
| Analog Input | Input Range | Type J ( 0~760°C)Type K ( 0~1370°C)Type T (-100~400°C)Type E (0~1000°C)Type R (500~1750°C)Type S (500~1750°C)Type B (500~1800°C) |
| Analog Input | Isolation Protection | 2,000 VDC |
| Analog Input | lnput Type | J, K, T, E, R, S, B Type Thermocouple |
| Analog Input | Resolution(Bits) | 16-bit |
| Analog Input | Sampling Rates(S/s) | 10 S/s (sum) |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |

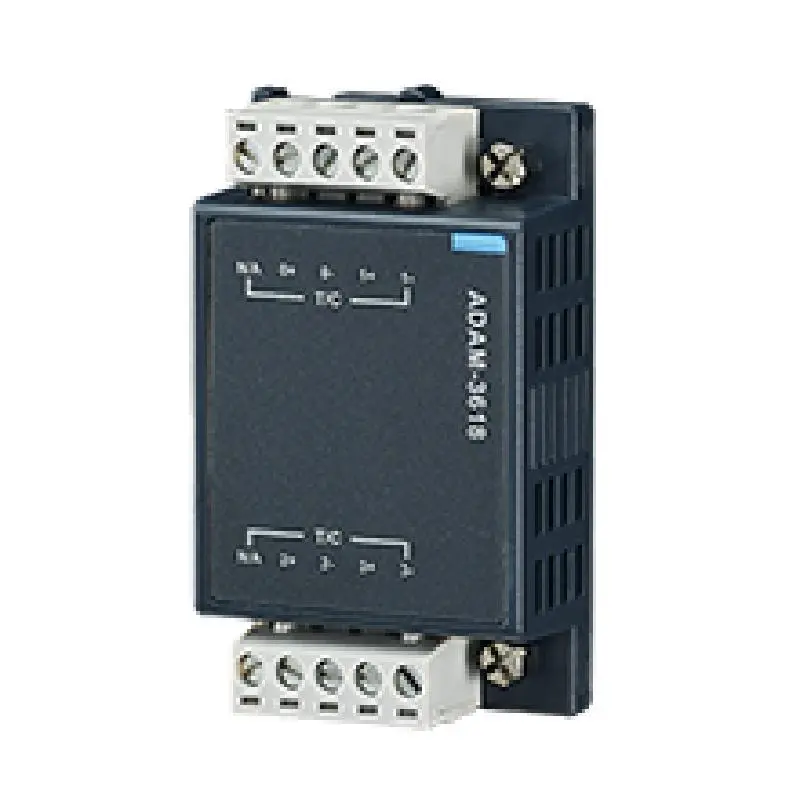

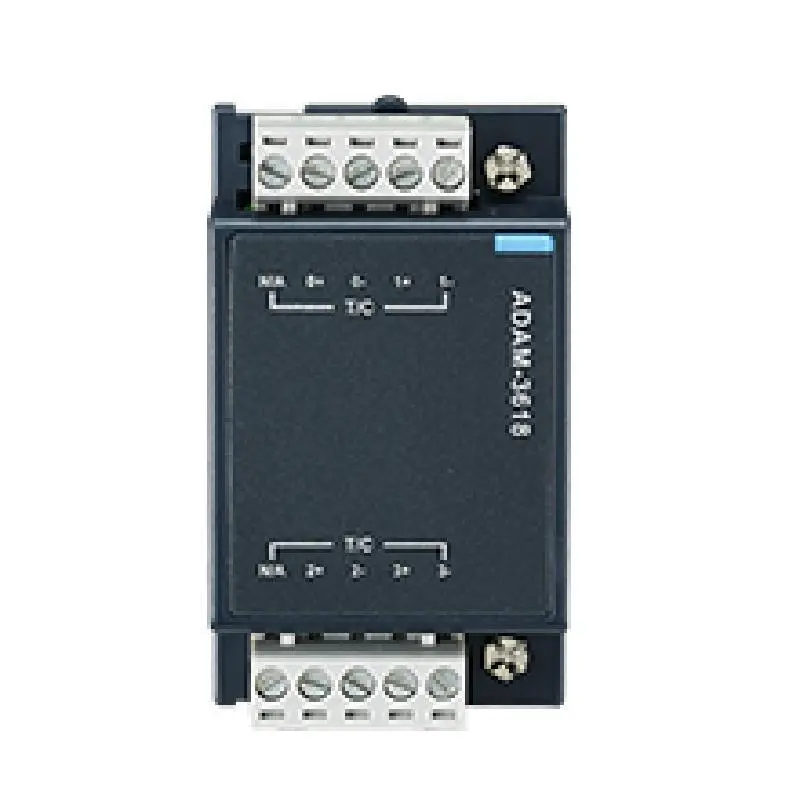

Advantech ADAM-3618 4-ch Thermocouple Input Module
