Advantech ADAM-3656 8-ch Digital Output Module - industrial computer

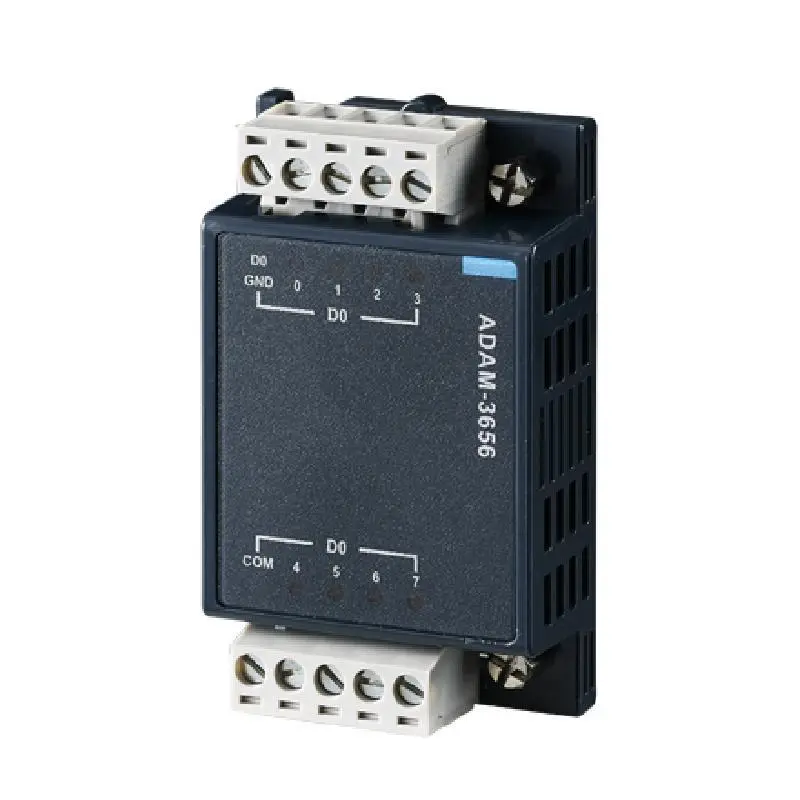

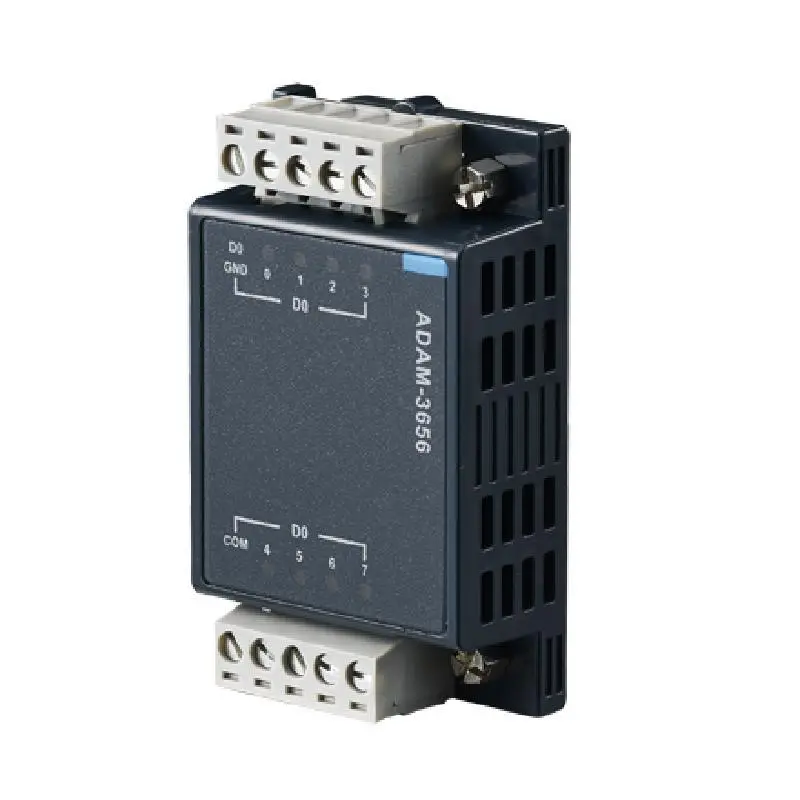

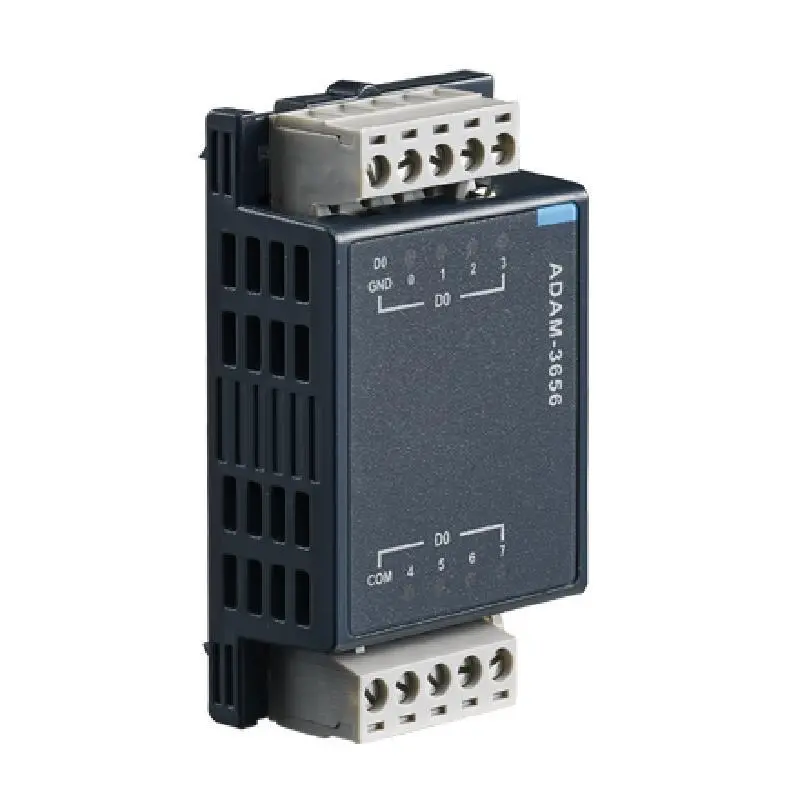

Advantech ADAM-3656 8-ch Digital Output Module

Rated voltage : 8 ~ 30 VDC

Supports open collector (Sink) output type

Over voltage protection : +40 VDC

Opto-isolator response time : 150 us (max)

Pulse output frequency : 1 KHz

Isolation voltage : 2000 VDC

Rated current : 200 mA (max load)

-40 ~ 70°C operating temperature

Inquiry

Description

		ADAM-3656-AE
Digital Output	Channels	8
Digital Output	Isolation Protection	2,000 VDC
Digital Output	Voltage Rating	8~30 VDC
Environment	Operating Temperature	-40~70 °C (-40~158 °F)
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
