| ADAM-6717SK-A | ||
| Analog Input | Channels | 8 |
| Analog Input | Input Range | ±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V |
| Analog Input | lnput Type | V, mV, mA |
| Analog Input | Resolution(Bits) | 16-bit |
| Analog Input | Sampling Rates(S/s) | 100 S/s (sum) |
| Environment | Isolation Voltage | 2,500 VDC |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Ethernet | No. of Ports | 2 |
| Ethernet | Speed | 10/100 Mbps |
| General | Connectors | 1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal |
| General | Programming Language | Node-RED, Liunx C |
| Hardware | I/O | 2 x RS-485, 1 x Micro USB, 1 x USB 2.0 |
| Hardware | OS Support | Linux |
| Hardware | Storage | 1 x micro SD Slot |
| Isolated Digital Input | Channels | 5 |
| Isolated Digital Input | Input Voltage | Dry Contact Logic level 1: close to GND Logic level 0: openWet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC |
| Isolated Digital Output | Channels | 4 |
| Isolated Digital Output | Output Type | Sink |
| Isolated Digital Output | Output Voltage | 0~30 VDC |
| Isolated Digital Output | Sink Current | 100 mA max./channel |
| Power Requirements | Input Voltage | 10~30 VDC |

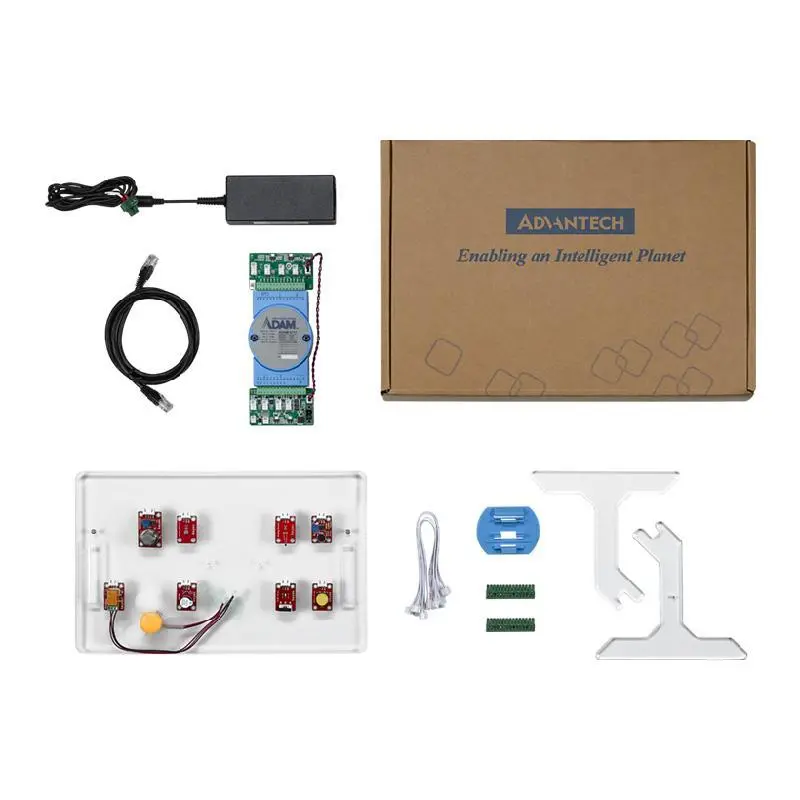

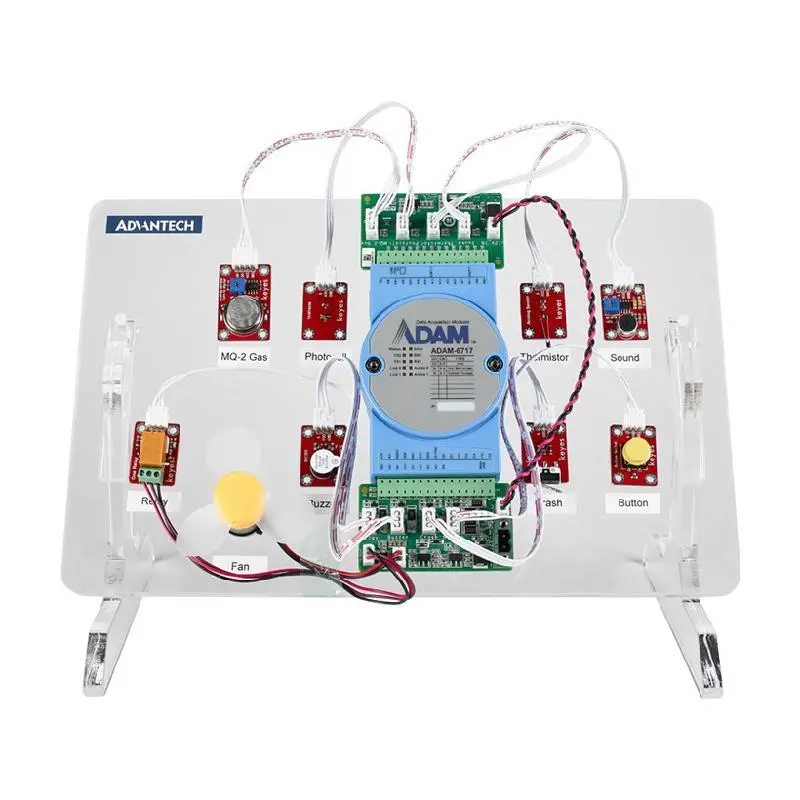

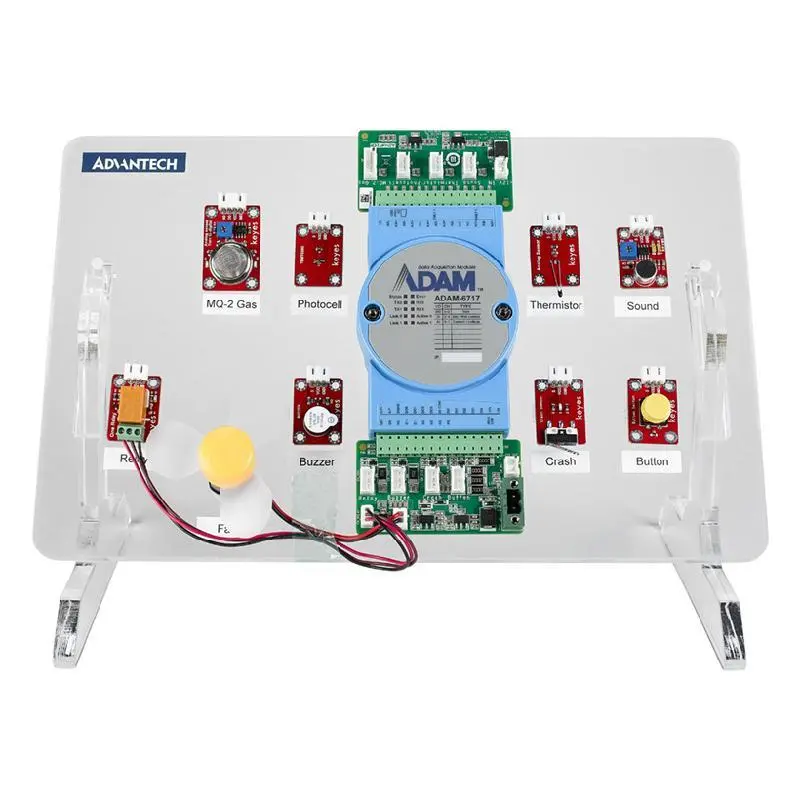

Advantech ADAM-6717SK Starter Kit- An integrated sensor-to-cloud solution with 9 sensors, providing a simple way to build IoT condition monitoring for remote facilities.
