| WOP-204K-NAE | WOP-204K-SAE | ||
| Environment | Ingress Protection | Front Panel IP66 | Front Panel IP66 |
| Environment | Operating Temperature | -15~65 °C (5~149 °F) | -15~65 °C (5~149 °F) |
| Environment | Relative Humidity | 5~95% RH (non-condensing) | 5~95% RH (non-condensing) |
| Environment | Vibration Protection | 1 Grms, random | 1 Grms, random |
| General | Connectors | 1 x RJ45, 1 x 5-pin screw terminal | 1 x 5-pin screw terminal |
| General | Programming Language | HMINavi Designer | HMINavi Designer |
| General | Protocol | 500+ PLC Drivers | 500+ PLC Drivers |
| General | Rated Voltage | 24 VDC (±10%) | 24 VDC (±10%) |
| Hardware | Certification | CE, FCC class A, UL-61010 | CE, FCC class A, UL-61010 |
| Hardware | CPU | ARM9™ 32-bit RISC processor | ARM9™ 32-bit RISC processor |
| Hardware | LAN | 1 x 10/100 Mbps | 1 x 64 MB SDRAM |
| Hardware | Memory | 1 x 64 MB SDRAM | RTOS |
| Hardware | OS Support | RTOS | 10 W @ 24 VDC |
| Hardware | Power Consumption | 10 W @ 24 VDC | 24 VDC ±10% |
| Hardware | Power Requirement | 24 VDC ±10% | 1 x 128M NAND Flash |
| Hardware | Storage | 1 x 128M NAND Flash | 1 x RS-232, 1 x RS-422/485, 1 x RS-485 |
| I/O Interface | Serial Ports | 1 x RS-232, 1 x RS-422/485, 1 x RS-485 | 1 x USB (Host), 1 x USB (Client) |
| I/O Interface | USB Ports | 1 x USB (Host), 1 x USB (Client) | 20,000 |
| LCD Display | Backlight Life (hrs) | 20,000 | 4.3" |
| LCD Display | Display Size | 4.3" | 400 |
| LCD Display | Luminance (cd/m2) | 400 | 480 x 272 |
| LCD Display | Max. Resolution | 480 x 272 | 129 x 103 x 31.3 mm |
| Mechanical | Dimension (W x H x D) | 129 x 103 x 31.3 mm | PC + ABS |
| Mechanical | Enclosure | PC + ABS | Panel |
| Mechanical | Mounting | Panel | 0.23 kg (0.51 lb) |
| Mechanical | Weight (Net) | 0.23 kg (0.51 lb) | 4-wire resistive |
| Touchscreen | Touch Type | 4-wire resistive | |

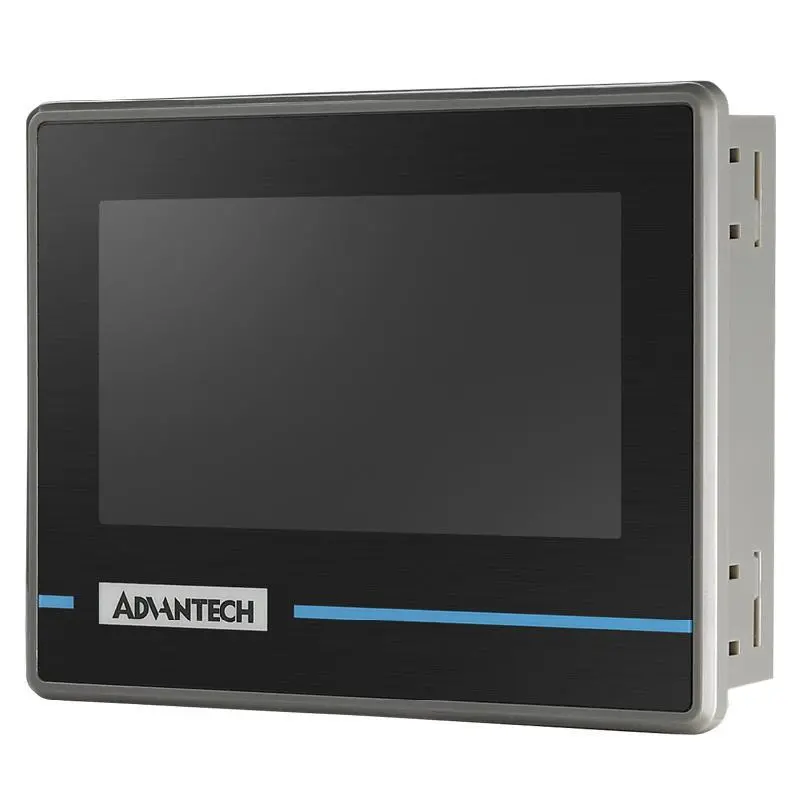

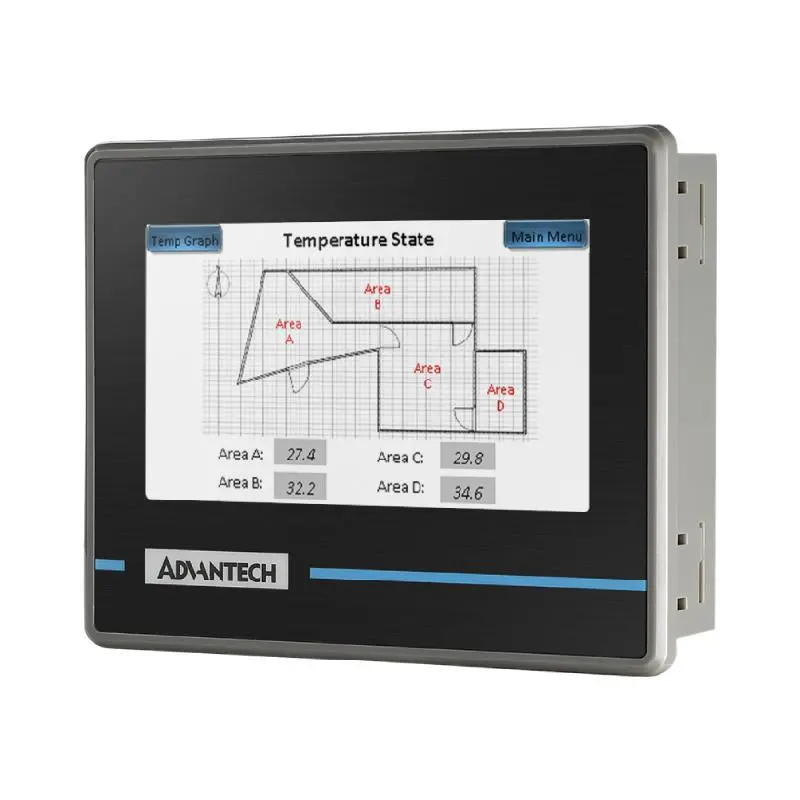

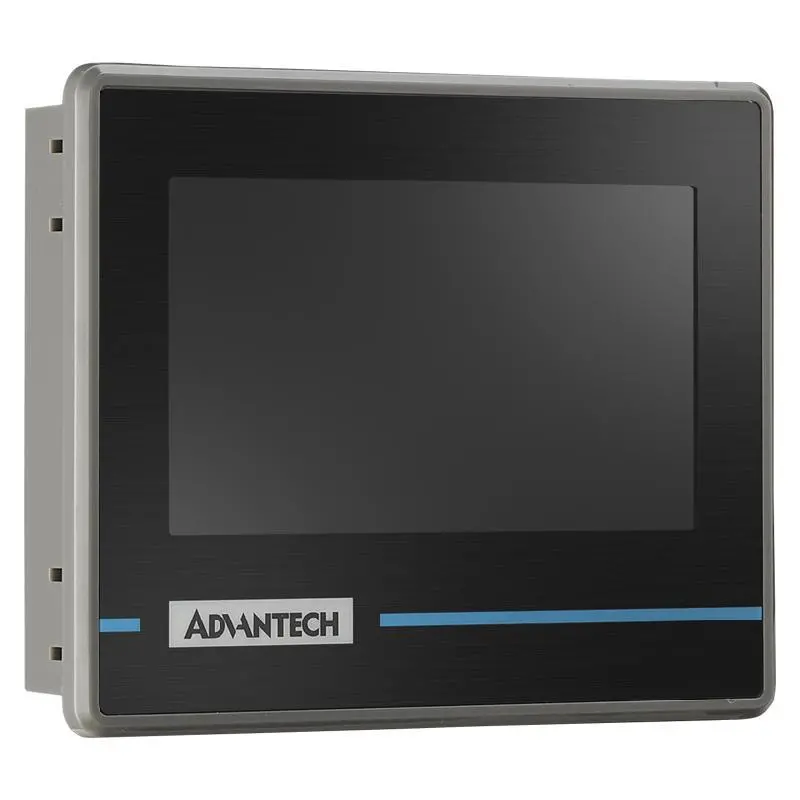

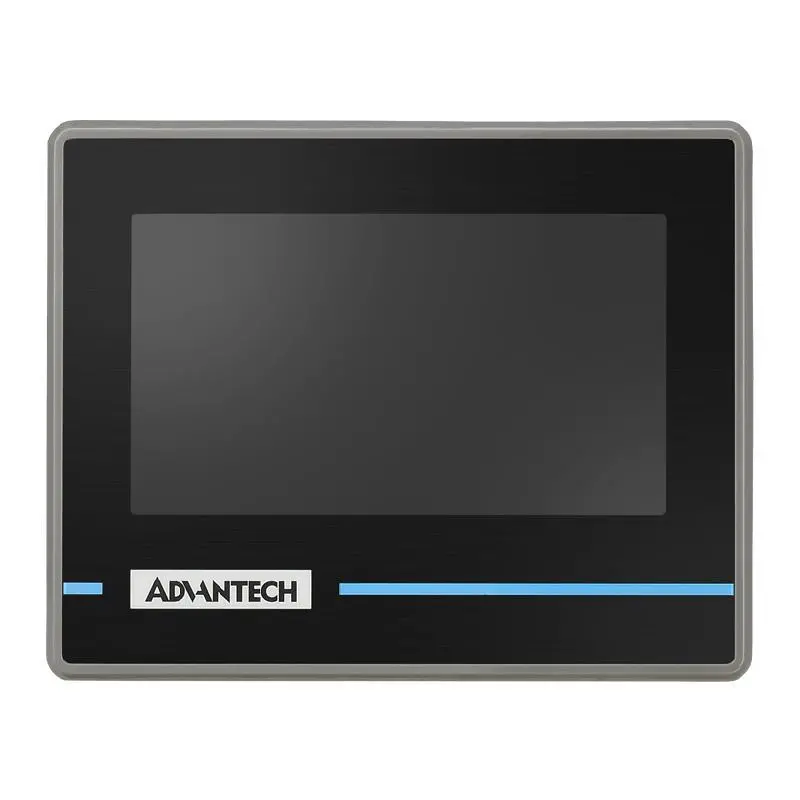

Advantech WOP-204K [RTOS] 4.3" WQVGA Operator Panel Installed with HMINavi Software
