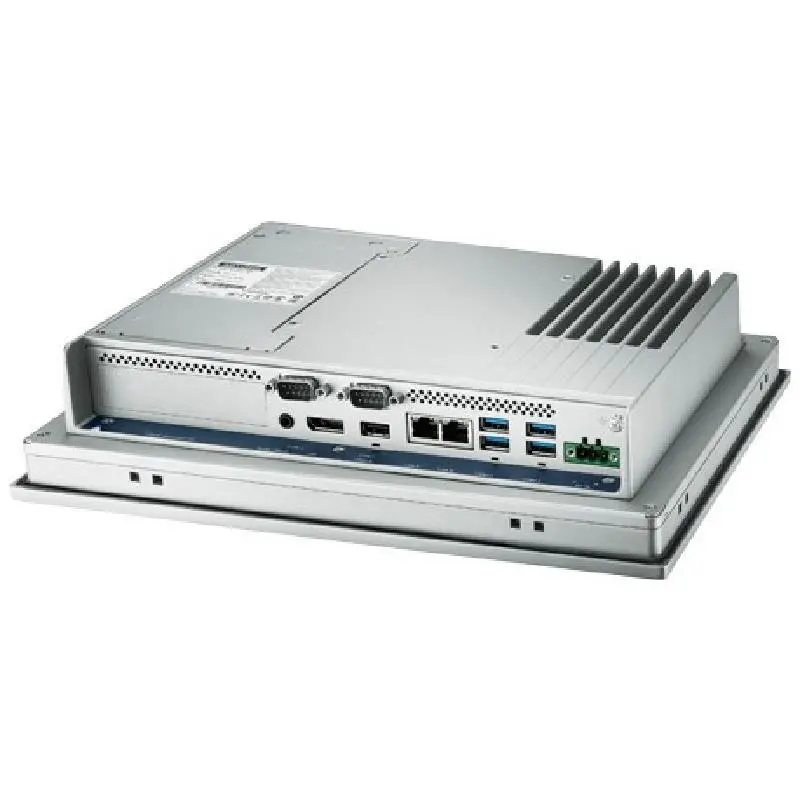

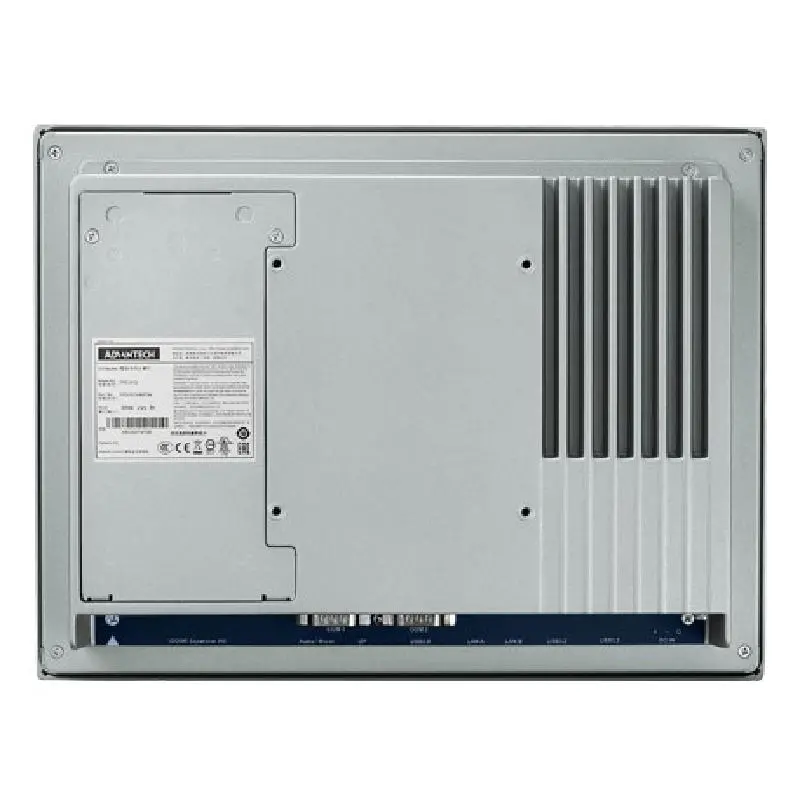

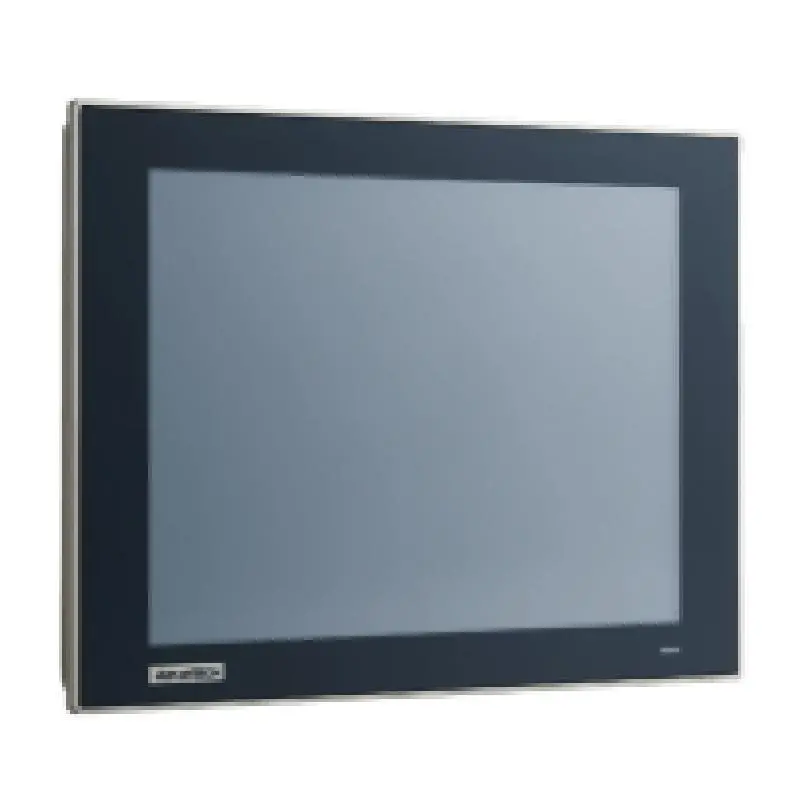

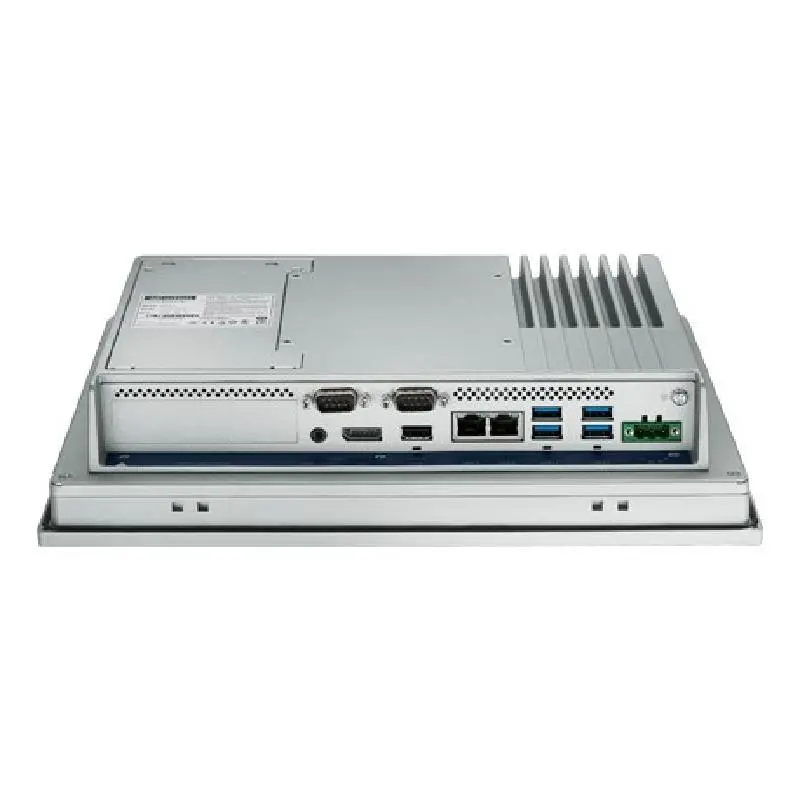

Advantech TPC-312 12.1" XGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM

    Industrial-grade 12.1 XGA TFT LCD with 50K lifetime and LED backlight

    8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM

    Dual channel memory slots support up to 64G in total

    Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection

    True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel

    Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)

    Diverse system I/O and isolated digital I/O via iDoor technology

    Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology

    Support TPM2.0 hardware security

TPC-312-R833B TPC-312-R853B TPC-312-R873B
Environment Ingress Protection Front Panel IP66 Front Panel IP66 Front Panel IP66
Environment Operating Temperature -10~55 °C (14~131 °F) -10~55 °C (14~131 °F) -10~55 °C (14~131 °F)
Environment Storage Temperature -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F)
Environment Vibration Protection 1 Grms, random 1 Grms, random 1 Grms, random
General Humidity (Operating) 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing)
Hardware BIOS AMI UEFI AMI UEFI AMI UEFI
Hardware Certification CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI
Hardware CPU 8th Gen. Intel® Core™ i3-8145UE 2.20GHz Dual-Core 8th Gen. Intel® Core™ i5-8365UE 1.60GHz Quad-Core 8th Gen. Intel® Core™ i7-8665UE 1.70GHz Quad-Core
Hardware I/O 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot
Hardware LAN 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
Hardware Memory 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot
Hardware OS Support Microsoft® Windows 10 LTSC, Linux, Android Microsoft® Windows 10 LTSC, Linux, Android Microsoft® Windows 10 LTSC, Linux, Android
Hardware Power Consumption 41.06 W @ 24 VDC 41.06 W @ 24 VDC 41.06 W @ 24 VDC
Hardware Storage 1 x SATA M.2 SSD slot (2280 M-Key);1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key 1 x SATA M.2 SSD slot (2280 M-Key);1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key 1 x SATA M.2 SSD slot (2280 M-Key);1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key
Hardware Watchdog Timer 15~255 s 15~255 s 15~255 s
I/O Interface Audio Line-Out, Microphone Line-Out, Microphone Line-Out, Microphone
I/O Interface Displays 1 x DP 1 x DP 1 x DP
I/O Interface Expansion 1 x Full-size mPCIe Slot, 1 x SIM card Slot 1 x Full-size mPCIe Slot, 1 x SIM card Slot 1 x Full-size mPCIe Slot, 1 x SIM card Slot
I/O Interface Serial Ports 2 x RS-232/422/485 2 x RS-232/422/485 2 x RS-232/422/485
LCD Display Backlight Life (hrs) 50,000 50,000 50,000
LCD Display Display Size 12.1" 12.1" 12.1"
LCD Display Luminance (cd/m2) 300 300 300
LCD Display Max. Resolution 1024 x 768 1024 x 768 1024 x 768
LCD Display Viewing Angle (H/V°) 178/178 178/178 178/178
Mechanical Dimension (W x H x D) 311.8 x 238 x 67 mm 311.8 x 238 x 67 mm 311.8 x 238 x 67 mm
Mechanical Enclosure Die-cast aluminum alloy Die-cast aluminum alloy Die-cast aluminum alloy
Mechanical Mounting Stand, Wall, VESA, Panel Stand, Wall, VESA, Panel Stand, Wall, VESA, Panel
Mechanical Weight (Net) 4.1 kg (9.04 lb) 4.1 kg (9.04 lb) 4.1 kg (9.04 lb)
Touchscreen Touch Type 5-wire resistive 5-wire resistive 5-wire resistive
