| TPC-107W-N32YB | TPC-107W-N32AB | ||
| Touchscreen | Touch Type | PCAP | PCAP |
| LCD Display | Display Size | 7" | 7" |
| LCD Display | Max. Resolution | 1024 x 600 | 1024 x 600 |
| LCD Display | Luminance (cd/m2) | 425 | 425 |
| LCD Display | Backlight Life (hrs) | 50,000 | 50,000 |
| Hardware | CPU | NXP® ARM® Cortex™ A53 i.MX8M 1.6 GHz Quad-Core | NXP® ARM® Cortex™ A53 i.MX8M 1.6 GHz Quad-Core |
| Hardware | Memory | 1 x LPDDR4 with 4 GB | 1 x LPDDR4 with 4 GB |
| Hardware | Storage | 1 x eMMC (16 GB), 1 x micro SD Slot | 1 x eMMC (16 GB), 1 x micro SD Slot |
| Hardware | Expansion | 1 x M.2 E Key 2230 | 1 x M.2 E Key 2230 |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | OS Support | Linux Yocto | Android |
| Hardware | Power Input | 24 VDC ±20% | 24 VDC ±20% |
| I/O Interface | USB Ports | 2 x USB 2.0 | 2 x USB 2.0 |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps |
| I/O Interface | Serial Ports | 1xRS-232/422/485,1xRS-485/Canbus | 1xRS-232/422/485,1xRS-485/Canbus |
| Mechanical | Enclosure | Die cast magnesium alloy, Die-casting aluminum | Die cast magnesium alloy, Die-casting aluminum |
| Mechanical | Mounting | VESA, Panel | VESA, Panel |
| Mechanical | Weight (Net) | 2 kg (4.41 lb) | 2 kg (4.41 lb) |
| Environment | Ingress Protection | Front Panel IP66 | Front Panel IP66 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) | -20~60 °C (-4~140 °F) |
| Environment | Storage Temperature | -30~70 °C (-22~158 °F) | -30~70 °C (-22~158 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) | 95% RH (non-condensing) |
| Environment | Shock Protection | 10 G, half sine | 10 G, half sine |
| Environment | Vibration Protection | 2 Grms, random | 2 Grms, random |
| Environment | Isolation Protection | Chassis grounding protection | Chassis grounding protection |

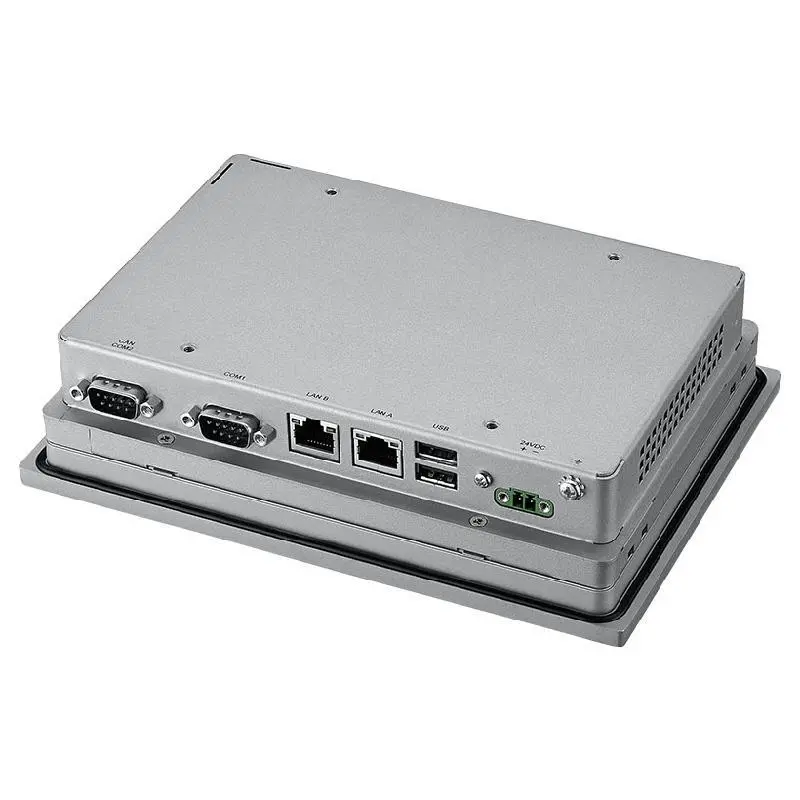

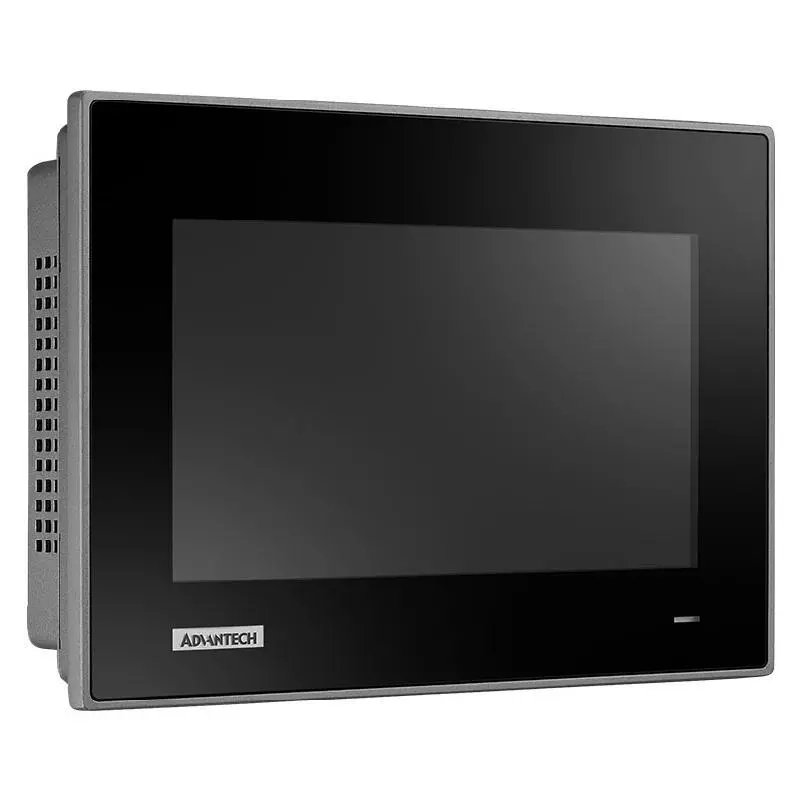

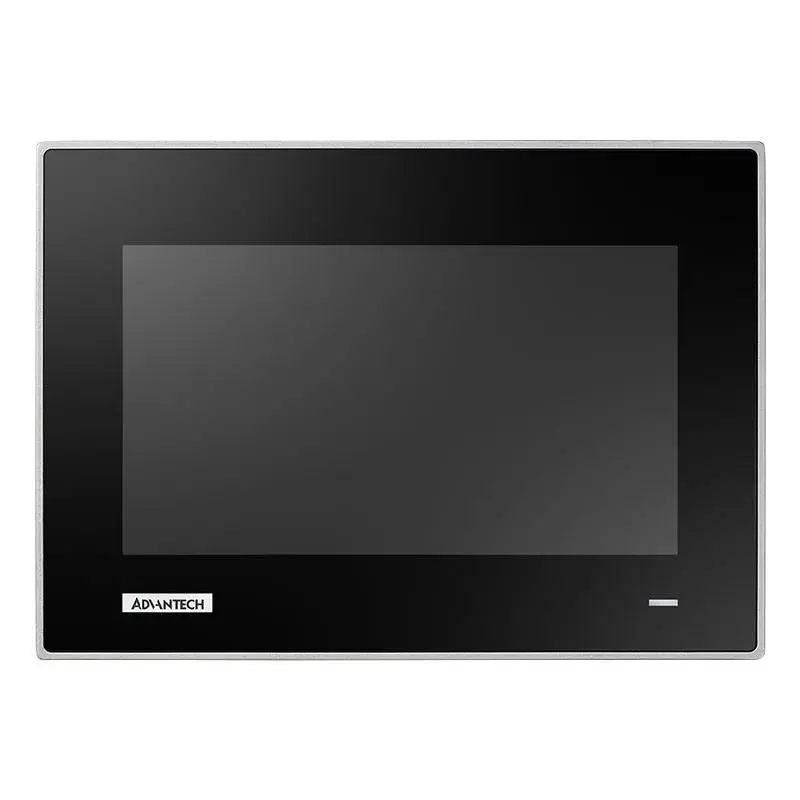

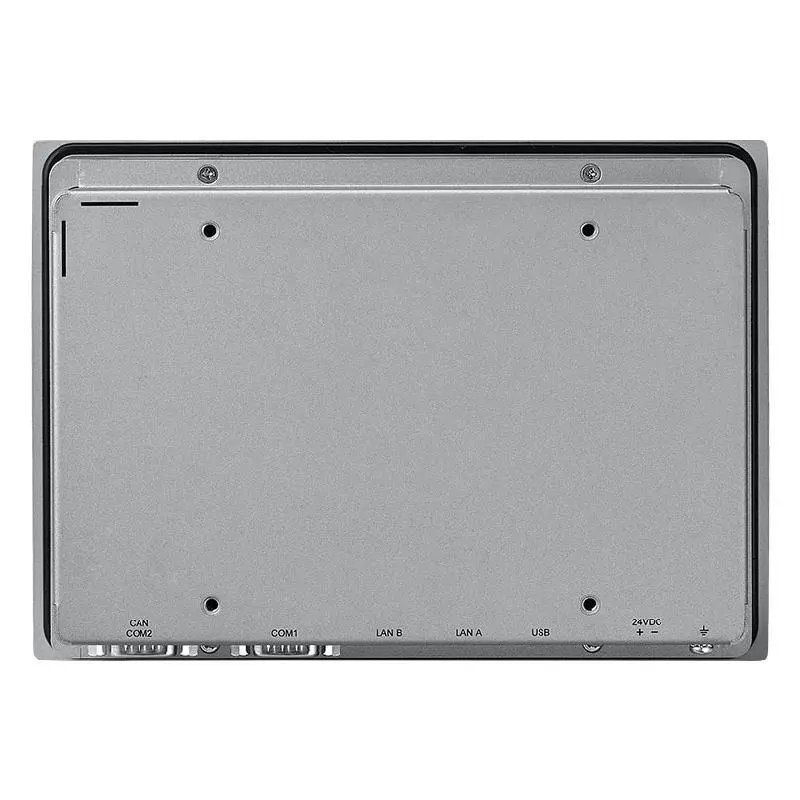

Advantech TPC-107W [Yocto/Android] 7" Touch Panel Computer with ARM Cortex™-A53 Processor
