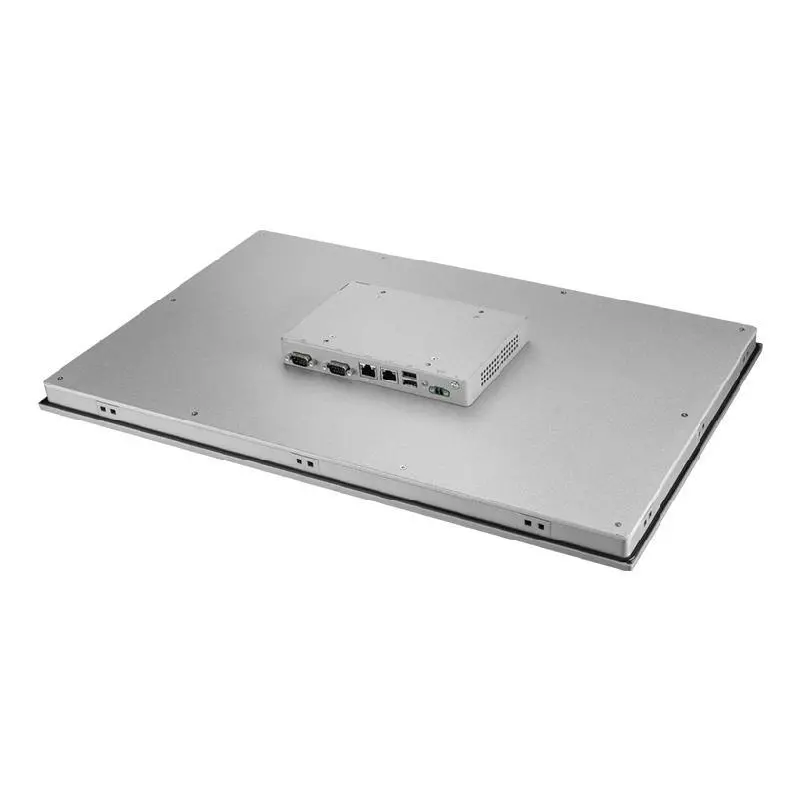

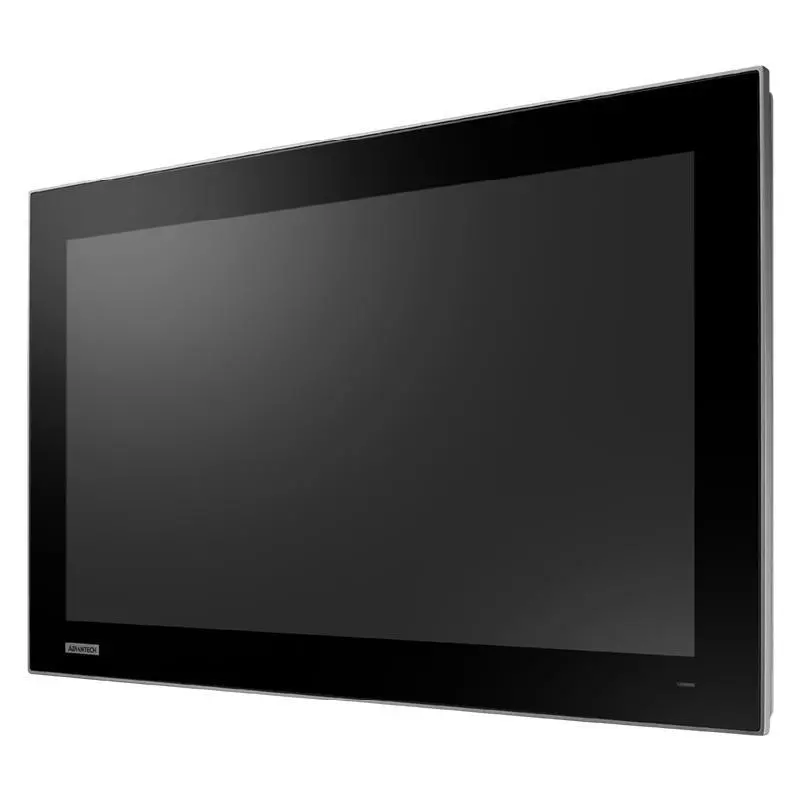

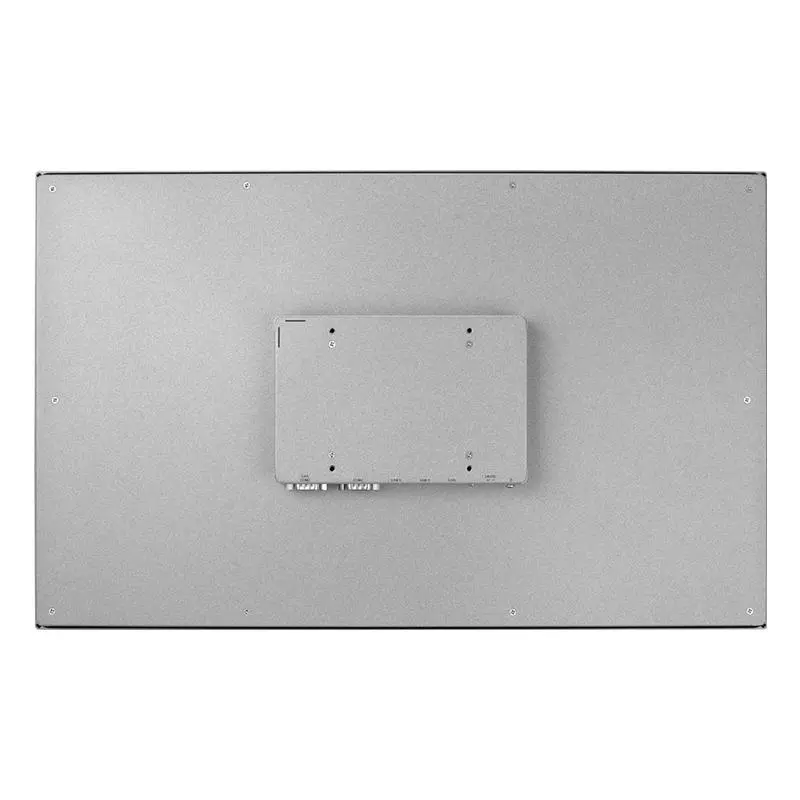

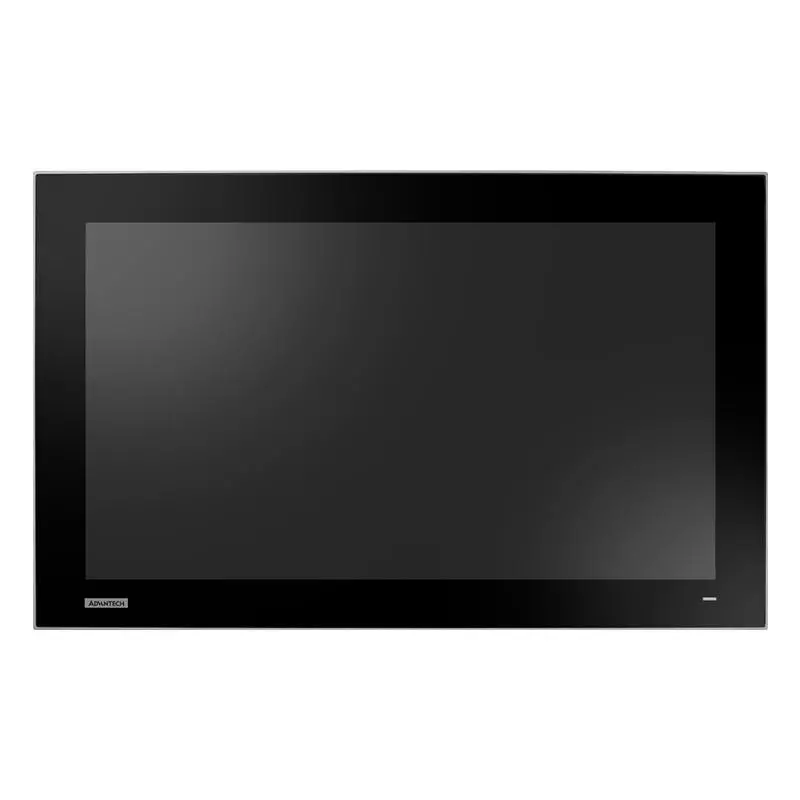

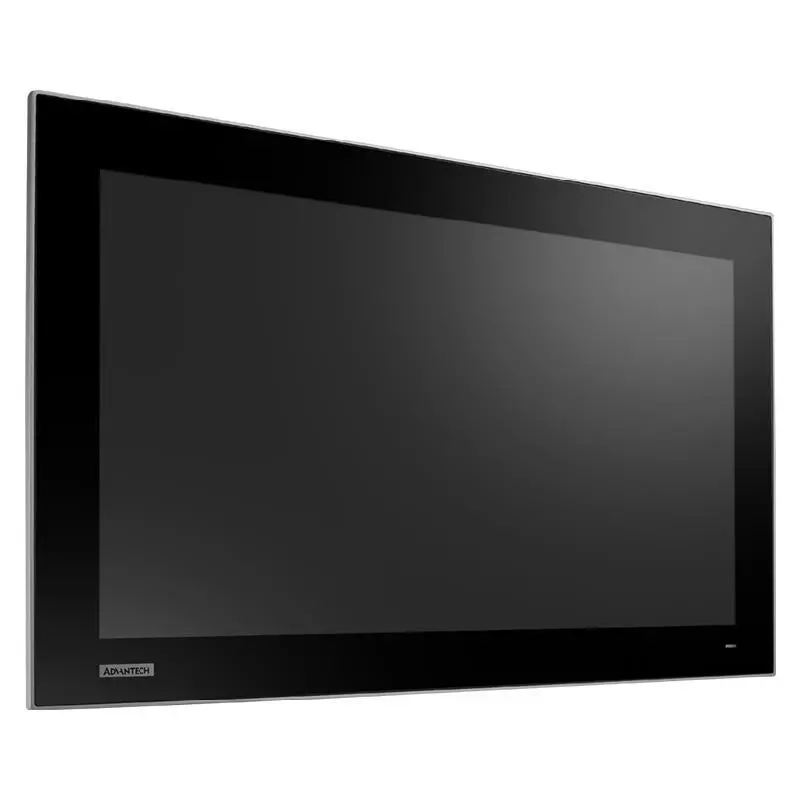

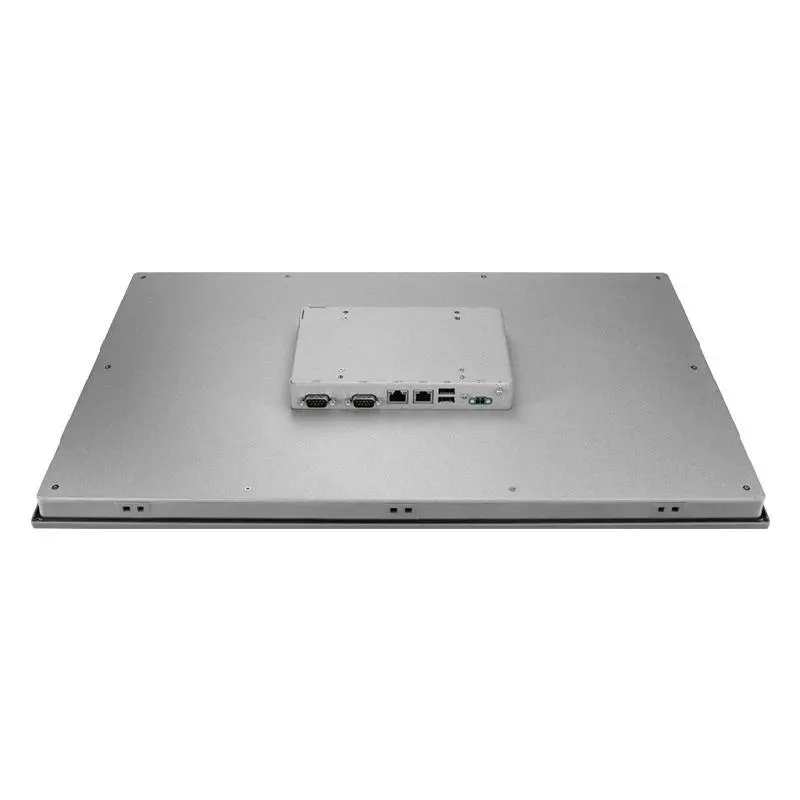

Advantech TPC-121W [Yocto/Android] 21.5" Touch Panel Computer with ARM Cortex™-A53 Processor

    arm SystemReady IR certified

    NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor

    16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel

    Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard

    1 mb FRAM backup memory for unexpected power interruptions

    2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec

    Embedded browser and for rapid Web App development

    Supports Linux Yocto and Android

    Compatible with VESA and panel mounting

TPC-121W-N32YB TPC-121W-N32AB
LCD Display Display Size 21.5" 21.5"
Touchscreen Touch Type PCAP PCAP
LCD Display Max. Resolution 1920 x 1080 1920 x 1080
LCD Display Luminance (cd/m2) 250 250
LCD Display Backlight Life (hrs) 50,000 50,000
Hardware CPU NXP® ARM® Cortex™ A53 i.MX8M 1.6 GHz Quad-Core NXP® ARM® Cortex™ A53 i.MX8M 1.6 GHz Quad-Core
Hardware Memory 1 x LPDDR4 with 4 GB 1 x LPDDR4 with 4 GB
Hardware Storage 1 x eMMC (16 GB), 1 x micro SD Slot 1 x eMMC (16 GB), 1 x micro SD Slot
Hardware OS Support Linux Yocto Android
Hardware Power Input 24 VDC ±20% 24 VDC ±20%
Hardware Certification CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI
Hardware Expansion 1 x M.2 E Key 2230 1 x M.2 E Key 2230
General Rated Voltage 24 VDC (±20%) 24 VDC (±20%)
I/O Interface Serial Ports 1 x RS-232, 1 x RS-232/422/485 1 x RS-232, 1 x RS-232/422/485
I/O Interface LAN Ports 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps
I/O Interface USB Ports 2 x USB 2.0 2 x USB 2.0
Mechanical Weight (Net) 6.1 kg (13.45 lb) 6.1 kg (13.45 lb)
Environment Ingress Protection Front Panel IP66 Front Panel IP66
Mechanical Enclosure Die cast magnesium alloy, Die-casting aluminum Die cast magnesium alloy, Die-casting aluminum
Environment Operating Temperature -20~60 °C (-33~140 °F) -20~60 °C (-33~140 °F)
Environment Storage Temperature -30~70 °C (-22~158 °F) -30~70 °C (-22~158 °F)
Environment Vibration Protection 2 Grms, random 2 Grms, random
Mechanical Mounting VESA, Panel VESA, Panel
Environment Relative Humidity 95% RH (non-condensing) 95% RH (non-condensing)
Environment Shock Protection 10 G, half sine 10 G, half sine
Environment Isolation Protection Chassis grounding protection Chassis grounding protection
