| TPC-61T-E3AE | ||
| Environment | Ingress Protection | Front Panel IP65 |
| Environment | Operating Temperature | 0~50 °C (32~122 °F) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Ethernet | Speed | 10/100 Mbps |
| General | Humidity (Operating) | 10~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI |
| Hardware | CPU | TI® ARM® Cortex™ A8 AM3517 |
| Hardware | I/O | 2 x USB 2.0 |
| Hardware | LAN | 1 x 10/100 Mbps |
| Hardware | Memory | 1 x SO-DIMM with 256 MB DDR2 |
| Hardware | OS Support | Microsoft® Windows CE 6.0 |
| Hardware | Power Consumption | 8 W @ 24 VDC |
| Hardware | Power Input | 18~32 VDC |
| Hardware | Storage | 512MB on board micro SD card, 1 x SD Card slot |
| Hardware | Watchdog Timer | Programmable |
| I/O Interface | Serial Ports | 2 x RS-232, 1 x RS-422/485 |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 5.7" |
| LCD Display | Luminance (cd/m2) | 800 |
| LCD Display | Max. Resolution | 320 x 240 |
| LCD Display | Viewing Angle (H/V°) | 120/110 |
| Mechanical | Dimension (W x H x D) | 195 x 148 x 44.4 mm |
| Mechanical | Enclosure | PC + ABS Resin |
| Mechanical | Mounting | Panel |
| Mechanical | Weight (Net) | 0.8 kg (1.76 lb) |
| Touchscreen | Touch Type | 4-wire resistive |

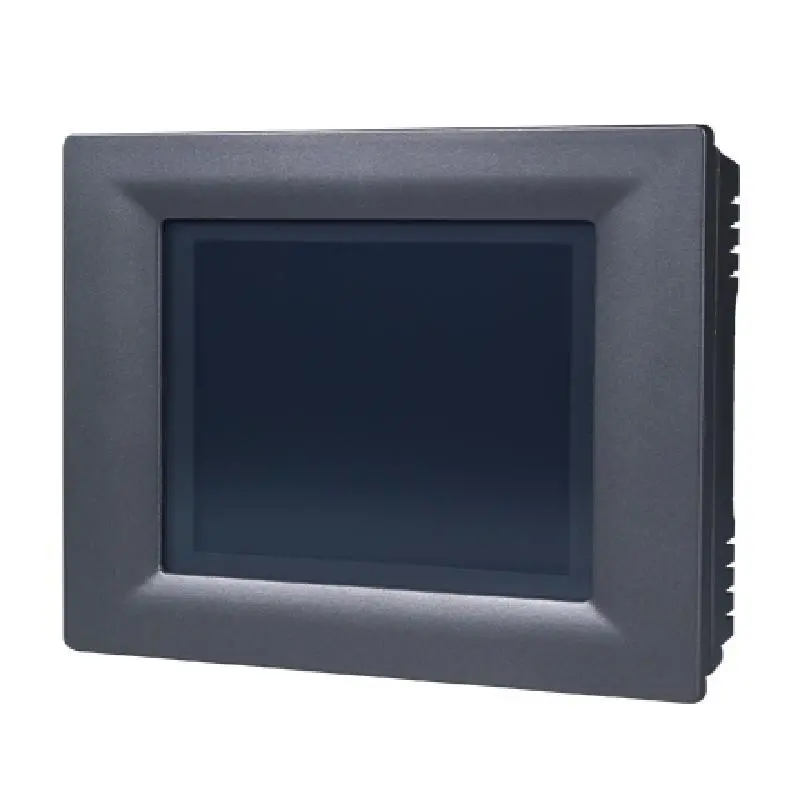

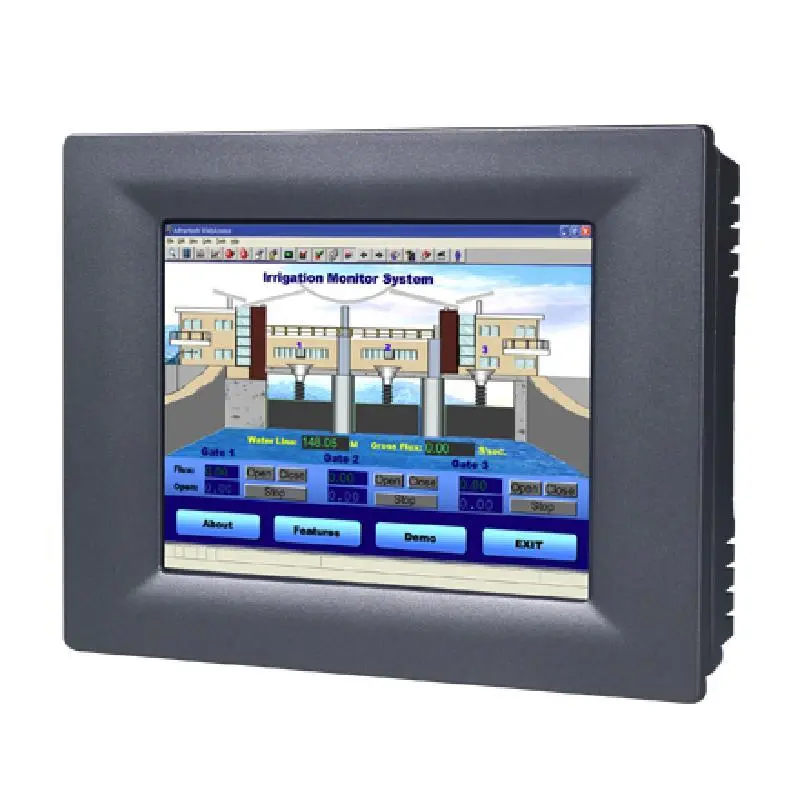

Advantech TPC-61T [WinCE] 5.7" QVGA TFT LED LCD TI Cortex-A8 Touch Panel Computer
