| TPC-317-RE22A | TPC-317-RJ22A | TPC-317-RE23A | TPC-317-RJ23A | ||
| Hardware | BIOS | AMI UEFI | AMI UEFI | AMI UEFI | AMI UEFI |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI |
| LCD Display | Display Size | 17" | 17" | 17" | 17" |
| LCD Display | Max. Resolution | 1280 x 800 | 1280 x 800 | 1280 x 800 | 1280 x 800 |
| LCD Display | Luminance (cd/m2) | 300 | 300 | 300 | 300 |
| LCD Display | Viewing Angle (H/V°) | 160/140 | 160/140 | 160/140 | 160/140 |
| LCD Display | Backlight Life (hrs) | 50,000 | 50,000 | 50,000 | 50,000 |
| Touchscreen | Touch Type | 5-wire resistive | 5-wire resistive | 5-wire resistive | 5-wire resistive |
| Mechanical | Dimension (W x H x D) | 410.4 x 343.4 x 68 mm | 410.4 x 343.4 x 68 mm | 410.4 x 343.4 x 68 mm | 410.4 x 343.4 x 68 mm |
| Environment | Ingress Protection | Front Panel IP66 | Front Panel IP66 | Front Panel IP66 | Front Panel IP66 |
| Hardware | CPU | Intel® Atom™ x6425E 2.0GHz Quad-Core | Intel® Celeron® J6412 2.00 GHz, Quad core | Intel® Atom™ x6425E 2.0GHz Quad-Core | Intel® Celeron® J6412 2.00 GHz, Quad core |
| Hardware | Memory | 1 x SO-DIMM with 4 GB DDR4 2666 MHz | 1 x SO-DIMM with 4 GB DDR4 2666 MHz | 1 x SO-DIMM with 8 GB DDR4 2666 MHz | 1 x SO-DIMM with 8 GB DDR4 2666 MHz |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot | 1 x Full-size mPCIe Slot | 1 x Full-size mPCIe Slot | 1 x Full-size mPCIe Slot |
| Hardware | Storage | 1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5” SSD/HDD bay | 1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5” SSD/HDD bay | 1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5” SSD/HDD bay | 1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5” SSD/HDD bay |
| Hardware | I/O | 1 x USB 2.0, 3 x USB 3.2, 1 x iDoor slot | 1 x USB 2.0, 3 x USB 3.2, 1 x iDoor slot | 1 x USB 2.0, 3 x USB 3.2, 1 x iDoor slot | 1 x USB 2.0, 3 x USB 3.2, 1 x iDoor slot |
| Hardware | LAN | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps |
| Environment | Storage Temperature | -30~70 °C (-22~158 °F) | -30~70 °C (-22~158 °F) | -30~70 °C (-22~158 °F) | -30~70 °C (-22~158 °F) |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) | -10~50 °C (14~122 °F) | -20~60 °C (-4~140 °F) | -10~50 °C (14~122 °F) |
| Environment | Vibration Protection | 1 Grms, random | 1 Grms, random | 1 Grms, random | 1 Grms, random |
| General | Humidity (Operating) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Linux, Android | Microsoft® Windows 10 LTSC, Linux, Android | Microsoft® Windows 10 LTSC, Linux, Android | Microsoft® Windows 10 LTSC, Linux, Android |
| Hardware | Watchdog Timer | 15~255 s | 15~255 s | 15~255 s | 15~255 s |
| I/O Interface | Audio | Line-Out, Microphone | Line-Out, Microphone | Line-Out, Microphone | Line-Out, Microphone |
| I/O Interface | Displays | 1 x DP | 1 x DP | 1 x DP | 1 x DP |
| I/O Interface | Serial Ports | 1 x RS-232, 1 x RS-232/422/485 | 1 x RS-232, 1 x RS-232/422/485 | 1 x RS-232, 1 x RS-232/422/485 | 1 x RS-232, 1 x RS-232/422/485 |
| Hardware | Power Consumption | 35 W @ 24VDC | 35 W @ 24VDC | 35 W @ 24VDC | 35 W @ 24VDC |
| Mechanical | Enclosure | Die-cast aluminum alloy | Die-cast aluminum alloy | Die-cast aluminum alloy | Die-cast aluminum alloy |
| Mechanical | Mounting | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 6.1 kg (13.45 lb) | 6.1 kg (13.45 lb) | 6.1 kg (13.45 lb) | 6.1 kg (13.45 lb) |

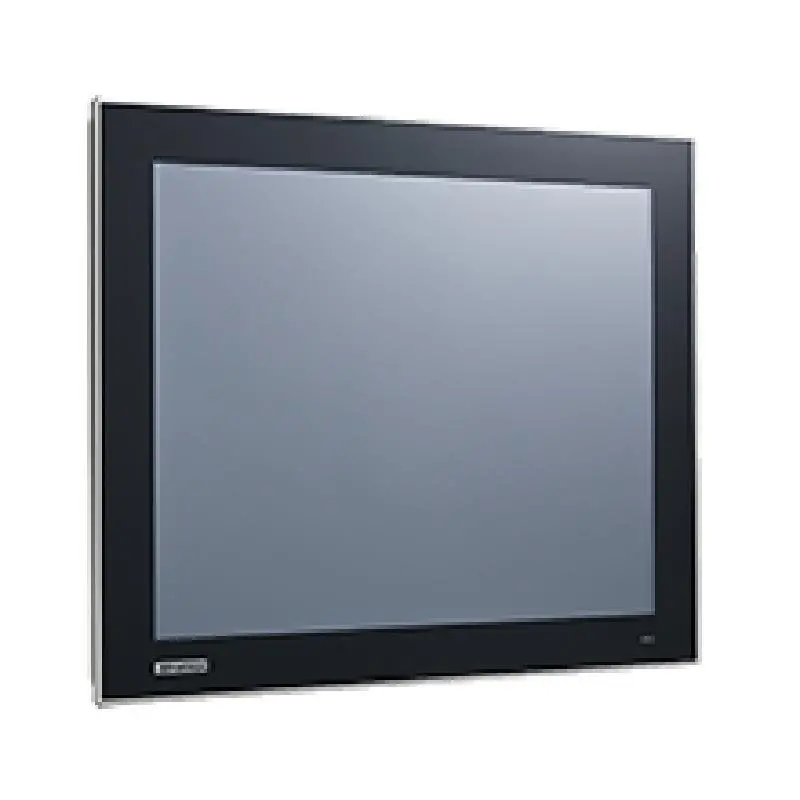

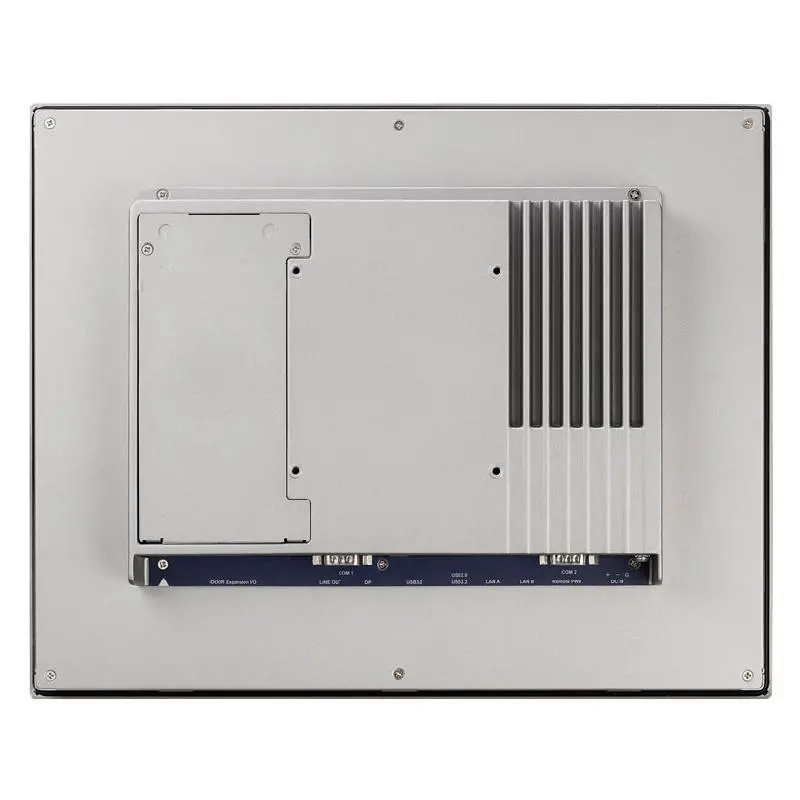

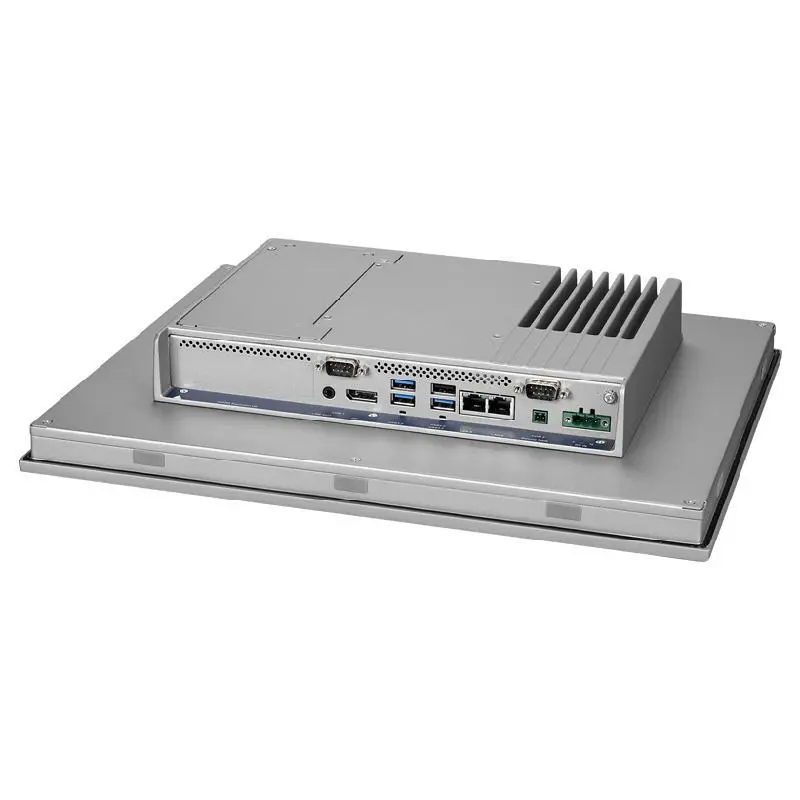

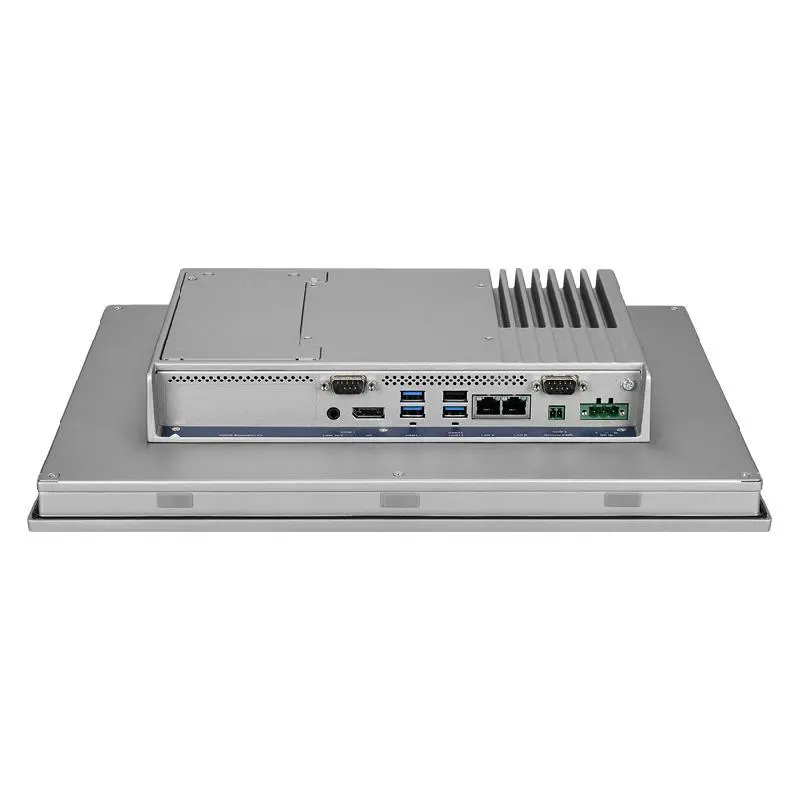

Advantech TPC-317 EHL 17" SXGA Elkhart Lake Thin-Client Terminal with Intel® Atom™/ Celeron® Processor
