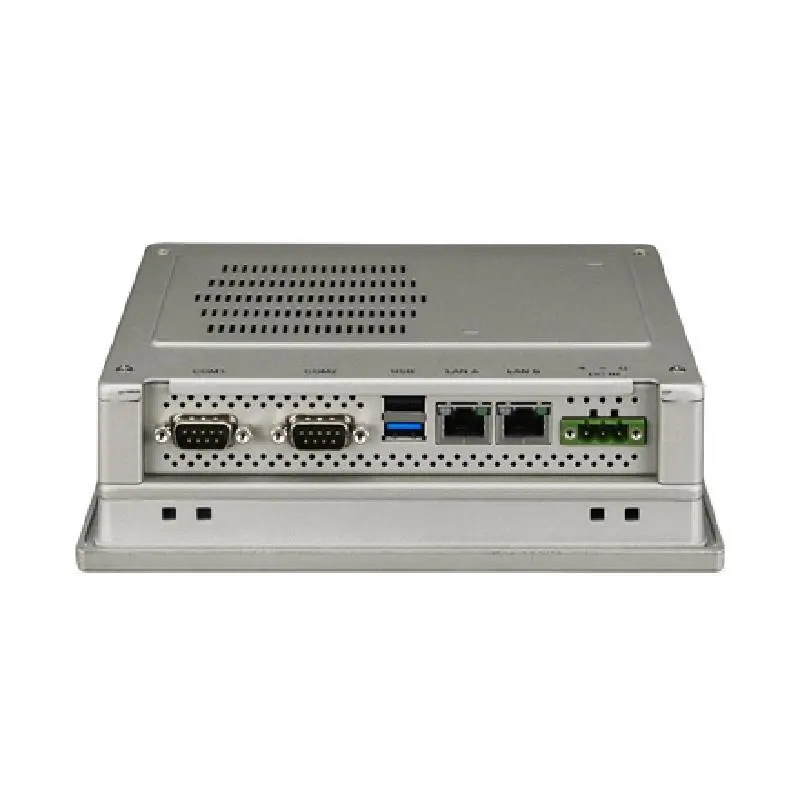

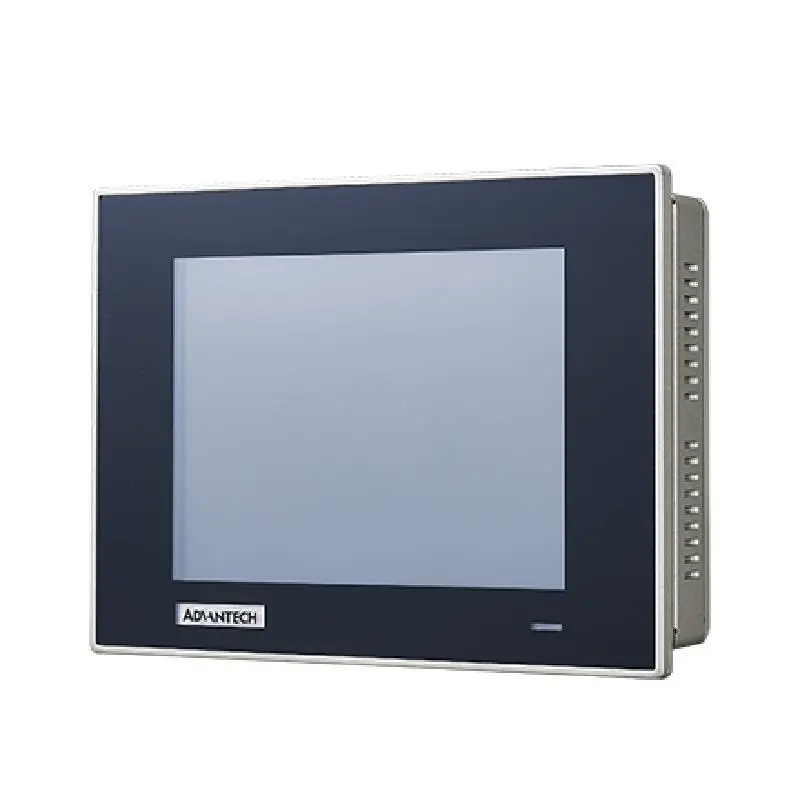

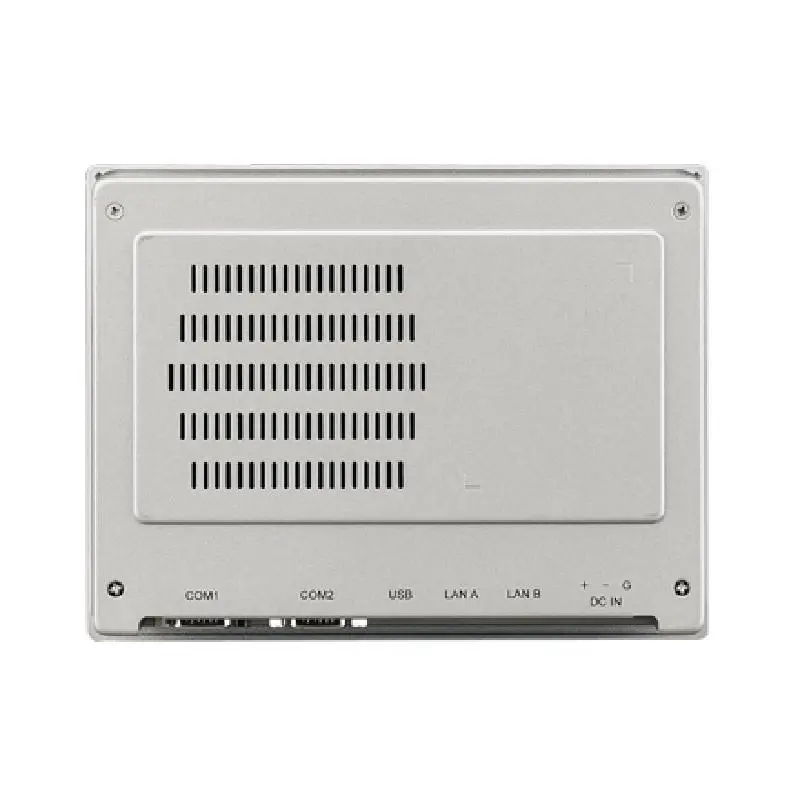

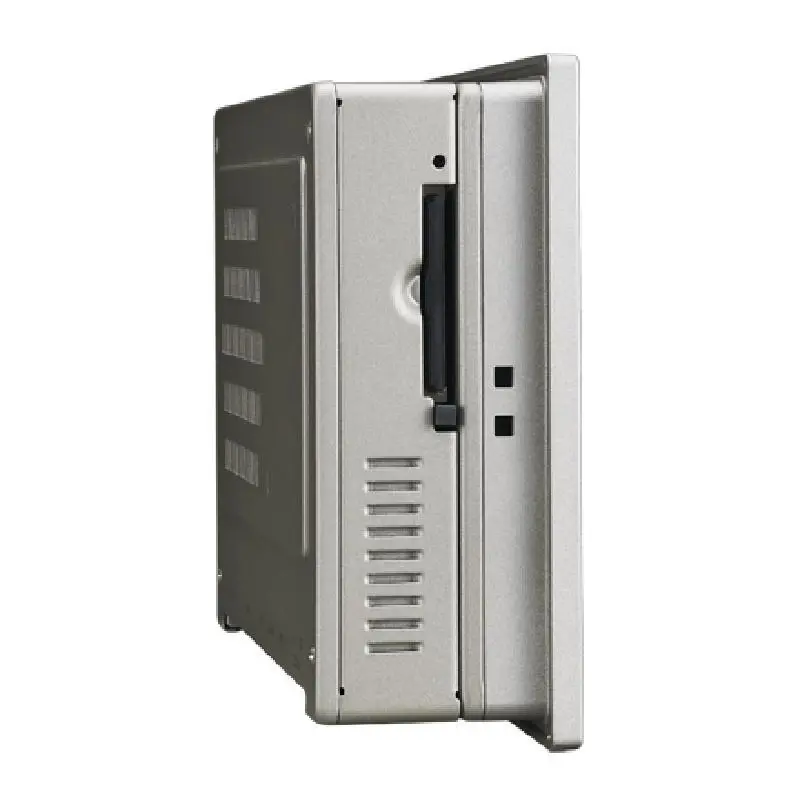

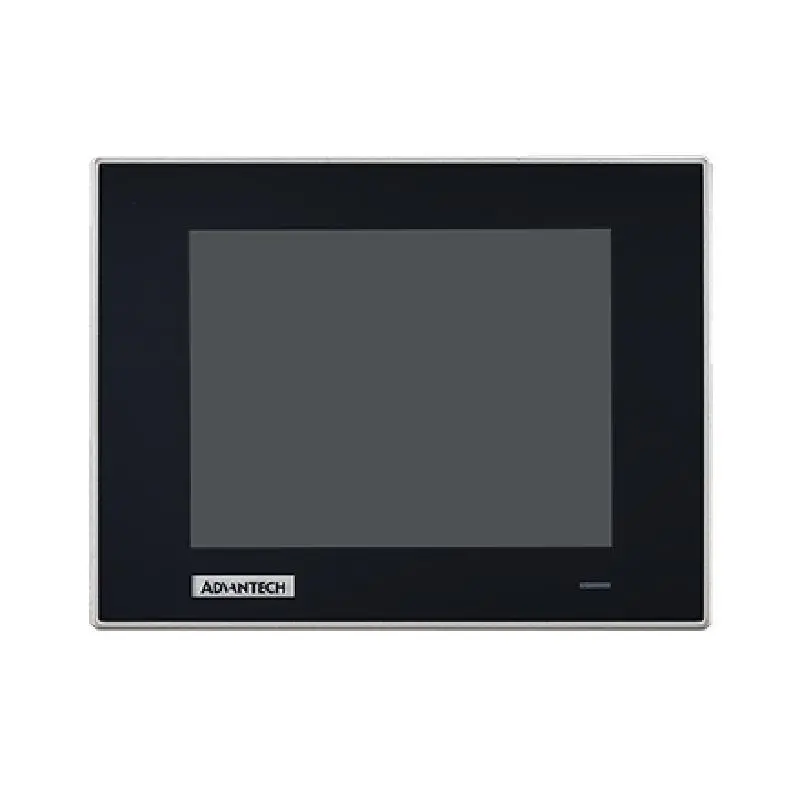

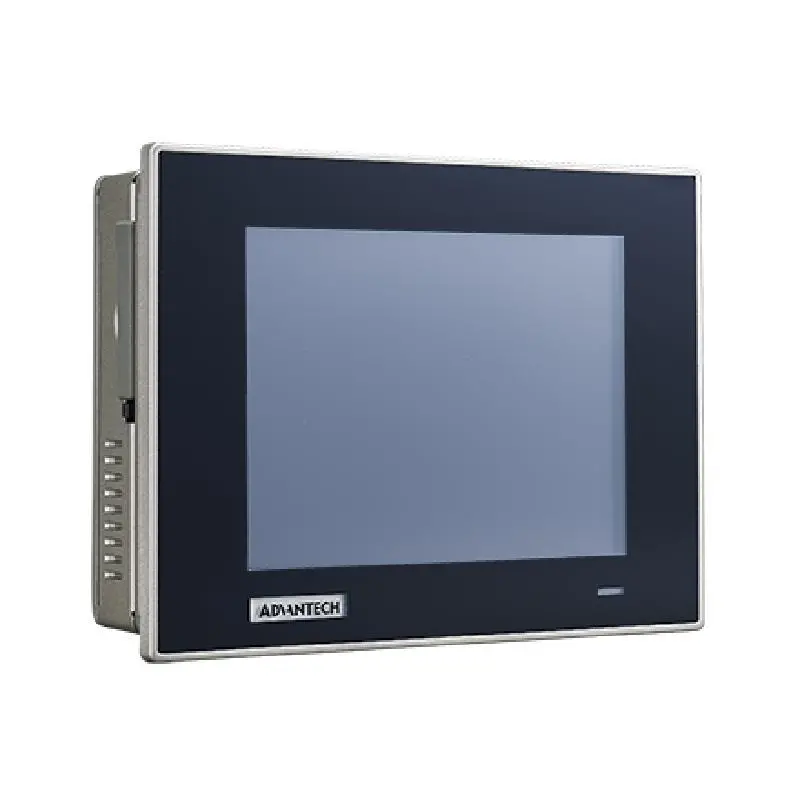

Advantech TPC-651T 5.7" TFT LED LCD Intel® Atom™ Thin Client Terminal

    Industrial 5.7" VGA TFT LCD with 50K Lifetime LED Backlight

    Intel® Atom™ E3827 1.75 GHz Dual-core Processor with 4GB DDR3L SDRAM

    Support wide operating temperatures -20~60°C

    True-flat with IP66 certified front panel protection

    Front LED Indicator to Show Operating Status

    Durable 5-wire Resistive Touch Screen

    Full-size Mini PCIe Expansion Support

    Supports iDoor technology for diverse applications (optional accessory required)

    Compact Fanless Embedded System with Al Alloy Front Bezel, Chassis Grounding Protection

    AC/DC support (option by Power adapter)

    Supports Advantech SusiAccess Remote Device Management Software & SNMP Subagent

TPC-651T-6E3AE TPC-651T-E3AE
Environment Ingress Protection Front Panel IP66 Front Panel IP66
Environment Operating Temperature -20~60 °C (-4~140 °F) -20~60 °C (-4~140 °F)
Environment Storage Temperature -30~70 °C (-22~158 °F) -30~70 °C (-22~158 °F)
Environment Vibration Protection 1 Grms, random 1 Grms, random
Ethernet Speed 10/100/1,000 Mbps 10/100/1,000 Mbps
General Humidity (Operating) 10~95% RH (non-condensing) 10~95% RH (non-condensing)
Hardware BIOS AMI UEFI AMI UEFI
Hardware Certification CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI
Hardware CPU Intel® Atom™ E3827 1.75GHz Dual-core Intel® Atom™ E3827 1.75GHz Dual-core
Hardware Expansion 1 x USB 2.0, 1 x USB 3.0 1 x USB 2.0, 1 x USB 3.0
Hardware I/O 1 x USB 2.0, 2 x USB 3.0 1 x USB 2.0, 2 x USB 3.0
Hardware LAN 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps
Hardware Memory 1 x SO-DIMM with 4 GB DDR3 1600 MHz 1 x SO-DIMM with 4 GB DDR3 1600 MHz
Hardware OS Support Microsoft® Windows 7, Microsoft® Windows 8.1, Microsoft® Windows 10 LTSB, Linux, Android Microsoft® Windows 7, Microsoft® Windows 8.1, Microsoft® Windows 10 LTSB, Linux, Android
Hardware Power Consumption 19.2 W @ 24 VDC 19.2 W @ 24 VDC
Hardware Power Input 24 VDC ±20% 24 VDC ±20%
Hardware Storage 1 x CFast slot 1 x CFast slot
Hardware Watchdog Timer 15~255 s 15~255 s
I/O Interface Expansion 1 x Full-size mPCIe Slot 1 x Full-size mPCIe Slot
I/O Interface Serial Ports 1 x RS-232, 1 x RS-232/422/485 1 x RS-232, 1 x RS-232/422/485
LCD Display Backlight Life (hrs) 50,000 50,000
LCD Display Display Size 6.5" 5.7"
LCD Display Luminance (cd/m2) 800 640
LCD Display Max. Resolution 640 x 480 640 x 480
LCD Display Viewing Angle (H/V°) 160/140 160/140
Mechanical Dimension (W x H x D) 199 x 152 x 58.9 mm 199 x 152 x 58.9 mm
Mechanical Enclosure Die-cast aluminum alloy Die-cast aluminum alloy
Mechanical Mounting Wall, Panel Wall, Panel
Mechanical Weight (Net) 1.5 kg (3.30 lb) 1.5 kg (3.30 lb)
Touchscreen Touch Type 5-wire resistive 5-wire resistive
