| TPC-1051WP-E3AE | ||
| Environment | Ingress Protection | Front Panel IP66 |
| Environment | Operating Temperature | -20~55 °C (-4~131 °F) |
| Environment | Storage Temperature | -30~70 °C (-22~158 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| Ethernet | Speed | 10/100/1,000 Mbps |
| General | Humidity (Operating) | 10~95% RH (non-condensing) |
| Hardware | BIOS | AMI UEFI |
| Hardware | Certification | CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI |
| Hardware | CPU | Intel® Atom™ E3827 1.75GHz Dual-core |
| Hardware | I/O | 1 x USB 2.0, 2 x USB 3.0 |
| Hardware | LAN | 2 x 10/100/1000 Mbps |
| Hardware | Memory | 1 x SO-DIMM with 4 GB DDR3 1600 MHz |
| Hardware | OS Support | Microsoft® Windows 7, Linux, Android |
| Hardware | Power Consumption | 36 W @ 24 VDC |
| Hardware | Power Input | 24 VDC ±20% |
| Hardware | Storage | 1 x CFast slot |
| Hardware | Watchdog Timer | 15~255 s |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot |
| I/O Interface | Serial Ports | 1 x RS-232, 1 x RS-232/422/485 |
| LCD Display | Backlight Life (hrs) | 25000 |
| LCD Display | Display Size | 10.1" |
| LCD Display | Luminance (cd/m2) | 300 |
| LCD Display | Max. Resolution | 1280 x 800 |
| LCD Display | Viewing Angle (H/V°) | 170/170 |
| Mechanical | Dimension (W x H x D) | 283.1 x 202.3 x 61.4 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy |
| Mechanical | Mounting | Stand, Wall, Panel |
| Mechanical | Weight (Net) | 2.56 kg (5.64 lb) |
| Touchscreen | Touch Type | PCAP |

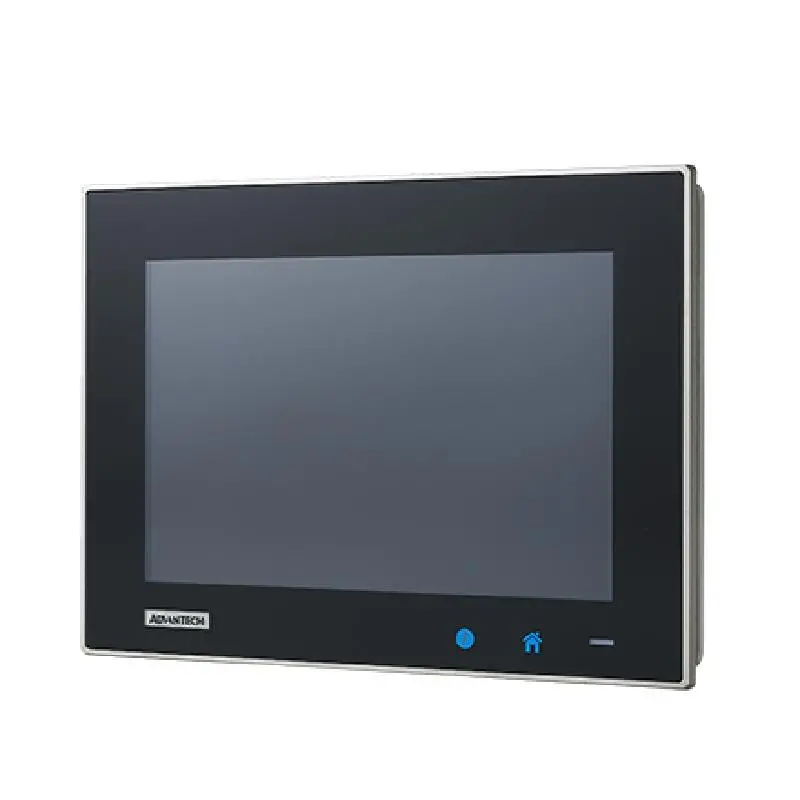

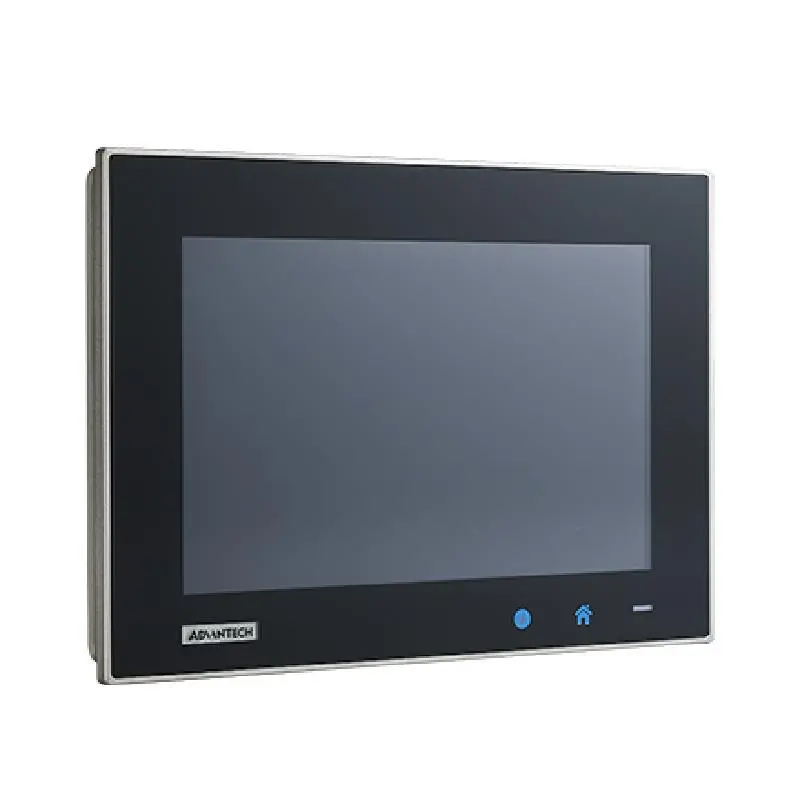

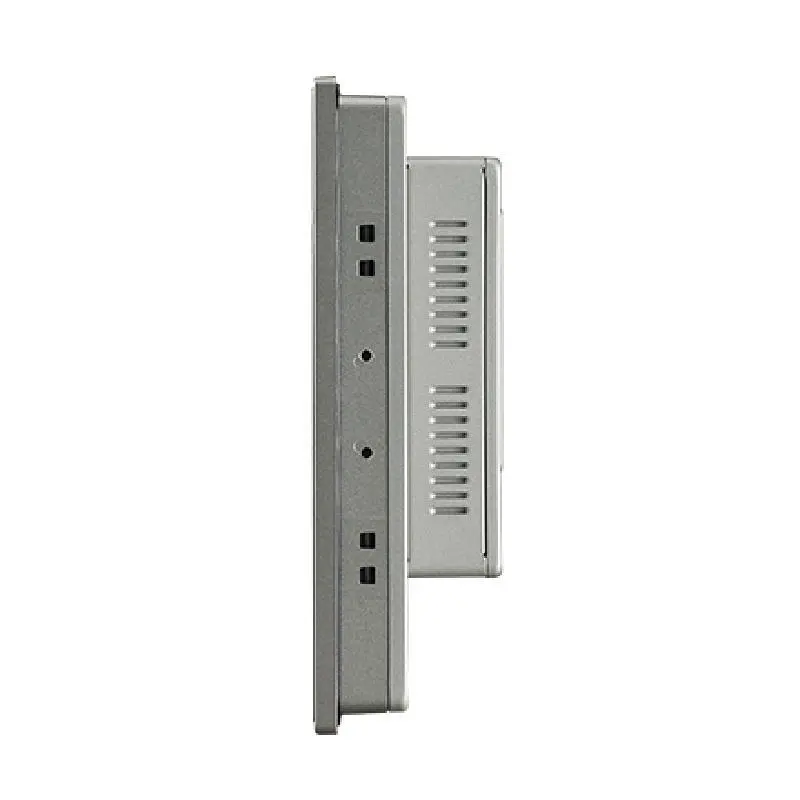

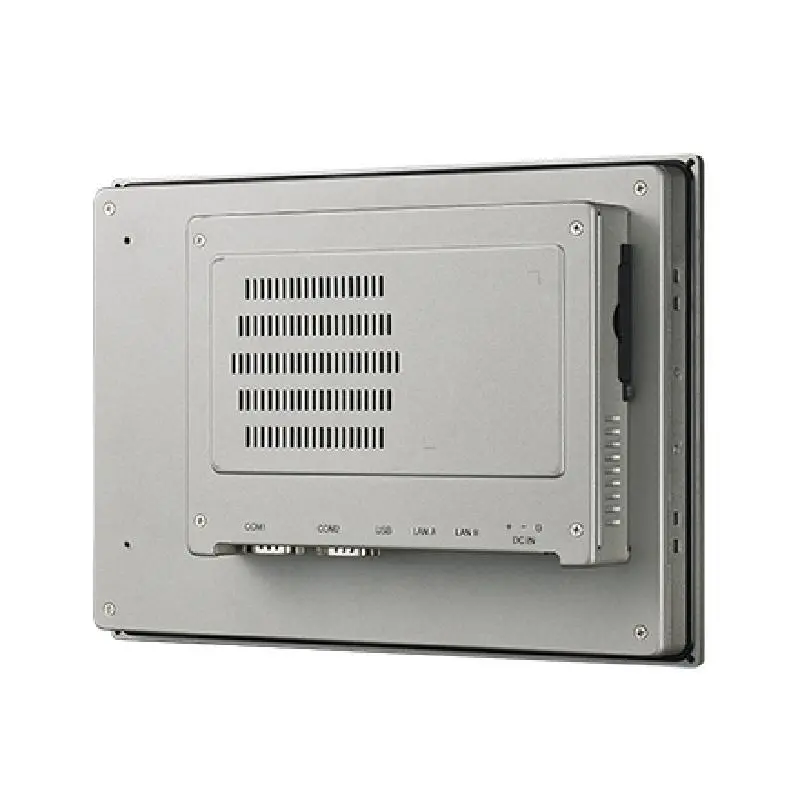

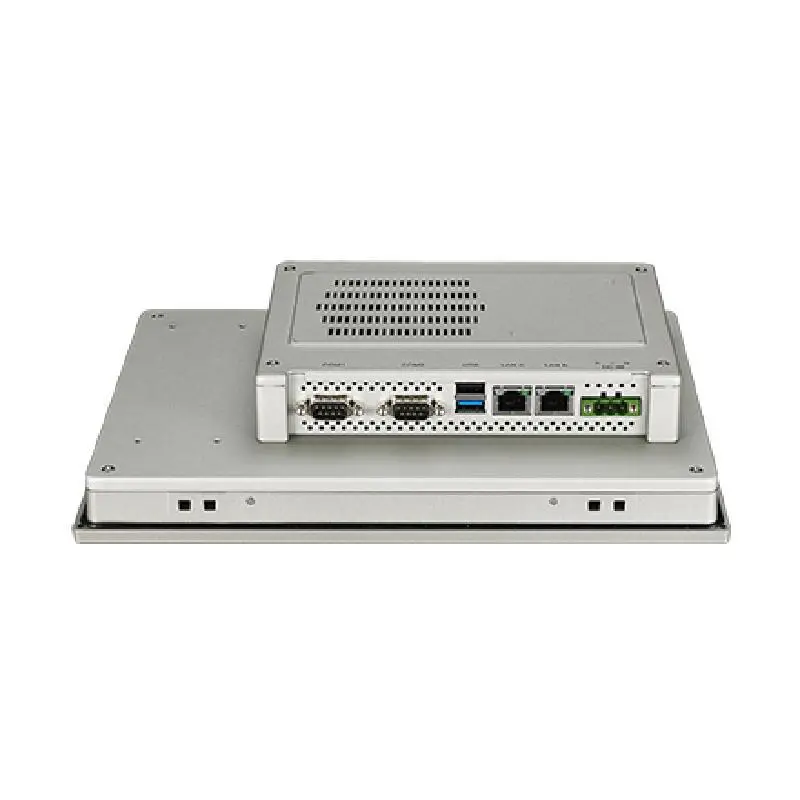

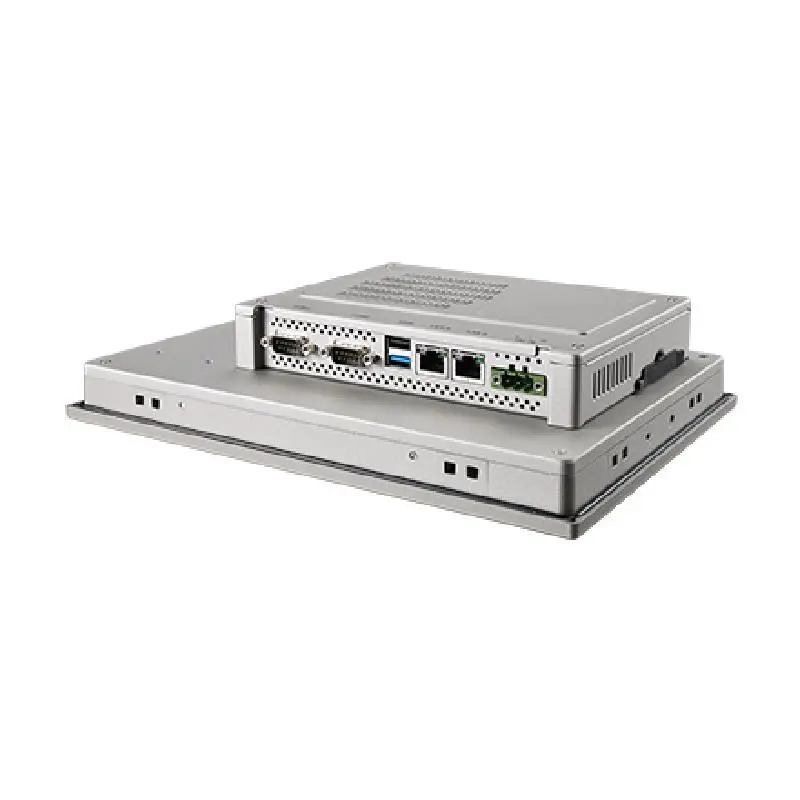

Advantech TPC-1051WP 10.1" WXGA TFT LED LCD Intel® Atom™ Thin Client Terminal
