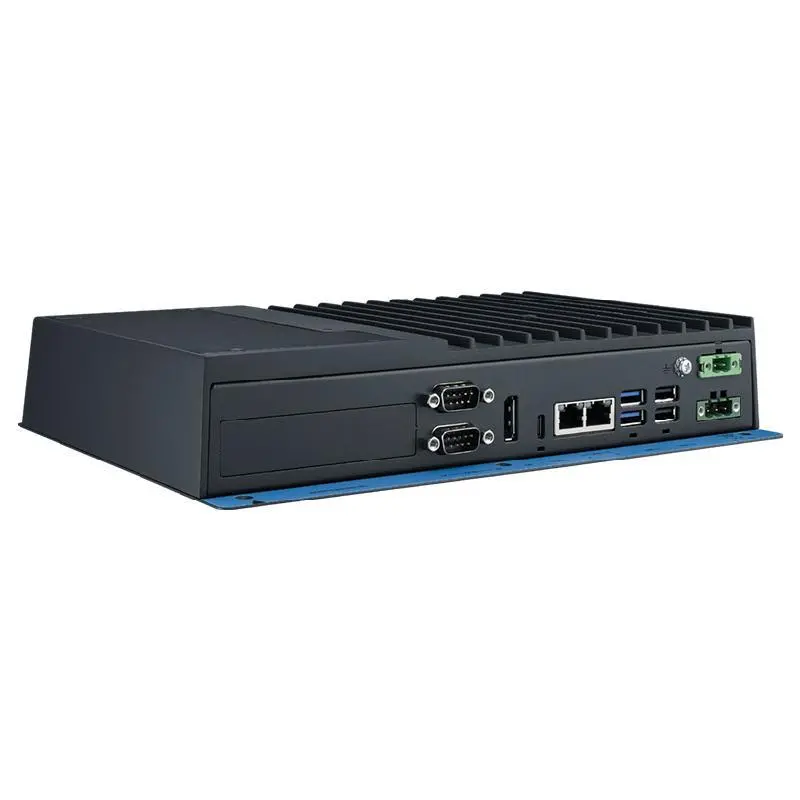

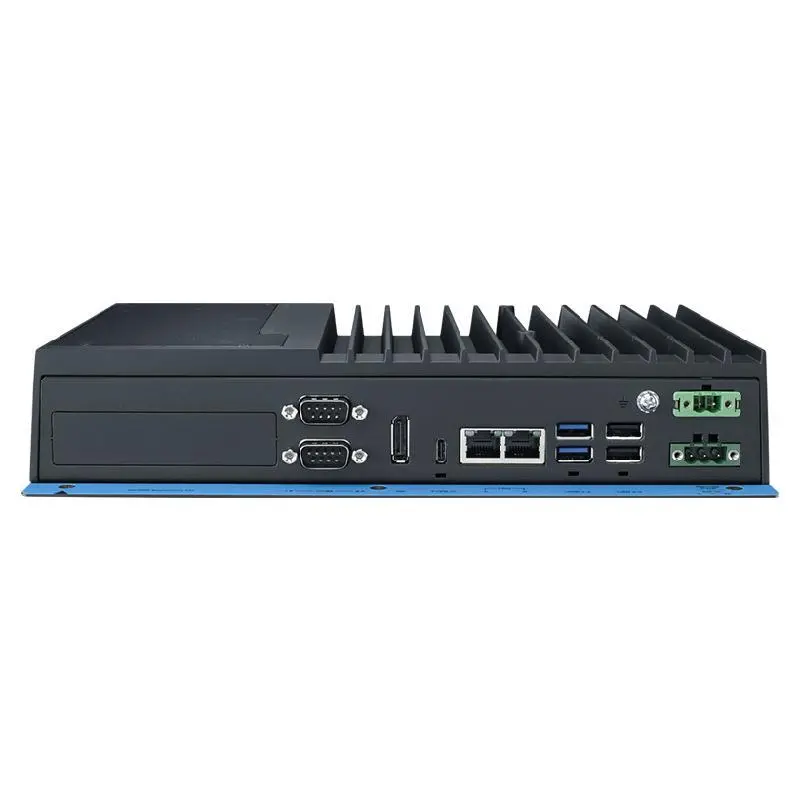

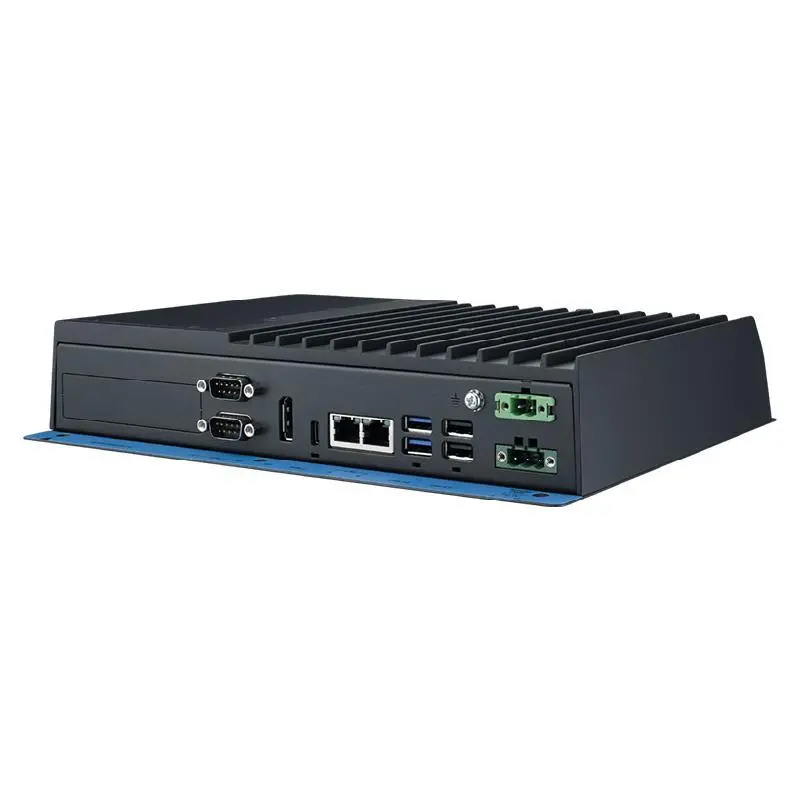

Advantech TPC-B520L Modular TPC - Computing Box Module with Intel® Core™ i3-N305 Processor

    Modular Computing Box powered by Intel® Core™ i3-N305, octo-core processor

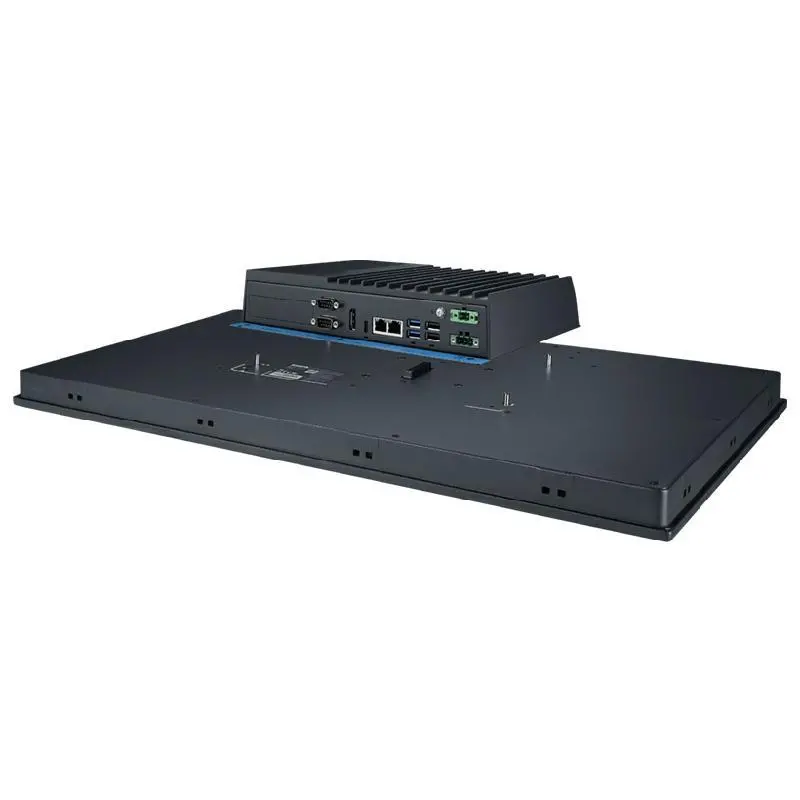

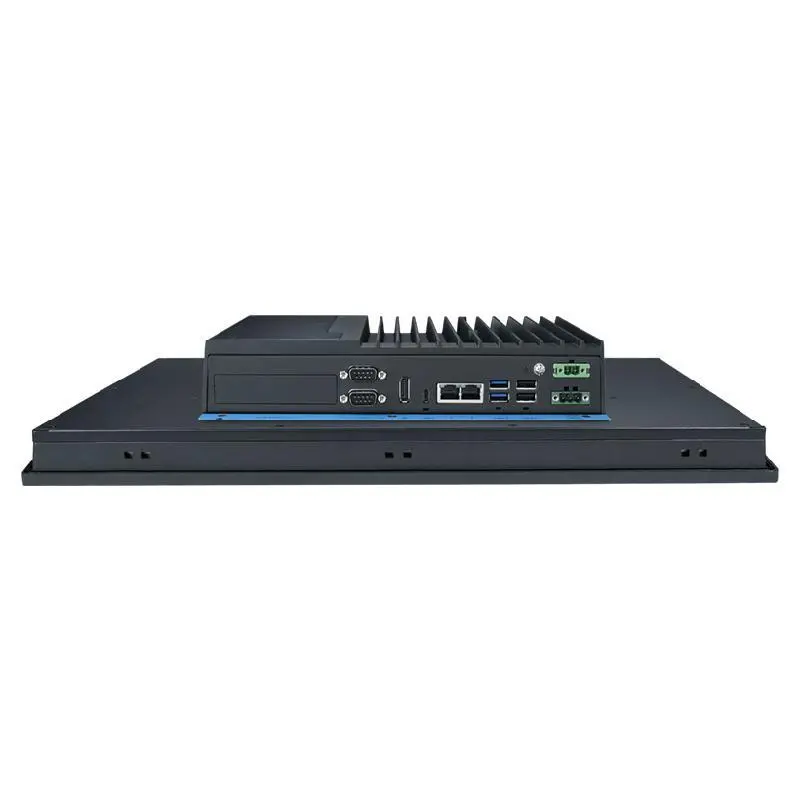

    Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1", 15", 15.6", 21.5" with high brightness panel option)

    Single DDR5 Memory slot supports up to 16GB

    Support expansion via three M.2 slots (PCIe, Wifi, 5G)

    LAN, POE, isolated serial port and isolated digital I/O via iDoor technology

    Support Type-C connector with USB 3.2, DP 1.4a, 15W power delivery

    Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology

    Performance, fanless embedded system with chassis grounding protection

TPC-B520-D50A TPC-B520-D70A
Environment Operating Temperature -10~60 °C (14~140 °F) -20~60 °C (-4~140 °F)
Environment Storage Temperature -30~70 °C (-22~158 °F) -30~70 °C (-22~158 °F)
Environment Vibration Protection 1 Grms, random 1 Grms, random
Environment Shock Protection 10 G, half sine 10 G, half sine
Hardware Certification CB/UL, CE, FCC Class A, CCC, BIS, BSMI, RoHS CB/UL, CE, FCC Class A, CCC, BIS, BSMI, RoHS
Hardware CPU Intel® Core™ i5-1335UE 1.3GHz 10-Core Intel® Core™ i7-1365UE 1.7GHz 10-Core
Hardware Hardware Security TPM 2.0 TPM 2.0
Hardware I/O 2 x RS-232/422/485, 2 x USB 3.1, 2 x USB 2.0, 1 x Type C, 1 x DP, 1 x iDoor Slot 2 x RS-232/422/485, 2 x USB 3.1, 2 x USB 2.0, 1 x Type C, 1 x DP, 1 x iDoor Slot
Hardware LAN 2 x 2500 Mbps 2 x 2500 Mbps
Hardware Storage 1 x M.2 B key, 1 x 2.5" SSD/HDD Bay 1 x M.2 B key, 1 x 2.5" SSD/HDD Bay
Hardware Expansion 1 x M.2 E Key 2230 1 x M.2 E Key 2230
I/O Interface Expansion 1 x M.2 B key, 1 x M.2 E key 1 x M.2 B key, 1 x M.2 E key
I/O Interface Displays 1 x DP 1 x DP
I/O Interface Power Connector 1 x 3-Pin Terminal Block 1 x 3-Pin Terminal Block
Mechanical Mounting Panel, Wall, Stand, VESA Panel, Wall, Stand, VESA
Mechanical Weight (Net) 2.8 kg (6.17 lb) 2.8 kg (6.17 lb)
Expansion Function SIM card slot Nano SIM card Nano SIM card
