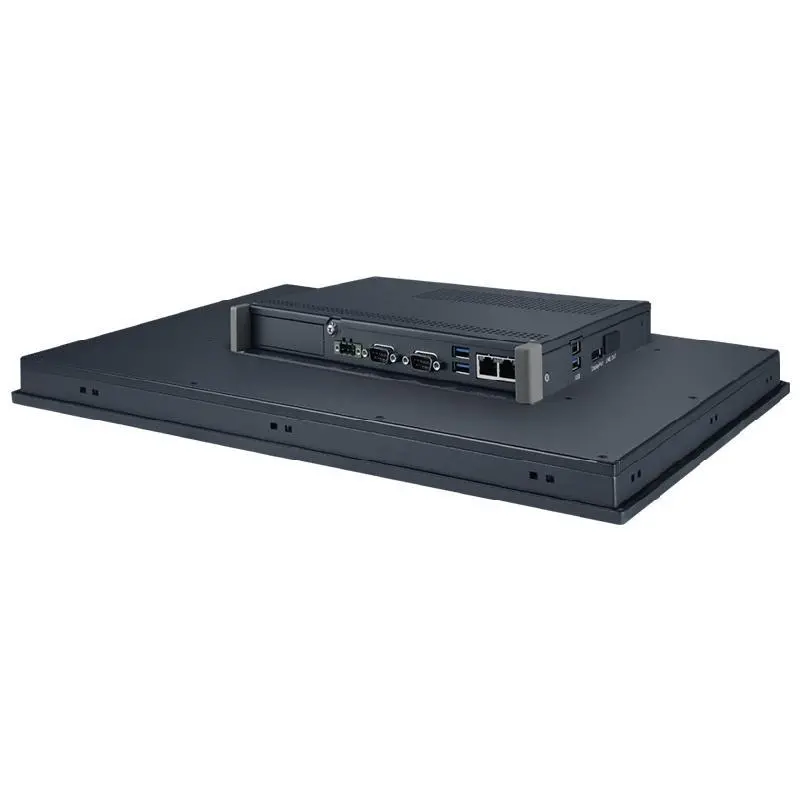

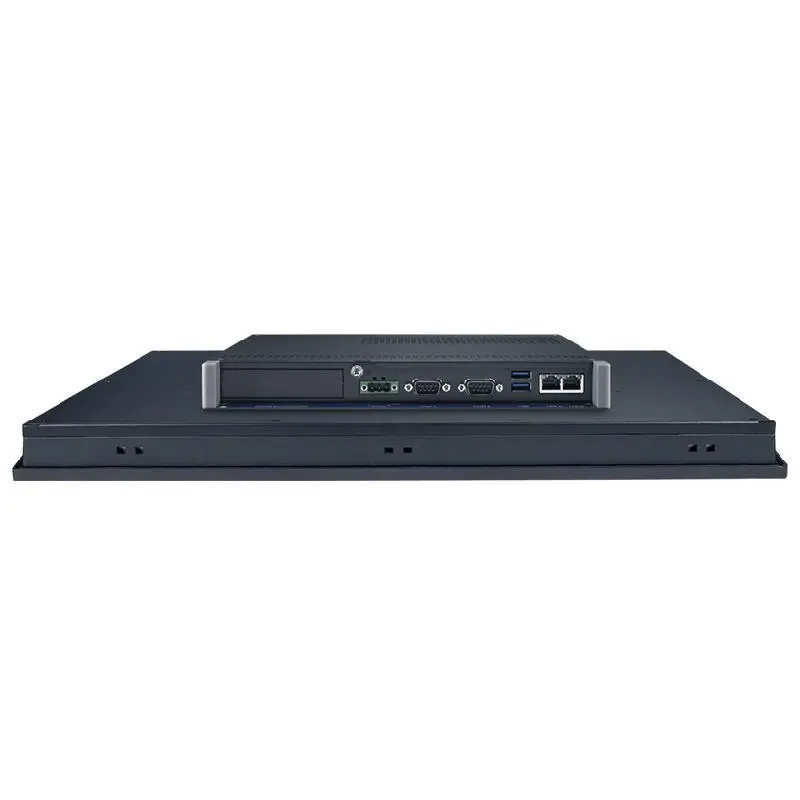

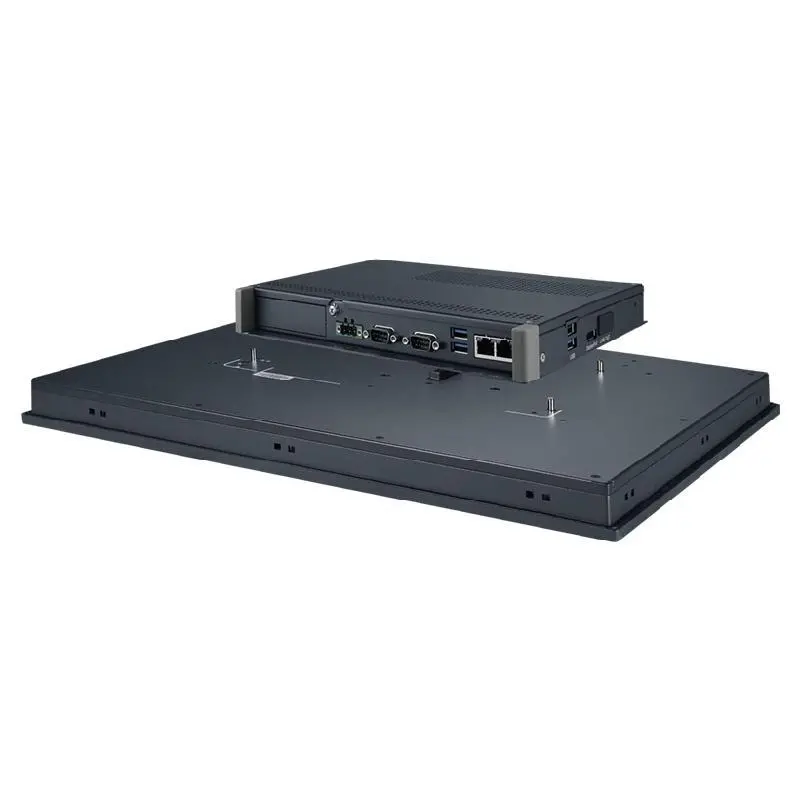

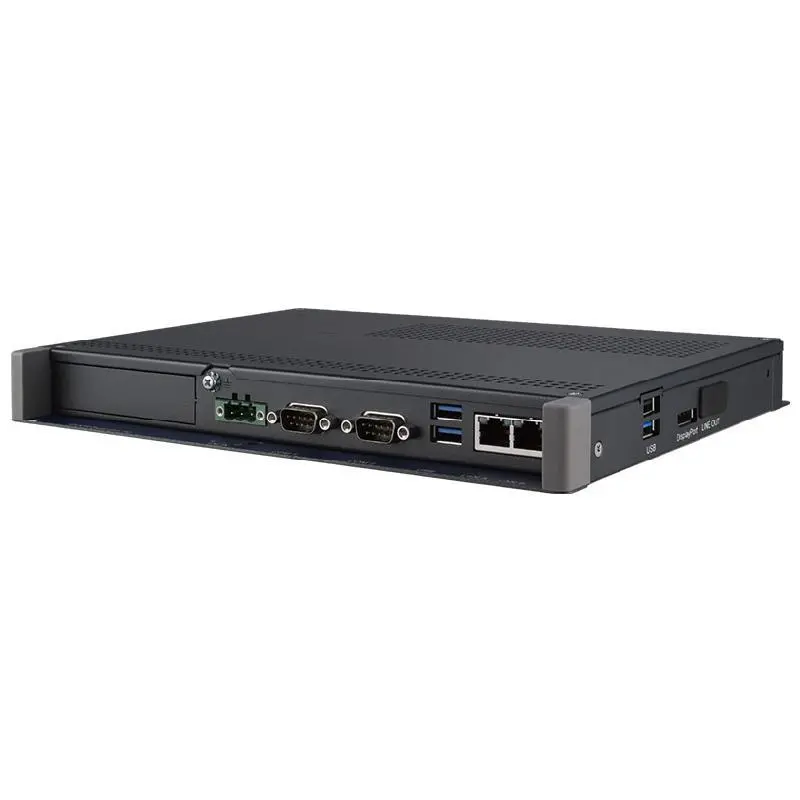

Advantech TPC-B300 Modular TPC - Computing Box Module with Intel Atom and Celeron CPU

Computing Box powered by Intel Atom® X6425E/ Intel® Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)

Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)

1 x Full-size mini PCIe for iDoor expansion

1 x M.2 Key-E 2230 for WIFI + BT module

1 x M.2 Key-M 2280 for SATA SSD

1 x 2.5” SATA SSD expansion

2 x 2.5Gb LAN

Supports TPM2.0 hardware security

Wide Temp Support. Range -20~60 °C (Atom™ X6425E)

		TPC-B300-E20A	TPC-B300-J20A
Environment	Operating Temperature	-20~60 °C (-4~140 °F)	-20~55 °C (-4~131 °F)
Environment	Storage Temperature	-20~70 °C (-4~158 °F)	-20~70 °C (-4~158 °F)
Environment	Vibration Protection	1 Grms	1 Grms
Hardware	Certification	CB, UL, CE, FCC Class A, CCC, BSMI	CB, UL, CE, FCC Class A, CCC, BSMI
Hardware	CPU	Intel® Atom™ x6425E 2.0GHz Quad-Core	Intel® Celeron® J6412 2.00 GHz, Quad core
Hardware	Expansion	1 x Full-size mPCIe slot	1 x Full-size mPCIe slot
Hardware	Hardware Security	TPM 2.0	TPM 2.0

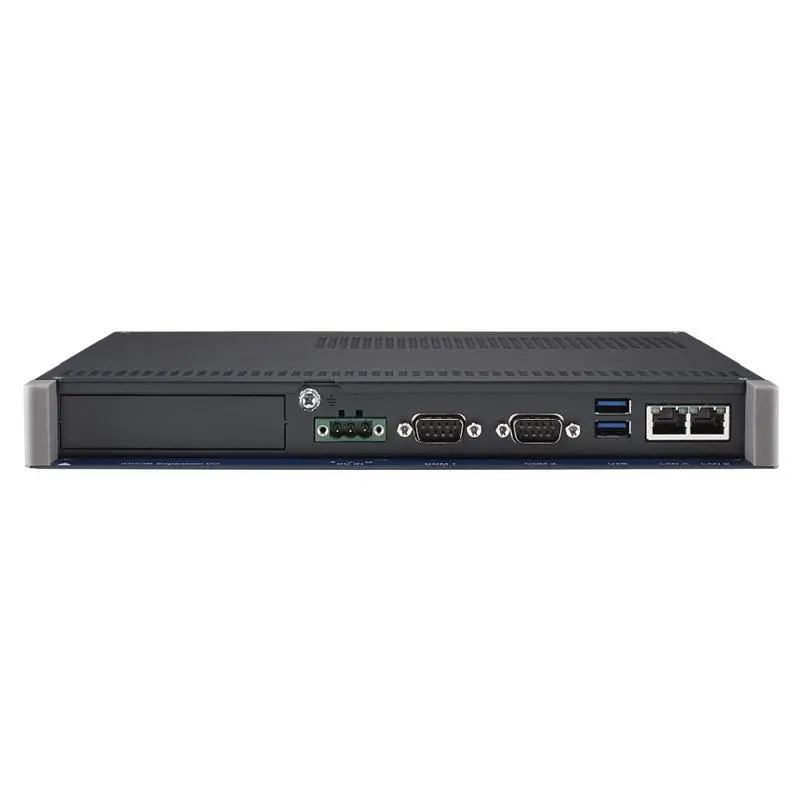

Hardware	I/O	1 x RS-232, 1 x RS-232/422/485	1 x RS-232, 1 x RS-232/422/485
Hardware	LAN	2 x 10/100/1000/2500 Mbps	2 x 10/100/1000/2500 Mbps
I/O Interface	USB Ports	3 x USB 3.2, 1 x USB 2.0	3 x USB 3.2, 1 x USB 2.0
Hardware	Memory	1 x DDR4 SO-DIMM Slot	1 x DDR4 SO-DIMM Slot
Hardware	OS Support	Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android	Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android
Hardware	Power Input	24 VDC ±20%	24 VDC ±20%
Hardware	Storage	1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay	1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
Mechanical	Dimension (W x H x D)	269 x 203 x 30 mm	269 x 203 x 30 mm

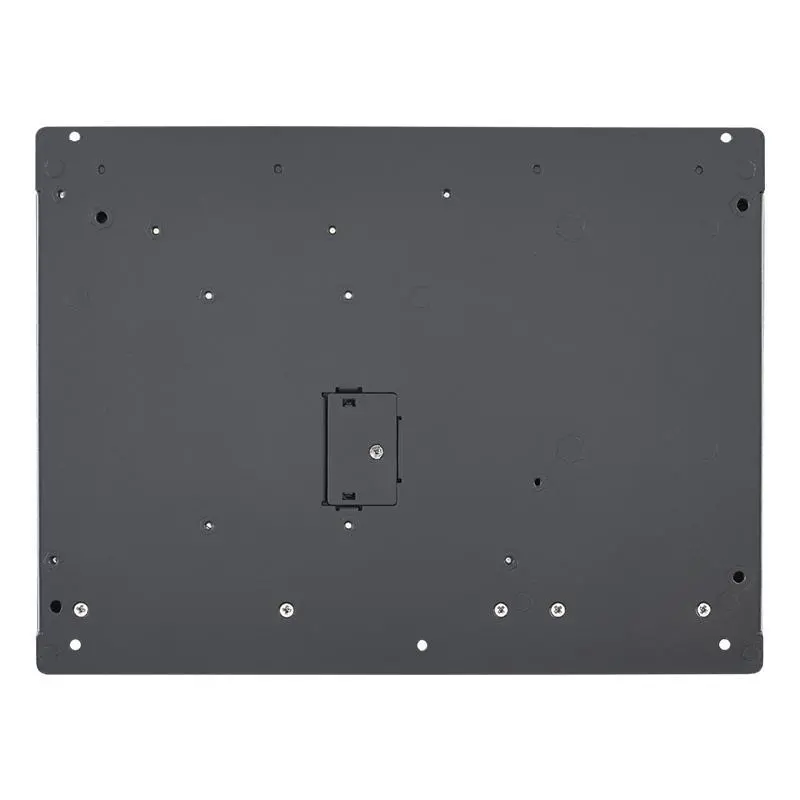

Mechanical	Mounting	Panel, Wall, Stand, VESA	Panel, Wall, Stand, VESA
Mechanical	Weight (Net)	2 kg (4.41 lb)	2 kg (4.41 lb)
