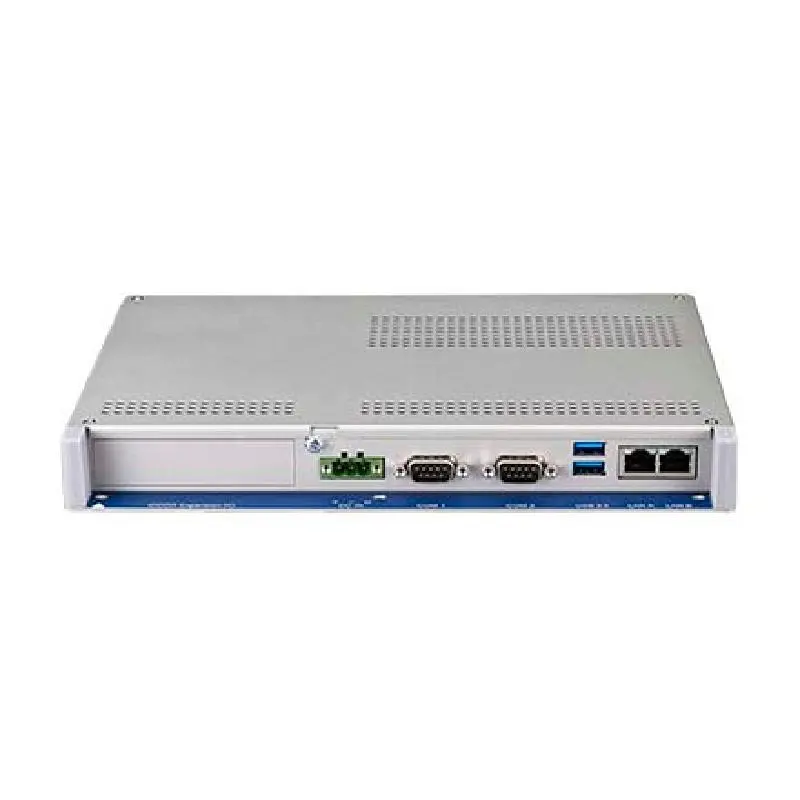

Advantech TPC-B200 Modular TPC - Computing Box Module with Intel Atom® and Intel® Celeron® processors

    Computing Box powered by Intel Atom® E3940/ Intel® Celeron® J3455 with 4 GB (up to 8GB) SODIMM SDRAM

    Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)

    1 x Full-size mini PCIe

    M.2 and SSD expansion

    Supports TPM2.0 hardware security

    Wide Temp. Range -20~60 °C (Atom™ E3940)

    ƒ Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology) (iLINK technology)

TPC-B200-J12AE TPC-B200-E12AE
Environment Operating Temperature 0~50 °C (32~122 °F) 0~50 °C (32~122 °F)
Environment Storage Temperature -40~60°C (-40~140°F) -40~60°C (-40~140°F)
Environment Vibration Protection 1 Grms 1 Grms
Hardware Certification CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI
Hardware CPU Intel® Celeron® J3455 1.50GHz Quad-Core Intel® Atom E3940 1.60GHz Quad-Core
Hardware Expansion 1 x Full-size mPCIe slot 1 x Full-size mPCIe slot
Hardware Hardware Security TPM 2.0 TPM 2.0
Hardware I/O 2 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x Line out, 1 x DP 2 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x Line out, 1 x DP
Hardware LAN 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps
Hardware Memory 1 x SO-DIMM with 4 GB DDR4 2133 MHz 1 x SO-DIMM with 4 GB DDR4 2133 MHz
Hardware OS Support Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android
Hardware Power Input 24 VDC ±20% 24 VDC ±20%
Hardware Storage 1 x SATA M.2 SSD slot (2242 B-Key), 1 x 2.5" SSD/HDD Bay 1 x SATA M.2 SSD slot (2242 B-Key), 1 x 2.5" SSD/HDD Bay
Mechanical Dimension (W x H x D) 269 x 203 x 30 mm 269 x 203 x 30 mm
Mechanical Mounting Panel, Wall, Stand, VESA Panel, Wall, Stand, VESA
Mechanical Weight (Net) 1.8 kg 1.8 kg
