| FPM-D15T-CE | ||
| Environment | Ingress Protection | IP66 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Storage Temperature | -30~70 °C (-22~158 °F) |
| Hardware | Certification | CB, UL, CE, FCC Class A |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 15" |
| LCD Display | Luminance (cd/m2) | 300 |
| LCD Display | Max. Resolution | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 176/176 |
| Mechanical | Dimension (W x H x D) | 383.2 x 307.3 x 27.5 mm |
| Mechanical | Mounting | Panel, Wall, Stand, VESA |
| Mechanical | Weight (Net) | 3.8 kg (8.38 lb) |
| Touchscreen | Touch Type | 10-point multi-touch projected capacitive |

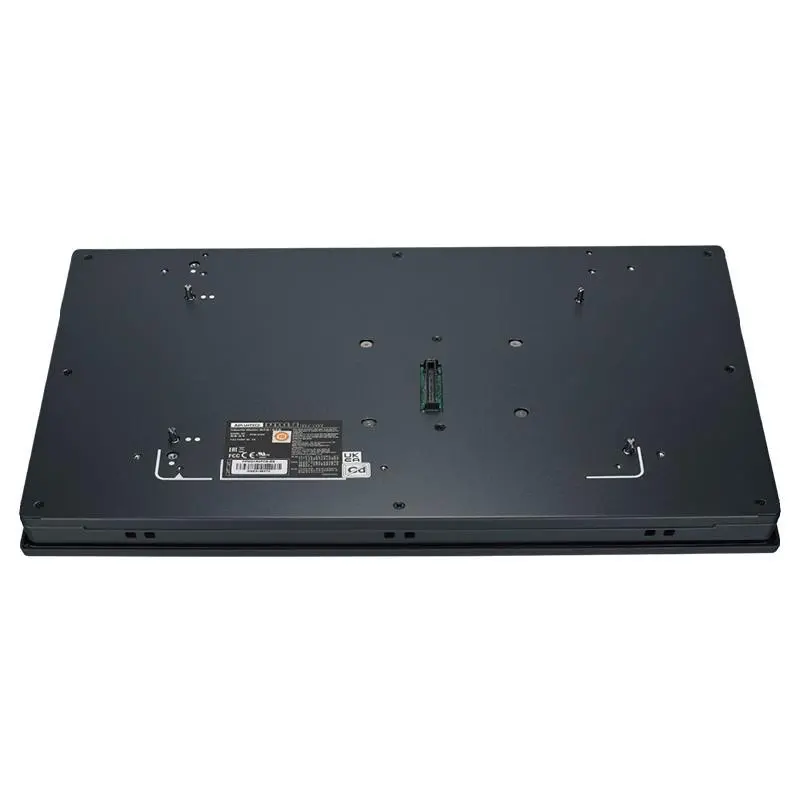

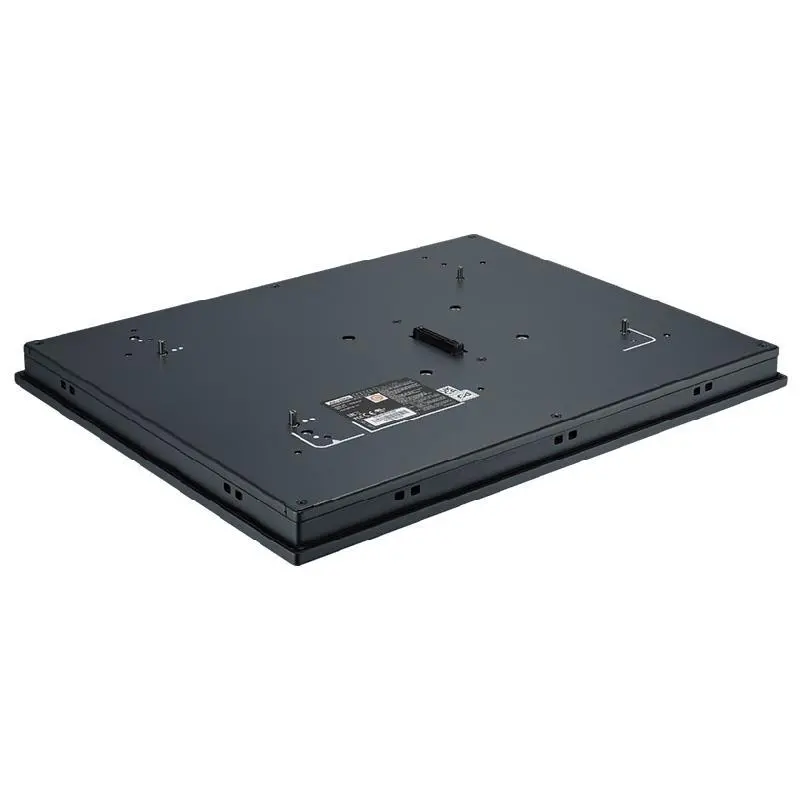

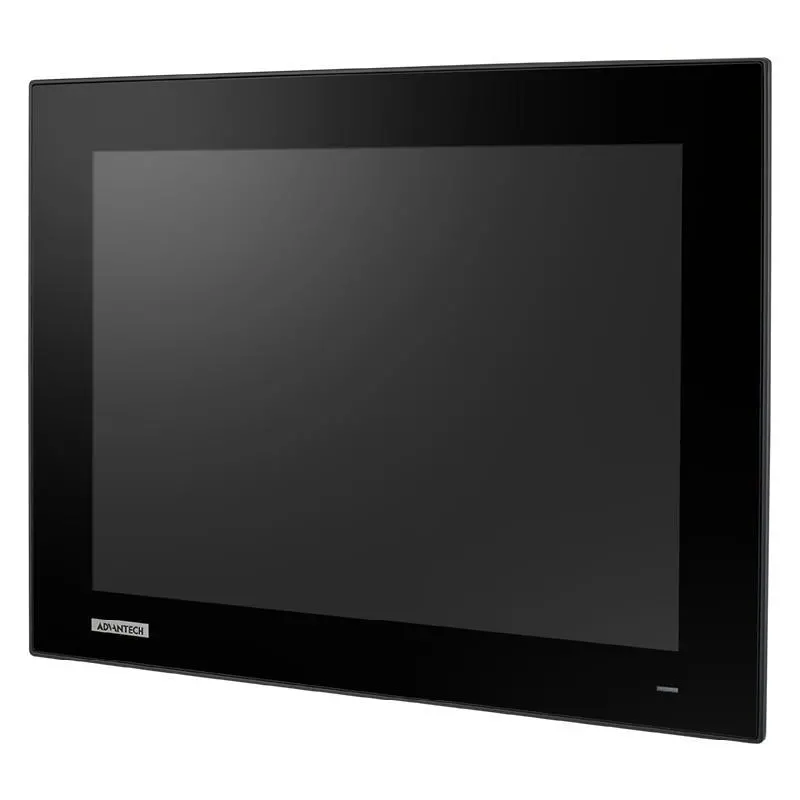

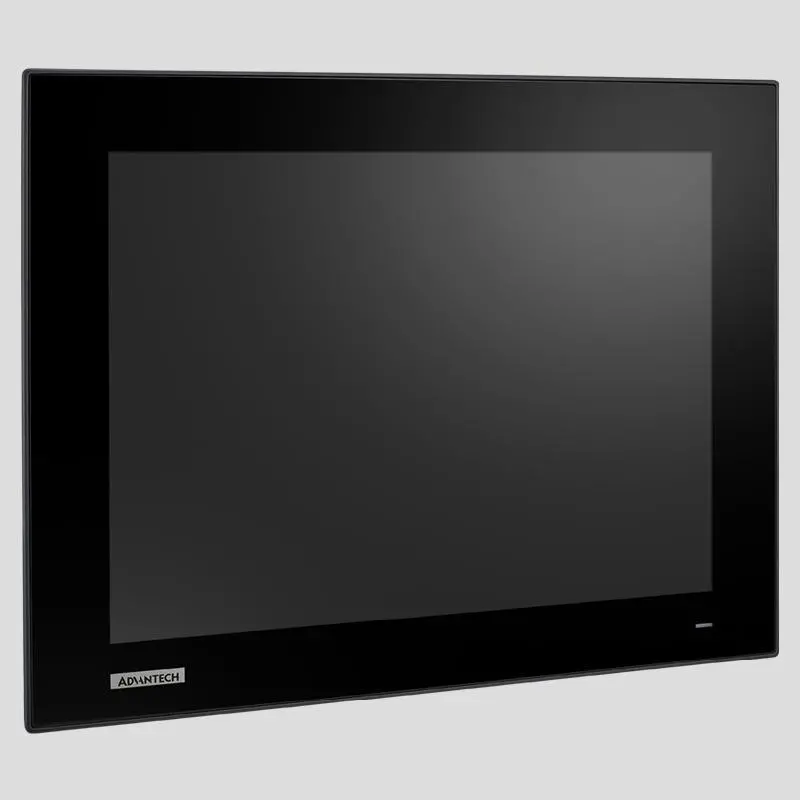

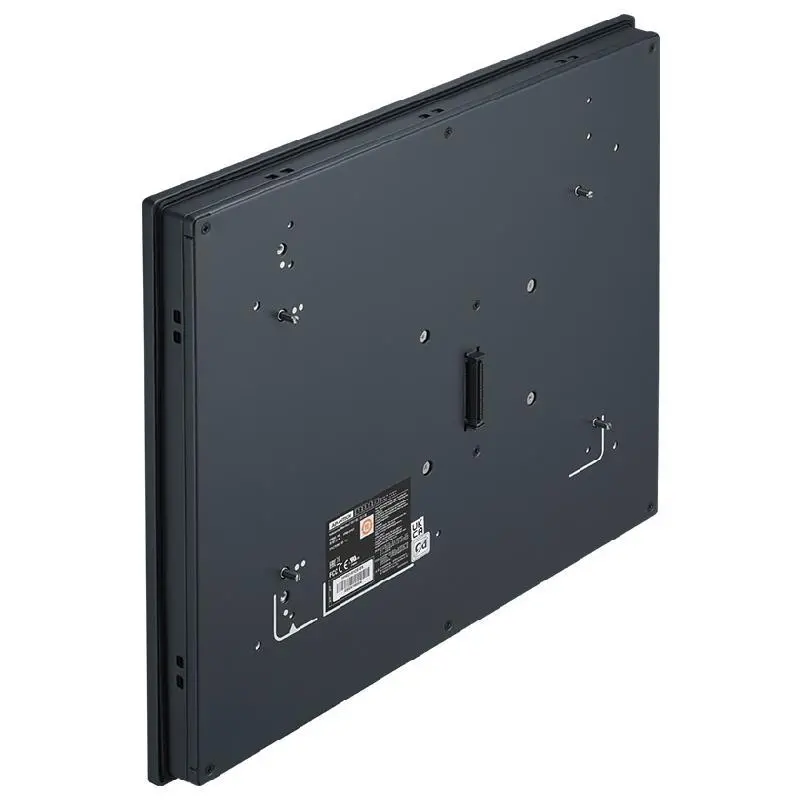

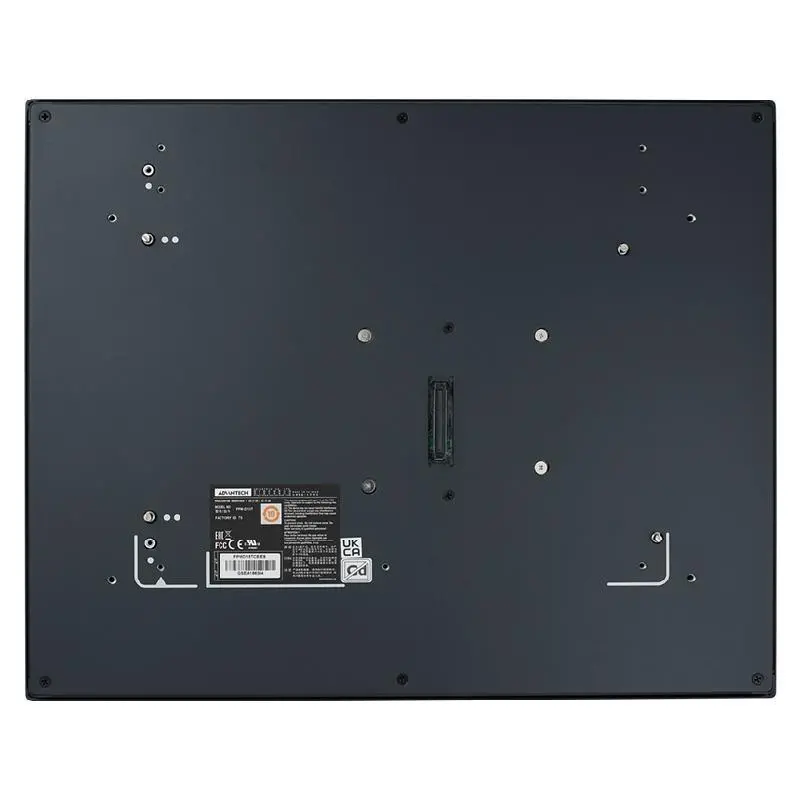

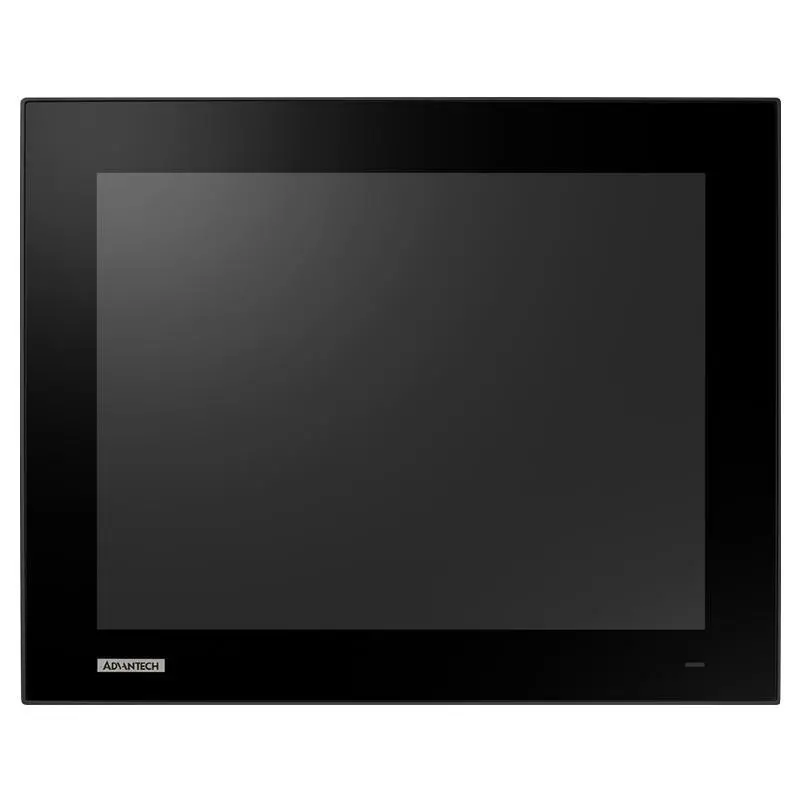

Advantech FPM-D15T-CE 15" (4:3) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
