| FPM-D24W-CE | ||
| Environment | Ingress Protection | IP66 |
| Environment | Operating Temperature | 0~55 °C (32~131 °F) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) |
| Hardware | Certification | CB, UL, CE, FCC Class A |
| LCD Display | Backlight Life (hrs) | 30,000 |
| LCD Display | Display Size | 23.8" |
| LCD Display | Luminance (cd/m2) | 350 |
| LCD Display | Max. Resolution | 1920 x 1080 |
| LCD Display | Viewing Angle (H/V°) | 178/178 |
| Mechanical | Dimension (W x H x D) | 595.9 x 374.1 x 30.3 mm |
| Mechanical | Mounting | Panel, Wall, Stand, VESA |
| Mechanical | Weight (Net) | 7.8 kg |
| Touchscreen | Touch Type | 10-point multi-touch projected capacitive |

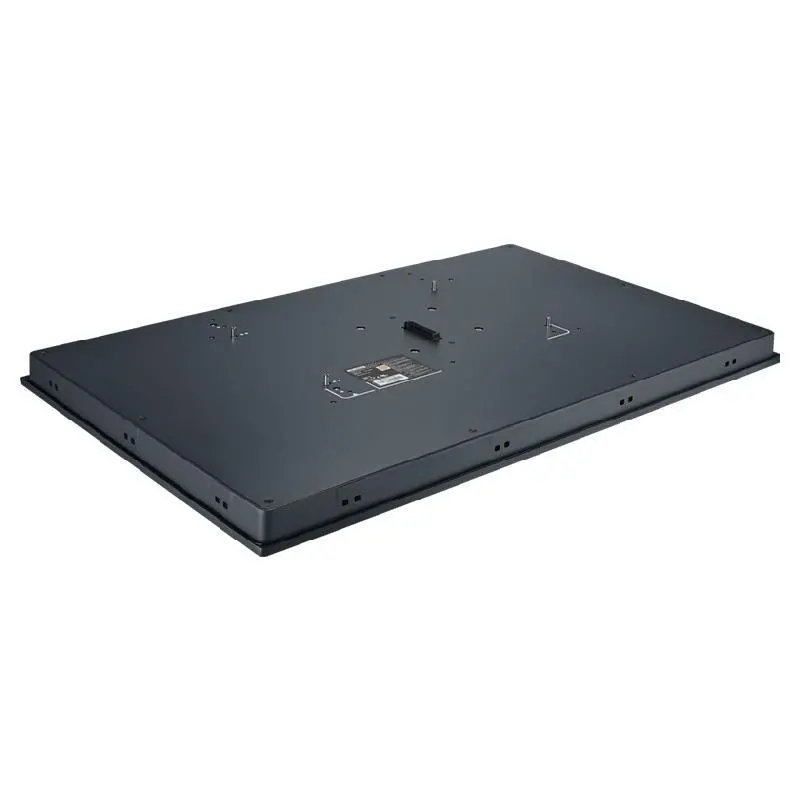

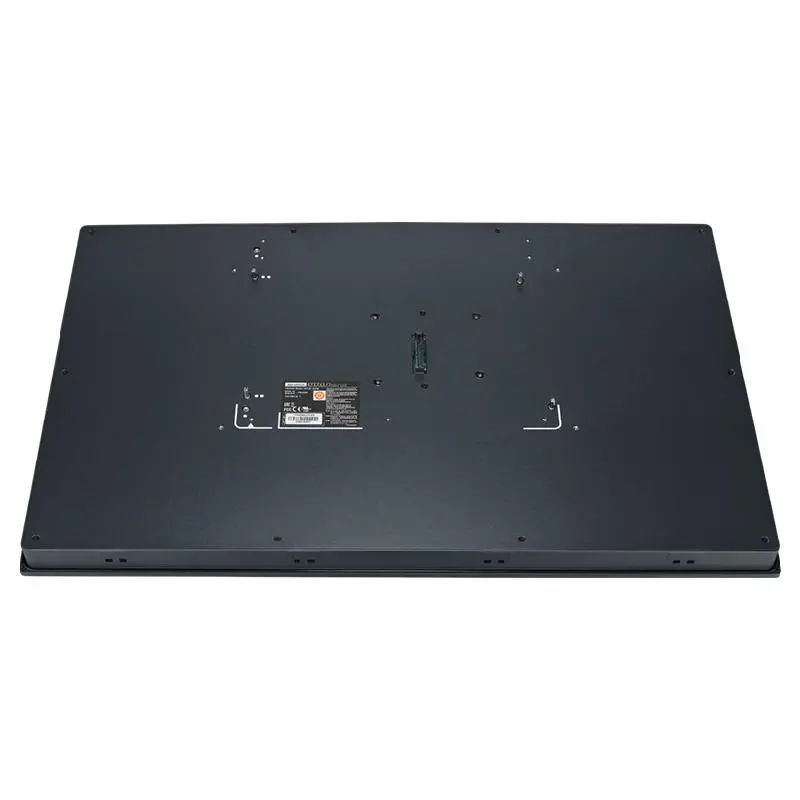

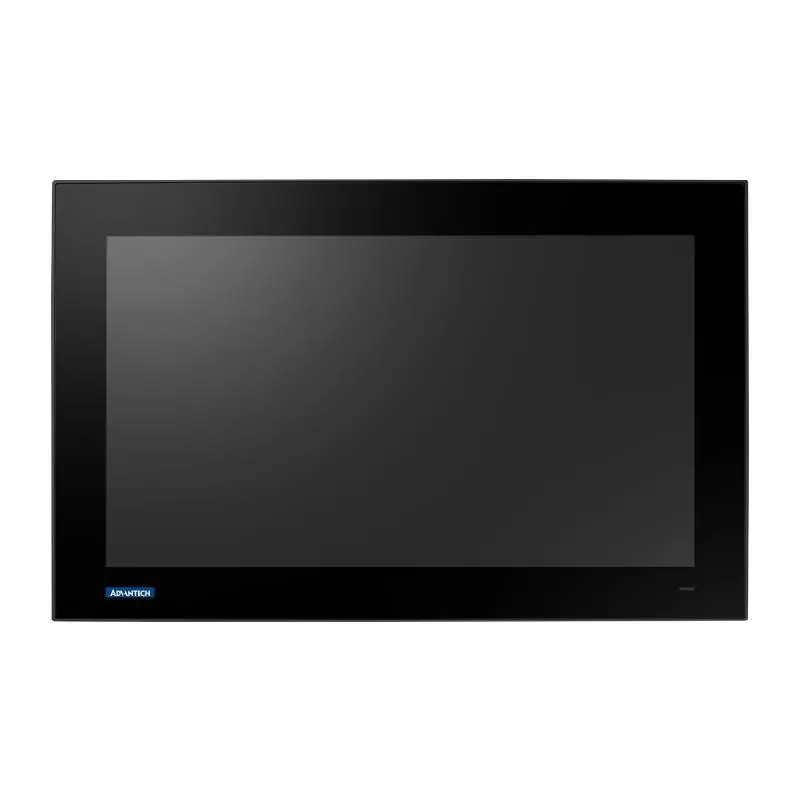

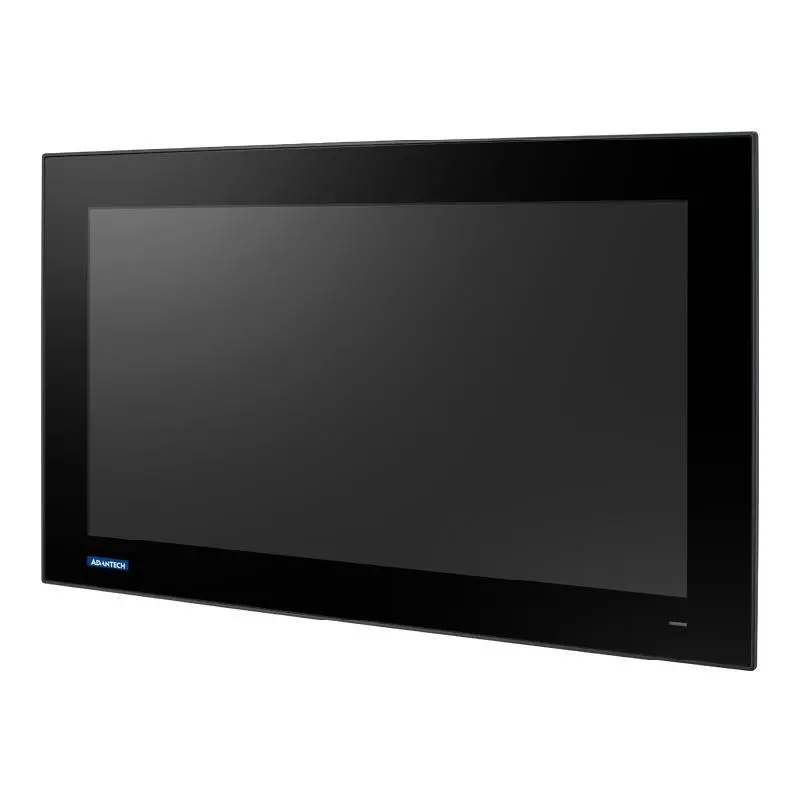

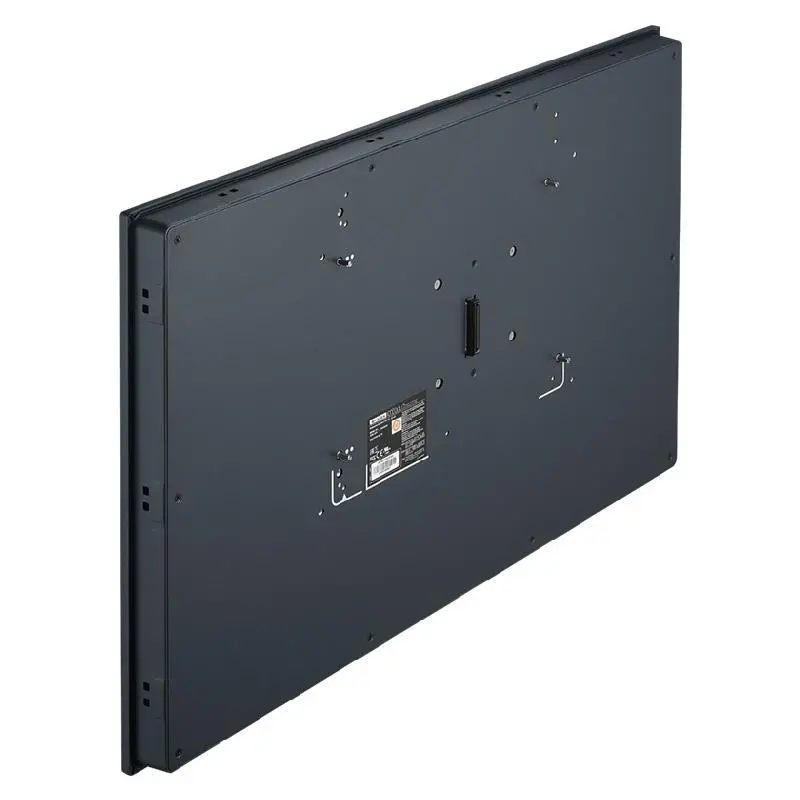

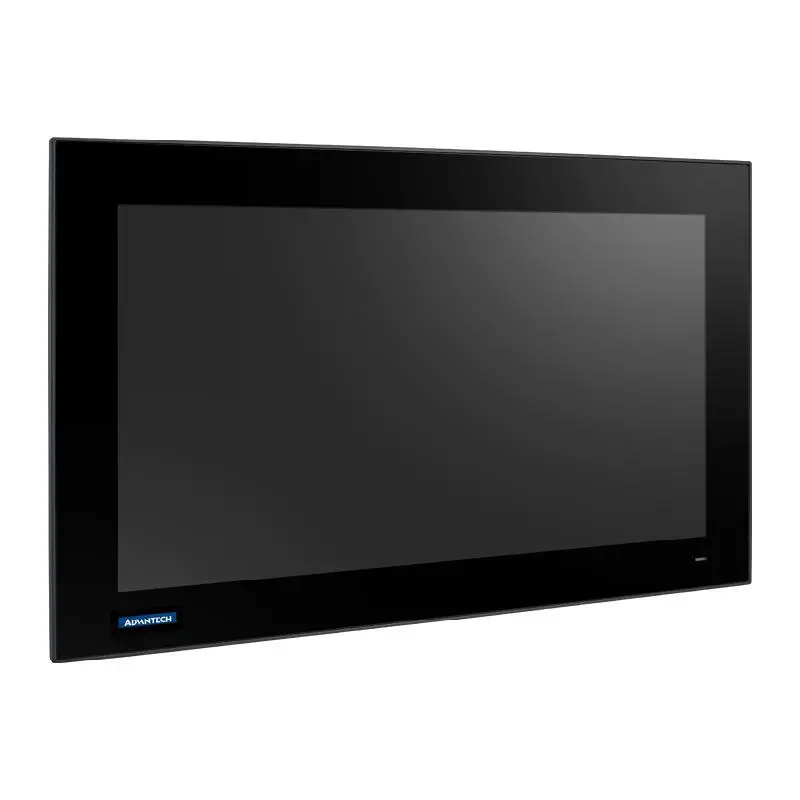

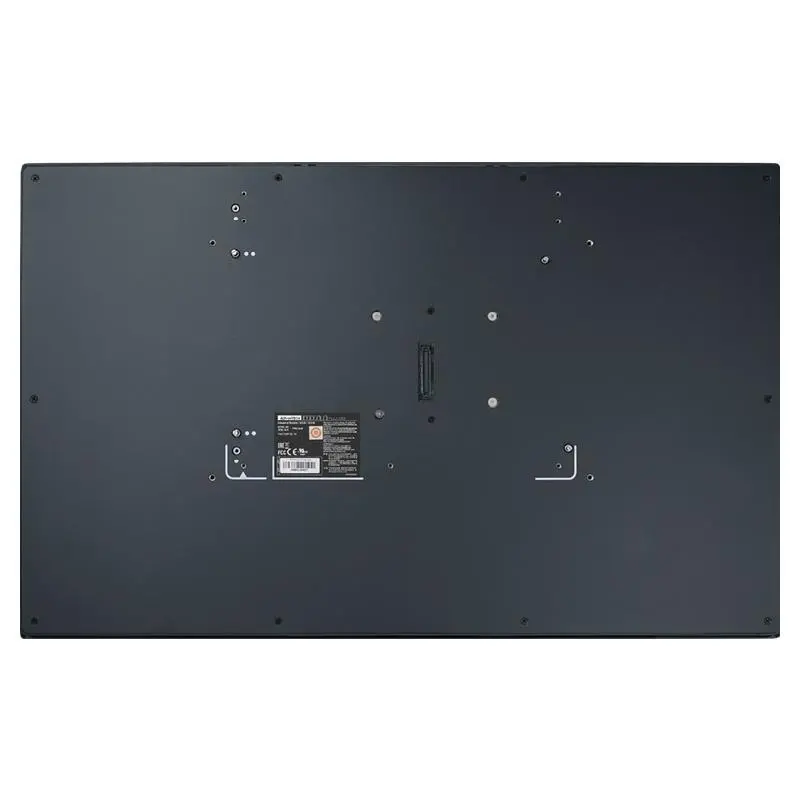

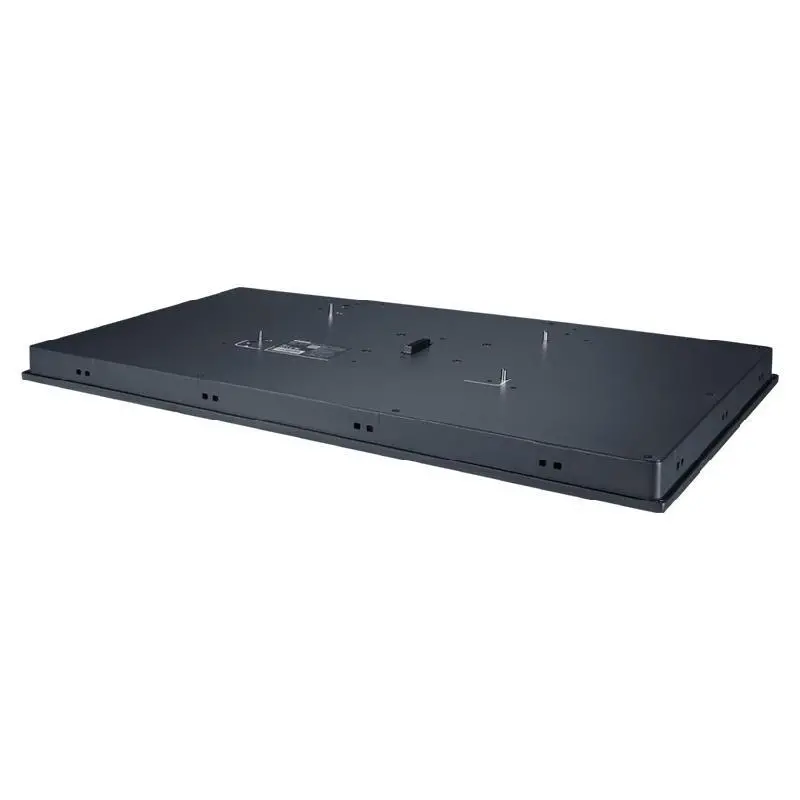

Advantech FPM-D24W-CE 23.8" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
