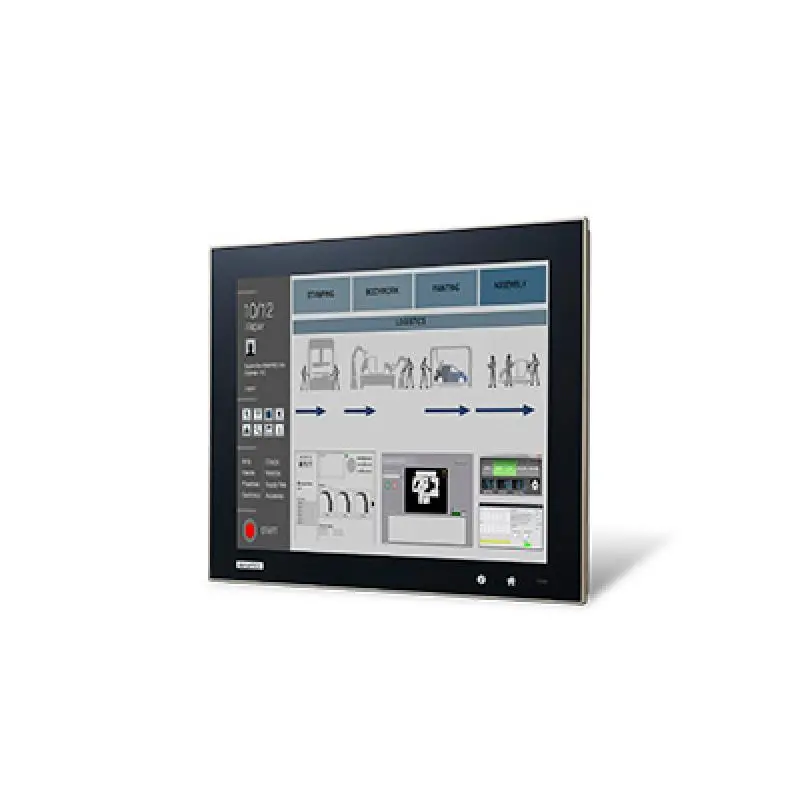

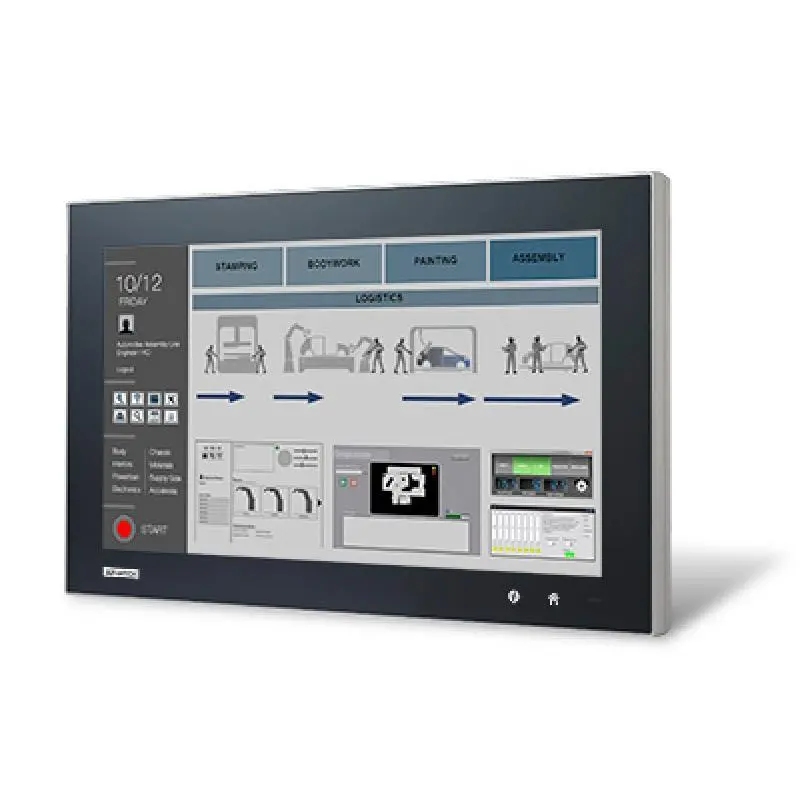

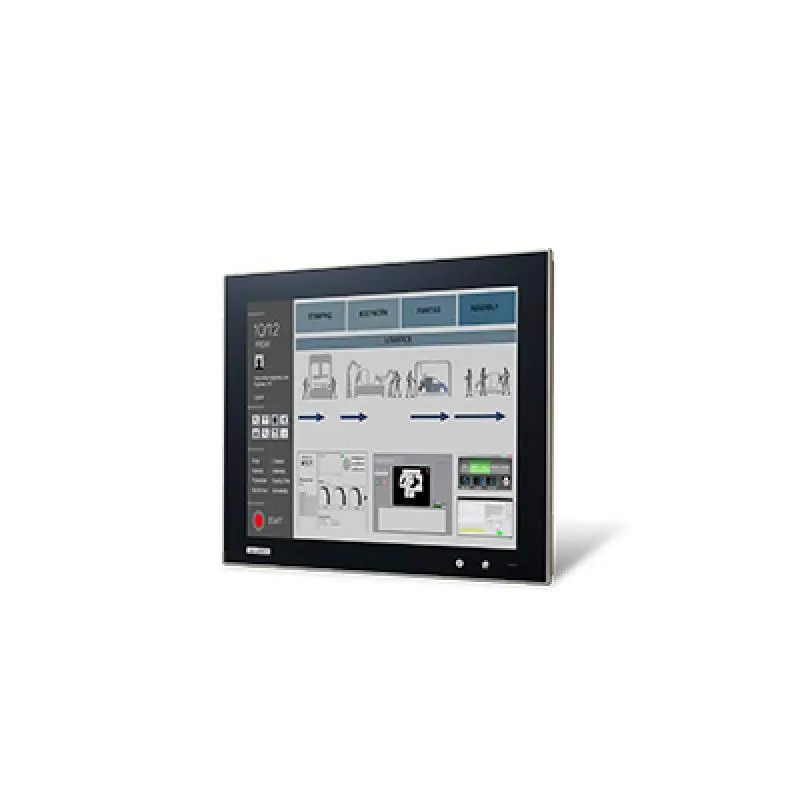

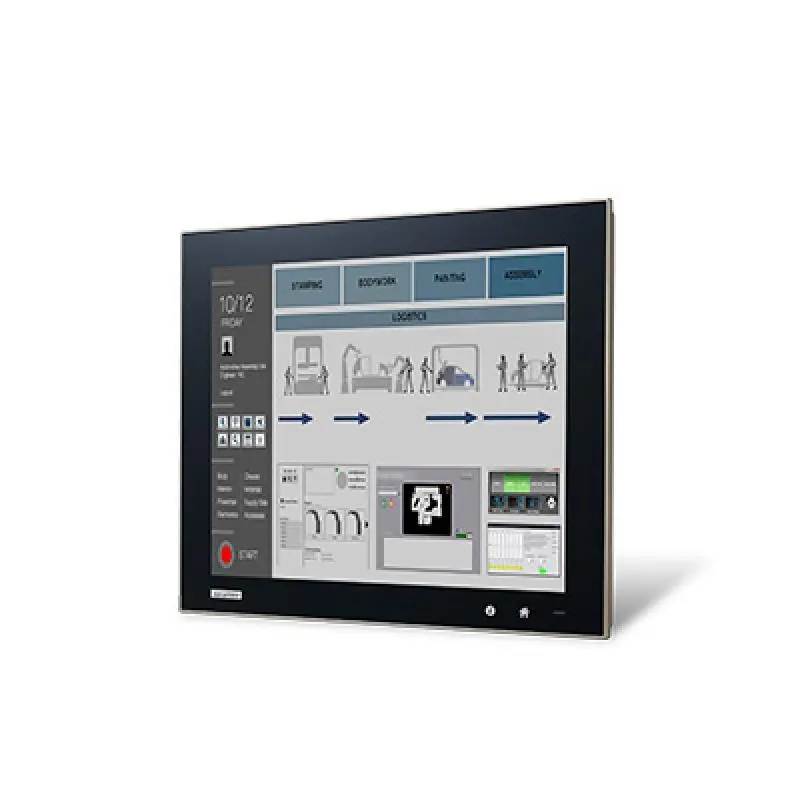

Advantech FPM-BE-Display Interchangeable Display Modules with 12" XGA / 15" XGA / 17" SXGA /15.6" FHD / 18.5" HD / 21.5" FHD

    Modular front display design in three application-based module categories, enabling flexible configurations

    Front panel module with P-CAP multi-touch sensor available in various sizes (12" module is equipped with 5-wire resistive touch control)

    Industrial-grade LED LCD with 50,000 hours (18.5" 30,000 hours, 15" 70,000 hours) lifetime

    System status LED indicators in front panel

    IP66-rated front panel and panel mount

    Rear mounted computing box or monitor box module is compulsory to activate display module

FPM-D12T-BE FPM-D15T-BE FPM-D17T-BE FPM-D18W-BE FPM-D21W-BE FPM-D15W-FBE FPM-D24W-BE
Environment Ingress Protection IP66 IP66 IP66 IP66 IP66 IP66 IP66
Environment Operating Temperature -20~60 °C (-33~140 °F) -20~60 °C (-33~140 °F) -20~60 °C (-33~140 °F) 0~55 °C (32~131 °F) 0~55 °C (32~131 °F) -20~60 °C (-33~140 °F) 0~50 °C (32~122 °F)
Environment Storage Temperature -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~60 °C (-4~140 °F) -20~60 °C (-4~140 °F) -20~70 °C (-4~158 °F) -20~60 °C (-4~140 °F)
Hardware Certification CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI
LCD Display Backlight Life (hrs) 50,000 70,000 50,000 30,000 50,000 50,000 30,000
LCD Display Display Size 12.1" 15" 17" 18.5" 21.5" 15.6" 23.8"
LCD Display Luminance (cd/m2) 600 300 350 250 250 450 350
LCD Display Max. Resolution 1024 x 768 1024 x 768 1280 x 1024 1388 x 768 1920 x 1080 1920 x 1080 1920 x 1080
LCD Display Viewing Angle (H/V°) 178/178 176/176 160/140 170/160 178/178 170/170 178/178
Mechanical Dimension (W x H x D) 312 x 238 x 28 mm 384 x 308 x 28 mm 411 x 344 x 29 mm 488 x 309 x 31 mm 559 x 350 x 31 mm 420 x 269 x 31 mm 596 x 375 x 31 mm
Mechanical Mounting Panel, Wall, Stand, VESA Panel, Wall, Stand, VESA Panel, Wall, Stand, VESA Panel, Wall, Stand, VESA Panel, Wall, Stand, VESA Panel, Wall, Stand, VESA Panel, Wall, Stand, VESA
Mechanical Weight (Net) 2.5 kg 4 kg 4.8 kg 5.2 kg 6.8 kg 4 kg 7.8 kg
Touchscreen Touch Type 5-wire resistive PCAP PCAP PCAP PCAP PCAP PCAP
