| SPC-515-633AE | ||
| Environment | Ingress Protection | All-around IP69K |
| Environment | Operating Temperature | 0~50 °C (32~122 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| General | Humidity (Operating) | 10~95% RH (non-condensing) |
| General | Humidity (Storage) | 10~95% RH (non-condensing) |
| General | Rated Voltage | 24 VDC (±10%) |
| Hardware | BIOS | AMI UEFI |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | CPU | Intel® CoreTM i3-6100U 2.3GHz Skylake Dual Core, 3MB L2 |
| Hardware | Hardware Security | Optional |
| Hardware | I/O | 1 x RS-232, 2 x USB 2.0 |
| Hardware | LAN | 2 x 10/100/1000 Mbps |
| Hardware | Memory | 2 x SO-DIMM with 8GB DDR3L |
| Hardware | OS Support | Microsoft® Windows 10 LTSC |
| Hardware | Power Consumption | 60 W @ 24 VDC |
| Hardware | Power Input | 24 VDC ±10% |
| Hardware | Power Requirement | 24 VDC ±10% |
| I/O Interface | Expansion | Optional |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x M-12 A-coded 5 pin male |
| I/O Interface | Serial Ports | 1 x RS-232 |
| I/O Interface | USB Ports | 2 x USB 2.0 |
| LCD Display | Backlight Life (hrs) | 70,000 |
| LCD Display | Display Size | 15" |
| LCD Display | Luminance (cd/m2) | 300 |
| LCD Display | Max. Resolution | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 176/176 |
| Mechanical | Dimension (W x H x D) | 389.6 x 313.7 x 56 mm |
| Mechanical | Enclosure | Stainless steel |
| Mechanical | Form Factor | Passive Cooling |
| Mechanical | Mounting | VESA |
| Mechanical | Weight (Net) | 10 kg (22.04 lb) |
| Power Requirements | Input Voltage | 21~27 VDC |
| Touchscreen | Touch Type | PCAP |

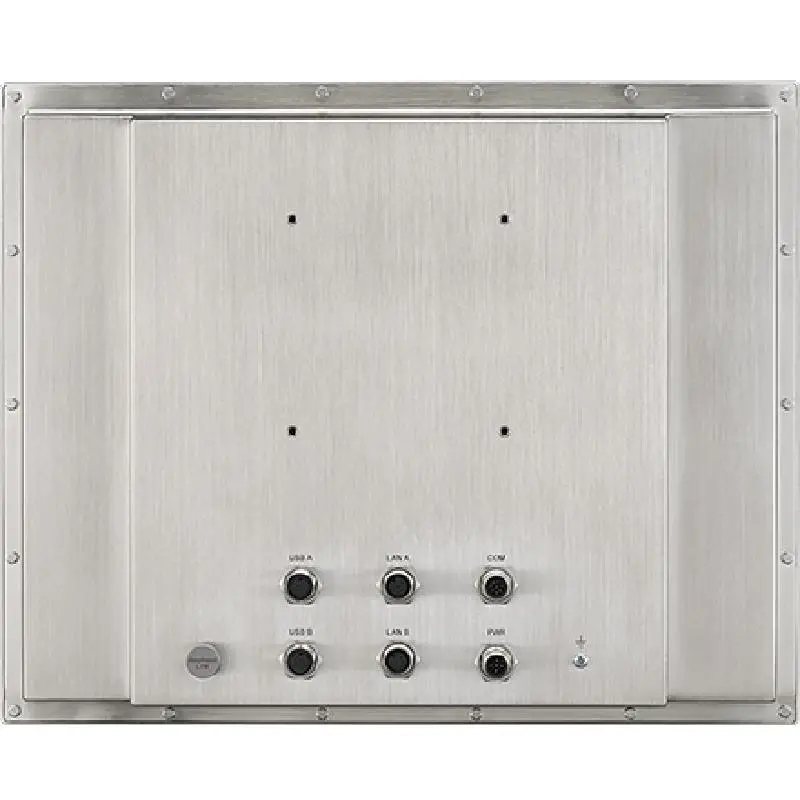

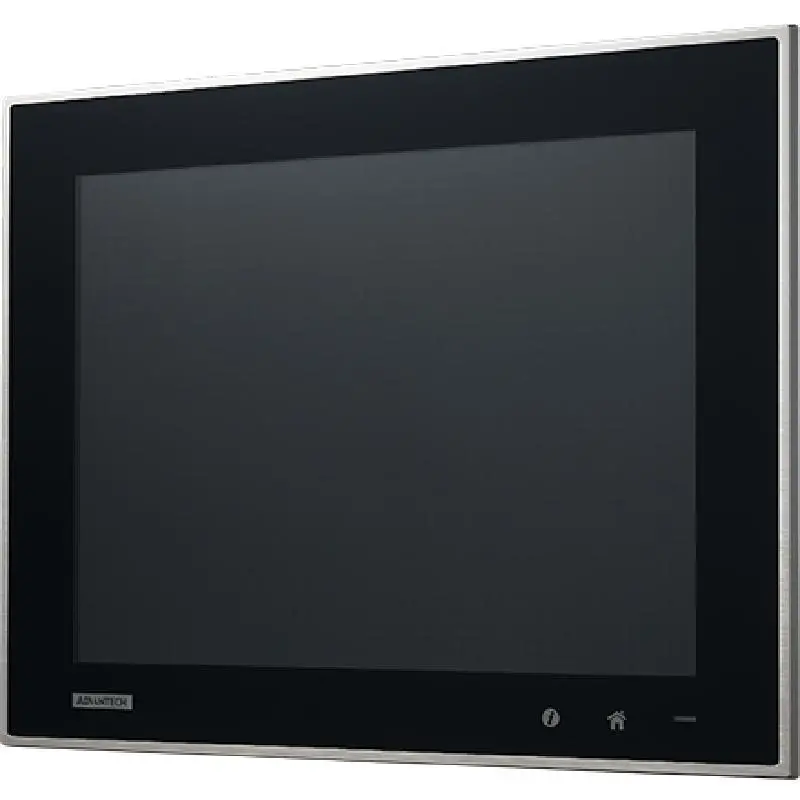

Advantech SPC-515 15" XGA TFT LED LCD Industrial Multi-Touch Panel PC with Stainless Steel Housing and IP69K Rating
