| SPC-815-633A | ||
| Environment | Ingress Protection | All-around IP65 |
| Environment | Operating Temperature | 0~55 °C (32~131 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| General | Humidity (Operating) | 10~95% RH (non-condensing) |
| General | Humidity (Storage) | 10~95% RH (non-condensing) |
| General | Rated Voltage | 24 VDC (±20%) |
| Hardware | BIOS | AMI UEFI |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC |
| Hardware | CPU | Intel® CoreTM i3-6100U 2.3GHz Skylake Dual Core, 3MB L2 |
| Hardware | Hardware Security | Optional |
| Hardware | I/O | 1 x USB 2.0, 2 x USB 3.0 |
| Hardware | LAN | 2 x 10/100/1000 Mbps |
| Hardware | Memory | 2 x SO-DIMM with 8GB DDR3L |
| Hardware | OS Support | Microsoft® Windows 10 LTSC |
| Hardware | Power Consumption | 35 W @ 24 VDC |
| Hardware | Power Input | 24 VDC ±20% |
| Hardware | Power Requirement | 24 VDC ±20% |
| I/O Interface | Expansion | 1 x Full-size mPCIe Slot, 2 x RS-232/422/485 |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 3-Pin Terminal Block |
| I/O Interface | USB Ports | 1 x USB 2.0, 2 x USB 3.0 |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 15.6" |
| LCD Display | Luminance (cd/m2) | 400 |
| LCD Display | Max. Resolution | 1366 x 768 |
| LCD Display | Viewing Angle (H/V°) | 170/130 |
| Mechanical | Dimension (W x H x D) | 402.19 x 333.19 x 67 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy |
| Mechanical | Form Factor | Passive Cooling |

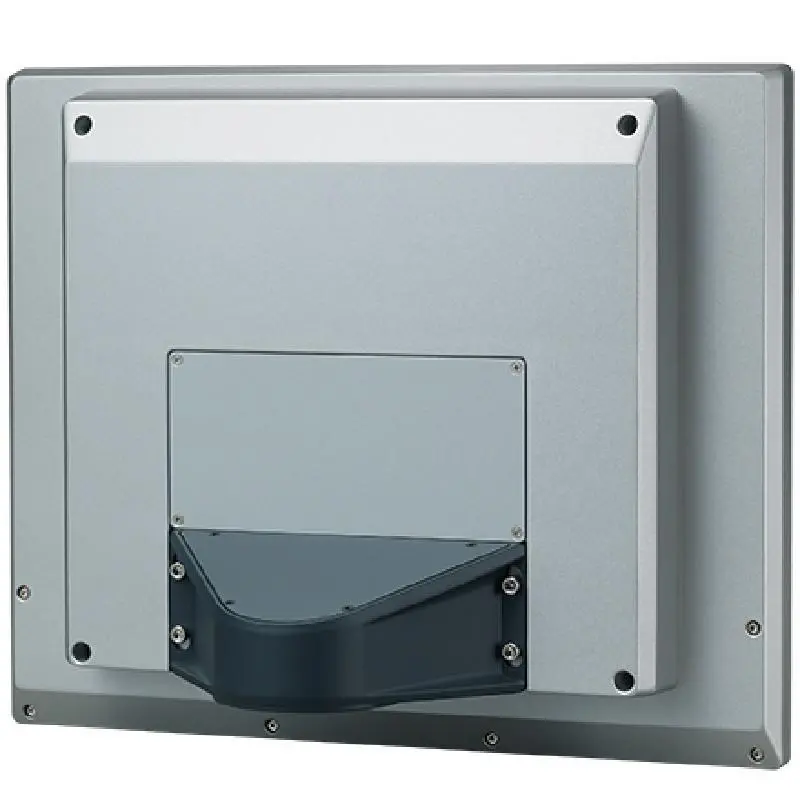

| Mechanical | Mounting | Pipe |
| Mechanical | Weight (Net) | 8.2 kg (18.1 lb) |
| Power Requirements | Input Voltage | 19~29 VDC |
| Touchscreen | Touch Type | PCAP |

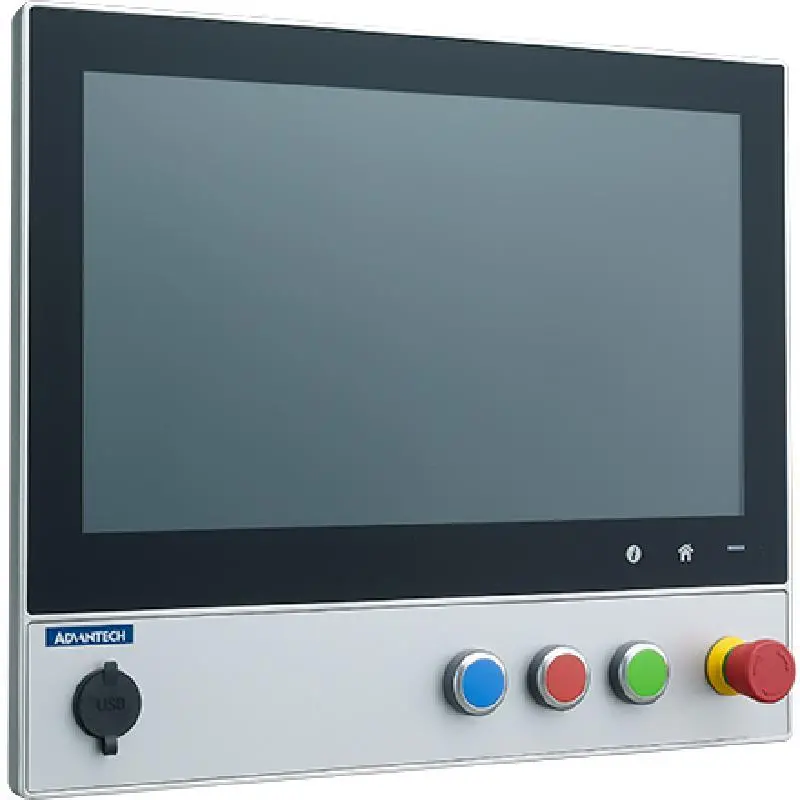

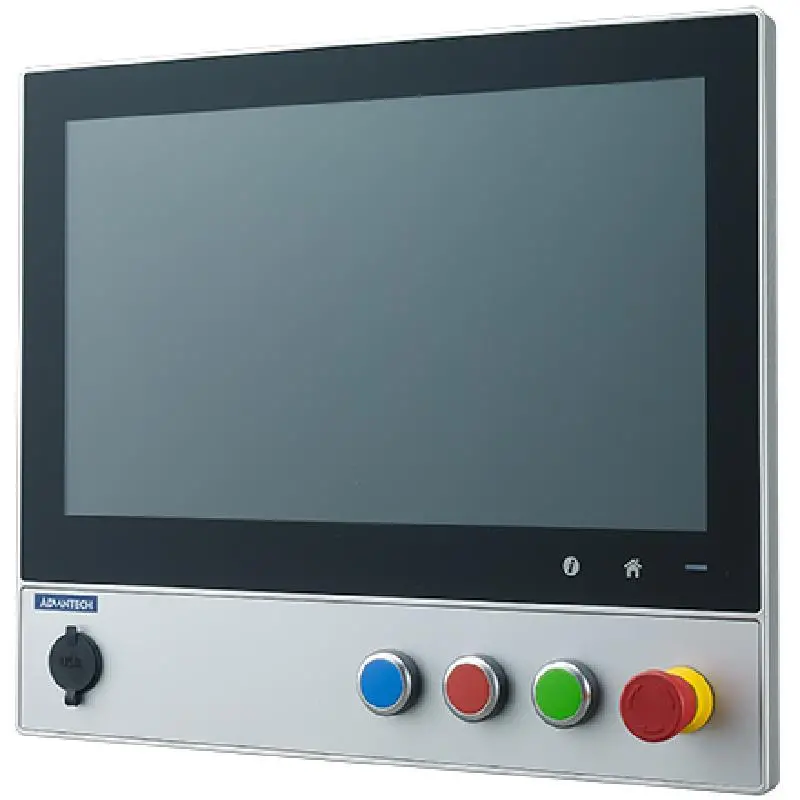

Advantech SPC-815 15.6" Integrated-Button Panel Computer
