| SPC-815-MLA | ||
| Environment | Ingress Protection | All-around IP65 |
| Environment | Operating Temperature | 0~55 °C (32~131 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| General | Humidity (Operating) | 10~95% RH (non-condensing) |
| General | Humidity (Storage) | 10~95% RH (non-condensing) |
| General | Rated Voltage | 24 VDC (±20%) |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC |
| Hardware | I/O | 1 x USB 2.0, 2 x USB 3.0 |
| Hardware | Power Consumption | 10 W @ 24 VDC |
| Hardware | Power Input | 24 VDC ±20% |
| Hardware | Power Requirement | 24 VDC ±20% |
| Hardware | Video Port | HDMI, DP |
| I/O Interface | Displays | 1 x HDMI, 1 x DP, 1 x HDBaseT |
| I/O Interface | Power Connector | 1 x 3-Pin Terminal Block |
| I/O Interface | USB Ports | 1 x USB 2.0, 2 x USB 3.0 |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 15.6" |
| LCD Display | Luminance (cd/m2) | 400 |
| LCD Display | Max. Resolution | 1366 x 768 |
| LCD Display | Viewing Angle (H/V°) | 170/130 |
| Mechanical | Dimension (W x H x D) | 402.19 x 333.19 x 67 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy |
| Mechanical | Mounting | Pipe |
| Mechanical | Weight (Net) | 7.2 kg (15.9 lb) |
| Power Requirements | Input Voltage | 19~29 VDC |
| Touchscreen | Touch Type | PCAP |

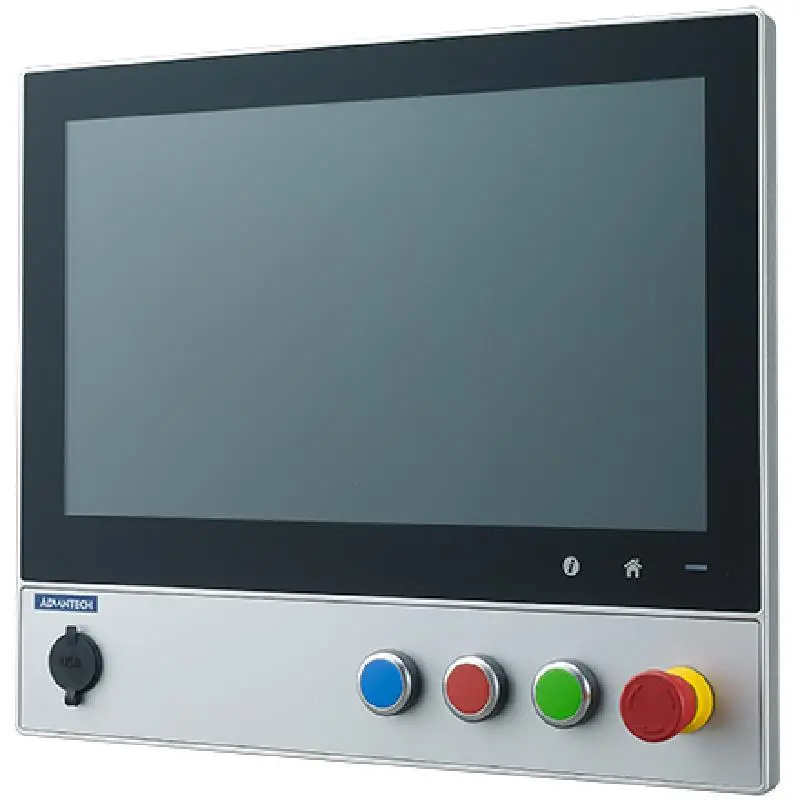

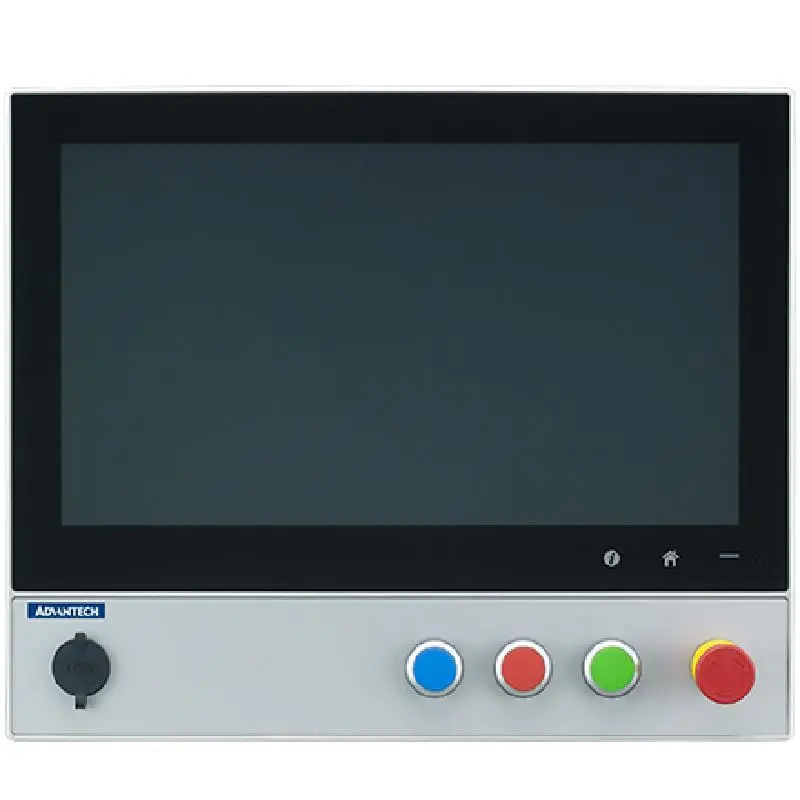

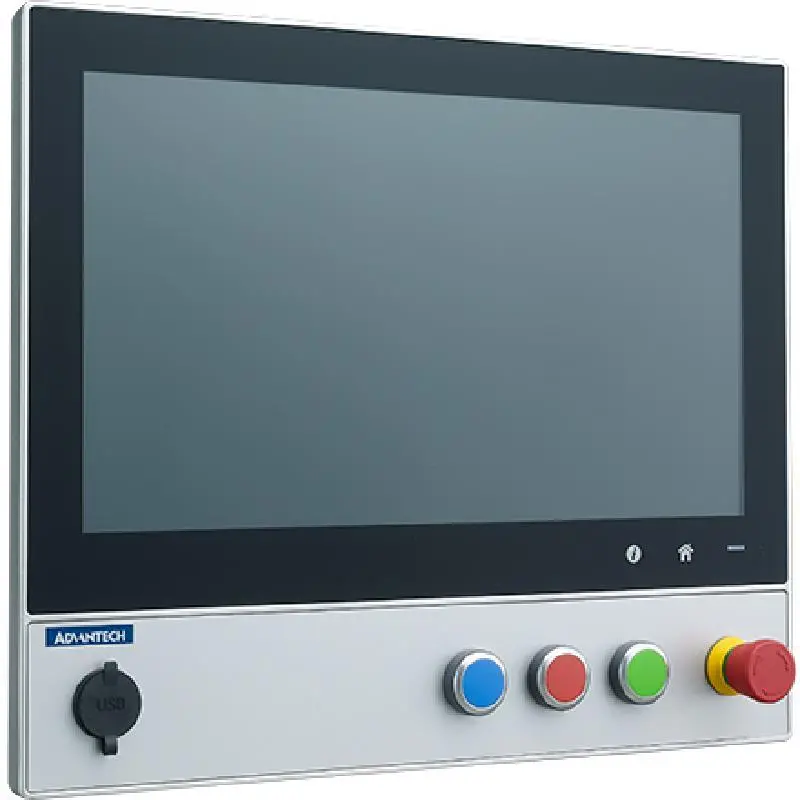

Advantech SPC-815(M) 15.6" Integrated-Button Industrial Monitor
