| TPC-125H-E3BE | ||
| Environment | Ingress Protection | Front Panel IP66 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 95% RH (non-condensing) |
| Environment | Storage Temperature | -30~70 °C (-22~158 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| Ethernet | Speed | 10/100/1,000 Mbps |
| Expansion Function | Interface | 1 x Full-size mini PCIe |
| General | Humidity (Operating) | 10~95% RH (non-condensing) |
| General | Humidity (Storage) | 10~95% RH (non-condensing) |
| General | Rated Voltage | 24 VDC (±20%) |
| Hardware | BIOS | AMI UEFI |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI, C1D2 |
| Hardware | CPU | Intel® Atom™ E3845 1.91GHz Quad-core |
| Hardware | Expansion | 1 x Full-size mPCIe, 1 x iDoor slot |

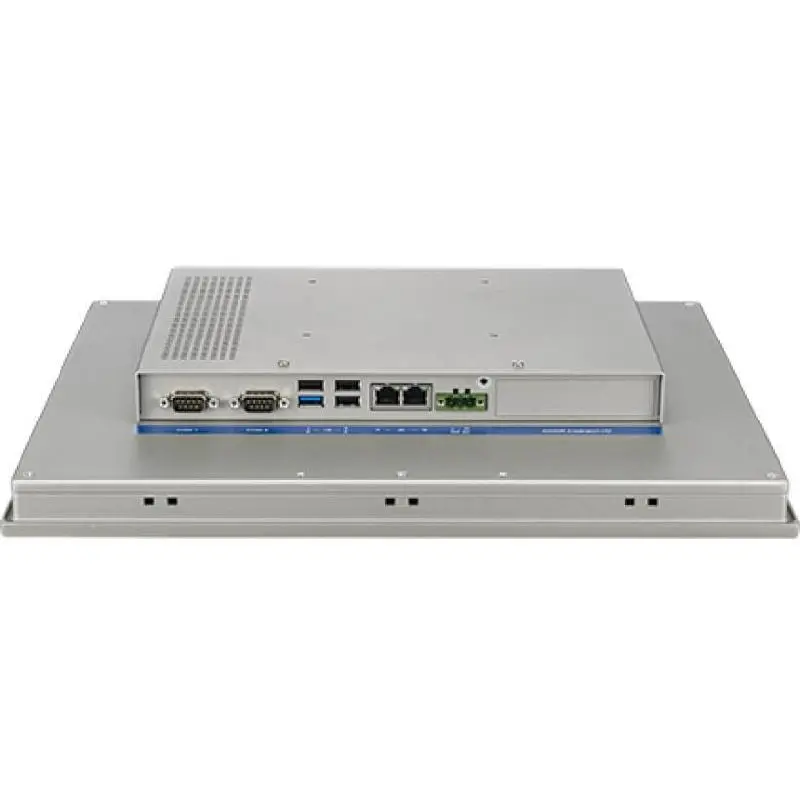

| Hardware | I/O | 1 x RS-232, 1 x RS-232/422/485, 1 x USB 3.0, 3 x USB 2.0, 1 x iDoor slot |
| Hardware | LAN | 2 x 10/100/1000 Mbps |
| Hardware | Memory | 1 x SO-DIMM with 4 GB DDR3L |
| Hardware | OS Support | Microsoft® WES7, Windows 7, Windows 10 Enterprise LTSB |
| Hardware | Power Consumption | 25 W @ 24 VDC |
| Hardware | Power Input | 24 VDC ±20% |
| Hardware | Power Requirement | 24 VDC ±20% |
| Hardware | Storage | 1 x 2.5" SSD/HDD Bay, 1 x mSATA |
| Hardware | Watchdog Timer | 1~255 s |
| I/O Interface | Expansion | 1 x Full-size mPCIe, 1 x iDoor slot |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 3-Pin Terminal Block |
| I/O Interface | Serial Ports | 1 x RS-232, 1 x RS-232/422/485 |
| I/O Interface | USB Ports | 1 x USB 3.0, 3 x USB 2.0 |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 12" |
| LCD Display | Luminance (cd/m2) | 600 |
| LCD Display | Max. Resolution | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 178/178 |
| Mechanical | Dimension (W x H x D) | 311.8 x 238 x 55.4 mm |
| Mechanical | Enclosure | Die-cast aluminum alloy |
| Mechanical | Form Factor | Passive Cooling |
| Mechanical | Mounting | Panel |
| Mechanical | Weight (Net) | 3.12 kg (6.88 lb) |
| Touchscreen | Touch Type | 5-wire resistive |
| USB Vision | Connector | 1 x USB 3.0 Type A, 3 x USB 2.0 Type A |

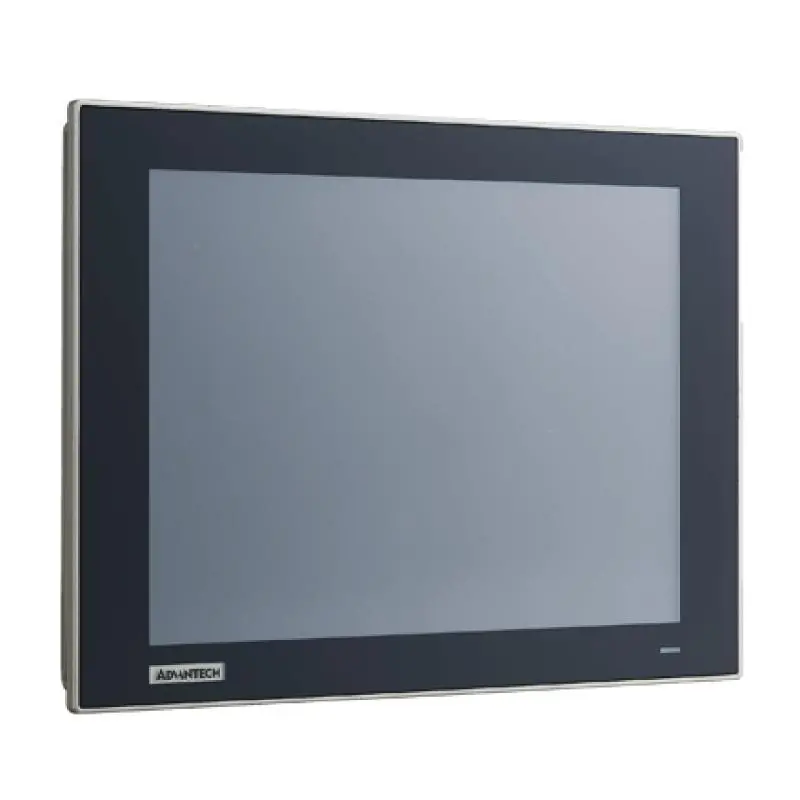

Advantech TPC-125H 12" XGA TFT LED LCD Thin-Client Terminal with Intel® Atom™ Processor for Hazardous Locations Introduction
