FPM-719-R9AE | ||
Environment | Ingress Protection | Front Panel IP66 |
Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
Environment | Storage Temperature | -30~70 °C (-22~158 °F) |
Environment | Storage Humidity | 10~95% RH (non-condensing) |
Environment | Vibration Protection | 1 Grms, random |
Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
Hardware | OS Support | Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB |
Hardware | Power Input | 24 VDC |
Hardware | Video Port | HDMI, DP, VGA |
I/O Interface | Power Connector | 1 x Lockable DC Jack |
LCD Display | Backlight Life (hrs) | 70,000 |
LCD Display | Display Size | 19" |
LCD Display | Luminance (cd/m2) | 350 |
LCD Display | Max. Resolution | 1280 x 1024 |
LCD Display | Viewing Angle (H/V°) | 170/160 |
Mechanical | Enclosure | Die cast magnesium alloy, Die-casting aluminum |
Mechanical | Mounting | Stand, Wall, VESA, Panel |
Mechanical | Weight (Net) | 6.2 kg (13.67 lb) |
Touchscreen | Touch Type | 5-wire analog resistive |

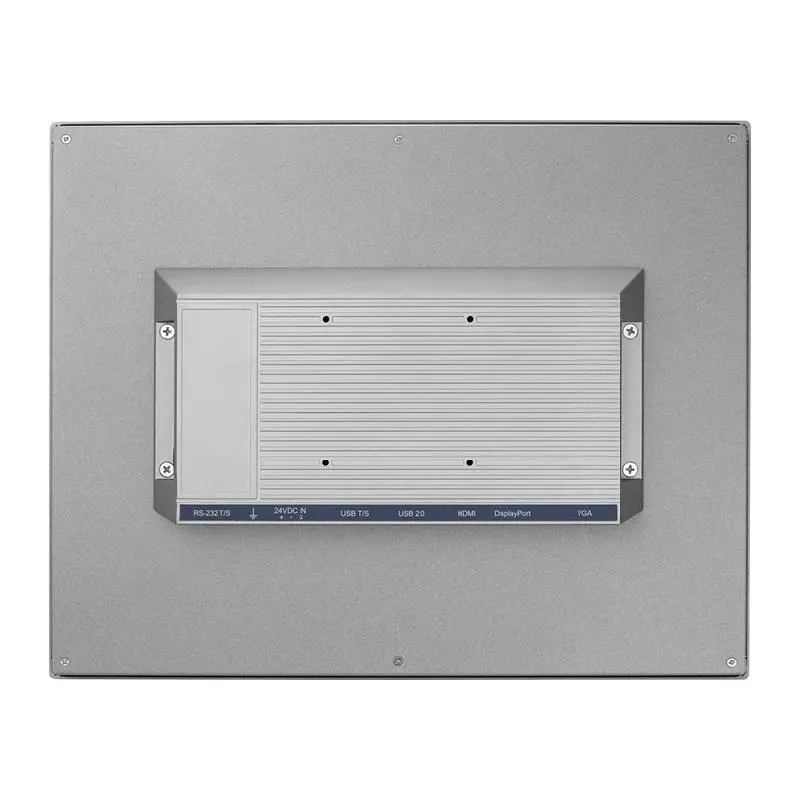

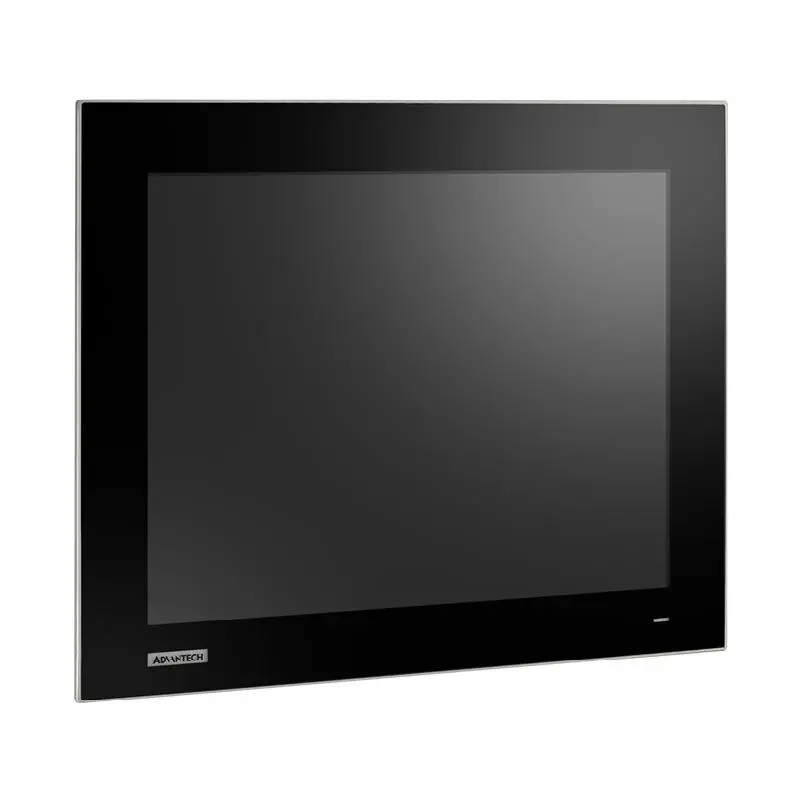

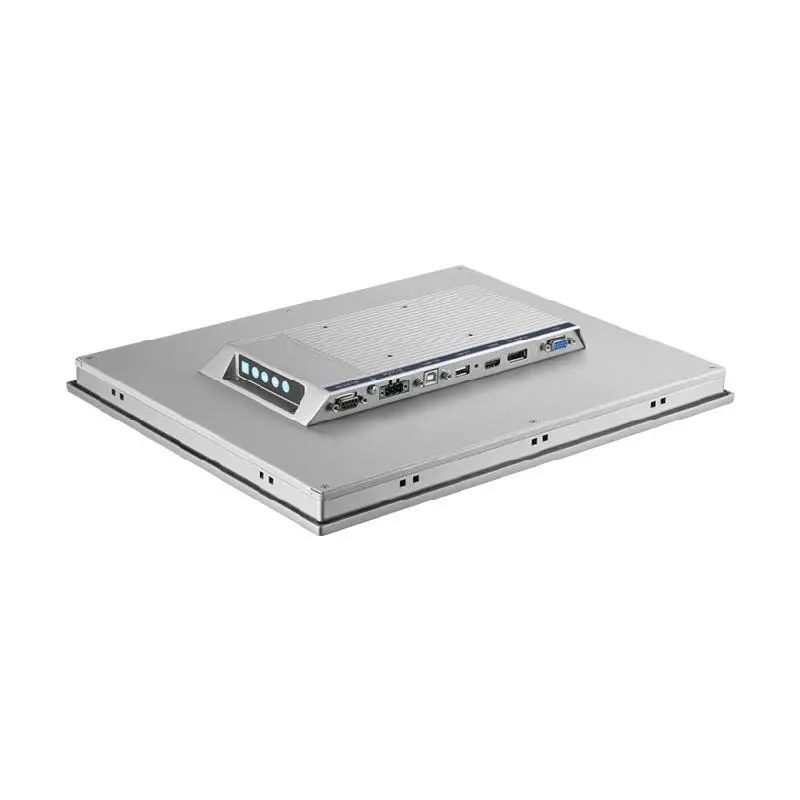

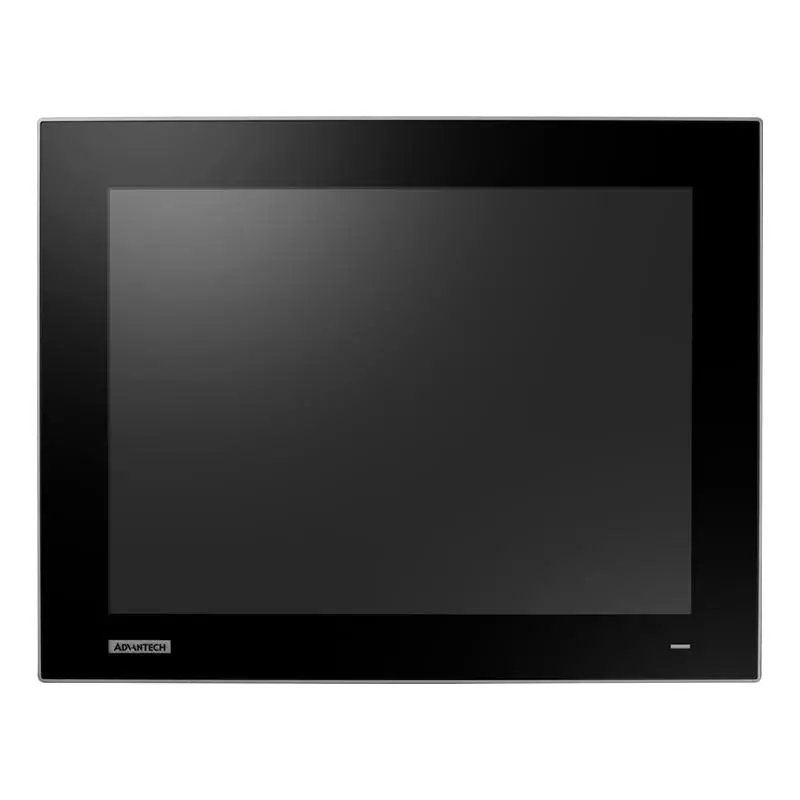

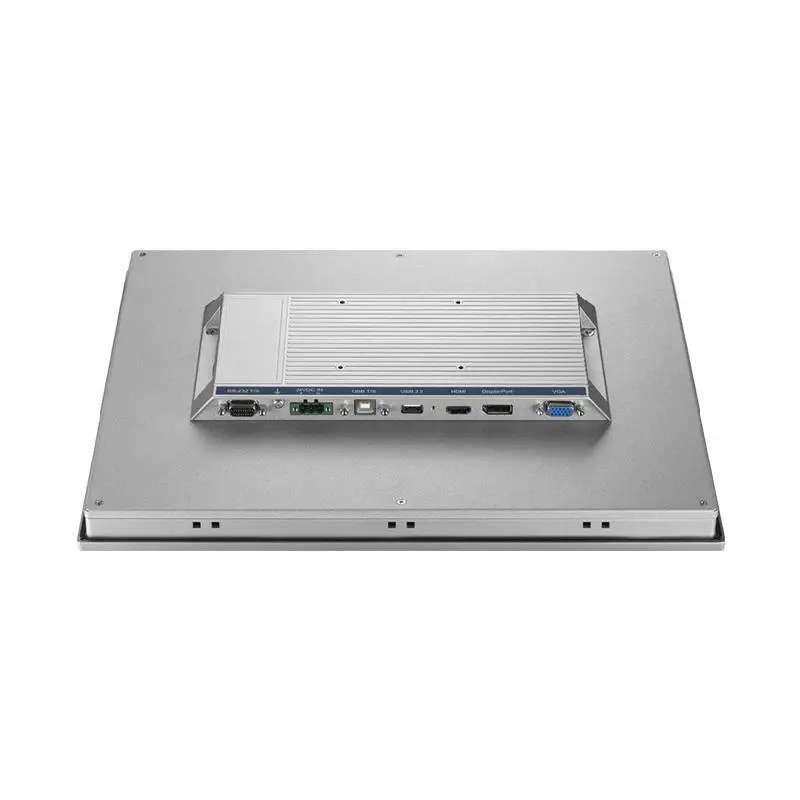

Advantech FPM-719 19" SXGA Industrial Monitors with Resistive Touch Control, Direct HDMI, DP, and VGA Ports
19" SXGA TFT LED LCD with 70,000 backlight lifetime
Direct HDMI, DP and VGA input interfaces
Anti-glare screen with tempered glass
Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
Lockable I/O connectors
Slim design enables easy installation
OSD control buttons with 2 user-defined contrast/brightness controls
Combo RS-232 & USB interface for touchscreen functionality
Supports various mount options: panel, wall, desktop, rack or VESA arm mounting
