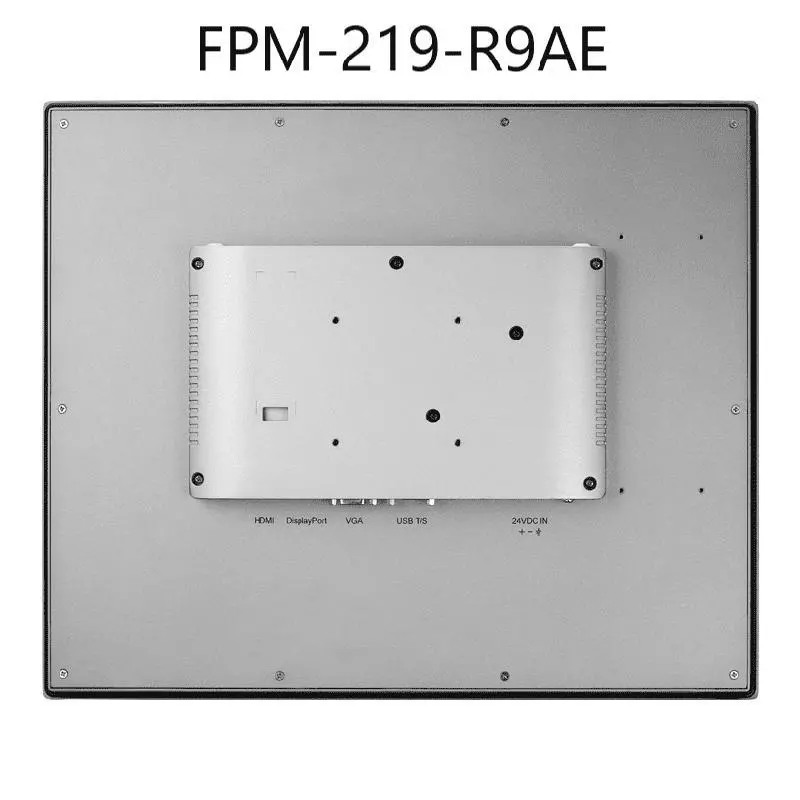

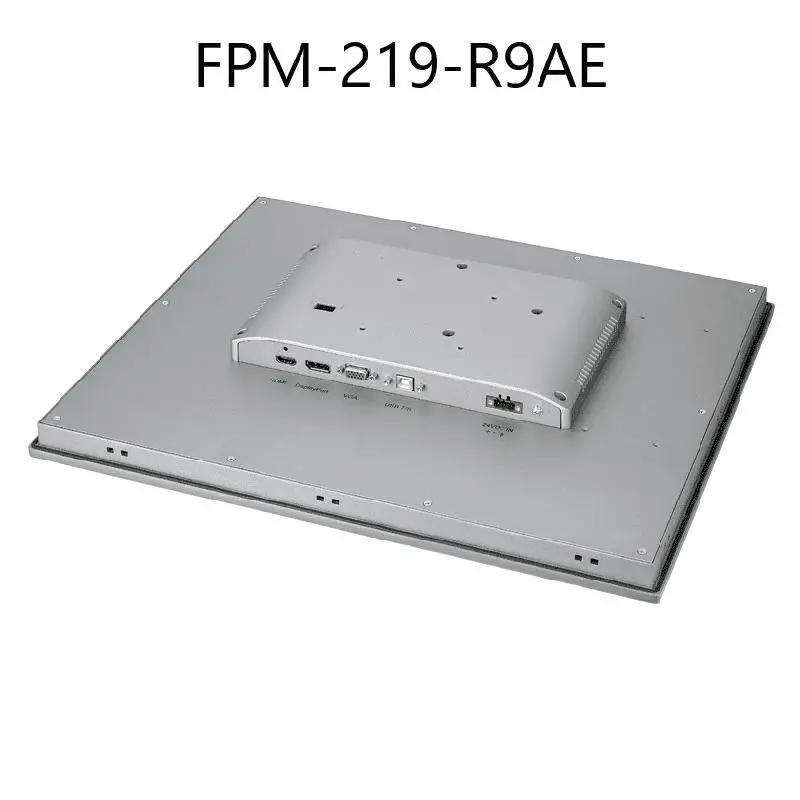

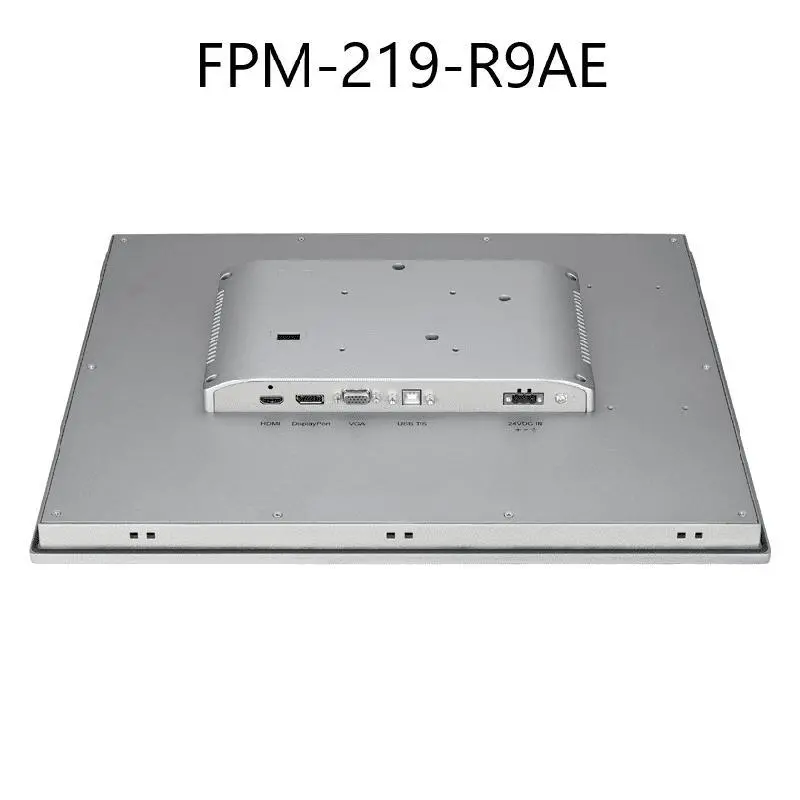

| FPM-219-R9AE | ||
| Environment | Ingress Protection | Front Panel IP66 |
| Environment | Operating Temperature | 0~50 °C (32~122 °F) |
| Environment | Storage Humidity | 10~95% RH (non-condensing) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | OS Support | Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB |
| Hardware | Power Input | 24 VDC |
| Hardware | Video Port | HDMI, DP, VGA |
| I/O Interface | Power Connector | 1 x Lockable DC Jack |
| LCD Display | Backlight Life (hrs) | 70,000 |
| LCD Display | Display Size | 19" |
| LCD Display | Luminance (cd/m2) | 350 |
| LCD Display | Max. Resolution | 1280 x 1024 |
| LCD Display | Viewing Angle (H/V°) | 170/160 |
| Mechanical | Dimension (W x H x D) | 454 x 379.8 x 51.5 mm |
| Mechanical | Enclosure | Die cast magnesium alloy, Die-casting aluminum |
| Mechanical | Mounting | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 6.2 kg (13.67 lb) |
| Touchscreen | Touch Type | 5-wire resistive |
Advantech FPM-219 19" SXGA Industrial Monitors with Resistive Touch Control, Direct HDMI, DP, and VGA Ports
