| FPM-1150G-RHAE | FPM-1150G-RVAE | ||
| Environment | Ingress Protection | Front Panel IP65 | Front Panel IP65 |
| Environment | Operating Temperature | 0~50 °C (32~122 °F) | 0~50 °C (32~122 °F) |
| Environment | Storage Humidity | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) |
| Environment | Storage Temperature | -20~60 °C (-4~140 °F) | -20~60 °C (-4~140 °F) |
| Environment | Vibration Protection | 1 Grms, random | 1 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | OS Support | Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB | Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB |
| Hardware | Power Input | 12 VDC | 12 VDC |
| Hardware | Video Port | HDMI | VGA |
| I/O Interface | Power Connector | 1 x Lockable DC Jack | 1 x Lockable DC Jack |
| LCD Display | Backlight Life (hrs) | 70,000 | 70,000 |
| LCD Display | Display Size | 15" | 15" |
| LCD Display | Luminance (cd/m2) | 300 | 300 |
| LCD Display | Max. Resolution | 1024 x 768 | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 160/140 | 160/140 |
| Mechanical | Dimension (W x H x D) | 392.3 x 313.6 x 51.2 mm | 392.3 x 313.6 x 51.2 mm |
| Mechanical | Enclosure | Die-cast Aluminum | Die-cast Aluminum |
| Mechanical | Mounting | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 4 kg (8.82 lb) | 4 kg (8.82 lb) |
| Touchscreen | Touch Type | 5-wire resistive | 5-wire resistive |

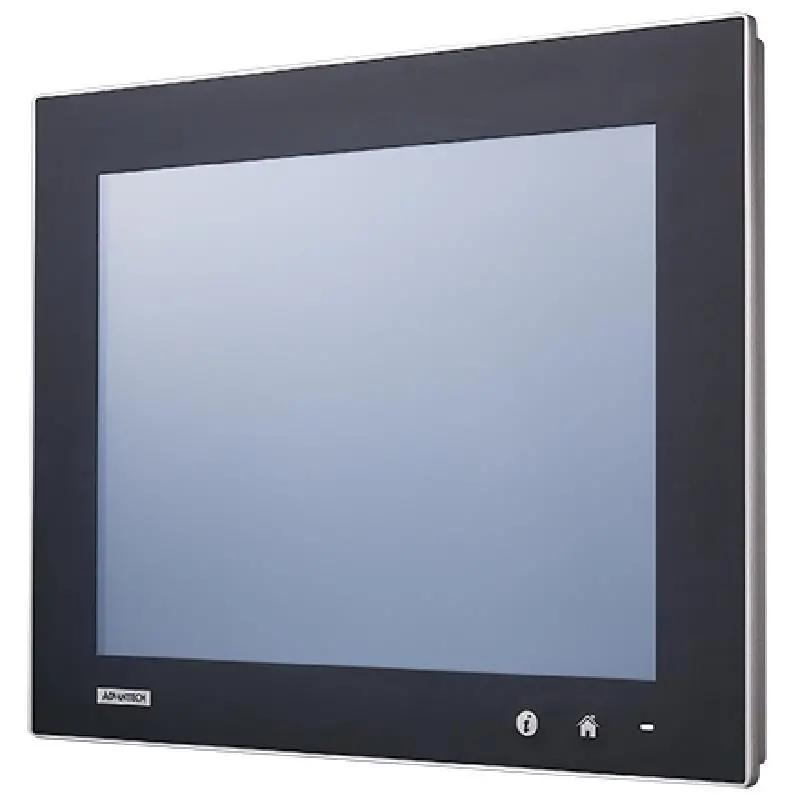

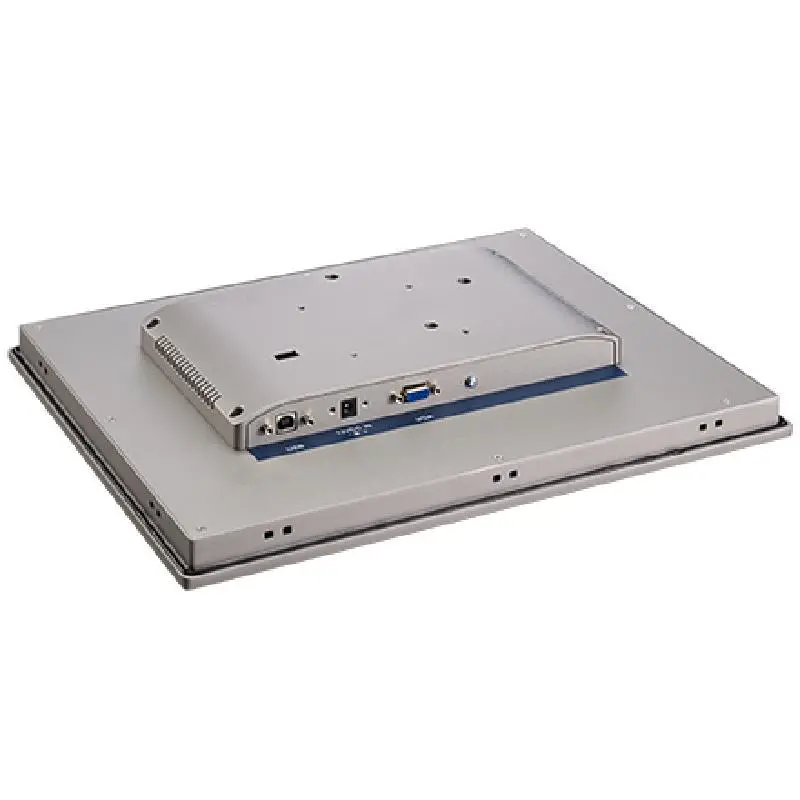

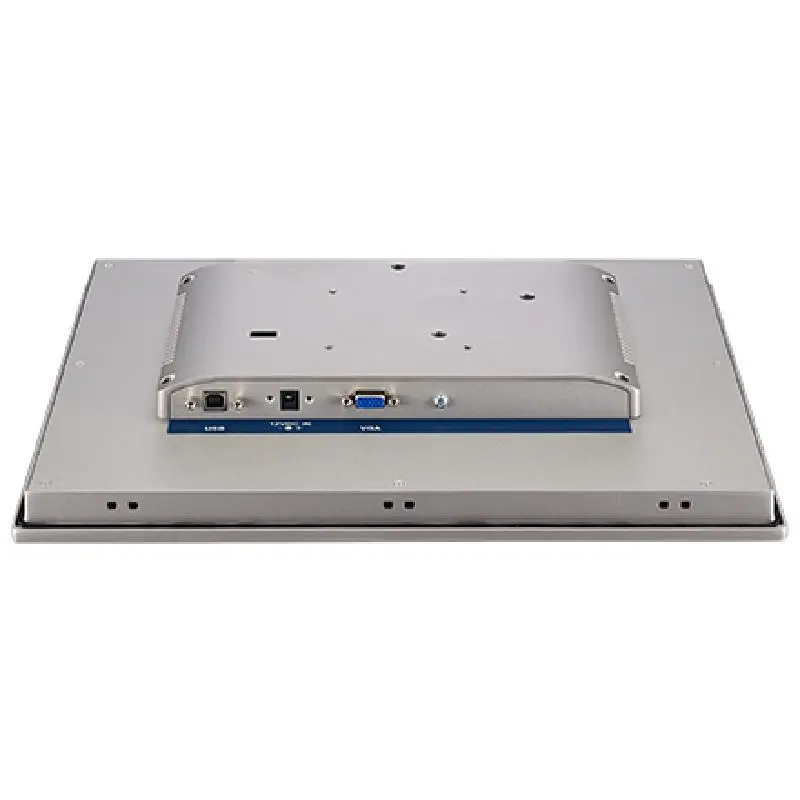

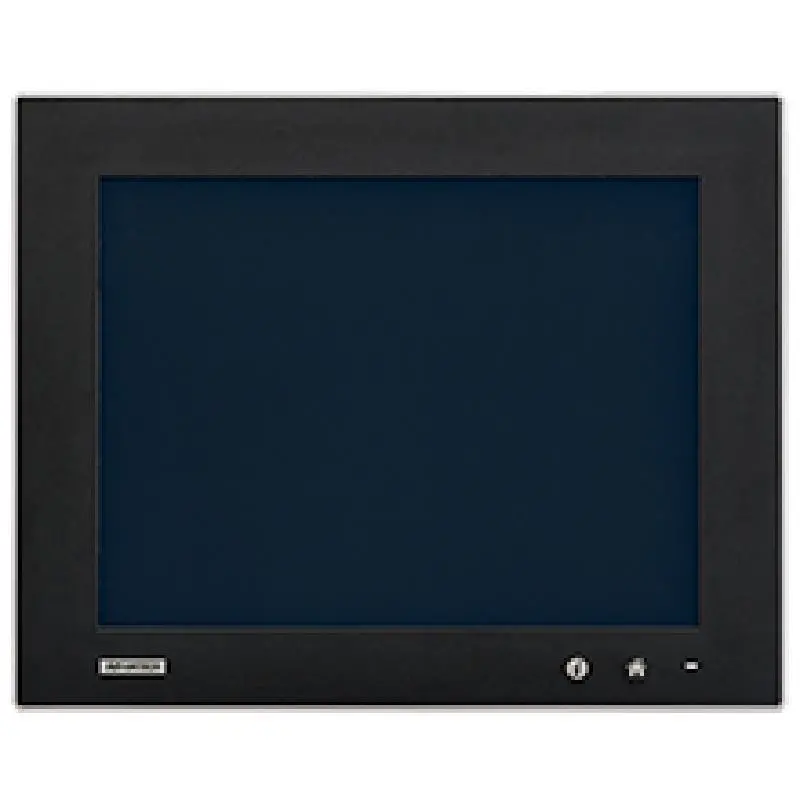

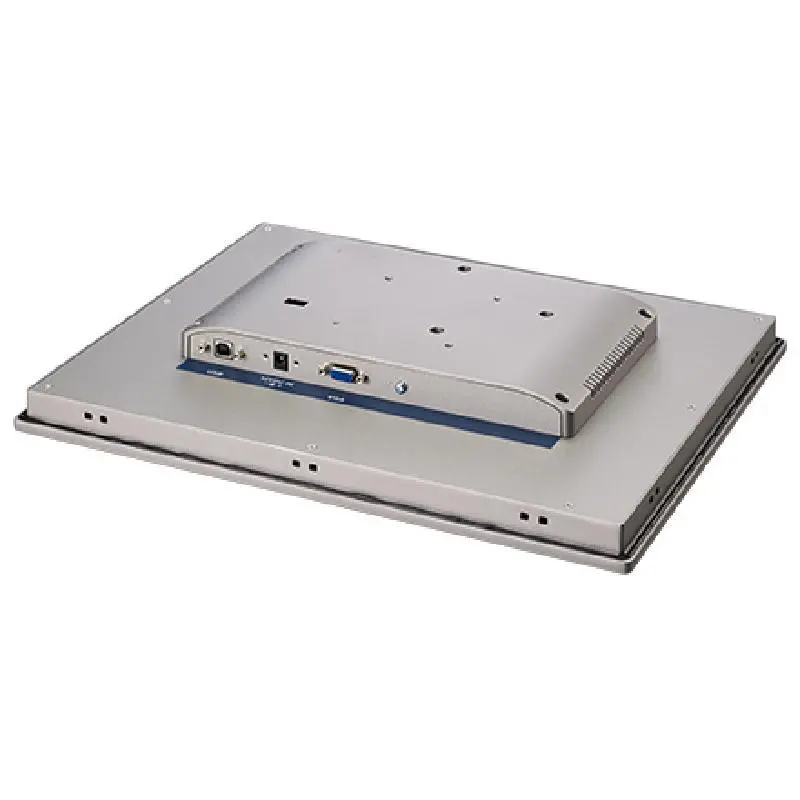

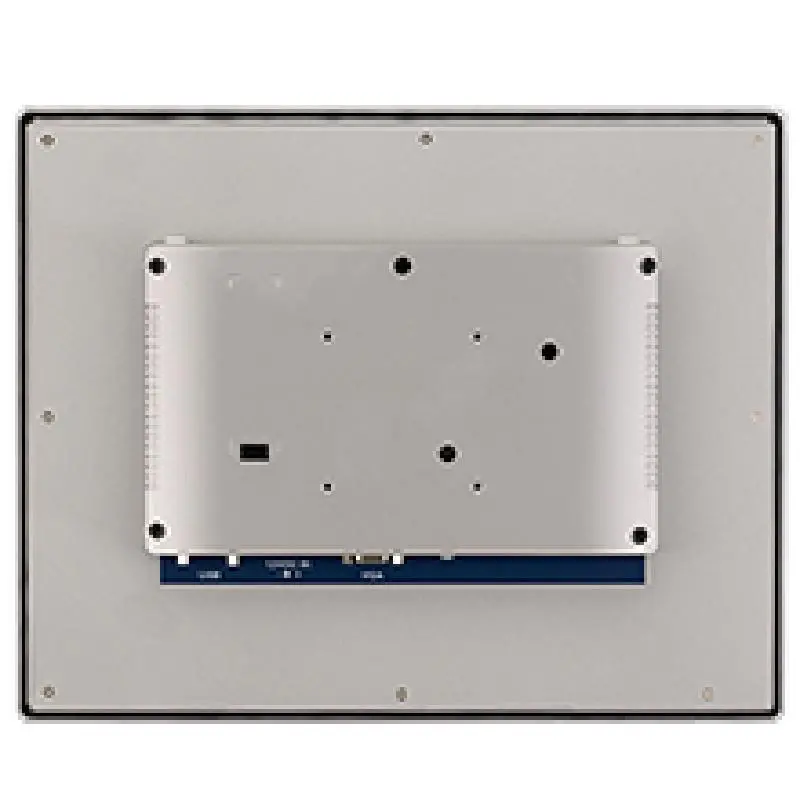

Advantech FPM-1150G 15" XGA Industrial Monitor with Resistive Touchscreen and VGA / HDMI Port
