| FPM-7121T-R3AE | ||
| Environment | Ingress Protection | Front Panel IP66 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Storage Humidity | 10~90% RH (non-condensing) |
| Environment | Storage Temperature | -30~70 °C (-22~158 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| Hardware | OS Support | Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB |
| Hardware | Power Input | 24 VDC |
| Hardware | Video Port | VGA, DP |
| I/O Interface | Power Connector | 1 x Phoenix Jack |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 12.1" |
| LCD Display | Luminance (cd/m2) | 600 |
| LCD Display | Max. Resolution | 1024 x 768 |
| LCD Display | Viewing Angle (H/V°) | 160/140 |
| Mechanical | Dimension (W x H x D) | 311.8 x 238 x 44.5 mm |
| Mechanical | Enclosure | Die cast magnesium alloy, SECC |
| Mechanical | Mounting | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 2.6 kg (5.73 lb) |
| Touchscreen | Touch Type | 5-wire resistive |

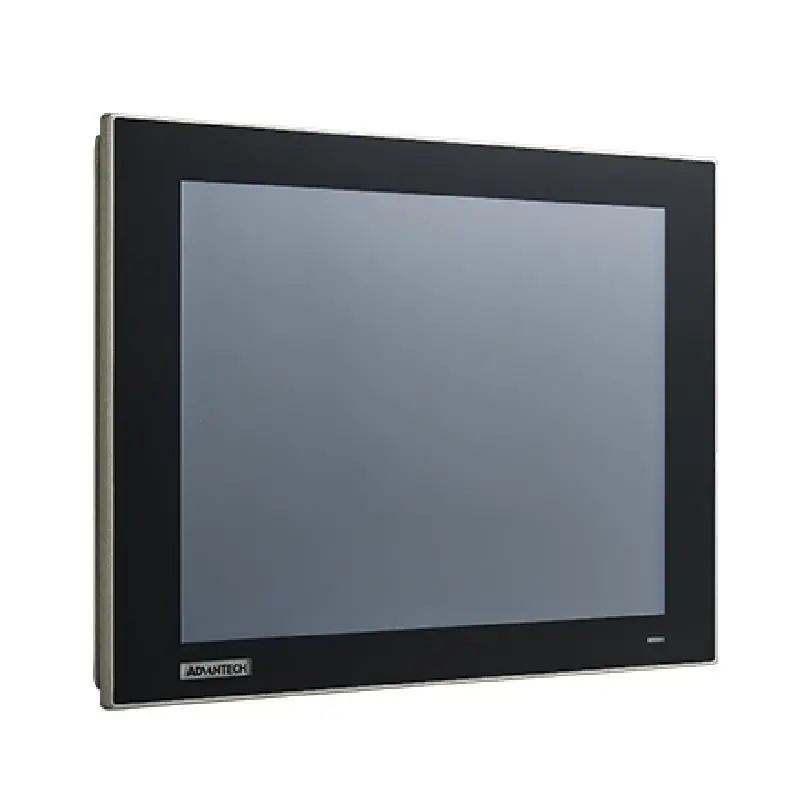

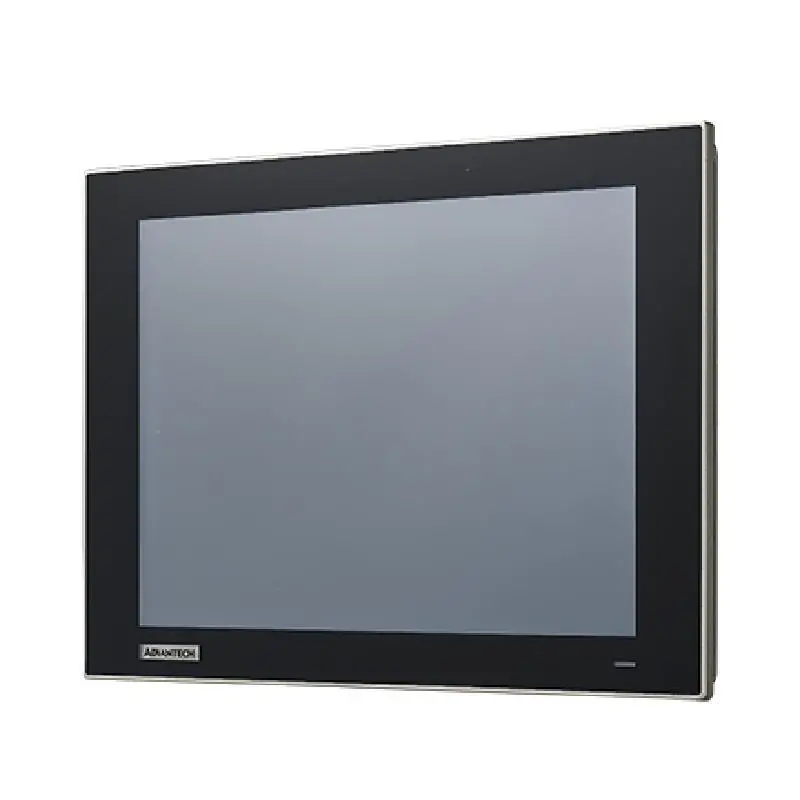

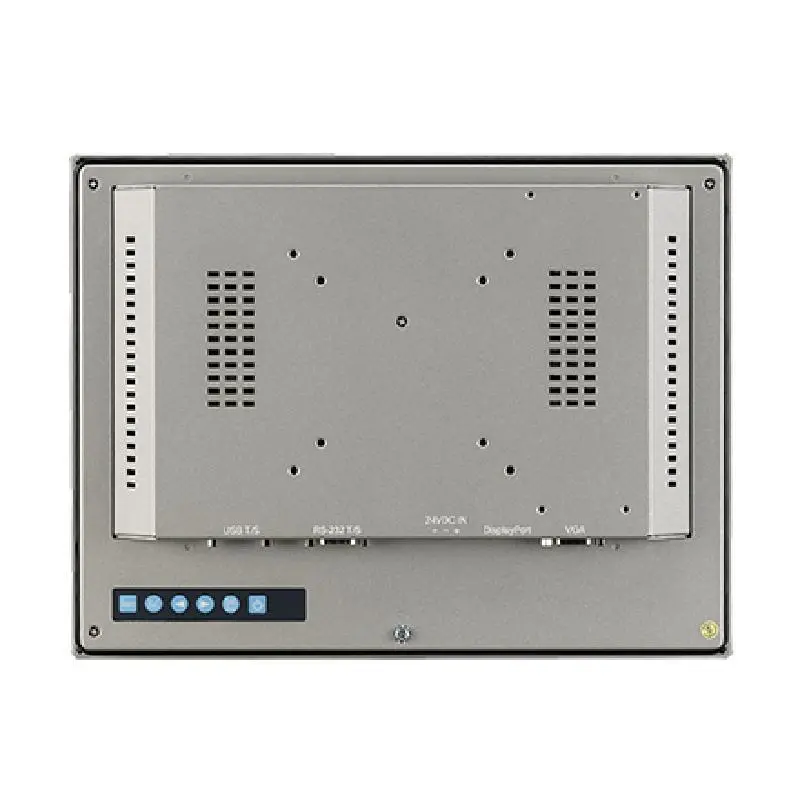

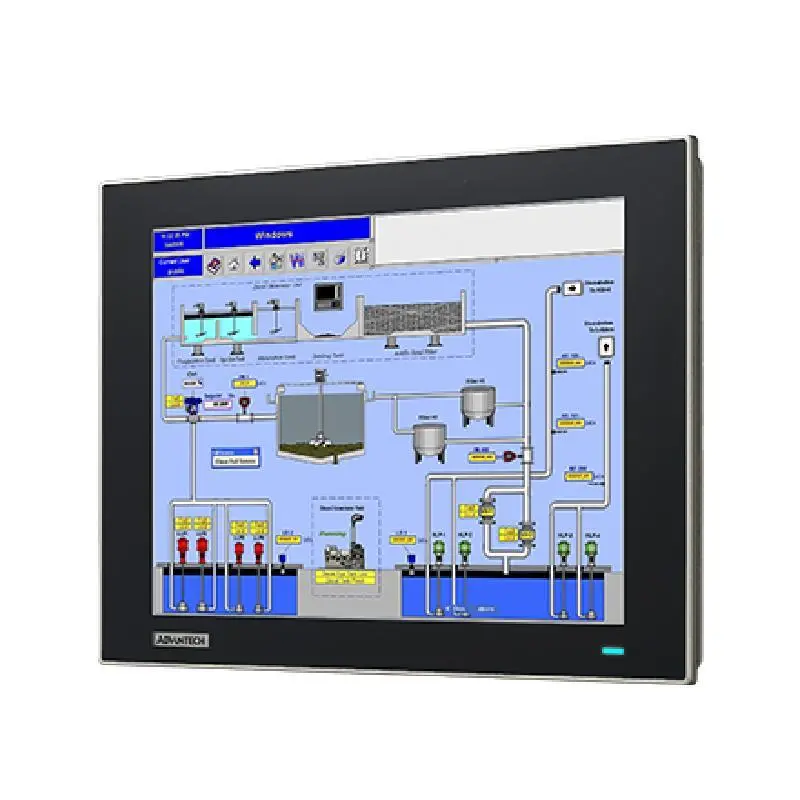

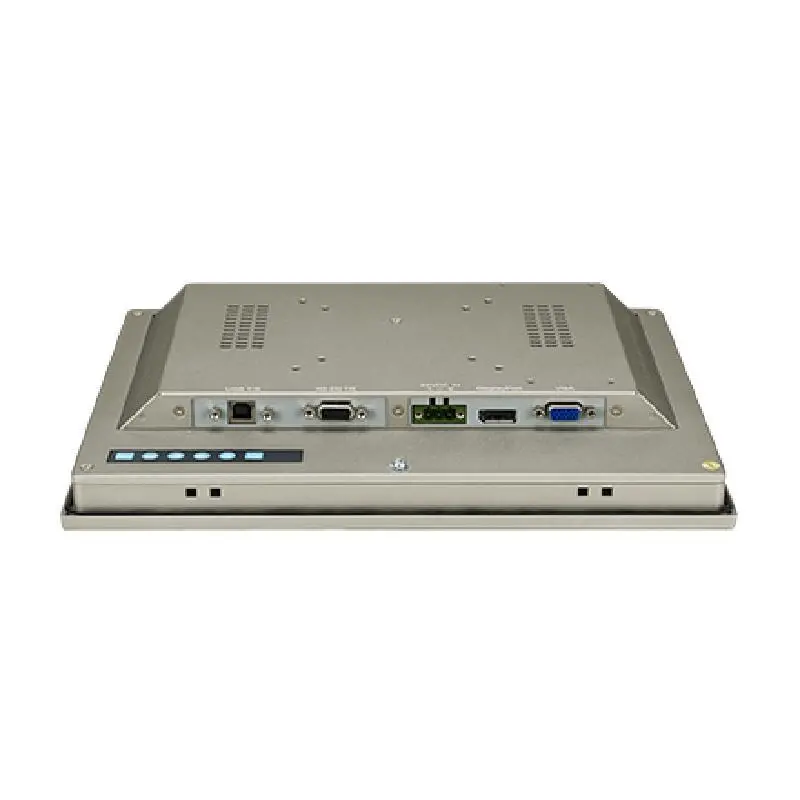

Advantech FPM-7121T 12.1" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA/DP and Wide Operating Temperature Range
