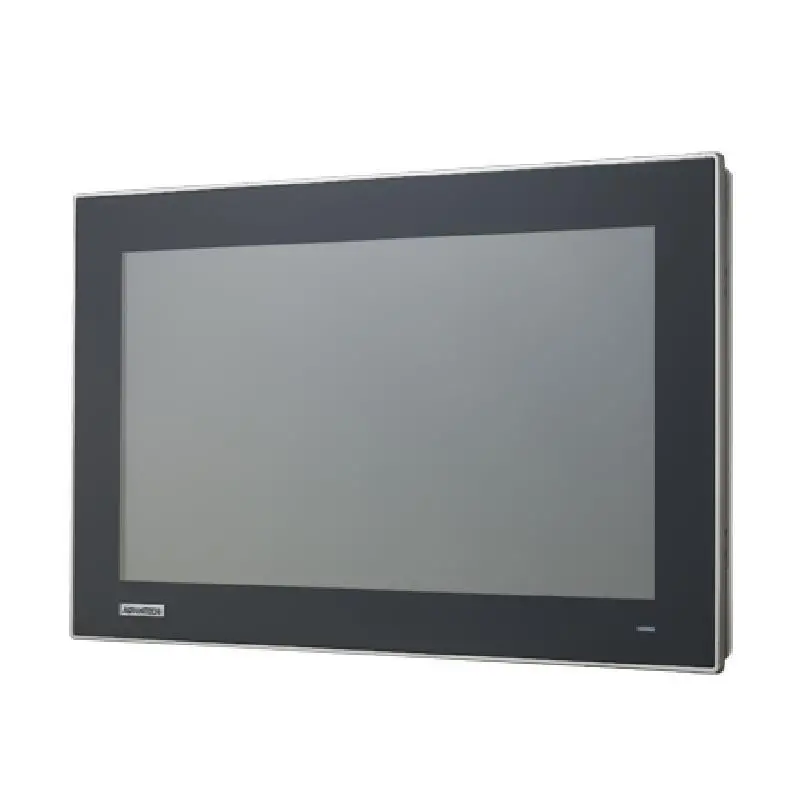

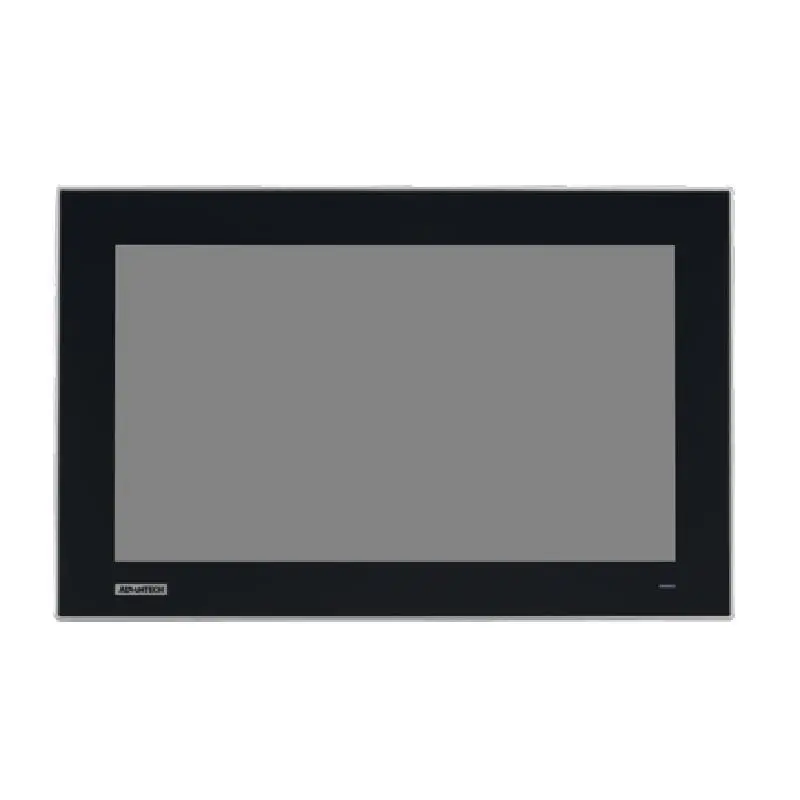

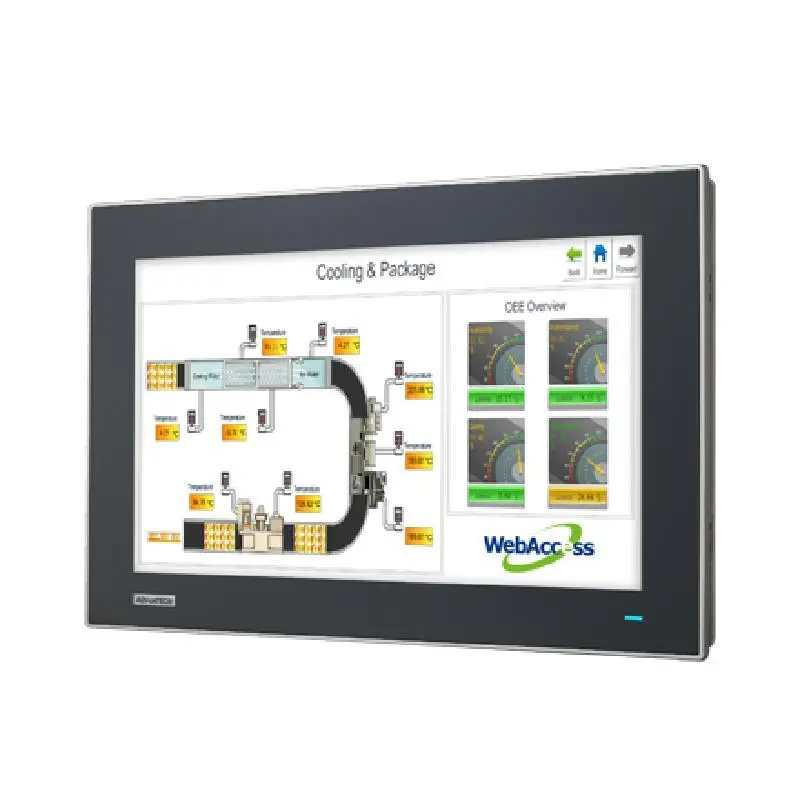

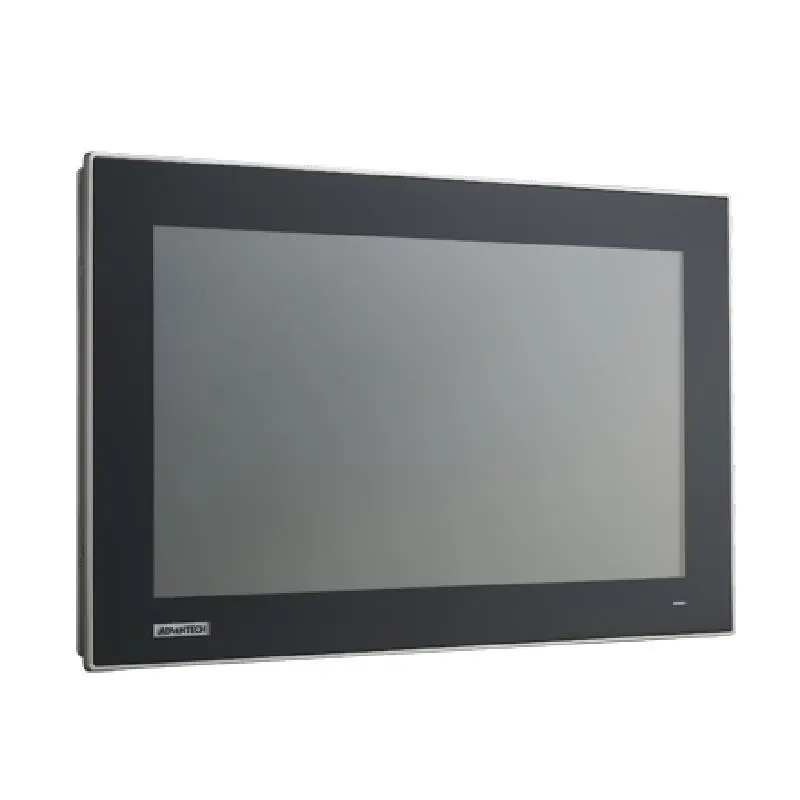

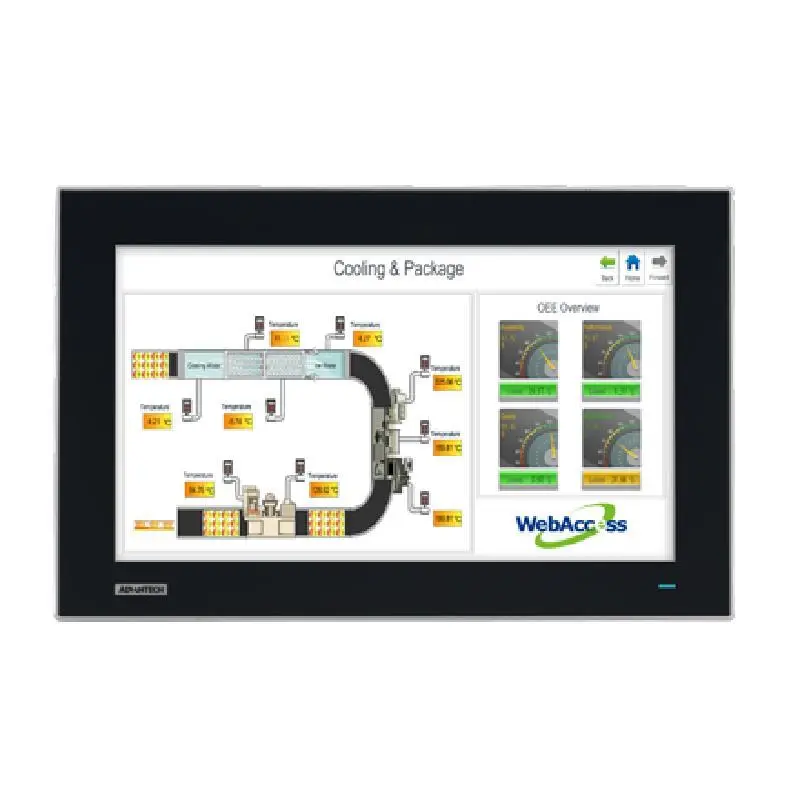

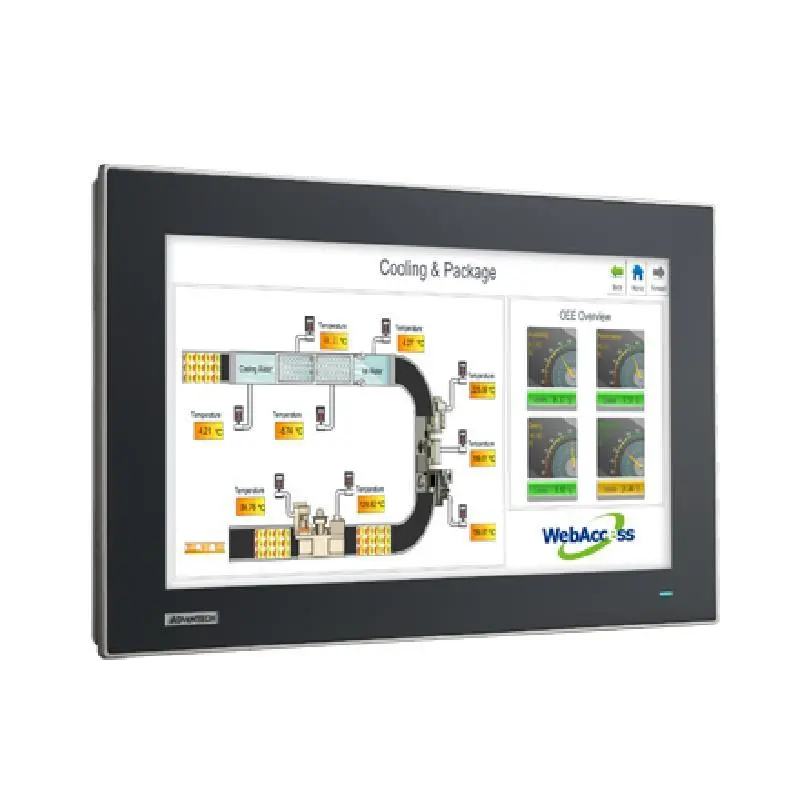

Advantech FPM-7151W 15.6" WXGA Industrial Monitor with PCAP Touch Control, Direct VGA, and DVI Ports

15.6" WXGA TFT LED LCD backlight LCD with truly-flat multi-touch screen

16:9 wide screen display, view area increases by 40%

Supports 10-point multi-touch control via USB interface in Windows 7/8 OS

Slim design enables easy installation

Supports various mount options: panel, wall, desktop, and VESA arm

Touchscreen with reliable glass surface and PCAP touch control

Robust system with SECC chassis and IP66-rated magnesium alloy front panel

OSD control buttons on rear pane

Lockable I/O connectors

		FPM-7151W-P3AE
Environment	Ingress Protection	Front Panel IP66
Environment	Operating Temperature	0~55 °C (32~131 °F)
Environment	Storage Humidity	10~90% RH (non-condensing)
Environment	Storage Temperature	-20~60 °C (-4~140 °F)
Environment	Vibration Protection	1 Grms, random
Hardware	Certification	CB, UL, CE, FCC Class A, CCC, BSMI
Hardware	OS Support	Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
Hardware	Power Input	24 VDC
Hardware	Video Port	HDMI, VGA, DVI-D
I/O Interface	Power Connector	1 x Phoenix Jack
LCD Display	Backlight Life (hrs)	50,000
LCD Display	Display Size	15.6"
LCD Display	Luminance (cd/m2)	300
LCD Display	Max. Resolution	1366 x 768
LCD Display	Viewing Angle (H/V°)	170/160
Mechanical	Dimensions (L x H)	419.7 x 269 mm
Mechanical	Enclosure	Die cast magnesium alloy, SECC
Mechanical	Mounting	Stand, Wall, VESA, Panel
Mechanical	Weight (Net)	5 kg (11 lb)
Touchscreen	Touch Type	PCAP
