| FPM-3171G-R3BE | ||
| Environment | Ingress Protection | Front Panel IP65 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Storage Humidity | 10~95% RH (non-condensing) |
| Environment | Storage Temperature | -30~80 °C (-22~176 °F) |
| Environment | Vibration Protection | 1 Grms, random |
| Hardware | Certification | CB, UL, CE, FCC Class A, CCC, BSMI, Energy Star |
| Hardware | OS Support | Microsoft® Windows 2000,Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB |
| Hardware | Power Input | Phoenix Jack: 24 VDC, DC Jack: 12 VDC |
| Hardware | Video Port | VGA, DVI-D |
| I/O Interface | Power Connector | 1 x Phoenix Jack |
| LCD Display | Backlight Life (hrs) | 50,000 |
| LCD Display | Display Size | 17" |
| LCD Display | Luminance (cd/m2) | 350 |
| LCD Display | Max. Resolution | 1280 x 1024 |
| LCD Display | Viewing Angle (H/V°) | 160/140 |
| Mechanical | Dimension (W x H x D) | 482 x 354.8 x 63.5 mm |
| Mechanical | Enclosure | Aluminum with hard anodizing coating, Stainless steel withground isolation protection |
| Mechanical | Mounting | Stand, Wall, VESA, Panel |
| Mechanical | Weight (Net) | 9.25 kg (20.39 lb) |
| Touchscreen | Touch Type | 5-wire resistive |

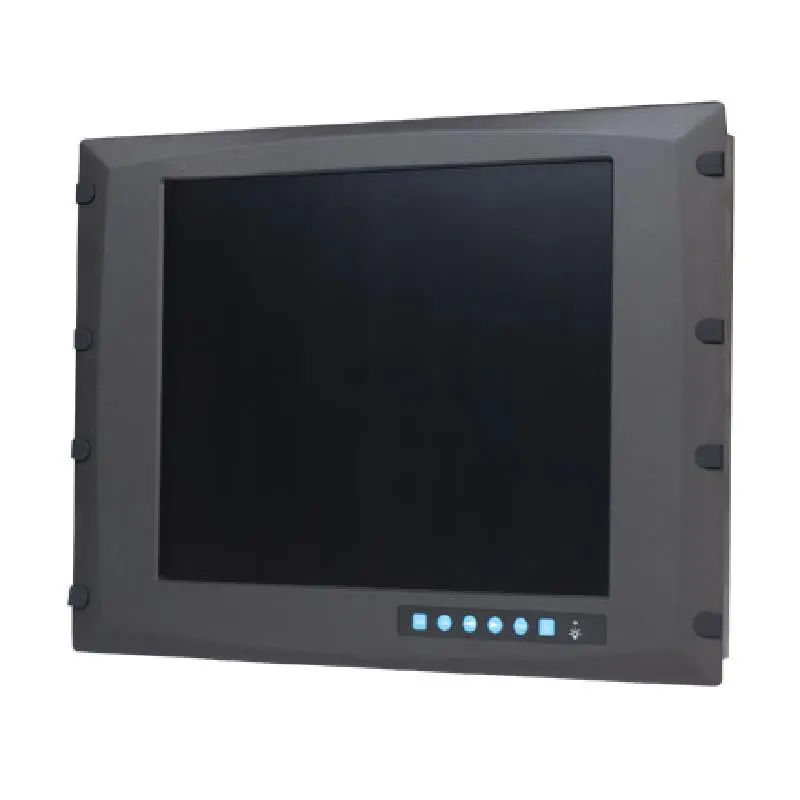

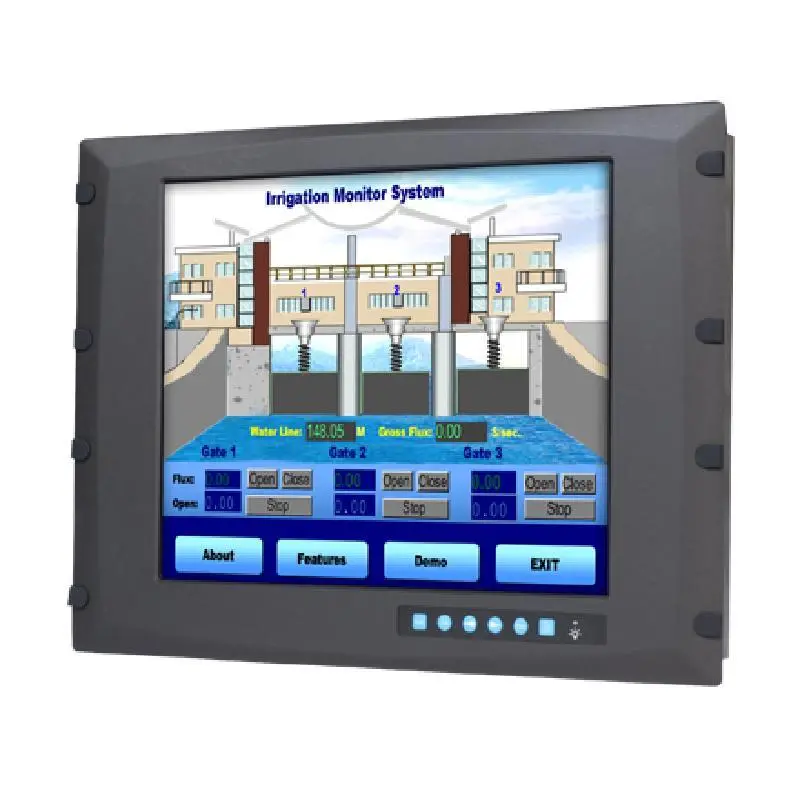

Advantech FPM-3171G 8U Rackmount 17" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA and DVI Ports, and Wide Operating Temperature Range
