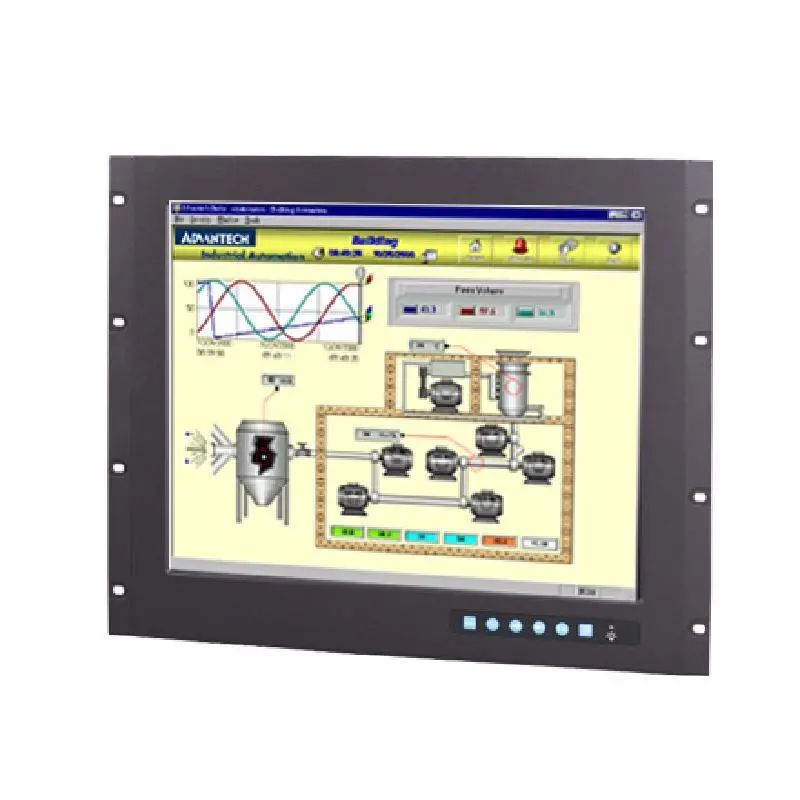

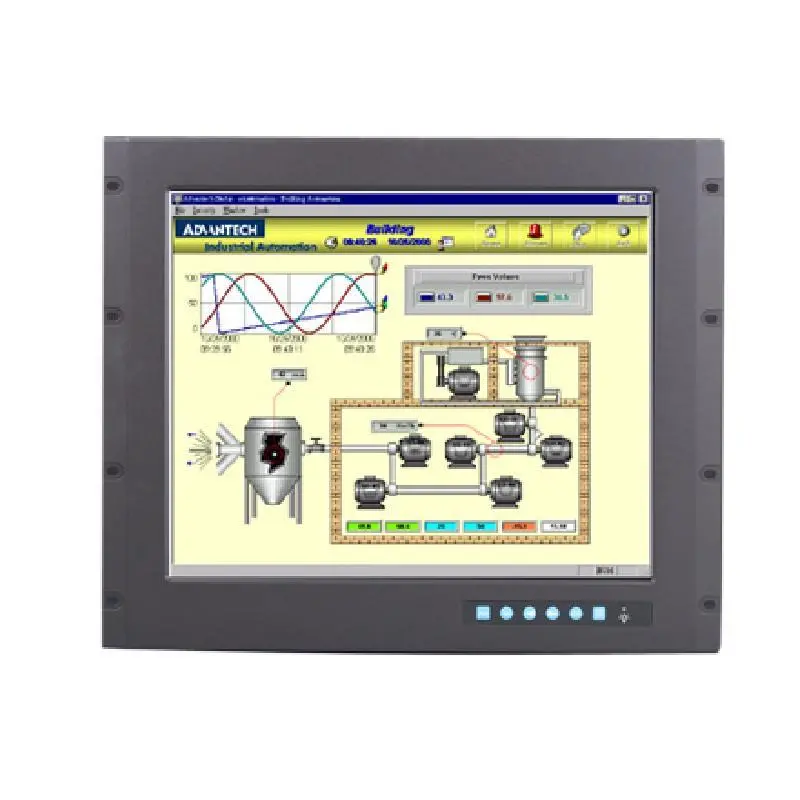

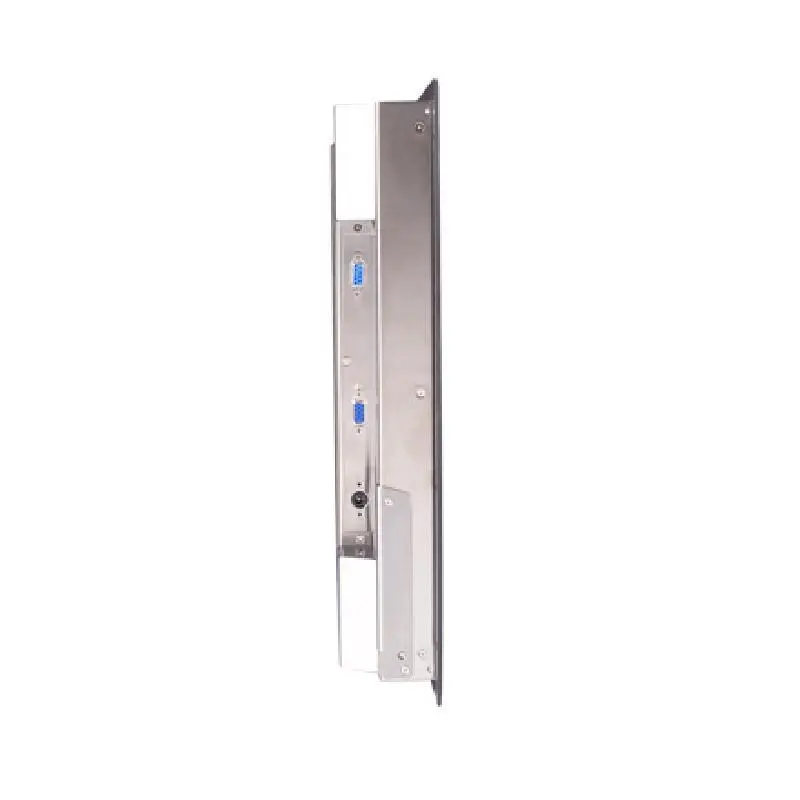

Advantech FPM-3191G 9U Rackmount, 19" SXGA Industrial Monitor with Resistive Touch Control, Direct VGA, and DVI Ports

    19" SXGA TFT LCD with LED backlight

    Robust design with stainless steel chassis and aluminum front panel

    Anti-glare screen with tempered glass and IP65-certified front panel

    Lockable OSD control pad on rear cover

    Supports 24 VDC power input

    Supports panel, wall, desktop, rack, or VESA arm mounting

    Supports 9U pre-drilled rackmount mounting holes

FPM-3191G-R3BE
Environment Ingress Protection Front Panel IP65
Environment Operating Temperature -20~60 °C (-4~140 °F)
Environment Storage Humidity 10~95% RH (non-condensing)
Environment Storage Temperature -30~80 °C (-22~176 °F)
Environment Vibration Protection 1 Grms, random
Hardware Certification CB, UL, CE, FCC Class A, CCC, BSMI, Energy Star
Hardware OS Support Microsoft® Windows 2000,Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
Hardware Power Input Phoenix Jack: 24 VDC, DC Jack: 12 VDC
Hardware Video Port VGA, DVI-D
I/O Interface Power Connector 1 x Phoenix Jack
LCD Display Backlight Life (hrs) 50,000
LCD Display Display Size 19"
LCD Display Luminance (cd/m2) 350
LCD Display Max. Resolution 1280 x 1024
LCD Display Viewing Angle (H/V°) 170/160
Mechanical Dimension (W x H x D) 482 x 399.2 x 67 mm
Mechanical Enclosure Aluminum with hard anodizing coating, Stainless steel withground isolation protection
Mechanical Mounting Stand, Wall, VESA, Panel
Mechanical Weight (Net) 10.65 kg (23.46 lb)
Touchscreen Touch Type 5-wire resistive
