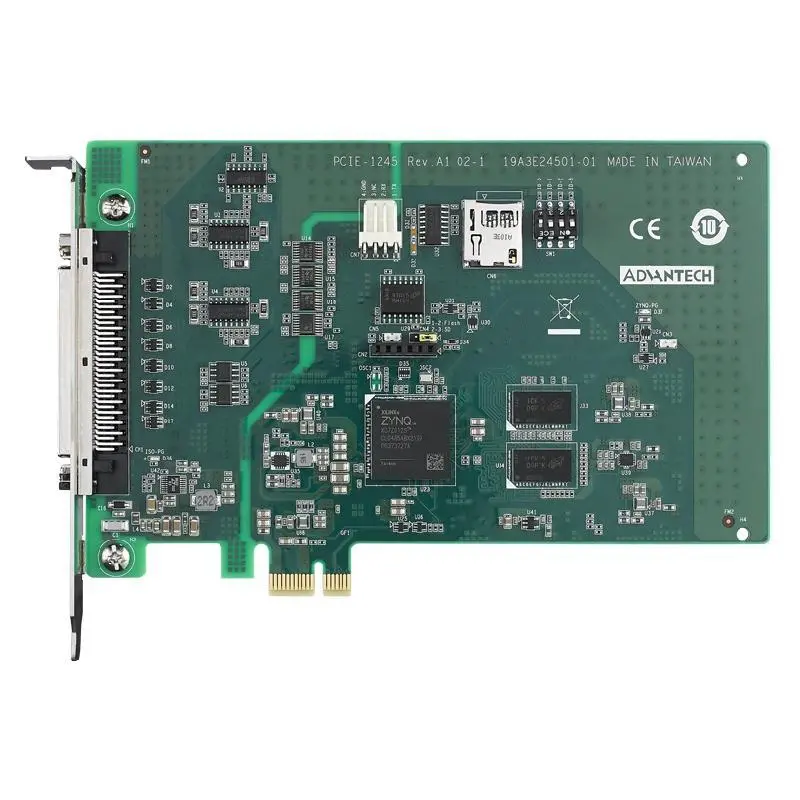

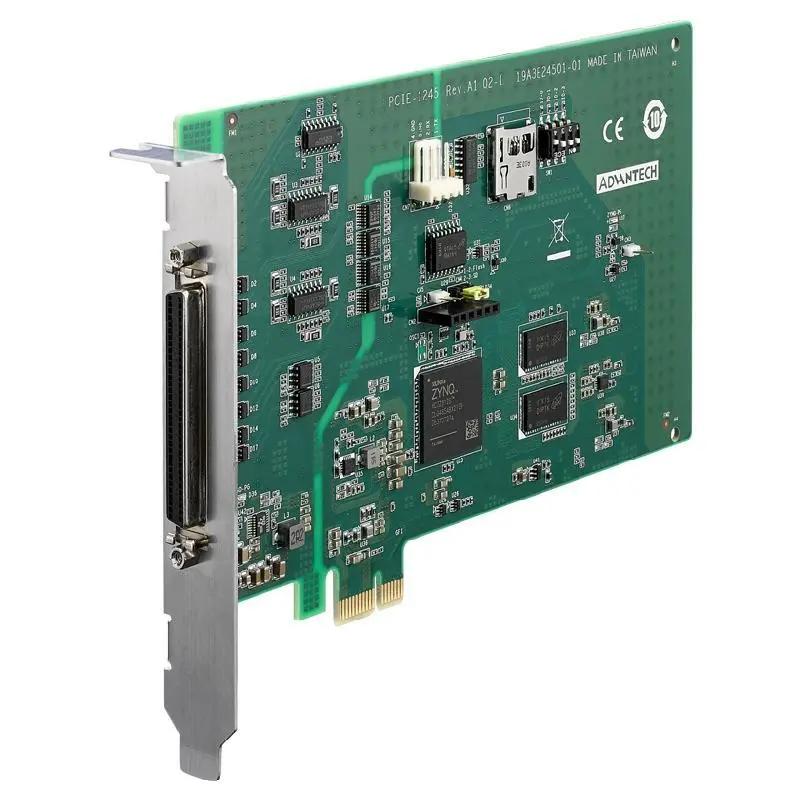

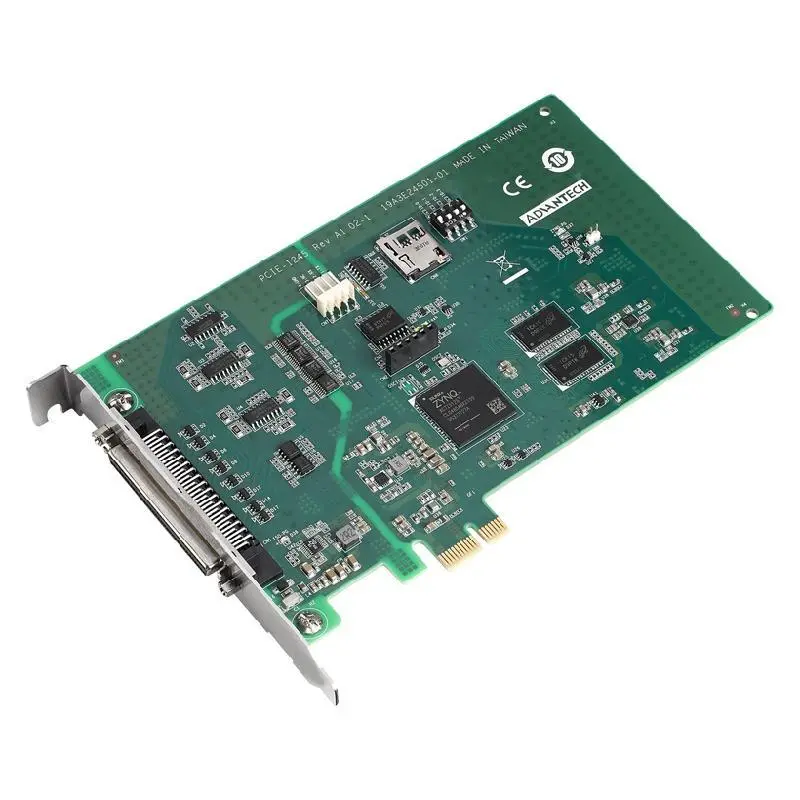

Advantech PCIE-1245 Full 4-Axis Motion Control Universal PCI Express Card

Encoder input: 5 MHz for CW/CCW,P/D,AB mode; Pulse output: up to 5 MHz

Supports memory buffer (10 K points) for trajectory planning

Supports point-to-point, line and E-Gear; Supports hardware emergency input

Circular and helical interpolation (PCIE-1245 only)

Position latch up to 10KHz and memory buffer 1K points (PCIE-1245 only)

Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points (PCIE-1245 only)

1D&2D plane position compensation (PCIE-1245 only)

Gantry mode by semi-closed loop pulse train control (PCIE-1245 only)

Dynamic PWM output for velocity following (PCIE-1245 only)

		PCIE-1245-AE
Pulse Type Motion Control	Max. Output Speed	5 Mbps
Counter/Encoder Input	Counting Range	32-bit
Pulse Type Motion Control	Pulse Output Type	CW/CCW or pulse/direction
Counter/Encoder Input	Channels	4
Encoder Type and Interface	Input Type	Quadrature (x1, x2, x4 A/B phase) or CW/CCW or P/D
Encoder Type and Interface	Max. Input Frequency	10 MHz under x4 A/B phase mode
Pulse Type Motion Control	Velocity Profiles	T-Curve, S-Curve
Pulse Type Motion Control	Interpolation	2/3-axis linear, 2/3-axis circular
