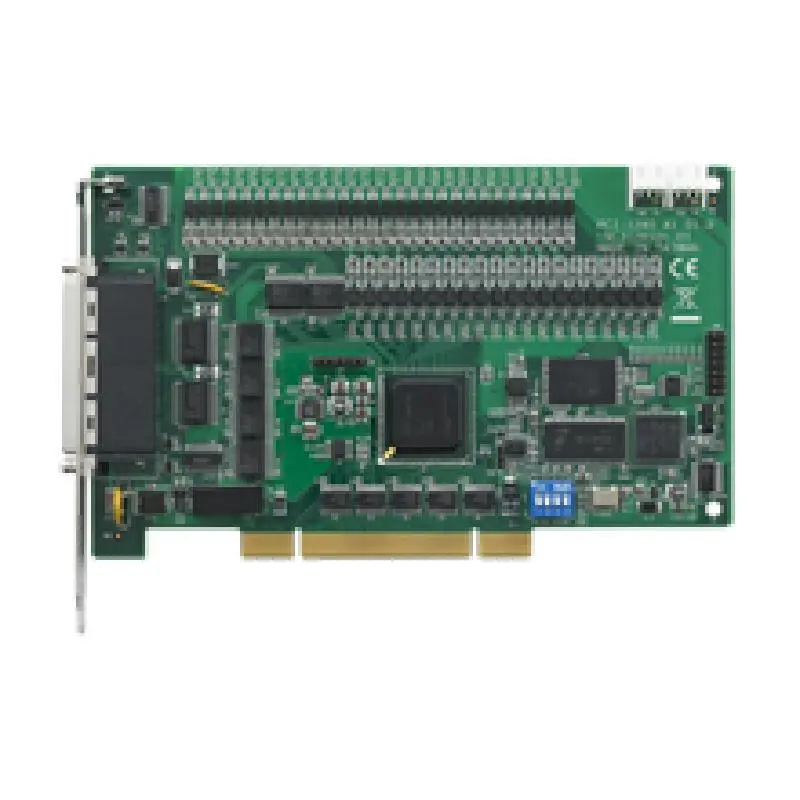

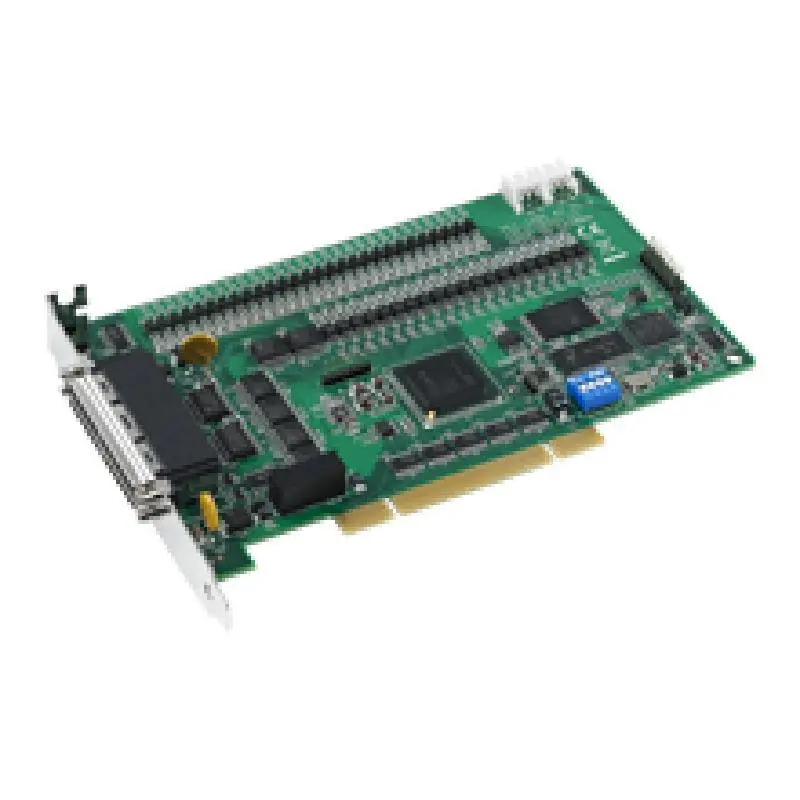

Advantech PCI-1285V Value DSP-Based 8-Axis Motion Control Universal PCI Card

Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode

Pulse output up to 5 Mpps

Supports linear and circular interpolation

Hardware emergency input

Supports E-Gear

Supports programmable acceleration/deceleration rate

Memory buffer (10K points) for trajectory planning which is designed in DSP(Auto-blending is not supported)

Position compares triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP

Position latch

Programmable interrupt and watchdog timer

RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes
