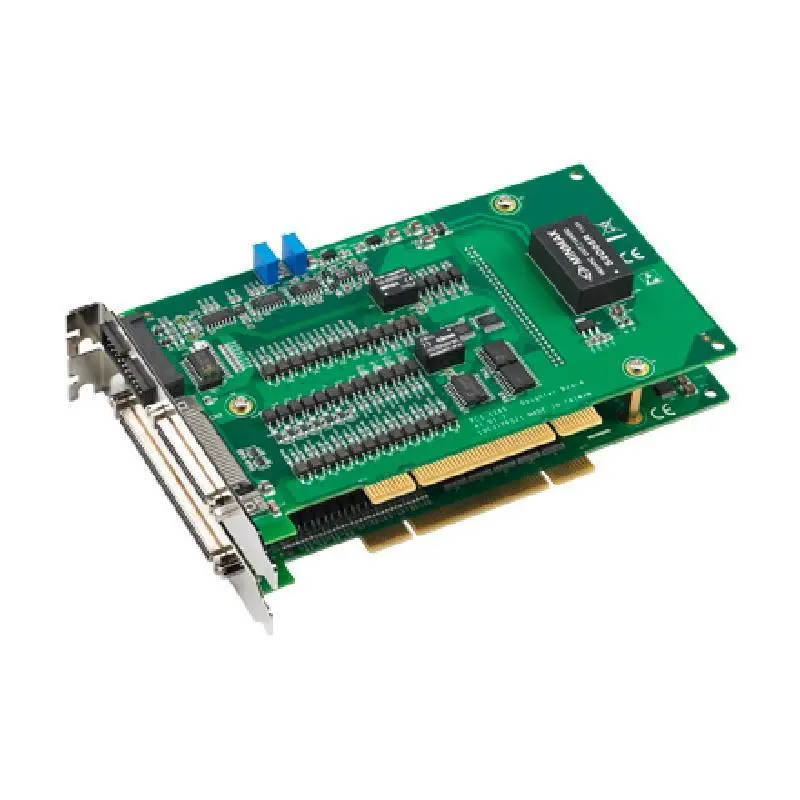

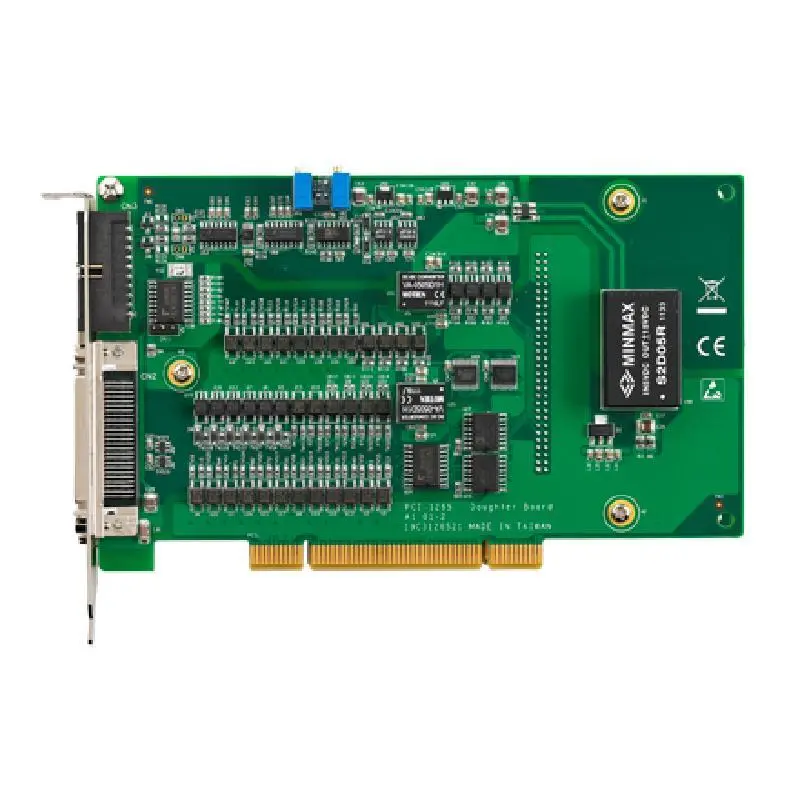

Advantech PCI-1265 Full DSP-based 6-Axis Motion Control Universal PCI Card

Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode

Pulse output up to 5 Mpps

Memory buffer (10K points) for trajectory planning which is designed in DSP

Supports E-Gear, and helical interpolation

Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP

Hardware emergency input

Watchdog timer

Position latch via ORG & index signal

Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP

Programmable interrupt

Supports gantry mode by semi-closed loop pulse train control

RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes
