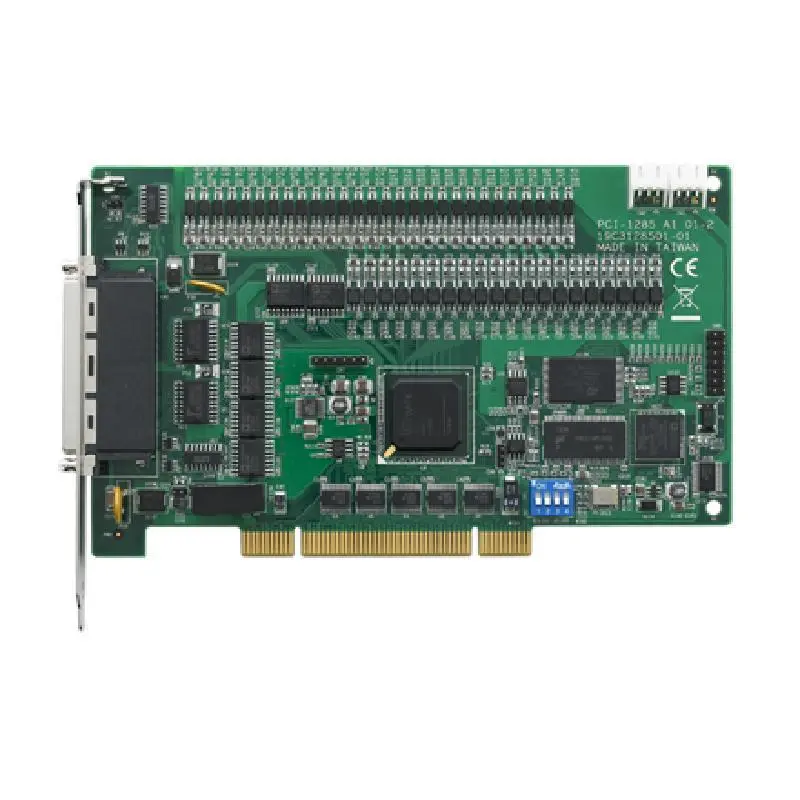

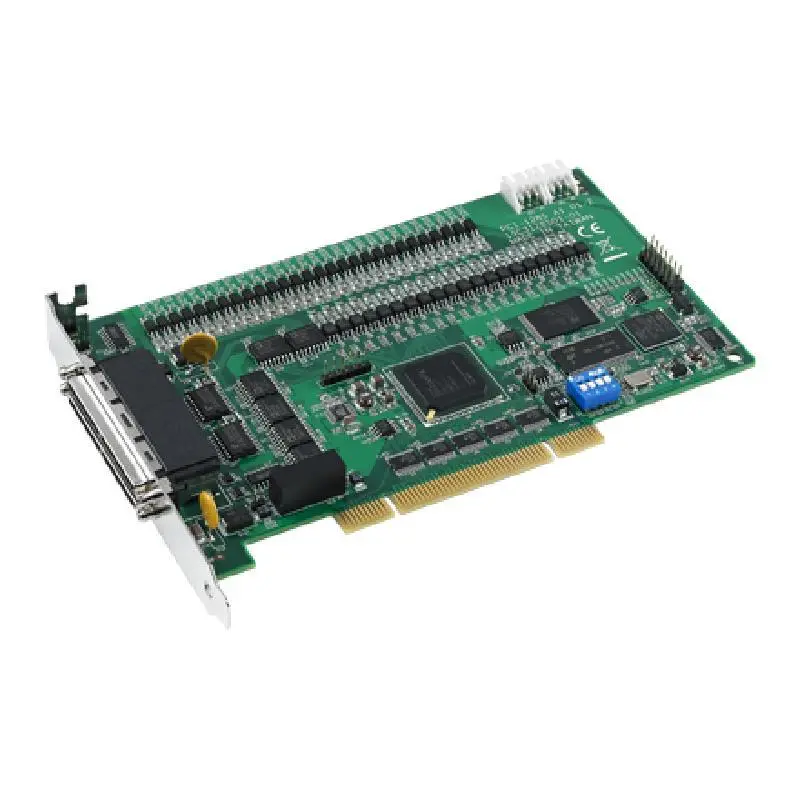

Advantech PCI-1285E Economic DSP-based 8-Axis Motion Control Universal PCI Card

Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode

Pulse output up to 5 Mpps

Memory buffer for trajectory planning (circular trajectory and auto blending are not supported)

Supports E-Gear (only for PCI-1245E)

Hardware emergency input

Watchdog timer

Position latch via ORG & index signal

Programmable interrupt

RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes
